ASRock A55M-VS Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published May 2013

2ASRock A55M-VS Motherboard

English

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 14 Southbridge Controller

2 Power Fan Connector (PWR_FAN1) 15 System Panel Header (PANEL1, Black)

3 CPU Fan Connector (CPU_FAN1) 16 Infrared Module Header (IR1)

4 CPU Socket 17 Print Port Header (LPT1, Black)

5 CPU Heatsink Retention Module 18 USB 2.0 Header (USB6_7, Black)

6 2 x 240-pin DDR3 DIMM Slots 19 Consumer Infrared Module Header (CIR1)

(Dual Channel: DDR3_A1, DDR3_B1; Black) 20 USB 2.0 Header (USB8_9, Black)

7 ATX 12V Power Connector (ATX12V1) 21 COM Port Header (COM1)

8 Chassis Fan Connector (CHA_FAN1) 22 PCI Slot (PCI1)

9 Chassis Speaker Header (SPEAKER 1, Black) 23 SPI Flash Memory (32Mb)

10 SATA2 Connector (SATA_4, Black) 24 PCI Express 2.0 x16 Slot (PCIE1; Black)

11 SATA2 Connector (SATA_3, Black) 25 Front Panel Audio Header (HD_AUDIO1, Black)

12 SATA2 Connector (SATA_1, Black) 26 Clear CMOS Jumper (CLRCMOS1)

13 SATA2 Connector (SATA_2, Black)

ASRock A55M-VS Motherboard

English

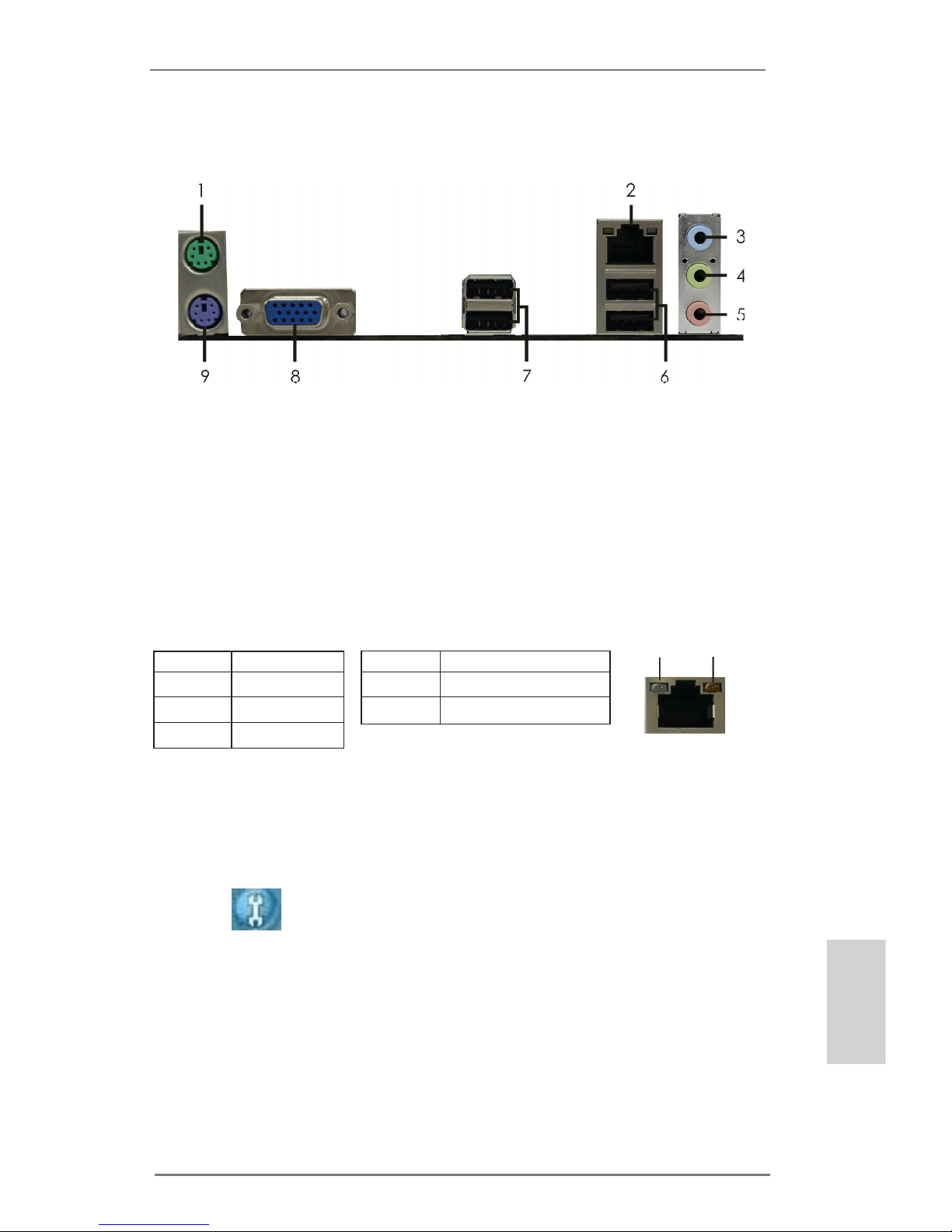

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGA Port

** 4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink)

LAN Port

ACT/LINK

LED

SPEED

LED

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock A55M-VS Motherboard

1. Introduction

Thank you for purchasing ASRock A55M-VS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A55M-VS Motherboard

(Micro ATX Form Factor: 8.8-in x 6.8-in, 22.4 cm x 17.3 cm)

ASRock A55M-VS Quick Installation Guide

ASRock A55M-VS Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

English

ASRock A55M-VS Motherboard

English

1.2 Specifications

Platform - Micro ATX Form Factor: 8.8-in x 6.8-in, 22.4 cm x 17.3 cm

- Solid Capacitor for CPU power

CPU - Support for Socket FM1 100W processors

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A55 FCH (Hudson-D2)

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/

1066/800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot

- 1 x PCI slot

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - Realtek PCIE x1 LAN RTL8105E

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x IR header

6ASRock A55M-VS Motherboard

English

- 1 x CIR header

- 1 x Print port header

- 1 x COM port header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, DRAM, VDDP, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 5)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 6)

- ASRock APP Charger (see CAUTION 7)

- ASRock XFast USB (see CAUTION 8)

- ASRock XFast LAN (see CAUTION 9)

- ASRock XFast RAM (see CAUTION 10)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 11)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant (see CAUTION 12)

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 13)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock A55M-VS Motherboard

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®64-bit OS with 64-bit CPU, there is no such

limitation. You can use ASRock XFast RAM to utilize the memory that

Windows®cannot use.

4. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

5. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control and IES. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the fan speed

and temperature for you to adjust. In IES (Intelligent Energy Saver), the

voltage regulator can reduce the number of output phases to improve

efficiency when the CPU cores are idle without sacrificing computing

performance. Please visit our website for the operation procedures of

ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

6. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems rst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS le to your USB ash drive, oppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

system.

8ASRock A55M-VS Motherboard

English

7. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solu-

tion for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

8. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

9. ASRock XFast LAN provides a faster internet access, which includes be-

low benets. LAN Application Prioritization: You can congure your appli-

cation priority ideally and/or add new programs. Lower Latency in Game:

After setting online game priority higher, it can lower the latency in game.

Traffic Shaping: You can watch Youtube HD video and download files

simultaneously. Real-Time Analysis of Your Data: With the status window,

you can easily recognize which data streams you are currently transfer-

ring.

10. ASRock XFast RAM is a new function that is included into ASRock Ex-

treme Tuning Utility (AXTU). It fully utilizes the memory space that cannot

be used under Windows®OS 32-bit CPU. ASRock XFast RAM shortens

the loading time of previously visited websites, making web surng faster

than ever. And it also boosts the speed of Adobe Photoshop 5 times

faster. Another advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend their lifes-

pan.

11. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

12. ASRock XFast RAM is not supported by Microsoft® Windows®XP / XP 64-

bit.

ASRock A55M-VS Motherboard

English

13. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to dene the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

10 ASRock A55M-VS Motherboard

2. Installation

This is a Micro ATX form factor (8.8-in x 6.8-in, 22.4 cm x 17.3 cm) motherboard.

Before you install the motherboard, study the conguration of your chassis to ensure

that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

English

Andere Handbücher für A55M-VS

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK PRO Series Bedienungsanleitung

ASROCK

ASROCK B550 STEEL LEGEND Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X299 Professional Gaming i9 XE... Bedienungsanleitung

ASROCK

ASROCK AOD790GX 128M - V1.1 Bedienungsanleitung

ASROCK

ASROCK IMB-146 Bedienungsanleitung

ASROCK

ASROCK Z97M Anniversary Bedienungsanleitung

ASROCK

ASROCK Taichi Carrara X670E Bedienungsanleitung

ASROCK

ASROCK Fatal1ty B85 Killer Bedienungsanleitung

ASROCK

ASROCK X470 Master SLI Bedienungsanleitung

ASROCK

ASROCK A785GXH128M Bedienungsanleitung

ASROCK

ASROCK ALIVENF5-VSTA Bedienungsanleitung

ASROCK

ASROCK B75M-GL R2.0 Bedienungsanleitung

ASROCK

ASROCK B365M-HDV Bedienungsanleitung

ASROCK

ASROCK B560M Pro4/ac+ Bedienungsanleitung

ASROCK

ASROCK K7UPGRADE - Bedienungsanleitung

ASROCK

ASROCK H61ICAFE Bedienungsanleitung

ASROCK

ASROCK N68-S UCC - Bedienungsanleitung

ASROCK

ASROCK K8NF3-VSTA Bedienungsanleitung

ASROCK

ASROCK Fatal1ty B250 Gaming K4 Series Bedienungsanleitung

ASROCK

ASROCK Z690M PG Riptide D5 Bedienungsanleitung

ASROCK

ASROCK IMB-380-D Bedienungsanleitung

ASROCK

ASROCK H81M-DG6 Bedienungsanleitung

ASROCK

ASROCK G41MH-LE3 Bedienungsanleitung

ASROCK

ASROCK P4VM890 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
