ASRock A75iCafe Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published July 2012

2ASRock A75iCafe Motherboard

English

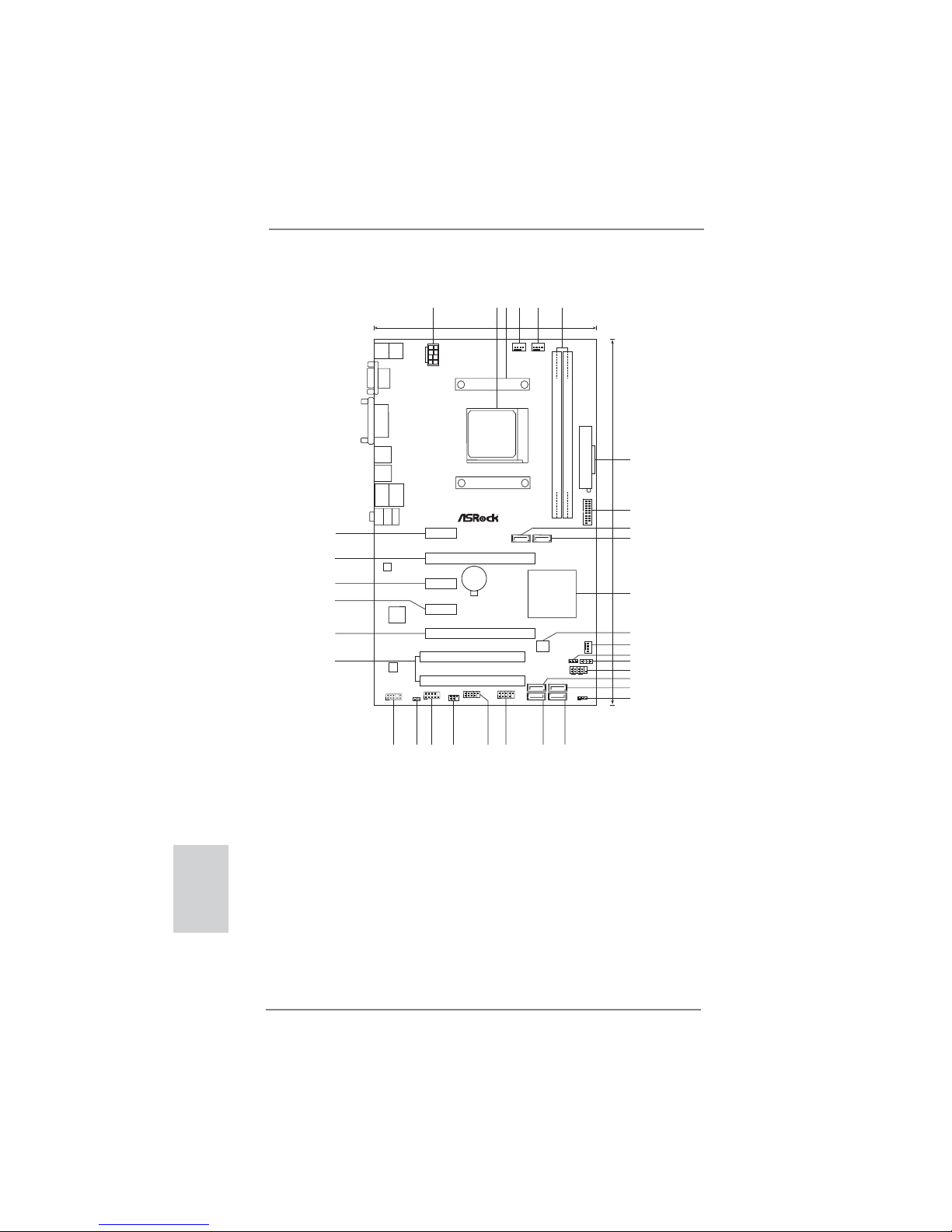

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 17 SATA3 Connector (SATA_3)

2 CPU Socket 18 SATA3 Connector (SATA_4)

3 CPU Heatsink Retention Module 19 Power LED Header (PLED1)

4 CPU Fan Connector (CPU_FAN1) 20 SATA3 Connector (SATA_6)

5 Chassis Fan Connector (CHA_FAN2) 21 SATA3 Connector (SATA_5)

6 2 x 240-pin DDR3 DIMM Slots 22 USB 2.0 Header (USB8_9)

(Dual Channel: DDR3_A1, DDR3_B1) 23 USB 2.0 Header (USB6_7)

7 ATX Power Connector (ATXPWR1) 24 Infrared Module Header (IR1)

8 USB 3.0 Header (USB3_2_3) 25 COM Port Header (COM1)

9 SATA3 Connector (SATA_1) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

10 SATA3 Connector (SATA_2) 27 Front Panel Audio Header (HD_AUDIO1)

11 Southbridge Controller 28 PCI Slots (PCI1-2)

12 SPI Flash Memory (32Mb) 29 PCI Express 2.0 x16 Slot (PCIE5)

13 Chassis Fan Connector (CHA_FAN1) 30 PCI Express 2.0 x1 Slot (PCIE4)

14 Clear CMOS Jumper (CLRCMOS1) 31 PCI Express 2.0 x1 Slot (PCIE3)

15 Chassis Speaker Header (SPEAKER 1) 32 PCI Express 2.0 x16 Slot (PCIE2)

16 System Panel Header (PANEL1) 33 PCI Express 2.0 x1 Slot (PCIE1)

CMOS

Battery

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

ATXPWR1

Super

I/O

PCIE2

PCI1

PCIE1

HD_AUDIO1

IR1

COM1

PLED1

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

SPEAKER1

HDMI_SPDIF1

USB6_7

USB8_9

CHA_FAN1

LAN

CPU_FAN1

SATA_1

32Mb

BIOS

AUDIO

CODEC

PS2

Keyboard

PS2

Mouse

USB 3.0

T: USB 0

B: USB1

ATX12V1

USB 2.0

T: USB 4

B: USB5

RJ-45 LAN

USB 2.0

T: USB2

B: USB3

PCIE3

PCIE4

PCIE5

PCI2

SOCKET FM1

CHA_FAN2

SATA_2

SATA_4

SATA_6

SATA_3

SATA_5

A75iCafe

XFast RAM

XFast LAN XFast USB

ErP/EuP Ready

DDR3 2400+

Dual Graphics

RoHS

VGA1

DVI1

Top:

Line In

Center:

Front

Bottom:

Mic In

18.3cm (7.2 in)

3456

30.5cm (12.0 in)

26 24

AMD

A75 FCH

(Hudson-D3)

Chipset

DX11

USB3_2_3

ASRock A75iCafe Motherboard

English

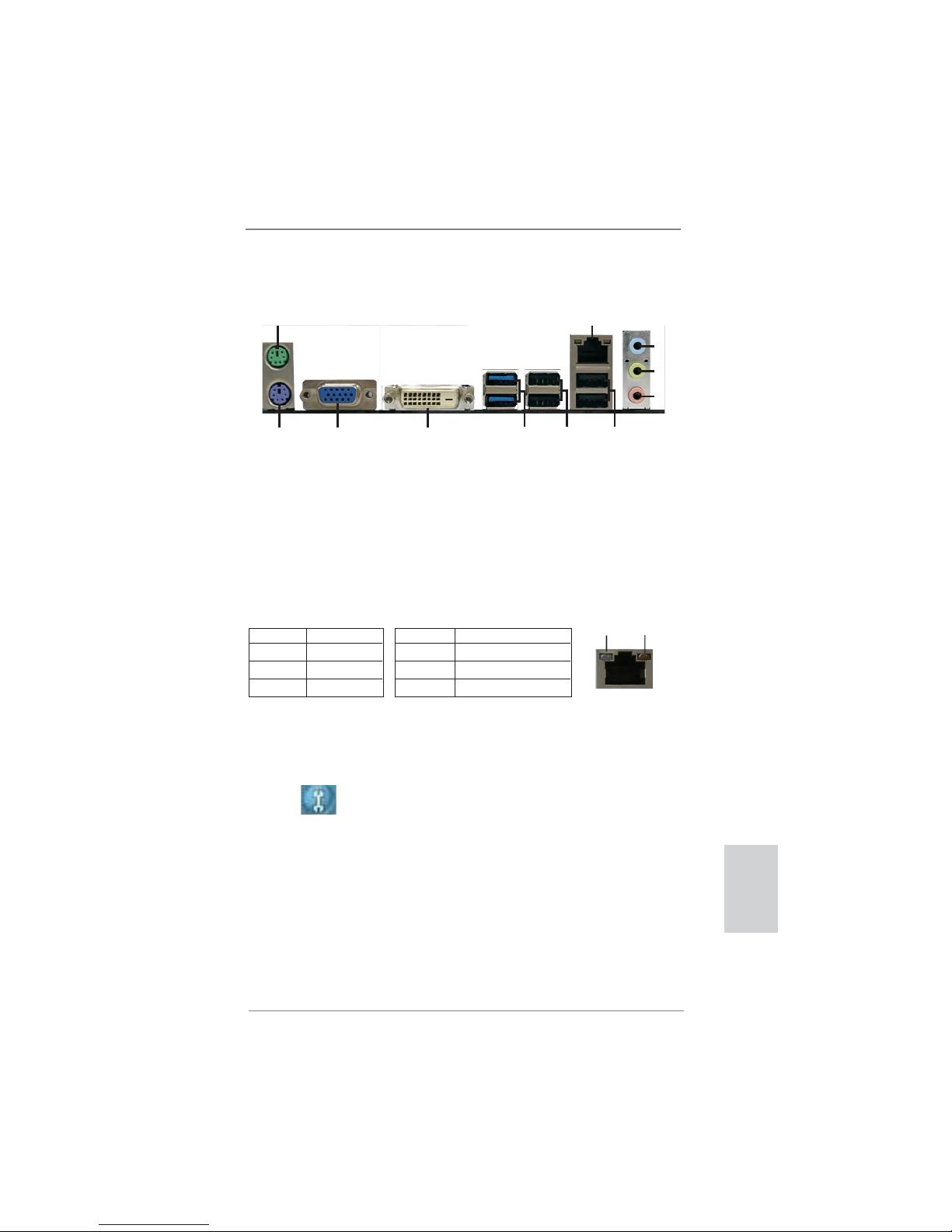

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection LAN Port

ACT/LINK

LED SPEED

LED

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB45)

* 2 LAN RJ-45 Port 8 USB 3.0 Ports (USB01)

3 Line In (Light Blue) 9 DVI-D Port

** 4 Front Speaker (Lime) 10 D-Sub Port

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB23)

1011

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDAAudio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock A75iCafe Motherboard

English

1. Introduction

Thank you for purchasing ASRock A75iCafe motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock A75iCafe Motherboard

(ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm)

ASRock A75iCafe Quick Installation Guide

ASRock A75iCafe Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

ASRock A75iCafe Motherboard

English

1.2 Specifications

Platform - ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm

- All Solid Capacitor design

CPU - Support for Socket FM1 100W processors

- 4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3)

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/2133(OC)/1866/1600/1333/1066/

800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode; PCIE5 @ x4 mode)

- 3 x PCI Express 2.0 x1 slots

- 2 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual

Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Dual VGA Output: support D-Sub and DVI-D ports by

independent display controllers

- Supports Dual-link DVI with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (RealtekALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

6ASRock A75iCafe Motherboard

English

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 4 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

SATA3 - 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

USB 3.0 - 2 x Rear USB 3.0 ports, support USB 1.0/2.0/3.0 up to

5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports),

supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 6 x SATA3 6.0 Gb/s connectors

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 2 x Chassis Fan connectors (2 x 4-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

Live! Explorer, AMD Fusion, CyberLink MediaEspresso 6.5

Trial, ASRock MAGIX Multimedia Suite - OEM

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 5)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 6)

ASRock A75iCafe Motherboard

English

- ASRock APP Charger (see CAUTION 7)

- ASRock SmartView (see CAUTION 8)

- ASRock XFast USB (see CAUTION 9)

- ASRock XFast LAN (see CAUTION 10)

- ASRock XFast RAM (see CAUTION 11)

- Hybrid Booster:

- ASRock U-COP (see CAUTION 12)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP

SP3 / XP 64-bit compliant (see CAUTION 13)

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 14)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

8ASRock A75iCafe Motherboard

English

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

2. Whether 2400/2133/1866/1600MHz memory speed is supported depends

on the CPU you adopt. If you want to adopt DDR3 2400/2133/1866/1600

memory module on this motherboard, please refer to the memory support

list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®64-bit OS with 64-bit CPU, there is no such

limitation. You can use ASRock XFast RAM to utilize the memory that

Windows®cannot use.

4. The maximum shared memory size is deﬁned by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

tion.

5. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hard-

ware Monitor, it shows the major readings of your system. In Fan Control,

it shows the fan speed and temperature for you to adjust. In Overclock-

ing, you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as a proﬁle

and share with your friends. Your friends then can load the OC proﬁle to

their own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efﬁciency when the CPU cores are idle without sacriﬁcing com-

puting performance. Please visit our website for the operation procedures

of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

6. ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems ﬁrst like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional ﬂoppy diskette or other complicated ﬂash utility. Please

be noted that the USB ﬂash drive or hard drive must use FAT32/16/12 ﬁle

system.

ASRock A75iCafe Motherboard

English

7. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful so-

lution for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

8. SmartView, a new function of internet browser, is the smart start page

for IE that combines your most visited web sites, your history, your Face-

book friends and your real-time newsfeed into an enhanced view for a

more personal Internet experience. ASRock motherboards are exclu-

sively equipped with the SmartView utility that helps you keep in touch

with friends on-the-go. To use SmartView feature, please make sure your

OS version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your

browser version is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

9. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

10. ASRock XFast LAN provides a faster internet access, which includes

below benefits. LAN Application Prioritization: You can configure your

application priority ideally and/or add new programs. Lower Latency in

Game: After setting online game priority higher, it can lower the latency in

game. Trafﬁc Shaping: You can watch Youtube HD video and download

ﬁles simultaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are currently

transferring.

11. ASRock XFast RAM is a new function that is included into ASRock Ex-

treme Tuning Utility (AXTU). It fully utilizes the memory space that cannot

be used under Windows®OS 32-bit CPU. ASRock XFast RAM shortens

the loading time of previously visited websites, making web surﬁng faster

than ever. And it also boosts the speed of Adobe Photoshop 5 times

faster. Another advantage ofASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend their lifes-

pan.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug

it back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC sys-

tem.

10 ASRock A75iCafe Motherboard

English

13. ASRock XFast RAM is not supported by Microsoft® Windows®XP / XP

64-bit.

14. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to deﬁne the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efﬁciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

Andere Handbücher für A75iCafe

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK FM2A88M+ BTC Bedienungsanleitung

ASROCK

ASROCK RACK EP2C612D16C-4L Bedienungsanleitung

ASROCK

ASROCK C3758D4I-4L Bedienungsanleitung

ASROCK

ASROCK P67 TRANSFORMER - Bedienungsanleitung

ASROCK

ASROCK CONROE1333-GLAN Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X79 Champion Bedienungsanleitung

ASROCK

ASROCK Z97 Extreme4 Bedienungsanleitung

ASROCK

ASROCK J3355M Bedienungsanleitung

ASROCK

ASROCK G31DE Bedienungsanleitung

ASROCK

ASROCK B550M-C R2.0 Bedienungsanleitung

ASROCK

ASROCK H61M-VS R2.0 Bedienungsanleitung

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Bedienungsanleitung

ASROCK

ASROCK Z390M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK A75M-DGS Bedienungsanleitung

ASROCK

ASROCK H510 Pro BTC+ Bedienungsanleitung

ASROCK

ASROCK P4I45D R3.0 Bedienungsanleitung

ASROCK

ASROCK B560M-HDV/M.2 Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme9/ac Bedienungsanleitung

ASROCK

ASROCK N68-VGS3 FX Bedienungsanleitung

ASROCK

ASROCK PRO Series Bedienungsanleitung

ASROCK

ASROCK PV530-ITX - Bedienungsanleitung

ASROCK

ASROCK AM1H-M Bedienungsanleitung

ASROCK

ASROCK H81 Pro BTC Bedienungsanleitung

ASROCK

ASROCK Z390 Steel Legend Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
