ASROCK A770CROSSFIRE Bedienungsanleitung

AMD RAID Installation Guide

1. AMD BIOS RAID Installation Guide …………………………………………………………………….. 2

1.1 Introduction to RAID ……………………………………………………………………………….. 2

1.2 RAID Configurations Precautions ………………………………………………………………… 3

1.3 Installing Windows XP / XP 64-bit / Vista / Vista 64-bit With RAID Funtions ………………… 3

1.3.1 Installing Windows XP / XP 64-bit With RAID Funtions …………………………………. 3

1.3.2 Installing Windows Vista / Vista 64-bit With RAID Funtions …………………………….. 4

1.4 Create Disk Array ………………………………………………………………………………….. 5

2. AMD Windows RAID Installation Guide ……………………………………………………………… 10

2.1 Components of RAIDXpert Installation Software ……………………………………………. 10

2.2 Browser Support ………………………………………………………………………………… 10

2.3 Installing RAIDXpert ……………………………………………………………………………. 10

2.4 Logging into RAIDXpert ………………………………………………………………………… 13

2.5 Regular Connection……………………………………………………………………………... 13

2.6 Secure Connection………………………………………………………………………………. 13

2.7 Creating a New Logical Drive ………………………………………………………………….. 14

2.8 Connecting to RAIDXpert from the Internet ………………………………………………….. 17

2.9 Running RAIDXpert without Network Connection …………………………………………… 17

1. AMD BIOS RAID Installation Guide

AMD BIOS RAID Installation Guide is an instruction for you to configure RAID functions by using the onboard

FastBuild BIOS utility under BIOS environment. After you make a SATA / SATAII driver diskette, press <F2> to enter

BIOS setup to set the option to RAID mode by following the detailed instruction of the “User Manual” in our support CD

or “Quick Installation Guide”, then you can start to use the onboard FastBuild BIOS utility to configure RAID.

1.1 Introduction to RAID

The term “RAID” stands for “Redundant Array of Independent Disks”, which is a method combining two or more hard

disk drives into one logical unit. For optimal performance, please install identical drives of the same model and

capacity when creating a RAID set.

RAID 0 (Data Striping)

RAID 0 is called data striping that optimizes two identical hard disk drives to read and write data in parallel, interleaved

stacks. It will improve data access and storage since it will double the data transfer rate of a single disk alone while the

two hard disks perform the same work as a single drive but at a sustained data transfer rate.

WARNING!!

Although RAID 0 function can improve the access performance, it does not provide any fault tolerance. Hot-Plug any HDDs of the

RAID 0 Disk will cause data damage or data loss.

RAID 1 (Data Mirroring)

RAID 1 is called data mirroring that copies and maintains an identical image of data from one drive to a second

drive. It provides data protection and increases fault tolerance to the entire system since the disk array

management software will direct all applications to the surviving drive as it contains a complete copy of the data in

the other drive if one drive fails.

RAID 10 (Stripe Mirroring)

RAID 0 drives can be mirrored using RAID 1 techniques, resulting in a RAID 10 solution for improved performance

plus resiliency. The controller combines the performance of data striping (RAID 0) and the fault tolerance of disk

mirroring (RAID 1). Data is striped across multiple drives and duplicated on another set of drives.

JBOD

JBOD stands for “Just a Bunch of Disks” and normally refers to one or more physical drives working independently.

The AMD SB700 controller offers the added feature of concatenation, where the capacity of multiple drives is

added together. When one drive is full, the data is saved to the next drive automatically. As independent physical

drives, JBOD does not offer the performance or security advantages of RAID logical drives. However, in RAIDXpert,

you create, manage, and delete a JBOD the same as a logical drive. You can designate from two to four physical

drives with online capacity expansion. If you attach a single physical drive that was previously partitioned, RAIDXpert

will recognize it as a JBOD. However, RAIDXpert does not allow you to create a single-drive JBOD.

RAID Ready

RAID Ready arranges individual physical drives the same as if they were attached to the PC’s motherboard controller.

The advantage is that the AMD SB700 Controller can accommodate up to four physical drives, more than most PC

motherboards. As a single physical drive, RAID Ready does not offer the performance or security advantages of other

RAID logical drives. However, you can create a backup drive by: Inserting an unformatted physical drive or

designating an installed physical drive. In RAIDXpert, you create, manage, and delete a RAID Ready the same as a

logical drive. A RAID Ready logical drive has only one physical drive. You can designate from one to four of your

physical drives as RAID Ready.

1.2 RAID Configurations Precautions

1. Please use two new drives if you are creating a RAID 0 (striping) array for performance. It is recommended

to use two SATA drives of the same size. If you use two drives of different sizes, the smaller capacity hard

disk will be the base storage size for each drive. For example, if one hard disk has an 80GB storage

capacity and the other hard disk has 60GB, the maximum storage capacity for the 80GB-drive becomes

60GB, and the total storage capacity for this RAID 0 set is 120GB.

2. You may use two new drives, or use an existing drive and a new drive to create a RAID 1 (mirroring) array

for data protection (the new drive must be of the same size or larger than the existing drive). If you use two

drives of different sizes, the smaller capacity hard disk will be the base storage size. For example, if one

hard disk has an 80GB storage capacity and the other hard disk has 60GB, the maximum storage capacity

for the RAID 1 set is 60GB.

3. Please verify the status of your hard disks before you set up your new RAID array.

WARNING!!

Please backup your data first before you create RAID functions. In the process you create RAID, the system will ask if you

want to “Clear Disk Data” or not. It is recommended to select “Yes”, and then your future data building will operate under a

clean environment.

1.3 Installing Windows XP / XP 64-bit / Vista / Vista 64-bit With RAID Functions

If you want to install Windows XP, Windows XP 64-bit, Windows Vista or Windows Vista 64-bit on a RAID disk

composed of 2 or more SATA / SATAII HDDs with RAID functions, please follow below procedures according to the

OS you install.

1.3.1 Installing Windows XP / XP 64-bit With RAID Functions

If you want to install Windows XP or Windows XP 64-bit on a RAID disk composed of 2 or more SATA / SATAII HDDs

with RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY →Advanced screen →IDE Configuration.

B. Set the “SATA Operation Mode” option to [RAID].

STEP 2: Make a SATA / SATAII driver diskette.

A. Insert the ASRock Support CD into your optical drive to boot your system.

(There are two ASRock Support CD in the motherboard gift box pack, please choose the one for Windows XP /

XP 64-bit.)

B. During POST at the beginning of system boot-up, press <F11> key, and then a window for boot devices

selection appears. Please select CD-ROM as the boot device.

C. When you see the message on the screen, “Do you want to generate Serial ATA driver diskette [YN]?”, press

<Y>.

D. Then you will see these messages,

Please insert a blank formatted diskette into floppy drive A: press any key to start

Please insert a floppy diskette into the floppy drive, and press any key.

E. The system will start to format the floppy diskette and copy SATA / SATAII drivers into the floppy diskette.

STEP 3: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure RAID function, you need to check this RAID installation guide for proper configuration.

Please refer to the BIOS RAID installation guide part in this document for details.

STEP 4: Install Windows XP / XP 64-bit OS on your system.

After making a SATA / SATAII driver diskette and set RAID configuration, you can start to install Windows XP / XP

64-bit on your system. At the beginning of Windows setup, press F6 to install a third-party RAID driver. When

prompted, insert the SATA / SATAII driver diskette containing AMD RAID driver. After reading the floppy disk, the

driver will be presented. Select your required driver to install according to the OS you install. (Select “AMD AHCI

Compatible RAID Controller-x86 platform” for Windows XP, or “AMD AHCI Compatible RAID Controller-x64 platform”

for Windows XP 64-bit.)

NOTE.

If you install Windows XP / Windows XP 64-bit on IDE HDDs and want to manage (create, convert, delete, or rebuild) RAID functions

on SATA / SATAII HDDs, you still need to set up “SATA Operation Mode” to [RAID] first. Then, please set the RAID configuration by

using the Windows RAID installation guide in this document for details.

1.3.2 Installing Windows Vista / Vista 64-bit With RAID Functions

If you want to install Windows Vista or Windows Vista 64-bit on a RAID disk composed of 2 or more SATA / SATAII

HDDs with RAID functions, please follow below steps.

STEP 1: Set up BIOS.

A. Enter BIOS SETUP UTILITY →Advanced screen →IDE Configuration.

B. Set the “SATA Operation Mode” option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID configuration.

Before you start to configure RAID function, you need to check this RAID installation guide for proper configuration.

Please refer to the BIOS RAID installation guide part in this document for details.

STEP 3: Install Windows Vista / Vista 64-bit OS on your system.

Insert the Windows Vista / Windows Vista 64-bit optical disk into the optical drive to boot your system, and follow the

instruction to install Windows Vista / Windows Vista 64-bit OS on your system. When you see “Where do you want to

install Windows?” page, please insert the ASRock Support CD into your optical drive, and click the “Load Driver”

button on the left on the bottom to load the AMD RAID drivers. AMD RAID drivers are in the following path in our

Support CD:

(There are two ASRock Support CD in the motherboard gift box pack, please choose the one for Windows Vista / Vista

64-bit.)

.. \ I386 (For Windows Vista OS)

.. \ AMD64 (For Windows Vista 64-bit OS)

After that, please insert Windows Vista / Windows Vista 64-bit optical disk into the optical drive again to continue the

installation.

NOTE1.

If you install Windows Vista / Windows Vista 64-bit on IDE HDDs and want to manage (create, convert, delete, or rebuild) RAID

functions on SATA / SATAII HDDs, you still need to set up “SATA Operation Mode” to [RAID] first. Then, please set the RAID

configuration by using the Windows RAID installation guide in this document for details.

NOTE2.

Currently, if you install Windows Vista / Windows Vista 64-bit on IDE HDDs and there are no SATA / SATAII device used, please set up

“SATA Operation Mode” to [non-RAID] in BIOS.

1.4 Create Disk Array

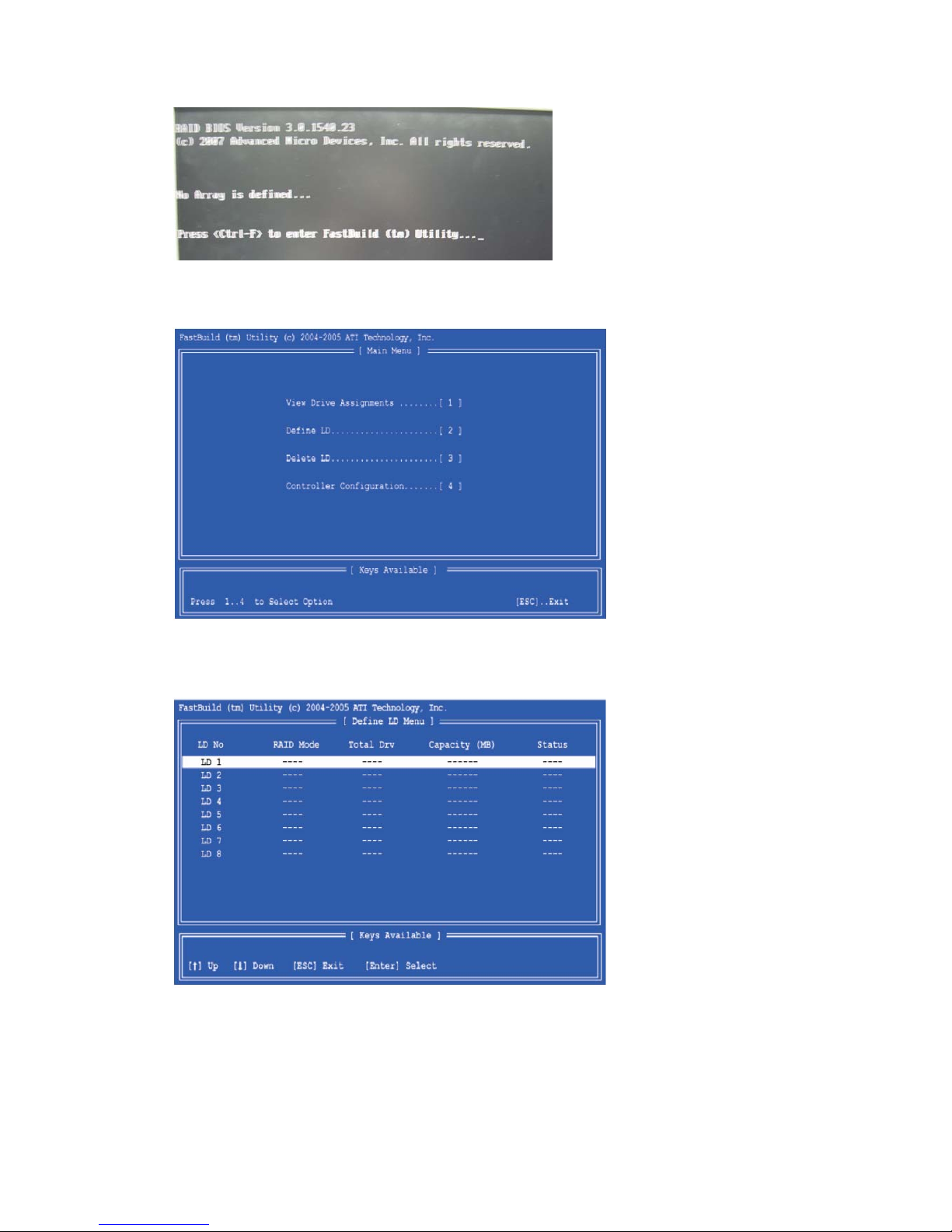

Power on your system. If this is the first time you have booted with the disk drives installed, the AMD onboard BIOS

will display the following screen.

Press <Ctrl+F> keys, then the FastBuild Utility Main Menu appears.

Press 2 on the Main Menu screen to display the Define LD Menu.

Press the arrow keys to highlight a logical drive number you want to define and press <Enter> to select it. The Define

LD Menu for the logical drive number you selected will next appear.

Choose the RAID level you want. In the Define LD Menu section, press the spacebar to cycle through logical drive

types, including RAID 0, RAID 1, RAID Ready, JBOD and RAID 10.

WARNING!!

While you are allowed to use any available RAID level for your bootable logical drive, it is recommended to use RAID 1 for most

applications.

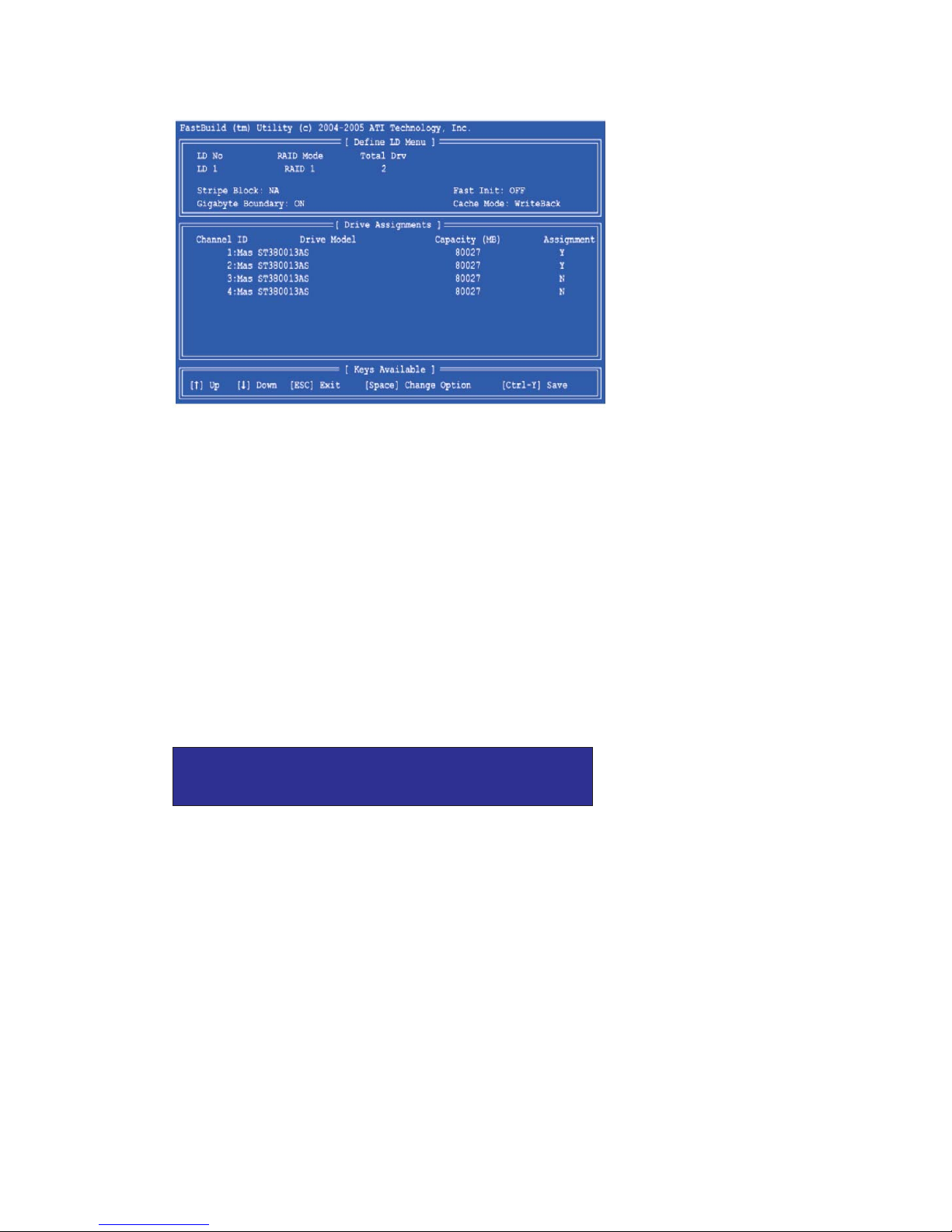

Press the arrow key to move to Disk Assignments. Press the spacebar to toggle between N and Y for each available

drive. Y means this disk drive will be assigned to the logical drive. Assign the appropriate number of disk drives to your

logical drive. Then press <Ctrl-Y> to save your logical drive configuration. You have the option of using all of the disk

drive capacity for one logical drive or allocating a portion to a second logical drive.

Press Ctrl-Y to Modify Array Capacity or press any

other key to use maximum capacity...

Choose one of the following actions:

1. Use the full capacity of the disk drives for a single logical drive: Please read “One Logical Drive” below.

2. Split the disk drives among two logical drives: Please read “Two Logical Drives” below.

One Logical Drive

After selecting the logical drive in Disk Assignments as the above-mentioned procedures, press any key (except for

<Ctrl-Y>) to use the full portion of the logical drive for one logical drive. Then please follow the steps below:

1. Press <Esc> to exit to the Main Menu.

2. Press <Esc> again to exit the Utility.

3. Press <Y> to restart your computer.

You have successfully created a new RAID logical drive. Please install the operating system to your computer by

following the detailed instruction of the “User Manual” in our support CD or “Quick Installation Guide”.

Two Logical Drives

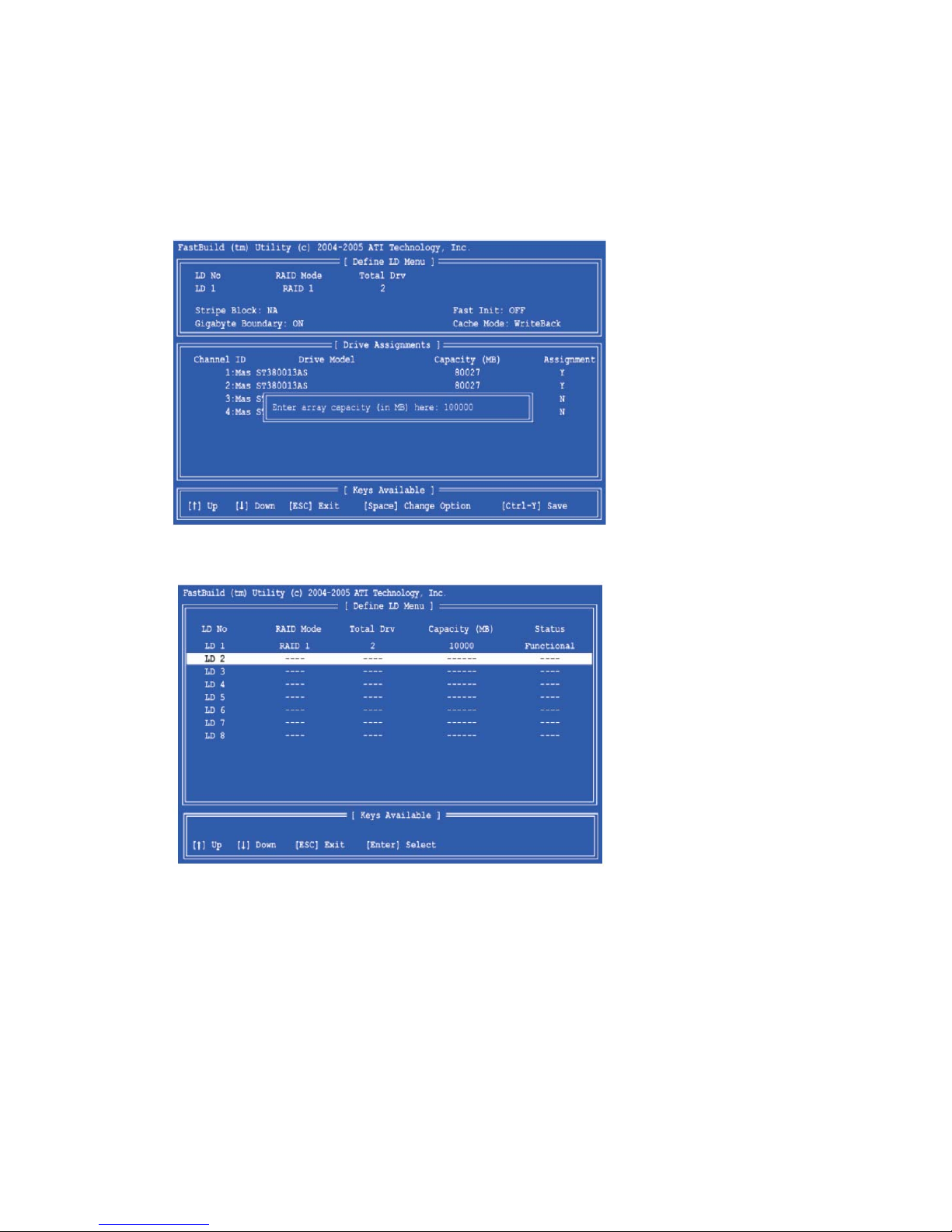

After selecting the logical drive in Disk Assignments as the above-mentioned procedures, press <Ctrl-Y> to allocate a

portion of the disk drives to the first logical drive. Then please follow the steps below.

1. Enter the desired capacity (MB) for the first logical drive and press <Enter>. The Define LD Menu displays again.

2. Press the up and down arrow keys to select an available logical drive number and press <Enter>.

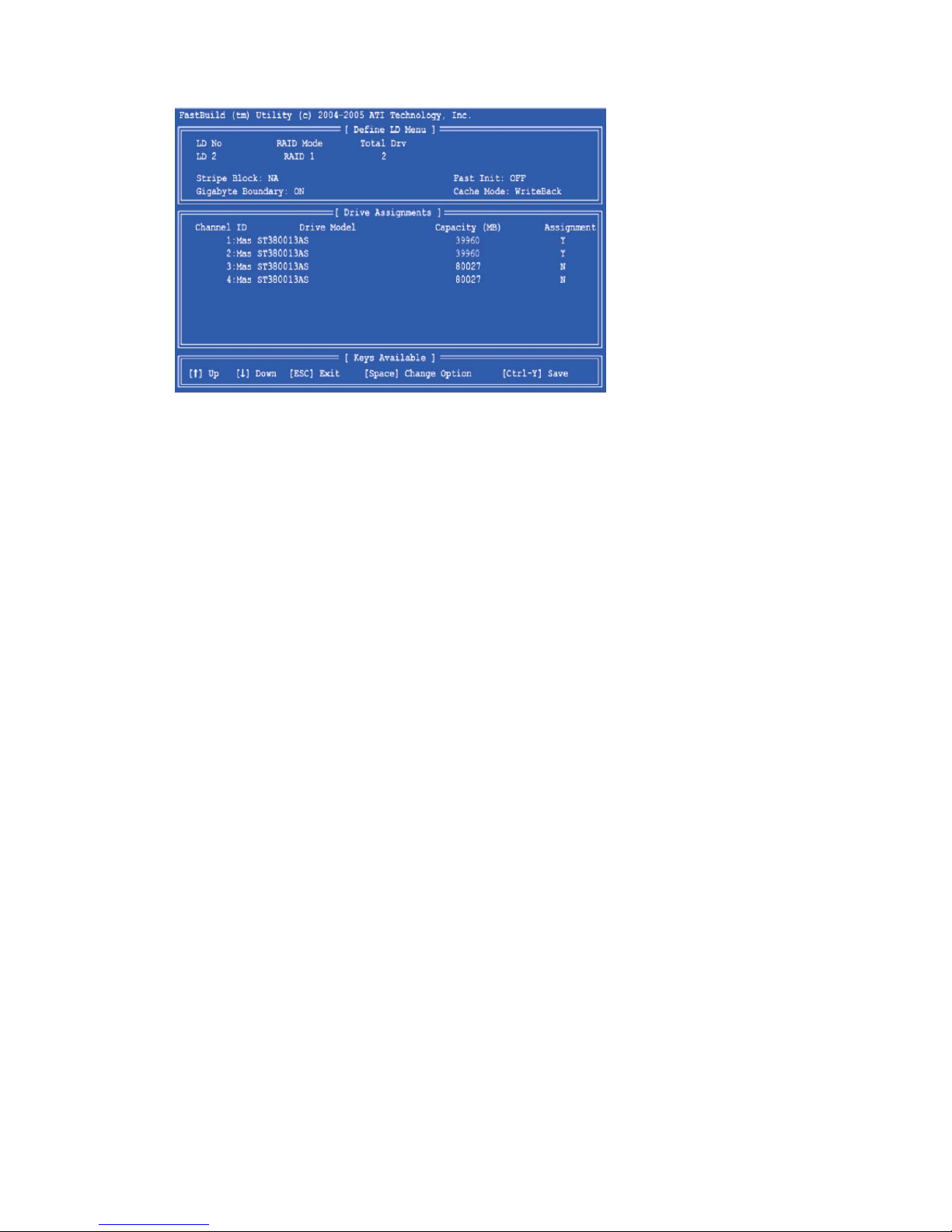

3. Choose the RAID level and options for the second logical drive. Note that the disk drives in Channels 1 and 2

reflect smaller capacities because a portion of their capacity belongs to the first logical drive. In this example the

disk drives in Channels 3 and 4 are not assigned to a logical drive.

4. Press <Ctrl-Y> to save your logical drive configuration.

5. Press <Esc> to exit to the Main Menu. Press <Esc> again to exit the Utility.

6. Press <Y> to restart the computer.

You have successfully created a new RAID logical drive. Please install the operating system to your computer by

following the detailed instruction of the “User Manual” in our support CD or “Quick Installation Guide”.

2. AMD Windows RAID Installation Guide

AMD Windows RAID Installation Guide is an instruction for you to configure RAID functions by using RAIDXpert RAID

management software under Windows environment. The RAIDXpert software offers local and remote management

and monitoring of all AMD SB700 SATA logical drives that exist anywhere on a network. Its browser-based GUI

provides email notification of all major events/alarms, memory cache management, drive event logging, logical drive

maintenance, rebuild, and access to all components in the RAID configuration (server, controller, logical drives,

physical drives, and enclosure). RAIDXpert is designed to work with AMD SB700 SATA RAID controllers. Other

brands of RAID controllers are not supported. Please read this guide carefully and follow the instructions below to

configure and manage RAID functions.

2.1 Components of RAIDXpert Installation Software

RAIDXpert installation software will install two major components to your system:

1. RAIDXpert RAID management software: The RAIDXpert software installs on the PC with the AMD SB700 SATA

RAID Controller (the “Host PC”).

2. Java Runtime Environment (in a private folder): The RAIDXpert installation program installs a private JRE in

folder _jvm under the same directory where RAIDXpert is installed. RAIDXpert uses this private JRE to avoid

incompatibility issues with any other JREs that may be present on your system.

2.2 Browser Support

On the Host PC with the AMD SB700 Controller, where you install RAIDXpert, you must have one of the following

browsers: Internet Explorer 6.0, Mozilla Suite 1.7, Mozilla Firefox 1.0, or Netscape Navigator 7.1.

If you do not have one of the above browsers, install the browser first and make it the default browser. Then install

RAIDXpert. You must use one of the browsers listed above on your networked PC in order to access RAIDXpert over

the network.

2.3 Installing RAIDXpert

Follow these steps to install RAIDXpert on your Windows-based PC or Server.

1. Boot the PC or server, launch Windows, and log in as the Administrator. If the computer is already running, exit

all programs. If you are not logged in as the Administrator, log out, then log in again as the Administrator.

2. Insert the software CD into your CD-ROM drive.

3. Double-click the Install CD’s icon to open it.

4. Double-click the Installer icon to launch it (right). The first RAIDXpert installation dialog box appears.

5. Follow the prompts in the installation dialog boxes.

6. When the first installation screen appears, choose an installer language from the dropdown menu.

Andere Handbücher für A770CROSSFIRE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK X79 Extreme6/GB Bedienungsanleitung

ASROCK

ASROCK FM2A58 Pro+ Bedienungsanleitung

ASROCK

ASROCK H61M-VGS Bedienungsanleitung

ASROCK

ASROCK N7AD-SLI - V1.0 Bedienungsanleitung

ASROCK

ASROCK B365M Phantom Gaming 4 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z77 Professional-M Bedienungsanleitung

ASROCK

ASROCK Z87M Pro4 Bedienungsanleitung

ASROCK

ASROCK 775i915P-SATA2 Bedienungsanleitung

ASROCK

ASROCK Z77 WS Bedienungsanleitung

ASROCK

ASROCK AM2NF4G-SATA2 Bedienungsanleitung

ASROCK

ASROCK X58 SUPERCOMPUTER - Bedienungsanleitung

ASROCK

ASROCK PRO4 B550 Bedienungsanleitung

ASROCK

ASROCK G41C-GS Bedienungsanleitung

ASROCK

ASROCK H110M-STX Bedienungsanleitung

ASROCK

ASROCK A520M-HDVP 2.0 Bedienungsanleitung

ASROCK

ASROCK Z75 Pro3 Bedienungsanleitung

ASROCK

ASROCK 4CORE1333-VIIV - V1.0 Bedienungsanleitung

ASROCK

ASROCK EP2C612D16T-4L Bedienungsanleitung

ASROCK

ASROCK P4VT8 Bedienungsanleitung

ASROCK

ASROCK X79 Extreme4 Bedienungsanleitung

ASROCK

ASROCK P4I65G Bedienungsanleitung

ASROCK

ASROCK IMB-1712 Service-Handbuch

ASROCK

ASROCK ALIVENF5-VSTA Bedienungsanleitung

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
