ASRock A780FullHD Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published July 2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock A780FullHD Motherboard

EnglishEnglish

English

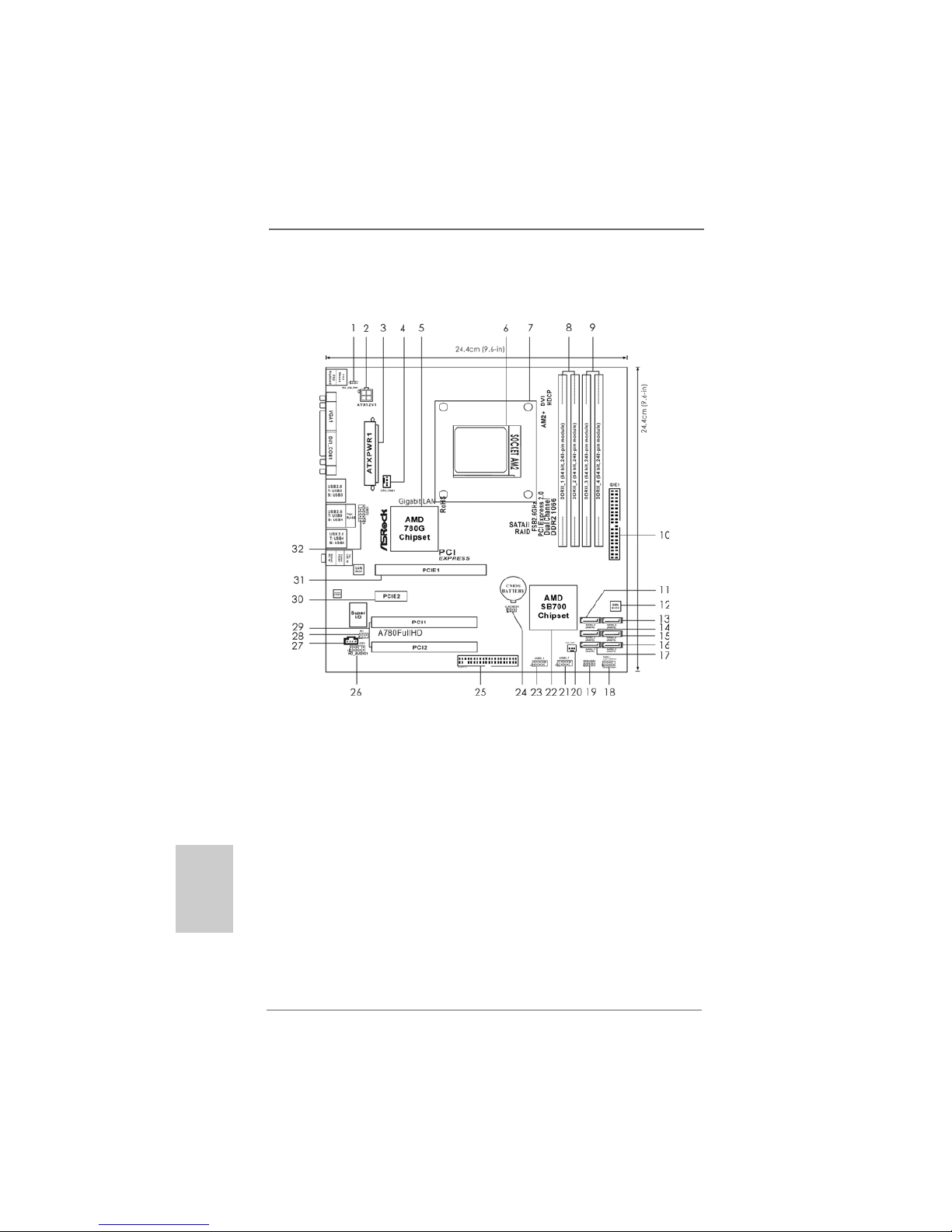

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 17 Primary SATAII Connector (SATAII_1(PORT0))

2 ATX 12V Power Connector (ATX12V1) 18 System Panel Header (PANEL1)

3 ATX Power Connector (ATXPWR1) 19 Chassis Speaker Header (SPEAKER 1)

4 CPU Fan Connector (CPU_FAN1) 20 Chassis Fan Connector (CHA_FAN1)

5 Northbridge Controller 21 USB 2.0 Header (USB6_7, Blue)

6 AM2 940-Pin CPU Socket 22 Southbridge Controller

7 CPU Heatsink Retention Module 23 USB 2.0 Header (USB8_9, Blue)

8 2 x 240-pin DDR2 DIMM Slots 24 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 25 Floppy Connector (FLOPPY1)

9 2 x 240-pin DDR2 DIMM Slots 26 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 Internal Audio Connector: CD1 (Black)

10 Primary IDE Connector (IDE1, Blue) 28 Infrared Module Header (IR1)

11 Fifth SATAII Connector (SATAII_5 (PORT4)) 29 PCI Slots (PCI1- 2)

12 SPI Flash Memory (8Mb) 30 PCI Express 2.0 x1 Slot (PCIE2; Green)

13 Sixth SATAII Connector (SATAII_6(PORT5)) 31 PCI Express 2.0 x16 Slot (PCIE1; Green)

14 Third SATAII Connector (SATAII_3(PORT2)) 32 Serial Port Connector (COM1)

15 Fourth SATAII Connector (SATAII_4 (PORT3))

16 Secondary SATAII Connector (SATAII_2(PORT1))

ASRock A780FullHD Motherboard

EnglishEnglish

English

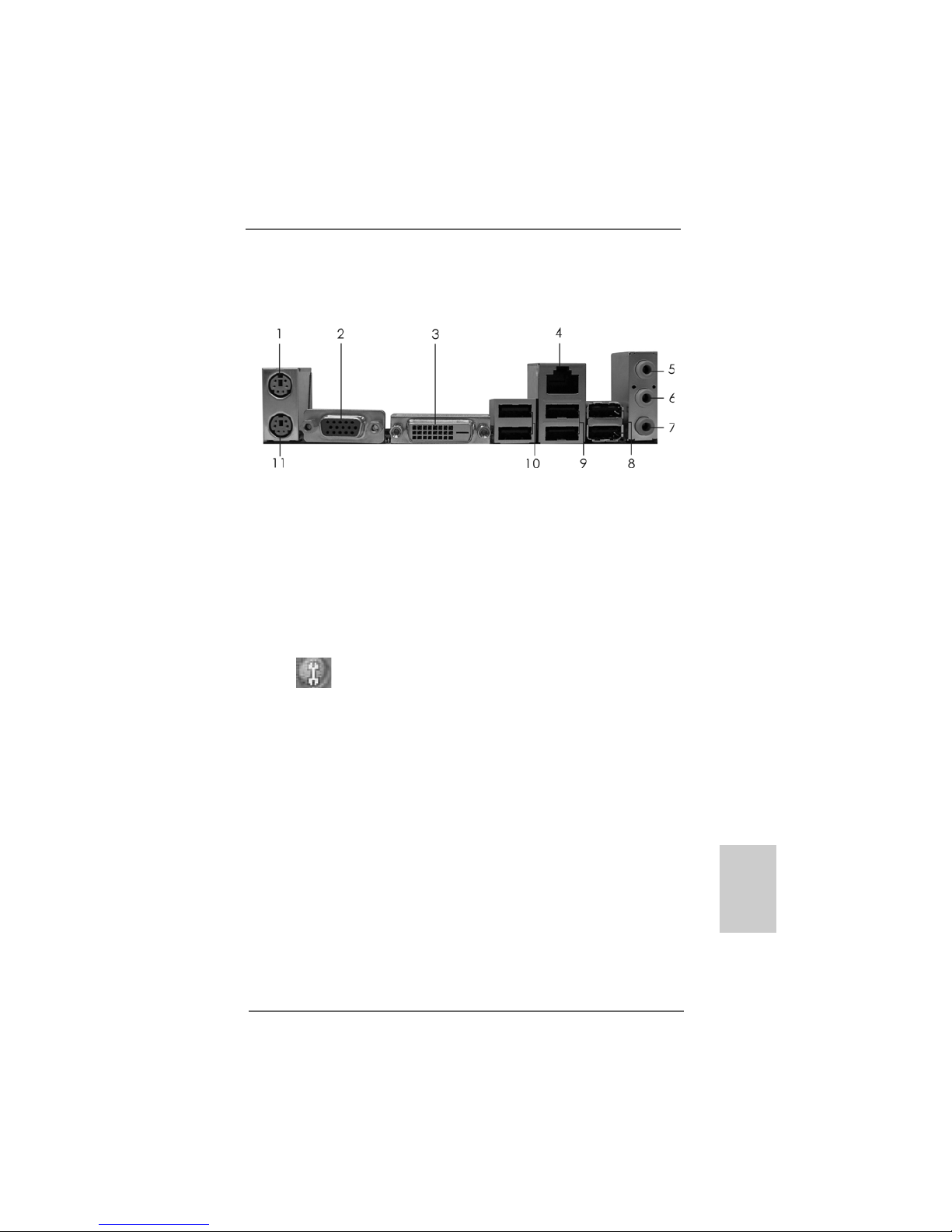

ASRock DVI I/O PlusASRock DVI I/O Plus

ASRock DVI I/O Plus

1 PS/2 Mouse Port (Green)7 * 7 Microphone (Pink)

2 VGA/D-Sub Port 8 USB 2.0 Ports (USB45)

* 3 VGA/DVI-D Port 9 USB 2.0 Ports (USB01)

4 RJ-45 Port 10 USB 2.0 Ports (USB23)

5 Line In (Light Blue) 11 PS/2 Keyboard Port (Purple)

6 Front Speaker (Lime)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HDAudio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock A780FullHD Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock A780FullHD motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock A780FullHD Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

1 x ASRock A780FullHD Quick Installation Guide

2 x ASRock A780FullHD Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

1 x SerialATA (SATA) Data Cable (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 x “ASRockDVI I/O Plus” I/O Shield

ASRock A780FullHD Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

- Solid Capacitor for CPU power

CPU - Support for Socket AM2+ / AM2 processors: AMD PhenomTM

FX / Phenom /Athlon 64 FX /Athlon 64 X2 Dual-Core / Athlon

X2 Dual-Core / Athlon 64 / Sempronprocessor

- Supports CPU up to 140W

-AMD LIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge:AMD780G

- Southbridge:AMD SB700

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 8GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (green @ x16 mode)

- 1 x PCI Express 2.0 x1 slot

- 2 x PCI slots

- Supports ATITM Hybrid CrossFireXTM

Graphics - Integrated AMD RV610 graphics

-DX10 class iGPU, Pixel Shader 4.0

- Max. shared memory 512MB (see CAUTION 5)

- Dual VGA Output: supportDVI-D and D-Sub ports by

independent display controllers

- Supports HDCP function withDVI-D port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

(see CAUTION 6)

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(ALC662 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111C

- Supports Wake-On-LAN

Rear Panel I/O ASRockDVI I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

6ASRock A780FullHD Motherboard

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 Port

- HDAudio Jack: Line in/Front Speaker/Microphone

Connector - 6 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID10 and JBOD), NCQ,AHCI and “Hot Plug”

functions (see CAUTION 7)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- CPU/Chassis FANconnector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 8)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,NB Voltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

-ASRockAM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 13)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

EnglishEnglish

English

ASRock A780FullHD Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 30 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please checkAMD website for the latest information.

6. 1080p Blu-ray (BD) / HD-DVD playback support on this motherboard requires

the proper hardware configuration. Please refer to page10 and 11 for the

minimum hardware requirement and the passed 1080p Blu-ray (BD) / HD-DVD

films in our lab test.

7. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 30 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

8. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock A780FullHD Motherboard

EnglishEnglish

English

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

11. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

13. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt.

Enabling this function will overclock the chipset/CPU reference clock. However,

we can not guarantee the system stability for all CPU/DRAM configurations.

If your system is unstable after AM2 Boost function is enabled, it may not be

applicative to your system. You may choose to disable this function for

keeping the stability of your system.

ASRock A780FullHD Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2008 and Basic LogoPremium 2008 and Basic Logo

Premium 2008 and Basic LogoPremium 2008 and Basic Logo

Premium 2008 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2008 and Basic logo, please follow

below table for minimum hardware requirements.

CPU Sempron 2800+

Memory 512MB x 2 Dual Channel (Premium)

512MB Single Channel (Basic)

256MB x 2 Dual Channel (Basic)

VGA DX10 with WDDM Driver

DVI with HDCP

* If you use onboard VGA with total system memory size 512MB and plan to

submit Windows®VistaTM Basic logo, please adjust the shared memory size of onboard

VGA to 64MB. If you use onboard VGA with total system memory size above 512MB

and plan to submit Windows®VistaTM Premium or Basic logo, please adjust the shared

memory size of onboard VGA to 128MB or above.

* If you plan to use external graphics card on this motherboard, please refer to Premium

Discrete requirement at http://www.asrock.com

* If the onboard VGA supports DVI, it must also support HDCP function to qualify for

Windows®VistaTM Premium 2008 logo.

* After June 1, 2008, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2008 logo.

1010

10 ASRock A780FullHD Motherboard

EnglishEnglish

English

1.41.4

1.4 Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

Minimum Hardware Requirement for 1080p Blu-rayMinimum Hardware Requirement for 1080p Blu-ray

Minimum Hardware Requirement for 1080p Blu-ray

(BD) / HD-DVD Playback Support(BD) / HD-DVD Playback Support

(BD) / HD-DVD Playback Support

1080p Blu-ray (BD) / HD-DVD playback support on this motherboard

requires the proper hardware configuration. Please refer to below table

for the minimum hardware requirement.

CPU AMD Athlon X2 3600

VGA Onboard VGA with DVI-D port

Memory Dual Channel DDR2 533, 1GB x 2

Suggested OS Windows®VistaTM or Windows®VistaTM 64

* If you need to use CyberLink PowerDVD Ultra version 7.3, we suggest to disable

Hardware Acceleration function for better playback performance and compatibility.

After executing CyberLink PowerDVD Ultra program, please follow below steps to

disable Hardware Acceleration function.

A. Right-click the main page of CyberLink PowerDVDUltra program.

B. Click “Configuration”.

C. Select “Video”.

D. Click “Enable hardware acceleration (ATI Avivo)” to remove the “V” mark in

this item.

E. Click “OK” to save the change.

* Currently, 1080p Blu-ray (BD) / HD-DVDplayback is only supported under Windows®

VistaTM / VistaTM 64-bit OS. If you install Windows®XP / XP 64-bit OS, the function of

1080p Blu-ray (BD) / HD-DVD playback is not available, please visit our website for

AMD 780G VGA driver update in the future.

ASRock website http://www.asrock.com

Andere Handbücher für A780FULLHD

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK K7VT6 Bedienungsanleitung

ASROCK

ASROCK Z690 Steel Legend/D5 Bedienungsanleitung

ASROCK

ASROCK Z370 Killer SLI Bedienungsanleitung

ASROCK

ASROCK X570 CREATOR Bedienungsanleitung

ASROCK

ASROCK FM2A58M-DG3+ Bedienungsanleitung

ASROCK

ASROCK X399 Gaming Bedienungsanleitung

ASROCK

ASROCK CONROE1333-DVI-H - V1.0 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty H87 Performance Series Bedienungsanleitung

ASROCK

ASROCK 880GMH-USB3 - V1.0 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty H97 Performance Series Bedienungsanleitung

ASROCK

ASROCK Z87M Extreme4 Bedienungsanleitung

ASROCK

ASROCK H510M-H2/M2 SE Bedienungsanleitung

ASROCK

ASROCK H61MV-ITX Bedienungsanleitung

ASROCK

ASROCK H610M/ac Bedienungsanleitung

ASROCK

ASROCK 775XFIRE-ESATA2 - 02-2006 Bedienungsanleitung

ASROCK

ASROCK N68C-GS FX Bedienungsanleitung

ASROCK

ASROCK H470M-HDV Bedienungsanleitung

ASROCK

ASROCK M3A790GMH/128M Bedienungsanleitung

ASROCK

ASROCK CONROE945PL-GLAN Bedienungsanleitung

ASROCK

ASROCK K8NF6G-VSTA Bedienungsanleitung

ASROCK

ASROCK E3C224D4HM-8R Bedienungsanleitung

ASROCK

ASROCK AD410PV Bedienungsanleitung

ASROCK

ASROCK H55M-GE Bedienungsanleitung

ASROCK

ASROCK A55M-HVS Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
