English

AM1H-ITX

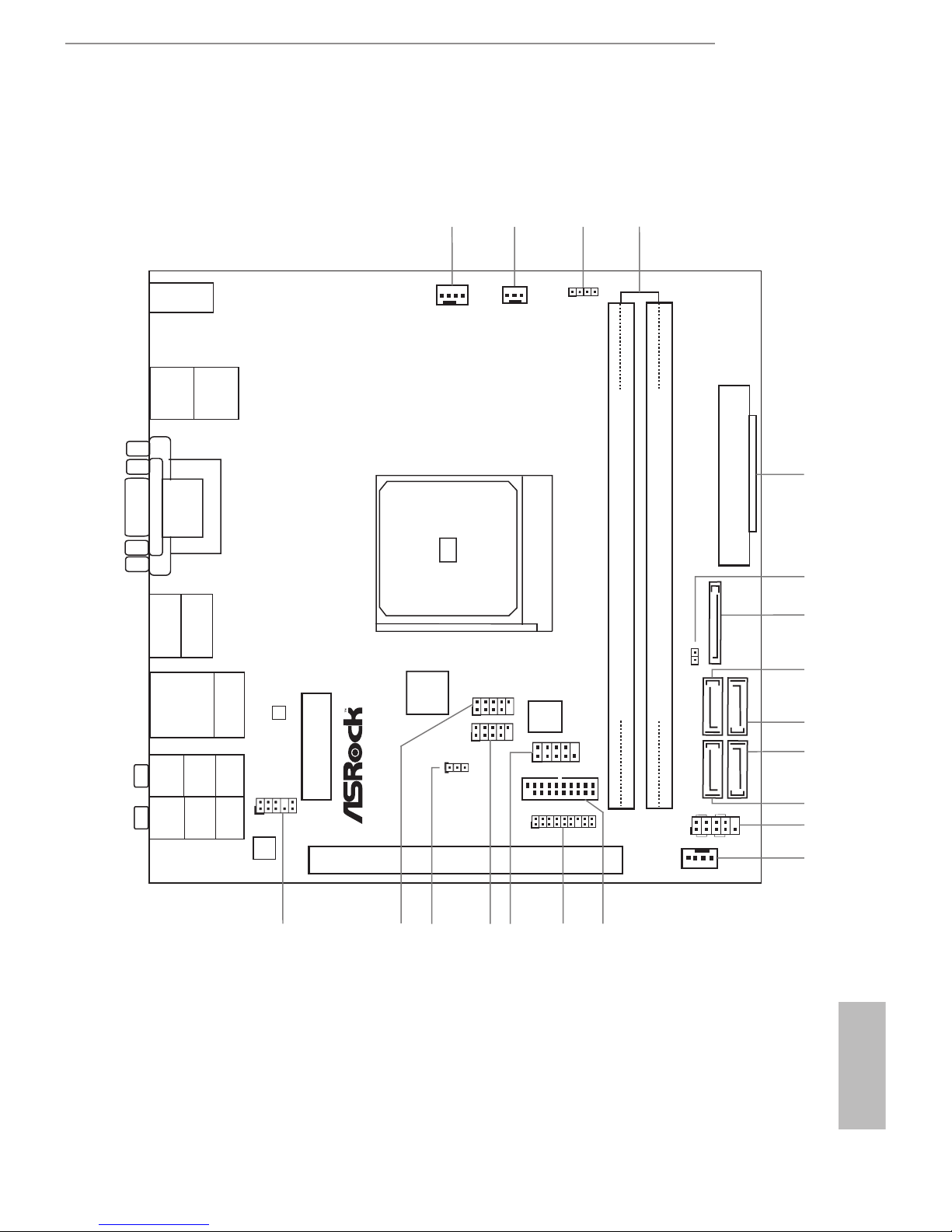

Motherboard Layout

AM1H-ITX

RoHS

32Mb

BIOS

ATXPWR1

FSB800

DDR3_A1 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

SATA3_1

Super

I/O

LAN

AUDIO

CODEC

CLRCMOS1

PCIE1

USB2_3

USB4_5

HD_AUDIO1

CPU_FAN1

CHA_FAN1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL 1

RJ-45 LAN

USB 3.0

T: USB0

B: USB1

CI1

SOCKET FS1b

SATA3_2

Front USB 3.0

PWR_FAN1

TPMS1

COM1

234

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

USB3_2_3

SATA3_A1

SATA3_A2

MPCIE1

DC_JACK1

DP_1

HDMI

VGA1

DVI1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

SATA_POW1

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 Power Fan Connector (PWR_FAN1)

3 Chassis Speaker Header (SPEAKER1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_A2)

5 ATX Power Connector (ATXPWR1)

6 Chassis Intrusion Header (CI1)

7 SATA Power Connector (SATA_POW1)

8 SATA3 Connector (SATA3_1)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_A2)

11 SATA3 Connector (SATA3_A1)

12 System Panel Header (PANEL1)

13 Chassis Fan Connector (CHA_FAN1)

14 USB 3.0 Header (USB3_2_3)

15 TPM Header (TPMS1)

16 COM Port Header (COM1)

17 USB 2.0 Header (USB4_5)

18 Clear CMOS Jumper (CLRCMOS1)

19 USB 2.0 Header (USB2_3)

20 Front Panel Audio Header (HD_AUDIO1)

English

AM1H-ITX

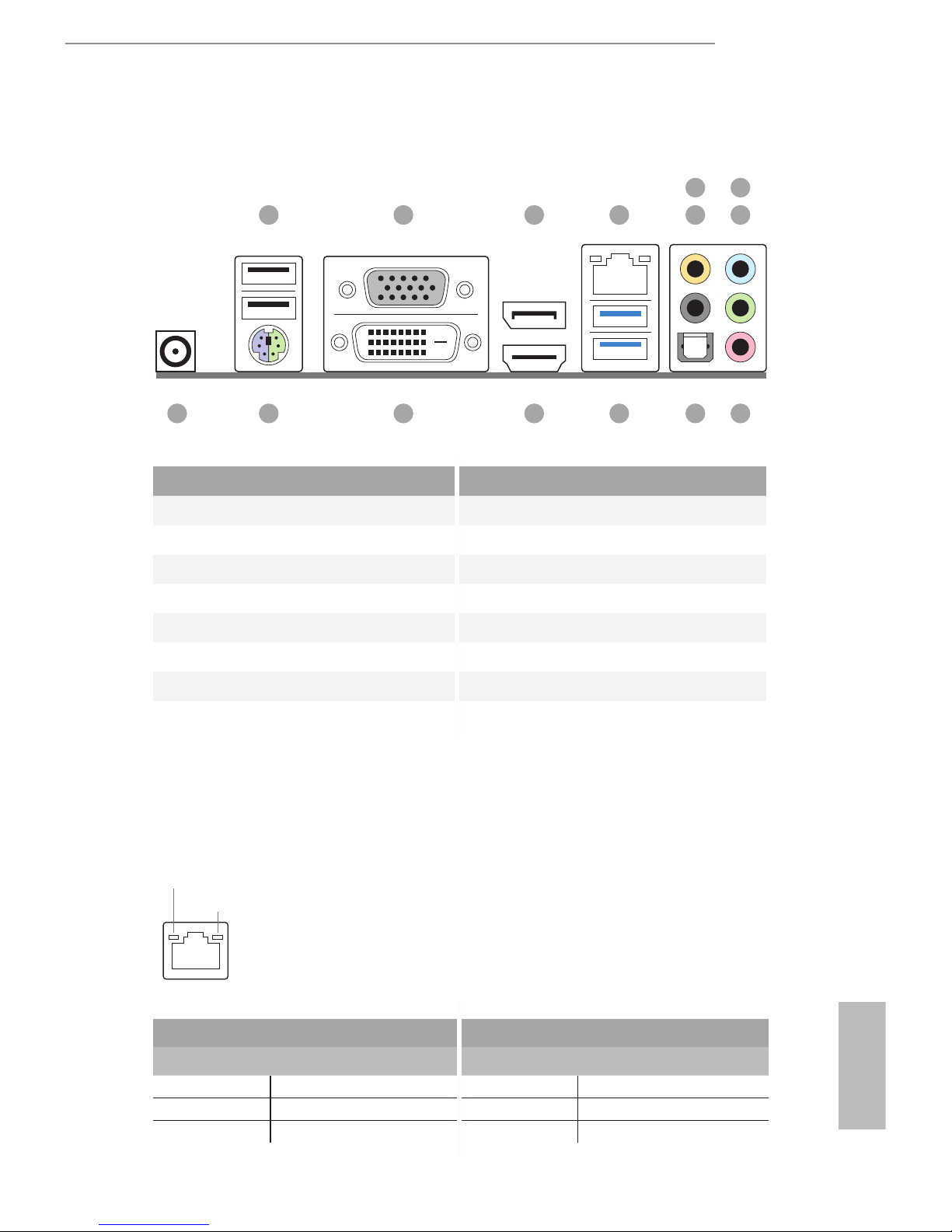

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Microphone (Pink)

2 D-Sub Port 10 Optical SPDIF Out Port

3 DisplayPort 1.2* 11 USB 3.0 Ports (USB3_0_1)

4 LAN RJ-45 Port** 12 HDMI Port*

5 Central / Bass (Orange) 13 DVI-D Port

6 Rear Speaker (Black) 14 PS/2 Mouse/Keyboard Port

7 Line In (Light Blue) 15 DC Jack****

8 Front Speaker (Lime)***

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

1 4

1114 910

1213

2 3

* HDMI and DisplayPort 1.2 cannot output at the same time. You can only choose either one of them. Please refer

to the BIOS setup option “HDMI/DP Switch“ on page 42 of user manual in the support CD.

English

*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In or

Side Speaker

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool

on your system. Please select “Mixer ToolBox” , click “Enable playback multi-

streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are

allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/

Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front

panel audio.

**** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of

2.5 mm and an outer diameter of 5.5 mm, where the inner contact is +19V (±10%) DC and the shell is GND.

Please refer to below hardware conguration for the estimated adapter power.

DRAM HDD Estimated Adapter Power

1 1 41W

1 2 56W

2 2 60W

Due to the power limitation and PCIe bandwidth (x4), the VGA card is not supported.

is motherboard is available with support for either ATX or DC-in power supplies. Please do not use two kinds

of power supplies at the same time! Doing so may damage the motherboard components and devices. When you

use the DC-in power adapter, please use the onboard SATA power connector to get the power for HDDs.

2.5 mm

5.5mm

English

AM1H-ITX

Chapter 1 Introduction

ank you for purchasing ASRock AM1H-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock AM1H-ITX Motherboard (Mini-ITX Form Factor)

• ASRock AM1H-ITX Quick Installation Guide

• ASRock AM1H-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x Serial ATA (SATA) Power Cable (Optional)

• 1 x WiFi Module Screw

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Mini-ITX Form Factor

• All Solid Capacitor design

CPU • Supports AMD AM1 Socket A-series and E-series Quad-

Core/Dual-Core APU up to 25W

Memory • 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 32GB (see CAUTION1)

Expansion

Slot

• 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode)

• 1 x mini-PCI Express Slot

* Due to the power limitation and PCIe bandwidth (x4), the

VGA card is not supported.

Graphics • Integrated AMD RadeonTM R3 Series Graphics in A-series /

E-series APU

• DirectX 11.1, Pixel Shader 5.0

• Max. shared memory 2GB

• Four graphics output options: D-Sub, DVI-D, HDMI and

DisplayPort 1.2 (see CAUTION2)

• Supports HDMI with max. resolution up to 4K × 2K

(4096x2160) @ 24Hz or 4K × 2K (3840x2160) @ 30Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 2048x1536 @

60Hz

• Supports DisplayPort 1.2 with max. resolution up to 4K × 2K

(4096x2160) @ 30Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D, HDMI and DisplayPort 1.2

Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D,

HDMI and DisplayPort 1.2 Ports

English

AM1H-ITX

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray Audio support

• Supports Full Spike Protection

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Realtek RealWoW! Technology

• Supports Wake-On-LAN

• Supports Full Spike Protection

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x DC Jack

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x DisplayPort 1.2

• 1 x Optical SPDIF Out Port

• 2 x USB 2.0 Ports (Supports Full Spike Protection)

• 2 x USB 3.0 Ports (Supports Full Spike Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

Storage • 2 x SATA3 6.0 Gb/s Connectors by AMD AM1 Series Socket

25W Quad-Core APU, support NCQ, AHCI and Hot Plug

• 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, sup-

port NCQ, AHCI and Hot Plug

English

Connector • 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x SATA Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports Full

Spike Protection)

• 1 x USB 3.0 Header by ASMedia ASM1042A (Supports 2 USB

3.0 ports) (Supports Full Spike Protection)

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with GUI support

• Supports “Plug and Play”

• ACPI 1.1 compliance wake up events

• Supports jumperfree

• SMBIOS 2.3.1 support

• DRAM Voltage multi-adjustment

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Google

Chrome Browser and Toolbar, Start8 (30 days trial)

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU Quiet Fan

• CPU Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Andere Handbücher für AM1H-ITX

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK AB350M-HDV Bedienungsanleitung

ASROCK

ASROCK Z77 Extreme3 Bedienungsanleitung

ASROCK

ASROCK Phantom Gaming 4 Z690 Bedienungsanleitung

ASROCK

ASROCK C70M1 R2.0 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Bedienungsanleitung

ASROCK

ASROCK M3A770DE Bedienungsanleitung

ASROCK

ASROCK WOLFDALE1333-GLAN-M - V1.0 Bedienungsanleitung

ASROCK

ASROCK K10N78 Bedienungsanleitung

ASROCK

ASROCK ALIVENF6P-VSTA Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING Z790 RIPTIDE WiFi Bedienungsanleitung

ASROCK

ASROCK A785GXH 128M Bedienungsanleitung

ASROCK

ASROCK PV530A Bedienungsanleitung

ASROCK

ASROCK B75M-DGS Bedienungsanleitung

ASROCK

ASROCK B75 Pro3-M/MVP Bedienungsanleitung

ASROCK

ASROCK IMB-380-D Bedienungsanleitung

ASROCK

ASROCK 990FX EXTREME3 Bedienungsanleitung

ASROCK

ASROCK CONROE945G-DVI Bedienungsanleitung

ASROCK

ASROCK FM2A88X Extreme4 Bedienungsanleitung

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK Super Alloy H110M-HDV Bedienungsanleitung

ASROCK

ASROCK P67 EXTREME4 - Bedienungsanleitung

ASROCK

ASROCK 960GM-S3 FX Bedienungsanleitung

ASROCK

ASROCK H310M-G/M.2 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
