ASROCK B360 Pro4 Bedienungsanleitung

Version 1.0

Published March 2018

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

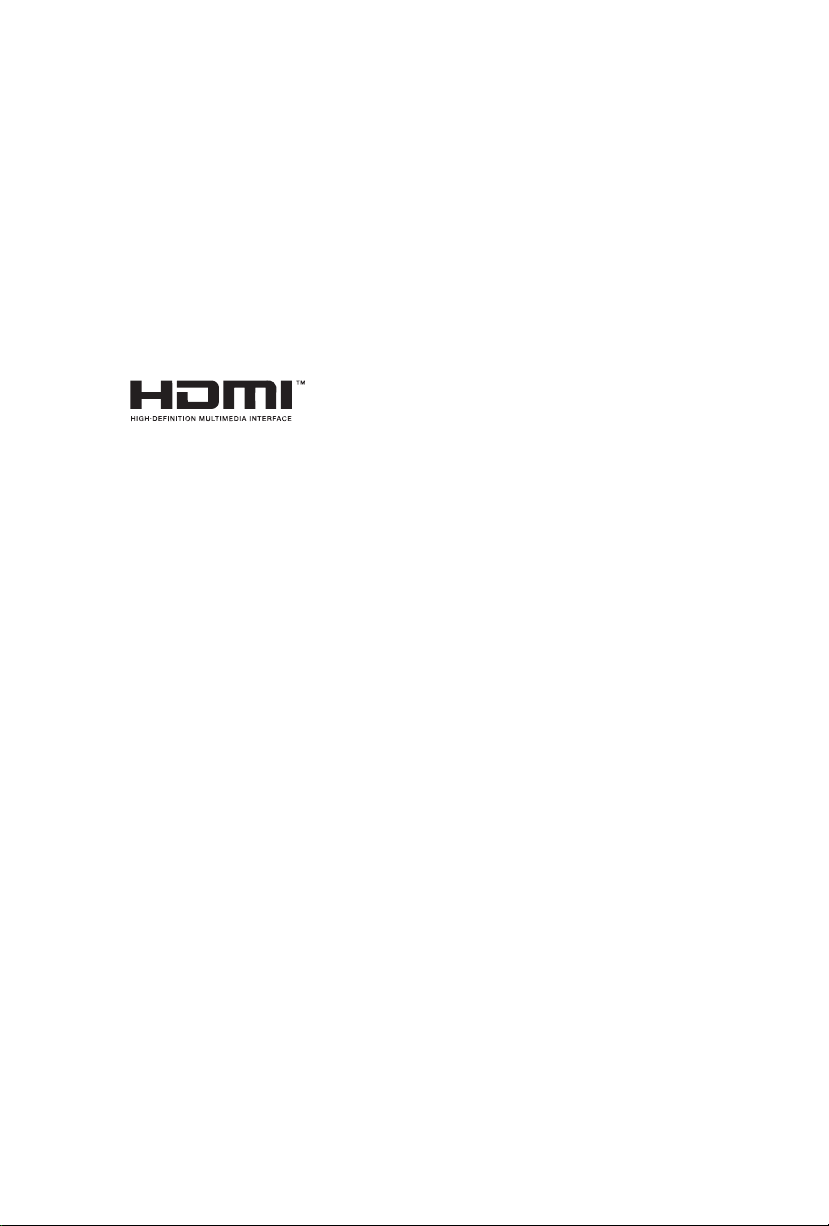

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

B360 Pro4

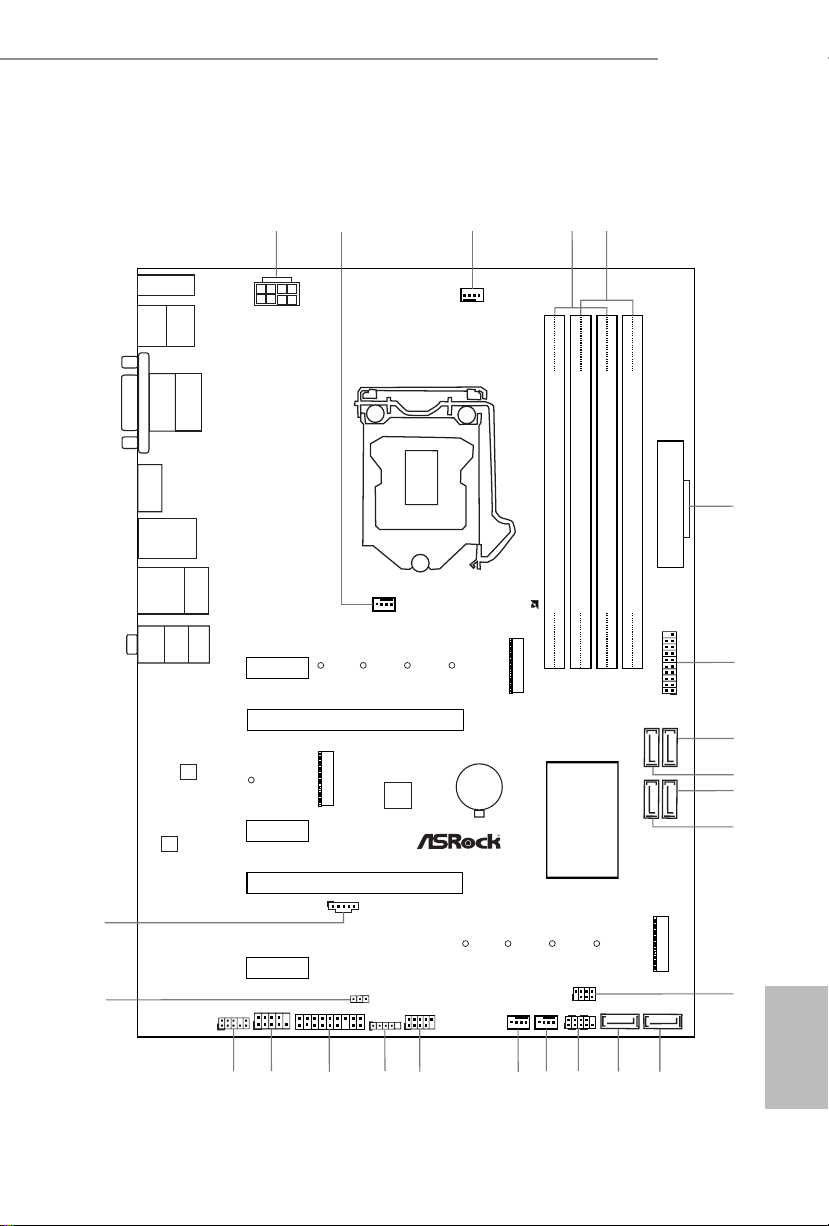

Motherboard Layout

Intel

B360

DDR4_A2 (64 bit, 288-pin module)

DDR4_A1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

ATX12V1

USB 3. 1 Ge n1

T: USB3_1

B: USB3 _2

ATXPWR1

PCIE2

Top:

RJ-45

USB 2.0

T: USB_1

B: USB_2

PCIE4

HDLED RESET

PLED PWRBTN

PANEL1

USB_3_4

SPK_PLED1

COM1

HD_AUDIO1

B360 Pro4

PCIE1

RoHS

Ultra M.2

PCIe Gen3 x4

PS2

Keyb oar d

/Mou se

CMOS

Battery

PCIE3

USB3 _3 _4

TPMS1

M2_1

C 3C 2C 1C4

USB 3.1

Top:

LINE IN

Cente r:

FRONT

Botto m:

MIC IN

SATA3_5 SATA3_4

PCI Express 3.0

SATA3 _2

SATA3 _3

SATA3 _0

SATA3 _1

USB_5

M2_3

M2_3_CT1

M2_2

C 7C 6C 5C8

HDMI1

DVI1

VGA1

USB 3.1 Gen2

T:USB31_TA_1

B: USB31_TC_1

T B1

PCIE5

Antenna Port

TTTT

AUDIO

CODEC

LAN

SUPER

I/O

AMD

CROSSFIRE

22 20

21 15

CLRMOS1

CHA_FAN2/WP

CHA_FAN3/WP

CHA_FAN1/WP

CPU_FAN1

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Chassis Fan / Waterpump Fan Connector (CHA_FAN2/WP)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

6 ATX Power Connector (ATXPWR1)

7 USB 3.1 Gen1 Header (USB3_3_4)

8 SATA3 Connector (SATA3_3)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_0)

12 Power LED and Speaker Header (SPK_PLED1)

13 SATA3 Connector (SATA3_4)

14 SATA3 Connector (SATA3_5)

15 System Panel Header (PANEL1)

16 Chassis Fan / Waterpump Fan Connector (CHA_FAN3/WP)

17 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

18 USB 2.0 Header (USB_3_4)

19 USB 2.0 Header (USB_5)

20 TPM Header (TPMS1)

21 COM Port Header (COM1)

22 Front Panel Audio Header (HD_AUDIO1)

23 Clear CMOS Jumper (CLRMOS1)

24 underbolt AIC Connector (TB1)

English

B360 Pro4

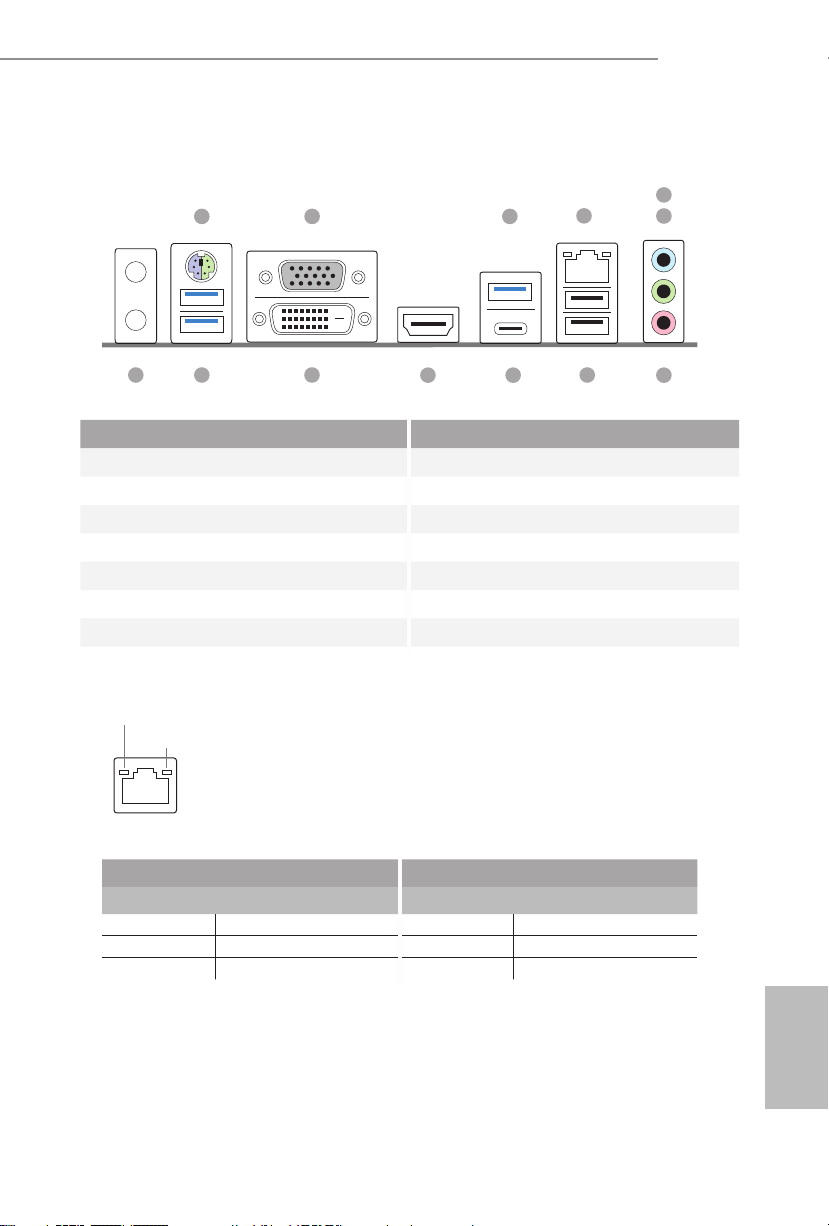

I/O Panel

12 8

911

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 USB 2.0 Ports (USB_1_2)

2D-Sub Port 9USB 3.1 Gen2 Type-C Port (USB31_TC_1)

3 USB 3.1 Gen2 Type-A Port (USB31_TA_1) 10 HDMI Port

4 LAN RJ-45 Port* 11 DVI-D Port

5 Line In (Light Blue)** 12 USB 3.1 Gen1 Ports (USB3_1_2)

6 Front Speaker (Lime)** 13 Antenna Ports

7 Microphone (Pink)**

English

** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

English

B360 Pro4

Chapter 1 Introduction

ank you for purchasing ASRock B360 Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

•ASRock B360 Pro4 Motherboard (ATX Form Factor)

•ASRock B360 Pro4 Quick Installation Guide

•ASRock B360 Pro4 Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x I/O Panel Shield

•3 x Screws for M.2 Sockets (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform •ATX Form Factor

•Solid Capacitor design

CPU •Supports 8th Generation Intel® CoreTM Processors (Socket

1151)

•Digi Power design

•10 Power Phase design

•Supports Intel® Turbo Boost 2.0 Technology

Chipset •Intel® B360

Memory •Dual Channel DDR4 Memory Technology

•4 x DDR4 DIMM Slots

•Supports DDR4 2666/2400/2133 non-ECC, un-buered

memory

•Supports ECC UDIMM memory modules (operate in non-

ECC mode)

•Max. capacity of system memory: 64GB

•Supports Intel® Extreme Memory Prole (XMP) 2.0

•15μ Gold Contact in DIMM Slots

Expansion

Slot

•2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16

(PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))

* If PCIE3 or PCIE5 is occupied, PCIE4 will downgrade to x2

mode.

* Supports NVMe SSD as boot disks

•3 x PCI Express 3.0 x1 Slots (Flexible PCIe)

•Supports AMD Quad CrossFireXTM and CrossFireXTM

•1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

and Intel® CNVi (Integrated WiFi/BT)

Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

English

B360 Pro4

•Supports Intel® UHD Graphics Built-in Visuals : Intel®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

•DirectX 12

•HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1 (Decode only)

•ree graphics output options: D-Sub, DVI-D and HDMI

•Supports Triple Monitor

•Supports HDMI with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

•Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port

(Compliant HDMI monitor is required)

•Supports HDCP with DVI-D and HDMI Ports

•Supports 4K Ultra HD (UHD) playback with HDMI Port

Audio •7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

•Premium Blu-ray Audio support

•Supports Surge Protection

•ELNA Audio Caps

LAN •Gigabit LAN 10/100/1000 Mb/s

•Giga PHY Intel® I219V

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

English

Rear Panel

I/O

•2 x Antenna Ports

•1 x PS/2 Mouse/Keyboard Port

•1 x D-Sub Port

•1 x DVI-D Port

•1 x HDMI Port

•2 x USB 2.0 Ports (Supports ESD Protection)

•1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD

Protection)

•1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD

Protection)

•2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jacks: Line in / Front Speaker / Microphone

Storage •6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will

be disabled.

* If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will

be disabled.

•1 x Ultra M.2 Socket (M2_1), supports M Key type

2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2

PCI Express module up to Gen3 x4 (32 Gb/s)**

•1 x M.2 Socket (M2_2), supports M Key type

2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module

and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

** Supports Intel® OptaneTM Technology (M2_1 only)

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector •1 x COM Port Header

•1 x TPM Header

•1 x Power LED and Speaker Header

•1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Bedienungsanleitung

ASROCK

ASROCK FM2A75 PRO04+ Bedienungsanleitung

ASROCK

ASROCK Z590M Phantom Gaming 4 Bedienungsanleitung

ASROCK

ASROCK 775I65PE-M Bedienungsanleitung

ASROCK

ASROCK Z390 Taichi Ultimate Bedienungsanleitung

ASROCK

ASROCK A75M-DGS Bedienungsanleitung

ASROCK

ASROCK EPYC3251D4I-2T Bedienungsanleitung

ASROCK

ASROCK ROMED4ID-2T Bedienungsanleitung

ASROCK

ASROCK H61M-GE Bedienungsanleitung

ASROCK

ASROCK H61M-ITX/SI Bedienungsanleitung

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0_987 - Bedienungsanleitung

ASROCK

ASROCK FM2A85X Pro Bedienungsanleitung

ASROCK

ASROCK FM2A55M-DGS R2.0 Bedienungsanleitung

ASROCK

ASROCK P41C-DE Bedienungsanleitung

ASROCK

ASROCK CONROE865GV Bedienungsanleitung

ASROCK

ASROCK Z68 Extreme4 Gen3 Bedienungsanleitung

ASROCK

ASROCK P67 EXTREME4 - Bedienungsanleitung

ASROCK

ASROCK H570 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK Z87M OC Formula Bedienungsanleitung

ASROCK

ASROCK CONROE1333-1394 Bedienungsanleitung

ASROCK

ASROCK 960GM-VGS3 FX Bedienungsanleitung

ASROCK

ASROCK H110M Combo-G Bedienungsanleitung

ASROCK

ASROCK P67 Pro Bedienungsanleitung

ASROCK

ASROCK N73PV-S - INSTALLATION - 12-2006 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
