ASROCK B95M-DGS Bedienungsanleitung

B95M-DGSB95M-DGS

B95M DGSB95M DGS

Version 1.0

Published May 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 5

1.4 I/O Panel 7

Chapter 2 Installation 8

2.1 Installing the CPU 9

2.2 Installing the CPU Fan and Heatsink 12

2.3 Installing Memory Modules (DIMM) 13

2.4 Expansion Slots (PCI Express Slots) 15

2.5 Jumpers Setup 16

2.6 Onboard Headers and Connectors 17

Chapter 3 Software and Utilities Operation 22

3.1 Installing Drivers 22

3.2 A-Tuning 23

3.3 Intel® Rapid Start Technology 29

3.4 Intel® Smart Connect Technology 34

3.5 ASRock Cloud 39

3.6 ASRock APP Shop 49

3.6.1 UI Overview 49

3.6.2 Apps 50

3.6.3 BIOS & Drivers 53

3.6.4 Setting 54

3.7 Start8 55

Chapter 4 UEFI SETUP UTILITY 58

4.1 Introduction 58

4.1.1 UEFI Menu Bar 58

4.1.2 Navigation Keys 59

4.2 Main Screen 60

4.3 OC Tweaker Screen 61

4.4 Advanced Screen 69

4.4.1 CPU Conguration 70

4.4.2 Chipset Conguration 72

4.4.3 Storage Conguration 74

4.4.4 Intel® Rapid Start Technology 75

4.4.5 Intel® Smart Connect Technology 76

4.4.6 Super IO Conguration 77

4.4.7 ACPI Conguration 78

4.4.8 USB Conguration 80

4.4.9 Trusted Computing 82

4.5 Tools 83

4.6 Hardware Health Event Monitoring Screen 86

4.7 Boot Screen 87

4.8 Security Screen 90

4.9 Exit Screen 91

Chapter 1 Introduction

ank you for purchasing ASRock B95M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock B95M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B95M-DGS Quick Installation Guide

• ASRock B95M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

B95M-DGS

English

Chapter 1 Introduction

ank you for purchasing ASRock B95M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock B95M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B95M-DGS Quick Installation Guide

• ASRock B95M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports New 4th and 4th Generation Intel® CoreTM i7/i5/i3/

Xeon®/Pentium®/Celeron® Processors (Socket 1150)

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x1 Slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• Dual graphics output: support DVI-D and D-Sub by

independent display controllers

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

Port

B95M-DGS

English

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

English

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

B95M-DGS

English

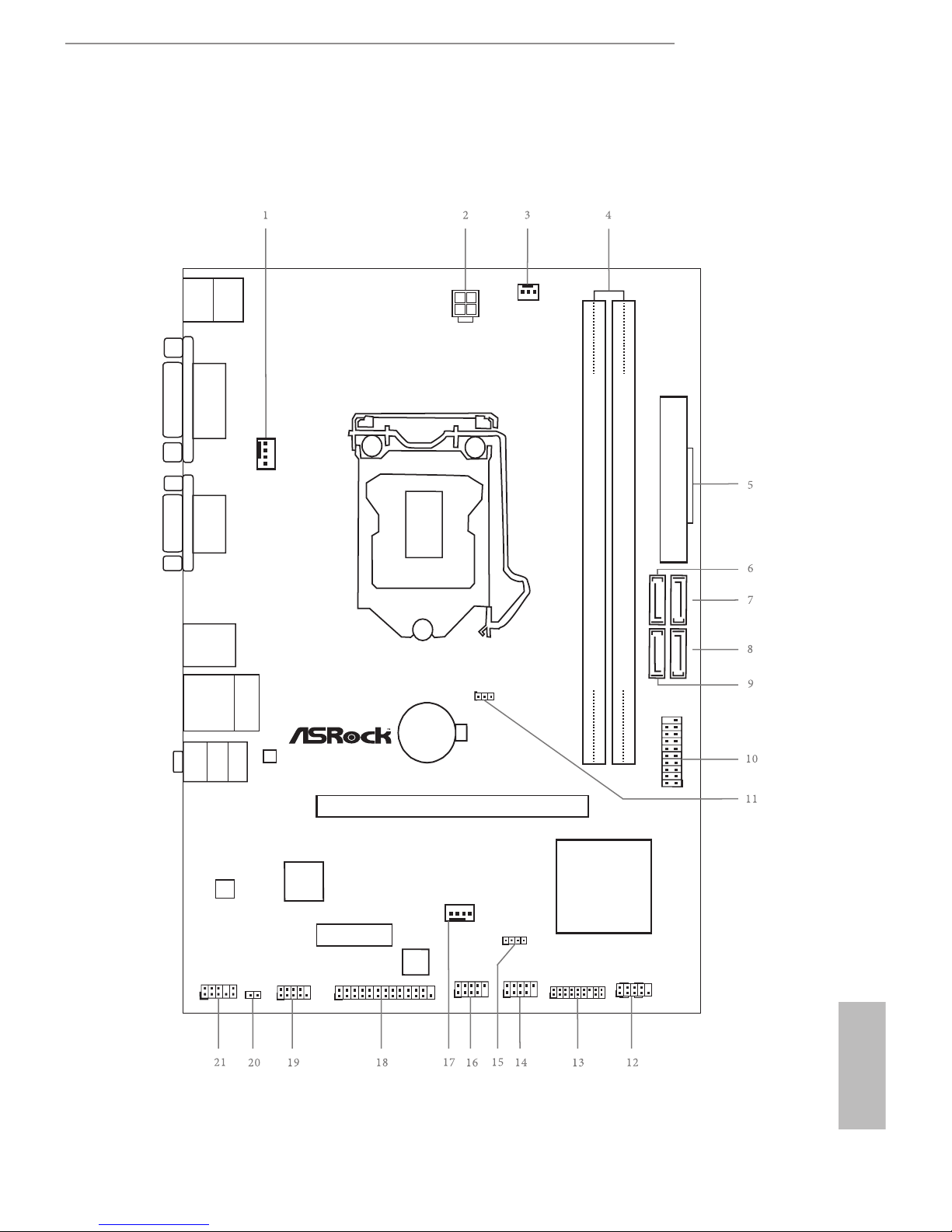

1.3 Motherboard Layout

Intel

B85

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

CLRCMOS1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

USB4_5

COM1

HD_AUDIO1

B95M-DGS

CHA_FAN1

RoHS

CPU_FAN1

32Mb

BIOS

VGA1

Audio

CODEC

PCIE1

Front USB 3.0

PWR_FAN1

TPMS1

LPT1

CI1

USB3_2_3

SATA3_3

PCIE2

USB 3.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6_7

ATX12V1

SATA3_1

SATA3_2

SATA3_0

PCI Express 3.0

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

DVI1

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 Power Fan Connector (PWR_FAN1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_3)

7 SATA3 Connector (SATA3_2)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_1)

10 USB 3.0 Header (USB3_2_3)

11 Clear CMOS Jumper (CLRCMOS1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 USB 2.0 Header (USB6_7)

15 Chassis Speaker Header (SPEAKER1)

16 USB 2.0 Header (USB4_5)

17 Chassis Fan Connector (CHA_FAN1)

18 Print Port Header (LPT1)

19 COM Port Header (COM1)

20 Chassis Intrusion Header (CI1)

21 Front Panel Audio Header (HD_AUDIO1)

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H510M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK 880GMH/USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK B365 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK P55 EXTREME Bedienungsanleitung

ASROCK

ASROCK IMB-V1000 Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-D800 - V1.0 Bedienungsanleitung

ASROCK

ASROCK P65iCafe Bedienungsanleitung

ASROCK

ASROCK P4V88 Bedienungsanleitung

ASROCK

ASROCK N68-S3 UCC - Bedienungsanleitung

ASROCK

ASROCK 939NF4G-VSTA Bedienungsanleitung

ASROCK

ASROCK J3455-ITX Bedienungsanleitung

ASROCK

ASROCK FM2A55M-VG3 Bedienungsanleitung

ASROCK

ASROCK P43DE Bedienungsanleitung

ASROCK

ASROCK H470M Pro4 Bedienungsanleitung

ASROCK

ASROCK P55 EXTREME4 - Bedienungsanleitung

ASROCK

ASROCK H310M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK K10N78M PRO Bedienungsanleitung

ASROCK

ASROCK 890GX Pro3 Bedienungsanleitung

ASROCK

ASROCK A780GXH128M_848 - Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme11/ac Bedienungsanleitung

ASROCK

ASROCK G31DE Bedienungsanleitung

ASROCK

ASROCK AM2V890-VSTA Bedienungsanleitung

ASROCK

ASROCK H310CM-HDV/M.2 Bedienungsanleitung

ASROCK

ASROCK B85M DASH/OL R2.0 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
