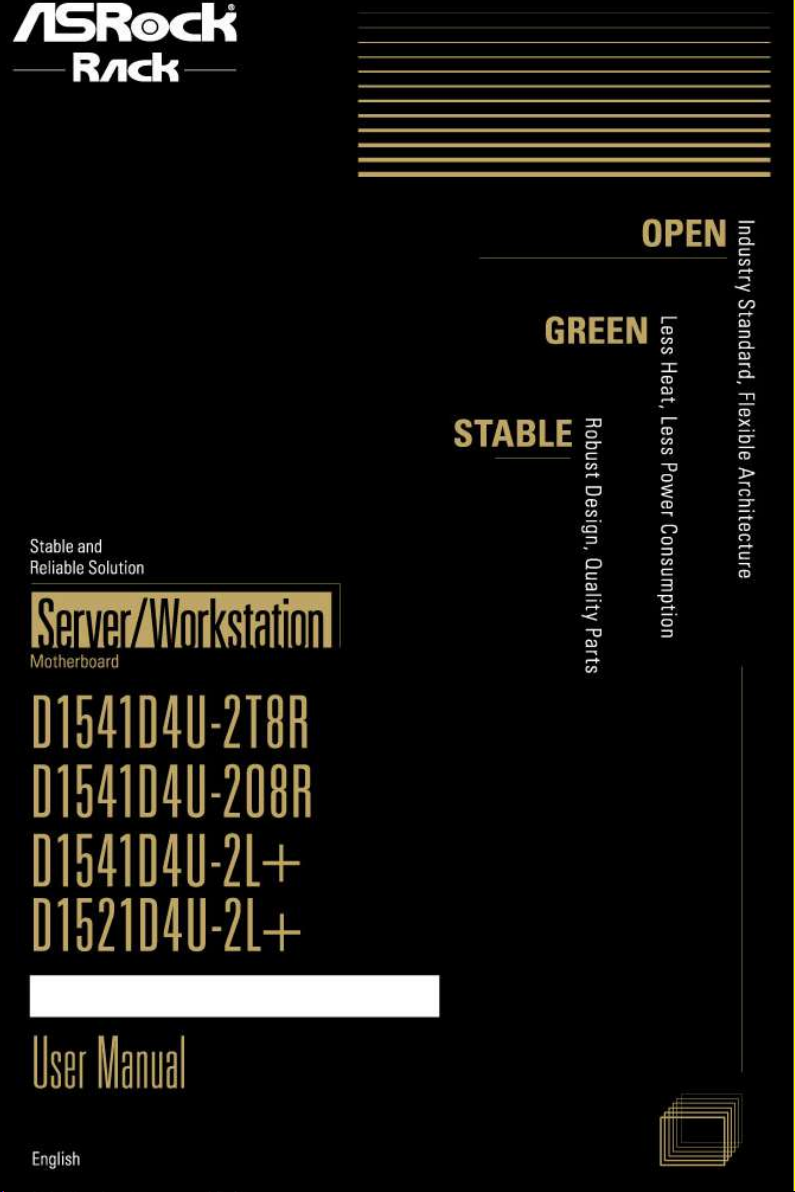

ASROCK D1541D4U Series Bedienungsanleitung

D1541D4U-2L+

D1541D4U-2T8R

D1541D4U-2O8R

User Manual

Version 1.0

Published February 2016

Version 1.1

Published April 2016

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Rack Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished

for informational use only and subject to change without notice, and should not

be constructed as a commitment by ASRock Rack. ASRock Rack assumes no

responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock Rack does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRock Rack has been advised of the possibility of such damages

arising from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Rack’s Website: www.ASRockRack.com

Contact Information

If you need to contact ASRock Rack or want to know more about ASRock Rack,

you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you

may contact your dealer for further information.

ASRock Rack Incorporation

6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Unique Features 5

1.4 Motherboard Layout 6

1.5 Onboard LED Indicators 16

1.6 I/O Panel 18

1.7 Block Diagram 21

Chapter 2 Installation 24

2.1 Screw Holes 24

2.2 Pre-installation Precautions 24

2.3 Installation of Memory Modules (DIMM) 25

2.4 Expansion Slots 27

2.5 Jumper Setup 28

2.6 Onboard Headers and Connectors 30

2.7 Unit Identication purpose LED/Switch 36

2.8 Driver Installation Guide 36

2.9 Dual LAN and Teaming Operation Guide 37

2.10 M.2_SSD (NGFF) Module Installation Guide 38

Chapter 3 UEFI Setup Utility 41

3.1 Introduction 41

3.1.1 UEFI Menu Bar 41

3.1.2 Navigation Keys 42

3.2 Main Screen 43

3.3 Advanced Screen 44

3.3.1 ACPI Conguration 45

3.3.2 Congure Super IO Settings 46

3.3.3 Serial Port Console Redirection 47

3.3.4 CSM Conguration 50

3.3.5 USB Conguration 51

3.3.6 System Conguration 52

3.3.7 Hard Disk S.M.A.R.T Settings 54

3.3.8 3rd Storage Conguration 55

3.3.9 NVMe Conguration 56

3.3.10 H/W Monitor 57

3.3.11 WHEA Conguration 59

3.3.12 Instant Flash 61

3.4 IntelRCSetup 62

3.4.1 Processor Conguration 63

3.4.2 CPU Power Management Conguration 65

3.4.3 Memory Conguration 67

3.4.4 IIO Conguration 68

3.4.5 PCH Conguration 69

3.4.6 Server ME Conguration 71

3.5 Server Mgmt 72

3.5.1 System Event Log 73

3.5.2 BMC Network Conguration 74

3.6 Security Screen 76

3.7 Boot Screen 77

3.8 Event Logs 79

3.9 Exit Screen 80

Chapter 4 Software Support 81

4.1 Install Operating System 81

4.2 Support CD Information 81

4.2.1 Running The Support CD 81

4.2.2 Drivers Menu 81

4.2.3 Utilities Menu 81

4.2.4 Contact Information 81

Chapter 5 Troubleshooting 82

5.1 Troubleshooting Procedures 82

5.2 Technical Support Procedures 84

5.3 Returning Merchandise for Service 84

Chapter 6: Net Framework Installation Guide 85

6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2) 85

D15XXD4U Series

PB 1

English

Chapter 1 Introduction

ank you for purchasing ASRock Rack D1541D4U Series motherboard, a reliable

motherboard produced under ASRock Rack’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock Rack’s

commitment to quality and endurance.

In this manual, chapter 1 and 2 contains introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration

guide to BIOS setup and information of the Support CD.

1.1 Package Contents

• ASRock Rack D1521D4U-2L+ /D1541D4U-2L+ / D1541D4U-2T8R / D1541D4U-2O8R

Motherboard

(uATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

• Support CD

• User Manual

• 4 x Serial ATA (SATA)3 Cables (50cm)

• 2 x Serial ATA (SATA)3 Cables (60cm)

• 1 x Mini SAS HD (12G) to 4SATA Cable (60cm)*

*For D1541D4U-2T8R / D1541D4U-2O8R motherboard only

• 1 x I/O Shield

• 2 x Screws for M.2 Sockets

If any items are missing or appear damaged, contact your authorized dealer.

Because the motherboard specications and the BIOS soware might be updated, the con-

tent of this manual will be subject to change without notice. In case any modications of

this manual occur, the updated version will be available on ASRock Rack website without

further notice. You may nd the latest memory and CPU support lists on ASRock Rack

website as well. ASRock Rack’s Website: www.ASRockRack.com

If you require technical support related to this motherboard, please visit our website for

specic information about the model you are using.

http://www.asrockrack.com/support/

2 3

English

1.2 Specications

D1521D4U-2L+ / D1541D4U-2L+ / D1541D4U-2O8R / D1541D4U-2T8R

MB Physical Status

Form Factor uATX

Dimension 9.6' x 9.6'' (24.4 cm x 24.4 cm)

Processor System

CPU D1521D4U-2L+:

Support Intel® Xeon® D1521 Processors

D1541D4U-2L+ / D1541D4U-2T8R / D1541D4U-2O8R:

Support Intel® Xeon® D1541 Processors

Chipset Soc

System Memory

Capacity - 4x DDR4 DIMM slots

- Supports up to 128GB DDR4 ECC RDIMM

- Supports up to 64GB DDR4 ECC/non-ECC UDIMM

DIMM Sizes and

Type per DIMM

- Non-ECC UDIMM :4GB, 8GB, 16GB

- ECC UDIMM : 4GB, 8GB, 16GB

- RDIMM : 4GB, 8GB, 16GB,32GB

Frequency D1521D4U-2L+:

- Non-ECC UDIMM : 1600, 1866, 2133MHz

- ECC UDIMM : 1600, 1866, 2133MHz

- RDIMM : 1600, 1866, 2133MHz

D1541D4U-2L+ / D1541D4U-2T8R / D1541D4U-2O8R:

- Non-ECC UDIMM : 1600, 1866, 2133MHz, 2400MHz

- ECC UDIMM : 1600, 1866, 2133MHz, 2400MHz

- RDIMM : 1600, 1866, 2133MHz, 2400MHz

Voltage 1.2V

Expansion Slot

PCIe 3.0 x16 D1521D4U-2L+ / D1541D4U-2L+:

1 slot (x16)

D1541D4U-2T8R / D1541D4U-2O8R:

1 slot (x8)

PCIe 3.0 x8 1 slot (x8)

Storage

SATA Controller D1541/D1521: 6 x SATA3 6Gb/s

Additional

Storage

Controller

- LSI3008 support 8 x SAS3 12Gbps by mini SAS HD

connector(switch with slot 7)

- Marvell 9172 for 2 ports to M.2

Ethernet

Interface 1000 /100 /10 Mbps

LAN Controller D1521D4U-2L+ / D1541D4U-2L+:

- 2 x RJ45 GLAN by Intel® i350

D1541D4U-2T8R:

- 2 x RJ45 GLAN by Intel® X540

D15XXD4U Series

2 3

English

D1541D4U-2O8R:

- 2 x 10G ber, SFP+ by CS4227

- Supports Wake-On-LAN

- Supports Energy Ecient Ethernet 802.3az

- Supports Dual LAN with Teaming function

- Supports PXE

Management

BMC Controller ASPEED AST2400

IPMI Dedicated

GLAN 1 x Realtek RTL8211E for dedicated management GLAN

Features

- Watch Dog

- NMI

- IPMI (Intelligent Platform Management Interface) v.2.0

- Virtual media over LAN function

- KVM over LAN function

Graphics

Controller ASPEED AST2400

VRAM DDR3 16MB SDRAM

Output Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Rear Panel I/O

VGA Port 1 x D-Sub

USB 3.0 Port 2

LAN Port

D1521D4U-2L+ / D1541D4U-2L+:

- RJ45: 2x GLAN(by Intel i350)

D1541D4U-2T8R:

- RJ45: 2x 10G-BaseT LAN(by Intel X540)

D1541D4U-2O8R:

- RJ45: 2x 10G SFP+ Optical Fiber (CS4227)

- LAN Ports with LED (ACT/LINK LED and SPEED LED)

UID Button/UID

LED 1

Serial port COM x1

Internal Connector

Auxiliary Panel

Header

1 (includes chassis intrusion, location button & LED, front

LAN LED, and system fault LED)

TPM Header 1

IPMB Header 1

COM Header 1

ME/SPS

Recovery 1

Buzzer 1

PWR_SMB 1

SGPIO 2

Smbus from

BMC 1

4 5

English

Fan Header 6(1CPU/4Front/1Rear)

ATX Power 1x (24-pin) + 1x (8-pin)

USB 3.0 Header 1

Type A USB 3.0

Port 1

System BIOS

BIOS Ty pe 128Mb AMI UEFI Legal BIOS

BIOS Features

- Plug and Play (PnP)

- ACPI 1.1 Compliance Wake Up Events

- SMBIOS 2.8.0 Support

- ASRock Rack Instant Flash

Hardware Monitor

Temperature

- CPU Temperature Sensing

- System Temperature Sensing

- System Inlet Temperature Sensing

Fan

- CPU/Rear/Front Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU Temperature)

- CPU/Rear/Front Fan Multi-Speed Control

Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

1.05V_PCH, +BAT, 3VSB, 5VSB

Support OS

OS Microso® Windows®

- Server 2008 R2 SP1 (64 bit)

- Server 2012 (64 bit)

- Server 2012 R2 (64 bit)

Linux®

- CentOS 6.6 (32 / 64 bit) / 7. 0 (64 bit)

(only supports AHCI mode)

- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit) /

12 (64 bit)

- FreeBSD 10.1 (32 / 64 bit)

- Fedora Core 22 (64 bit)

- Ubuntu 15.04 (64 bit) / 15.10 (64 bit) (AHCI mode)

- RedHat Enterprise Linux Server 6.6 (32 / 64 bit) / 7.0 (64 bit)

Virtual:

- VMWare ESXi 5.5/ ESXi 6.0

* Please refer to our website for the latest OS support list.

Environment

Temperature Operation temperature: 10°C ~ 35°C / Non operation

temperature: -40°C ~ 70°C

* For detailed product information, please visit our website: http://www.asrockrack.com

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 990FX EXTREME3 Bedienungsanleitung

ASROCK

ASROCK P41C-DE Bedienungsanleitung

ASROCK

ASROCK B150M-PIO Bedienungsanleitung

ASROCK

ASROCK Z790 Taichi Carrara Bedienungsanleitung

ASROCK

ASROCK P5B PRO - QUICK Bedienungsanleitung

ASROCK

ASROCK Z390 Pro4 Bedienungsanleitung

ASROCK

ASROCK G41M-GS Bedienungsanleitung

ASROCK

ASROCK B550M Steel Legend Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X370 Gaming X Series Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z97M Killer Series Bedienungsanleitung

ASROCK

ASROCK P4S55FX2 Bedienungsanleitung

ASROCK

ASROCK IMB-154B Bedienungsanleitung

ASROCK

ASROCK X79 Extreme11 Bedienungsanleitung

ASROCK

ASROCK K10N78HSLI-1394 - V1.0 Bedienungsanleitung

ASROCK

ASROCK ALIVENF7G-HD720P - V3.1 Bedienungsanleitung

ASROCK

ASROCK PV530A-ITX Bedienungsanleitung

ASROCK

ASROCK X58 EXTREME - Bedienungsanleitung

ASROCK

ASROCK B150M Pro4/D3 Bedienungsanleitung

ASROCK

ASROCK B85M DASH/OL R2.0 Bedienungsanleitung

ASROCK

ASROCK IMB-153 Bedienungsanleitung

ASROCK

ASROCK QC5000M-ITX/PH Bedienungsanleitung

ASROCK

ASROCK B760M-HDV/M.2 D4 Bedienungsanleitung

ASROCK

ASROCK Z97M Pro4 Bedienungsanleitung

ASROCK

ASROCK 770iCafe Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
