ASRock FM2A55 Pro Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published November 2012

2ASRock FM2A55 Pro Motherboard

English

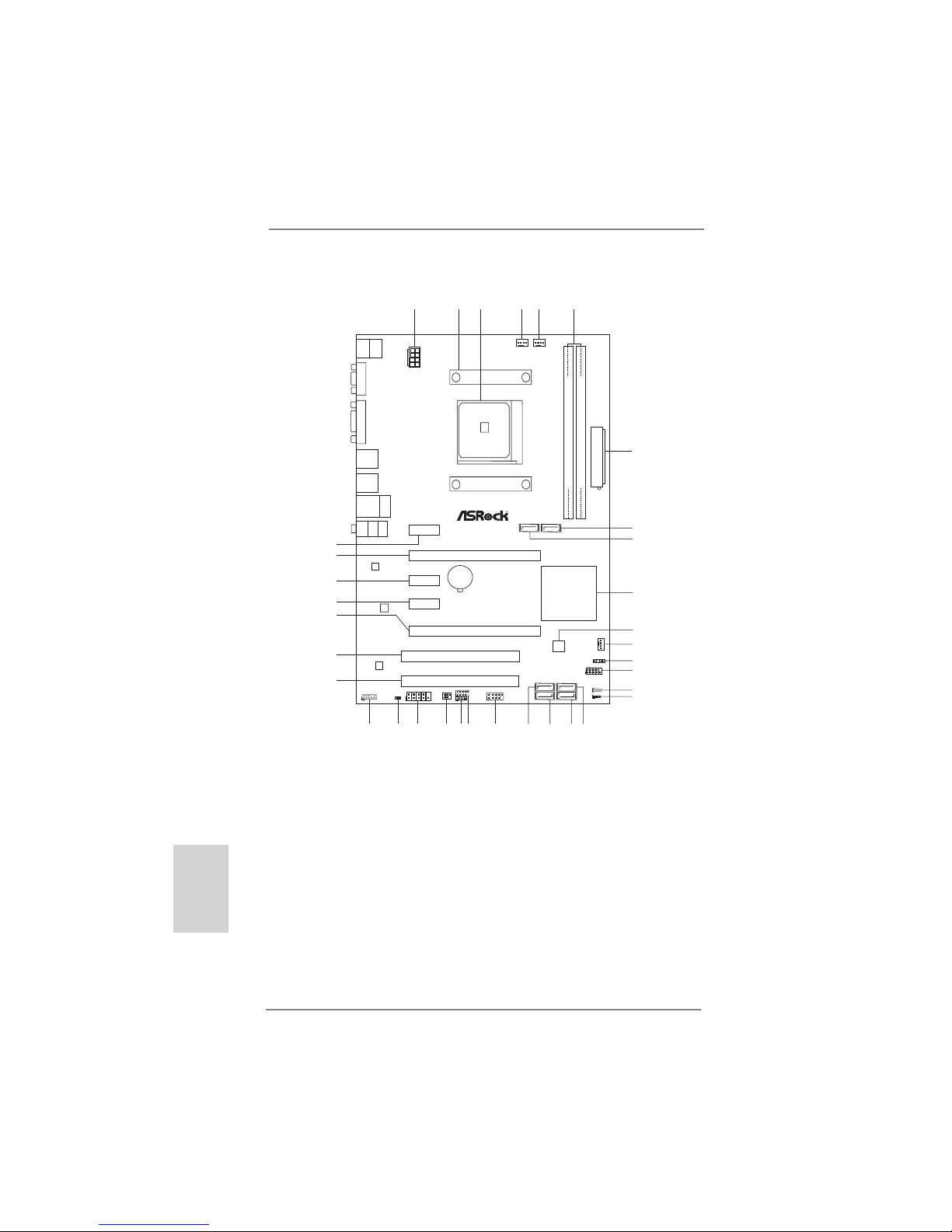

Motherboard Layout

1 ATX 12V Power Connector (ATX12V1) 18 SATA2 Connector (SATA_6)

2 CPU Heatsink Retention Module 19 SATA2 Connector (SATA_5)

3 CPU Socket 20 SATA2 Connector (SATA_3)

4 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB8_9)

5 Chassis Fan Connector (CHA_FAN2) 22 USB 2.0 Header (USB6_7)

6 2 x 240-pin DDR3 DIMM Slots 23 Consumer Infrared Module Header (CIR1)

(Dual Channel: DDR3_A1, DDR3_B1) 24 Infrared Module Header (IR1)

7 ATX Power Connector (ATXPWR1) 25 COM Port Header (COM1)

8 SATA2 Connector (SATA_2) 26 HDMI_SPDIF Header (HDMI_SPDIF1)

9 SATA2 Connector (SATA_1) 27 Front Panel Audio Header (HD_AUDIO1)

10 Southbridge Controller 28 PCI Slot (PCI2)

11 SPI Flash Memory (64Mb) 29 PCI Slot (PCI1)

12 Chassis Fan Connector (CHA_FAN1) 30 PCI Express 2.0 x16 Slot (PCIE5)

13 Chassis Speaker Header (SPEAKER1) 31 PCI Express 2.0 x1 Slot (PCIE4)

14 System Panel Header (PANEL1) 32 PCI Express 2.0 x1 Slot (PCIE3)

15 Clear CMOS Jumper (CLRCMOS1) 33 PCI Express 2.0 x16 Slot (PCIE2)

16 Power LED Header (PLED1) 34 PCI Express 2.0 x1 Slot (PCIE1)

17 SATA2 Connector (SATA_4)

Super

I/O

CMOS

BATTERY

ATXPWR1

AMD

A55 FCH

(Hudson-D2)

Chipset

PCIE1

LAN

AUDIO

CODEC

CPU_FAN1

64Mb

BIOS

PCIE2

FM2A55 Pro

ATX12V1

SOCKET FM2

PCIE5

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

PCIE3

PCI1

PCI2

Dual Graphics

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

SATA_1

IR1

CHA_FAN1

SPEAKER1

PLED1

HD_AUDIO1

HDMI_SPDIF1

COM1

USB6_7

CIR1

USB8_9

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Fast USB

Fast RAM

Fast LAN

RoHS

ErP/EuP Ready

DX11

PS2

Mouse

PS2

Keyboard

VGA1

DVI1

USB 2.0

T: USB0

B: USB1

USB 2.0

T: USB4

B: USB5

RJ-45 LAN

USB 2.0

T: USB2

B: USB3

CHA_FAN2

SATA_2

PCIE4

SATA_3 SATA_4

SATA_5 SATA_6

156

20 19

ASRock FM2A55 Pro Motherboard

English

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB45)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 9 DVI-D Port (DVI1)

** 4 Front Speaker (Lime) 10 D-Sub Port (VGA1)

5 Microphone (Pink) 11 PS/2 Keyboard Port (Purple)

6 USB 2.0 Ports (USB23)

LAN Port

ACT/LINK

LED

SPEED

LED

11 8 7

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock FM2A55 Pro Motherboard

1. Introduction

Thank you for purchasing ASRock FM2A55 Pro motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A55 Pro Motherboard (ATX Form Factor)

ASRock FM2A55 Pro Quick Installation Guide

ASRock FM2A55 Pro Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

ﬁguration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

English

ASRock FM2A55 Pro Motherboard

English

1.2 Speciﬁcations

Platform - ATX Form Factor

- All Solid Capacitor design

CPU - Support for Socket FM2 100W processors

- 4 + 1 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A55 FCH (Hudson-D2)

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Support DDR3 1866/1600/1333/1066 non-ECC, un-buffered

memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports Intel®Extreme Memory Proﬁle (XMP) 1.3 / 1.2

- Supports AMD Memory Proﬁle (AMP)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode; PCIE5 @ x4 mode)

- 3 x PCI Express 2.0 x1 slots

- 2 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual

Graphics (see CAUTION 3)

Graphics - AMD Radeon HD 7000 graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 2GB

- Dual VGA Output: support DVI and D-Sub ports by

independent display controllers

- Supports Dual-link DVI with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

6ASRock FM2A55 Pro Motherboard

English

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 2 x Chassis Fan connectors (2 x 4-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

ASRock FM2A55 Pro Motherboard

English

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. Whether 1866/1600MHz memory speed is supported depends

on the CPU you adopt. If you want to adopt DDR3 1866/1600

memory module on this motherboard, please refer to the mem-

ory support list on our website for the compatible memory mod-

ules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

der Windows®8 / 7 / VistaTM. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. For the discrete GPUs which support Dual Graphics technology,

please refer to http://www.amd.com/us/products/technologies/

dual-graphics/Pages/dual-graphics.aspx#3 for details.

8ASRock FM2A55 Pro Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a proﬁle and share it with your friends. Your friends then can

load the OC proﬁle to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve efﬁciency

when the CPU cores are idle without sacriﬁcing computing per-

formance. In XFast RAM, it fully utilizes the memory space that

cannot be used under Windows®OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efﬁcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at speciﬁc timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows®desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ﬂash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems ﬁrst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS ﬁle to your USB ﬂash drive, ﬂoppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional ﬂoppy diskette or other compli-

cated ﬂash utility. Please be noted that the USB ﬂash drive or

hard drive must use FAT32/16/12 ﬁle system.

ASRock FM2A55 Pro Motherboard

English

ASRock APP Charger

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has

prepared a wonderful solution for you - ASRock APP Charger.

Simply install the APP Charger driver, it makes your iPhone

charge much quickly from your computer and up to 40% faster

than before. ASRock APP Charger allows you to quickly charge

many Apple devices simultaneously and even supports continu-

ous charging when your PC enters into Standby mode (S1),

Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

With APP Charger driver installed, you can easily enjoy the mar-

velous charging experience.

ASRock XFast USB

ASRock XFast USB can boost USB storage device perfor-

mance. The performance may depend on the properties of the

device.

ASRock XFast LAN

ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritiza-

tion: You can conﬁgure your application’s priority ideally and/or

add new programs. Lower Latency in Game: After setting online

game’s priority higher, it can lower the latency in games. Trafﬁc

Shaping: You can watch Youtube HD videos and download si-

multaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are

transferring currently.

ASRock XFast RAM

ASRock XFast RAM is a new function that is included into AS-

Rock Extreme Tuning Utility (AXTU). It fully utilizes the memory

space that cannot be used under Windows®OS 32-bit CPU.

ASRock XFast RAM shortens the loading time of previously

visited websites, making web surfing faster than ever. And it

also boosts the speed of Adobe Photoshop 5 times faster. An-

other advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend

their lifespan.

10 ASRock FM2A55 Pro Motherboard

English

ASRock Crashless BIOS

ASRock Crashless BIOS allows users to update their BIOS

without fear of failing. If power loss occurs during the BIOS up-

date process, ASRock Crashless BIOS will automatically ﬁnish

the BIOS update procedure after regaining power. Please note

that BIOS ﬁles need to be placed in the root directory of your

USB disk. Only USB2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict

internet access at speciﬁed times via OMG. You may schedule

the starting and ending hours of internet access granted to other

users. In order to prevent users from bypassing OMG, guest

accounts without permission to modify the system time are re-

quired.

ASRock Internet Flash

ASRock Internet Flash searches for available UEFI firmware

updates from our servers. In other words, the system can auto-

detect the latest UEFI from our servers and ﬂash them without

entering Windows®OS. Please note that you must be running

on a DHCP conﬁgured computer in order to enable this function.

ASRock UEFI System Browser

ASRock UEFI system browser is a useful tool included in

graphical UEFI. It can detect the devices and configurations

that users are currently using in their PC. With the UEFI system

browser, you can easily examine the current system conﬁgura-

tion in UEFI setup.

ASRock Dehumidiﬁer Function

Users may prevent motherboard damages due to dampness by

enabling “Dehumidiﬁer Function”. When enabling Dehumidiﬁer

Function, the computer will power on automatically to dehumidi-

fy the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID

driver from a support CD to your USB storage device. After

copying the RAID driver to your USB storage device, please

change “SATA Mode” to “RAID”, then you can start installing the

OS in RAID mode.

Andere Handbücher für FM2A55 Pro

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 890FX Deluxe3 Bedienungsanleitung

ASROCK

ASROCK H67M Bedienungsanleitung

ASROCK

ASROCK Phantom Gaming 4 Z690 Bedienungsanleitung

ASROCK

ASROCK B460M Pro4/ac Bedienungsanleitung

ASROCK

ASROCK H61ICAFE Bedienungsanleitung

ASROCK

ASROCK FM2A75M-ITX R2.0 Bedienungsanleitung

ASROCK

ASROCK H61M-DG3/USB3 Bedienungsanleitung

ASROCK

ASROCK G31M-VS2 Bedienungsanleitung

ASROCK

ASROCK IMB-186-E Service-Handbuch

ASROCK

ASROCK X399 Gaming Bedienungsanleitung

ASROCK

ASROCK H61M-DPS Bedienungsanleitung

ASROCK

ASROCK X99 Extreme4 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z77 Professional-M series Bedienungsanleitung

ASROCK

ASROCK FM2A88M-DG3+ Bedienungsanleitung

ASROCK

ASROCK 880GMH USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK X58 SUPERCOMPUTER - Bedienungsanleitung

ASROCK

ASROCK B550 PHANTOM GAMING 4 Bedienungsanleitung

ASROCK

ASROCK A785GM-LE Bedienungsanleitung

ASROCK

ASROCK IMB-1220 Bedienungsanleitung

ASROCK

ASROCK M3A780GXH/128M Bedienungsanleitung

ASROCK

ASROCK FM2A85X Extreme4-M Bedienungsanleitung

ASROCK

ASROCK B560 PRO4 Bedienungsanleitung

ASROCK

ASROCK H87 Pro4 Bedienungsanleitung

ASROCK

ASROCK 880G EXTREME3 - V1.0 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
