ASRock G31DE-DVR Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

PublishedApril 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock G31DE-DVR Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 16 BIOS SPI Chip

2 OC 800 / FSB0 / FSB1 / FSB2 Jumper 17 Chassis Fan Connector (CHA_FAN2)

3 775-Pin CPU Socket 18 USB 2.0 Header (USB6_7, Blue)

4 North Bridge Controller 19 USB 2.0 Header (USB4_5, Blue)

5 2 x 240-pin DDR2 DIMM Slots 20 Serial Port Connector (COM2)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Print Port Header (LPT1, Purple)

6 ATX Power Connector (ATXPWR1) 22 Floppy Connector (FLOPPY1)

7 IDE1 Connector (IDE1, Blue) 23 Front Panel Audio Header

8 Clear CMOS Jumper (CLRCMOS1) (HD_AUDIO1, Lime)

9 South Bridge Controller 24 HDMI_SPDIF Header

10 Third SATAII Connector (SATAII_3; Orange) (HDMI_SPDIF1,Yellow)

11 Fourth SATAII Connector (SATAII_4; Orange) 25 Internal Audio Connector: CD1 (Black)

12 Secondary SATAII Connector (SATAII_2; Red) 26 PCI Slots (PCI1- 5)

13 Primary SATAII Connector (SATAII_1; Red) 27 PCI Express x16 Slot (PCIE1)

14 Chassis Speaker Header 28 CPU Fan Connector (CPU_FAN1)

(SPEAKER 1, Purple) 29 Power Fan Connector (PWR_FAN1)

15 System Panel Header (PANEL1, Orange) 30 ATX 12V Connector (ATX12V1)

ASRock G31DE-DVR Motherboard

EnglishEnglish

English

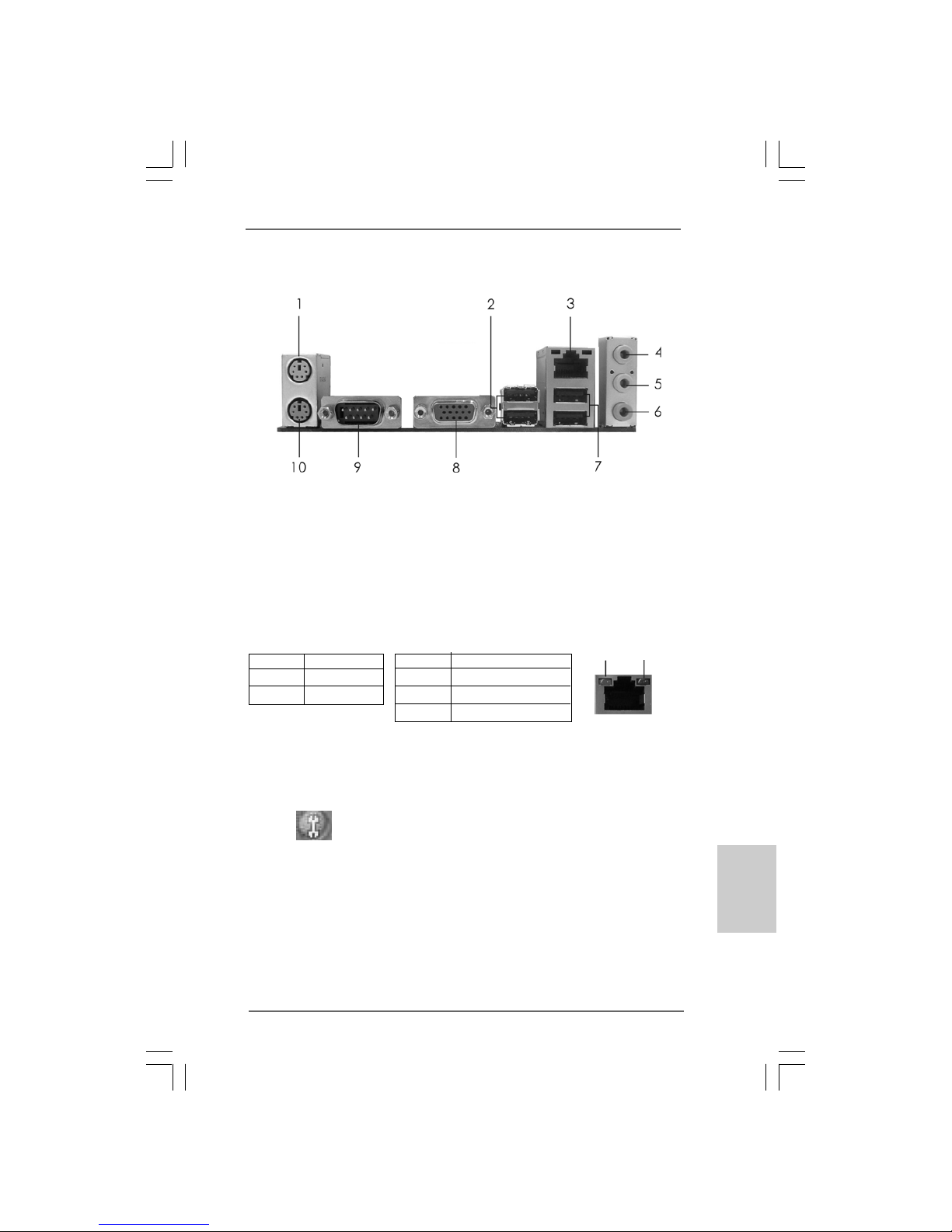

I/O PI/O P

I/O Panelanel

anelanel

anel

1 PS/2 Mouse Port (Green) 6 Microphone (Pink)

2 USB 2.0 Ports (USB23) 7 USB 2.0 Ports (USB01)

* 3 LAN RJ-45 Port 8 VGA Port

4 Line In (Light Blue) 9 COM Port

5 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDAAudio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

4ASRock G31DE-DVR Motherboard

ASRock G31DE-DVR Motherboard

® ®

6ASRock G31DE-DVR Motherboard

®®

ASRock G31DE-DVR Motherboard

® ®

8ASRock G31DE-DVR Motherboard

ASRock G31DE-DVR Motherboard

1_2

OC800

1_2

FSB0

FSB1

FSB2

2_3

1_2

OC800

1_2

FSB0

FSB1

FSB2

2_3

1_2

OC800

1_2

FSB0

FSB1

FSB2

1_2

OC800

FSB0

FSB1

FSB2

2_3

1010

10 ASRock G31DE-DVR Motherboard

1_2

OC800

FSB0

FSB1

FSB2

2_3
