ASROCK H410M/ac Bedienungsanleitung

Version 1.0

Published April 2020

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and

compensation for any other reasonably foreseeable loss or damage caused by our

goods. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure. If

you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard

International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the European

Community.

is equipment complies with EU radiation exposure limits set forth for an uncontrolled

environment.

is equipment should be installed and operated with minimum distance 20cm between

the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

WiFi

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

5250-5350 MHz 18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

5470-5725 MHz 25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

English

H410M/ac

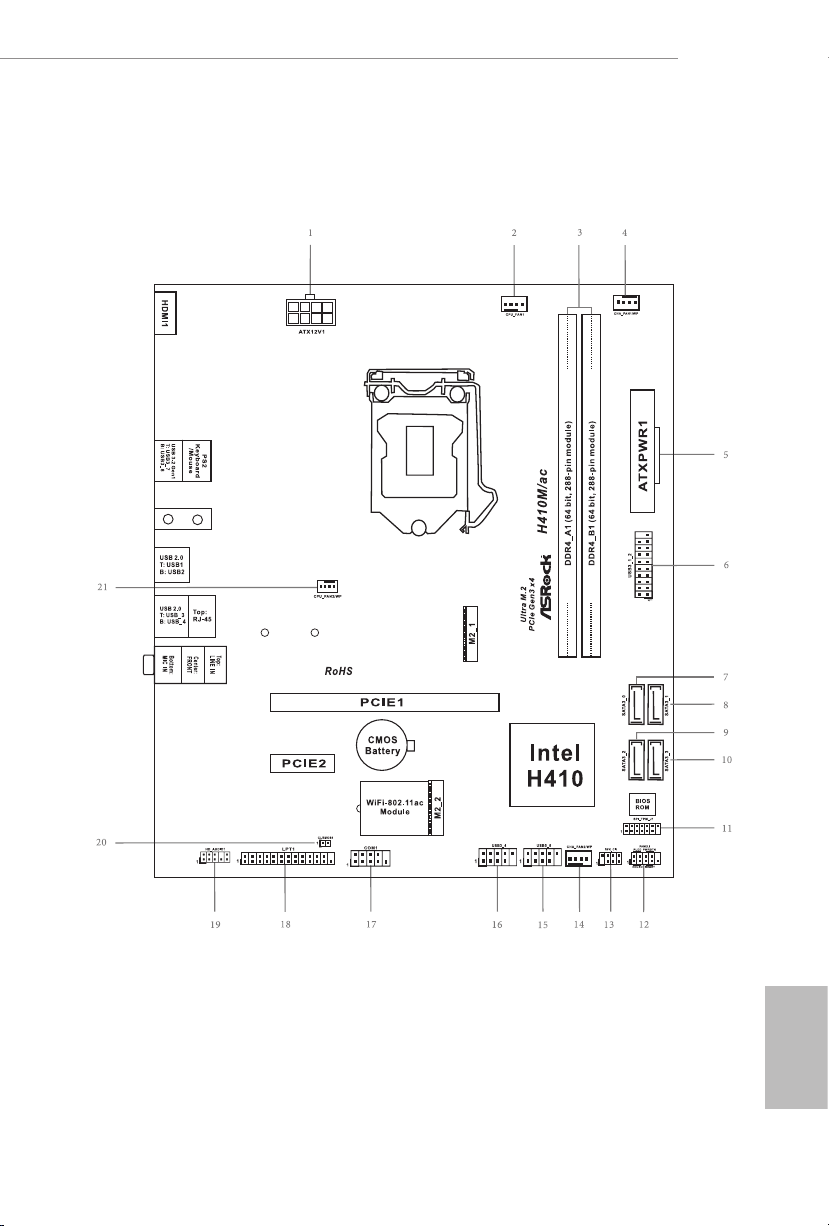

Motherboard Layout

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_1_2)

7 SATA3 Connector (SATA3_0)

8 SATA3 Connector (SATA3_1)

9 SATA3 Connector (SATA3_2)

10 SATA3 Connector (SATA3_3)

11 SPI TPM Header (SPI_TPM_J1)

12 System Panel Header (PANEL1)

13 Chassis Intrusion and Speaker Header (SPK_CI1)

14 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

15 USB 2.0 Header (USB5_6)

16 USB 2.0 Header (USB3_4)

17 COM Port Header (COM1)

18 Print Port Header (LPT1)

19 Front Panel Audio Header (HD_AUDIO1)

20 Clear CMOS Jumper (CLRMOS1)

21 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

English

H410M/ac

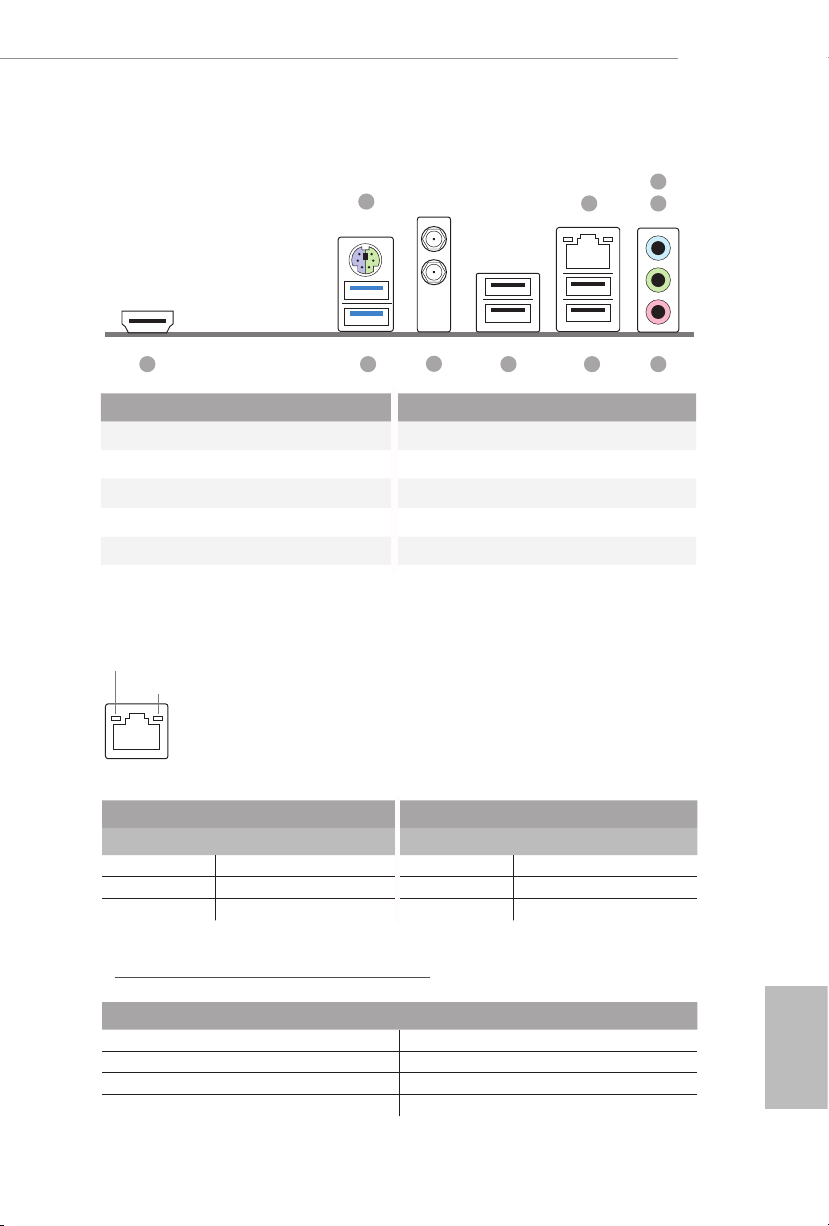

I/O Panel

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 6 USB 2.0 Ports (USB_3_4)

2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB1_2)

3 Line In (Light Blue)** 8 Antenna Ports

4 Front Speaker (Lime)** 9 USB 3.2 Gen1 Ports (USB3_7_8)

5 Microphone (Pink)** 10 HDMI Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

10 569

English

1.5 WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas

WiFi-802.11ac + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2 module

that oers support for WiFi 802.11 a/b/g/n/ac connectivity standards and Bluetooth

v4.2. WiFi + BT module is an easy-to-use wireless local area network (WLAN) adapter

to support WiFi + BT. Bluetooth v4.2 standard features Smart Ready technology that

adds a whole new class of functionality into the mobile devices. BT 4.2 also includes

Low Energy Technology and ensures extraordinary low power consumption for PCs.

* e transmission speed may vary according to the environment.

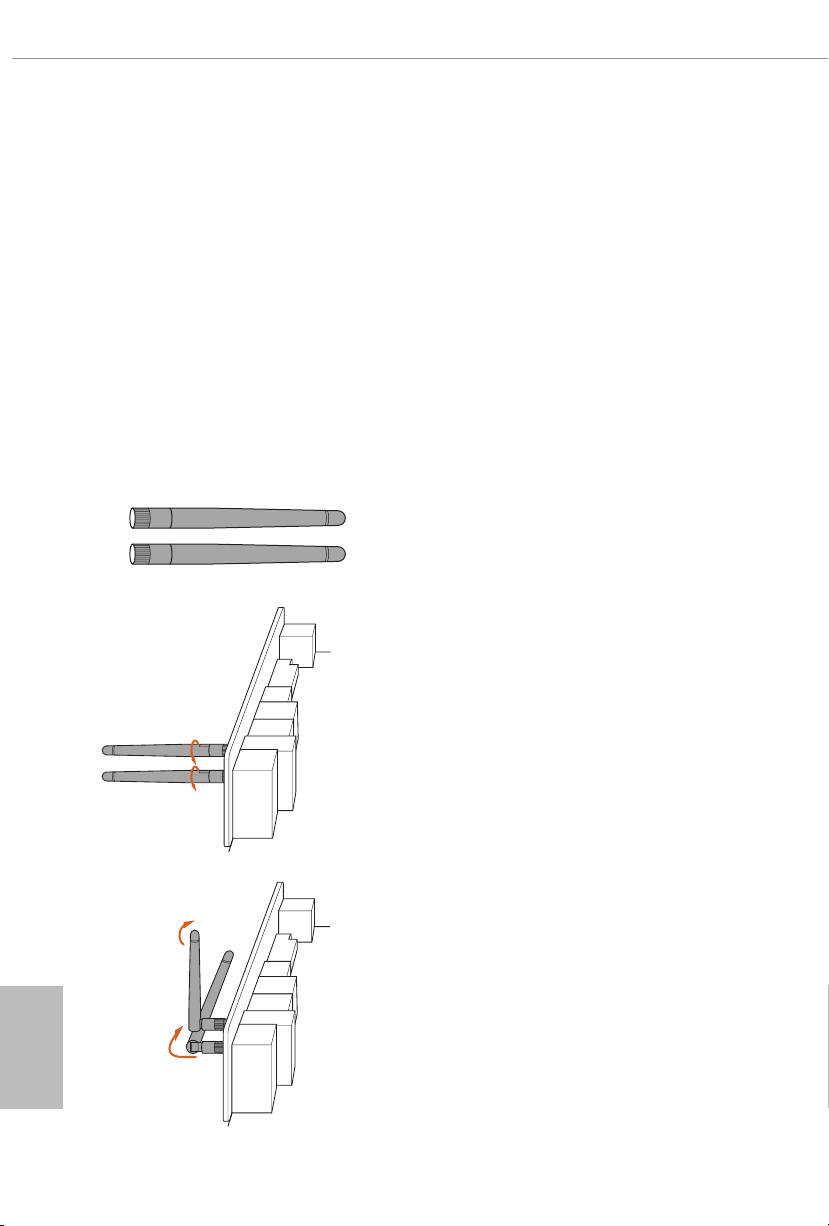

WiFi Antennas Installation Guide

Step 1

Prepare the WiFi 2.4/5 GHz Antennas that come

with the package.

Step 2

Connect the two WiFi 2.4/5 GHz Antennas to

the antenna connectors. Turn the antenna clock-

wise until it is securely connected.

Step 3

Set the WiFi 2.4/5 GHz Antenna as shown in the

illustration.

*You may need to adjust the direction of

the antenna for a stronger signal.

English

H410M/ac

Chapter 1 Introduction

ank you for purchasing ASRock H410M/ac motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock H410M/ac Motherboard (Micro ATX Form Factor)

• ASRock H410M/ac Quick Installation Guide

• ASRock H410M/ac Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x Screw for M.2 Socket (Optional)

• 2 x ASRock WiFi 2.4/5 GHz Antennas (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)

• Digi Power design

• 7 Power Phase design

• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset • Intel® H410

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-

buered memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot

* Supports NVMe SSD as boot disks

• 1 x PCI Express 3.0 x1 Slot

• 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac

module

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265

8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,

MJPEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.
