ASRock H61M-DPS Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published December 2012

2ASRock H61M-DPS Motherboard

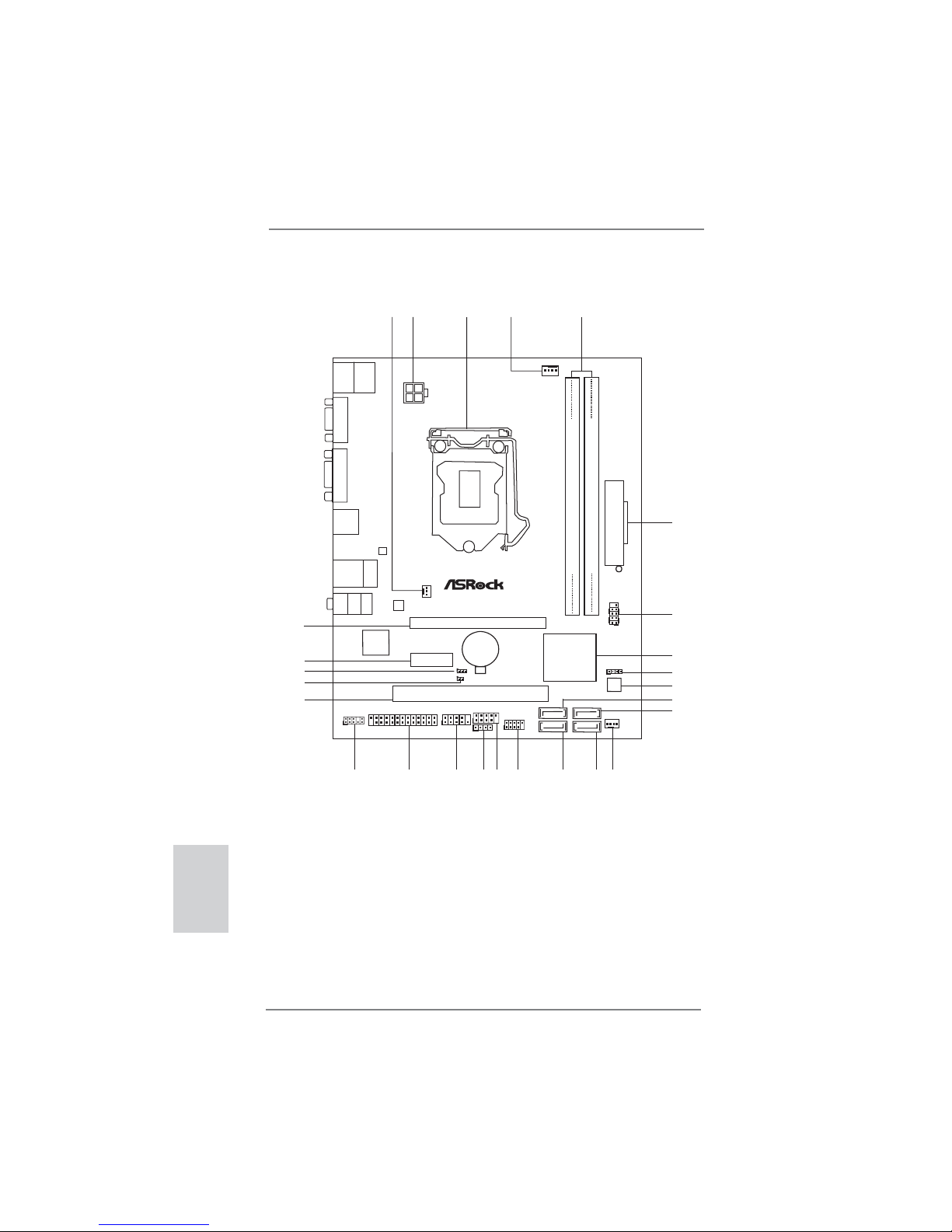

Motherboard Layout

English

1 Power Fan Connector (PWR_FAN1) 14 SATA2 Connector (SATA_0)

2 ATX 12V Power Connector (ATX12V1) 15 SATA2 Connector (SATA_2)

3 1155-Pin CPU Socket 16 USB 2.0 Header (USB6_7)

4 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB4_5)

5 2 x 240-pin DDR3 DIMM Slots 18 Consumer Infrared Module Header (CIR1)

(Dual Channel: DDR3_A1, DDR3_B1) 19 COM Port Header (COM1)

6 ATX Power Connector (ATXPWR1) 20 Print Port Header (LPT1)

7 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1)

8 Intel H61 Chipset 22 PCI Slot (PCI1)

9 Chassis Speaker Header (SPEAKER1) 23 Chassis Intrusion Header (CI1)

10 32Mb SPI Flash 24 Clear CMOS Jumper (CLRCMOS1)

11 SATA2 Connector (SATA_3) 25 PCI Express 2.0 x1 Slot (PCIE2)

12 SATA2 Connector (SATA_1) 26 PCI Express 3.0 x16 Slot (PCIE1)

13 Chassis Fan Connector (CHA_FAN1)

Intel

H61

ATXPWR1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

PCIE1

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

PS2

Keyboard

USB 2.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

Super

I/O

CMOS

Battery

PWR_FAN1

CPU_FAN1

H61M-DPS

LAN

PHY

HD_AUDIO1

AUDIO

CODEC

32Mb

BIOS

SPEAKER1

34 5

SATA_0

SATA_1

SATA_2

SATA_3

PS2

Mouse

CHA_FAN1

USB6_7

Fast LAN

Fast USB

RoHS

COM1

LPT1

HDLED RESET

PLED PWRBTN

PANEL1

Fast RAM

ATX12V1

USB4_5

CIR1

VGA1

DVI1

PCIE2

PCI1

CLRCMOS1

CI1

ASRock H61M-DPS Motherboard

English

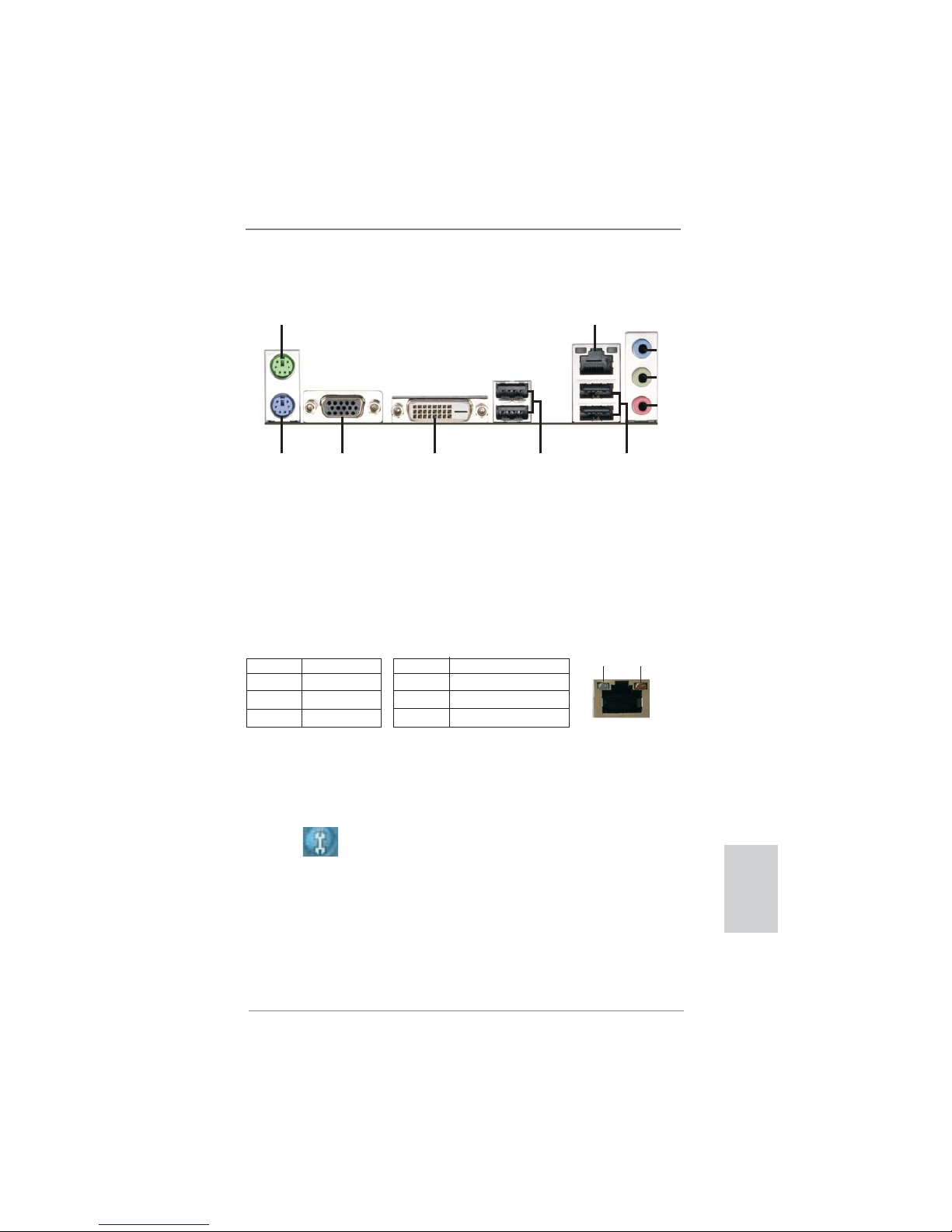

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB23)

* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 8 DVI-D Port

** 4 Front Speaker (Lime) 9 D-Sub Port

5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®8 / 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

10 6

4ASRock H61M-DPS Motherboard

1. Introduction

Thank you for purchasing ASRock H61M-DPS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H61M-DPS Motherboard (Micro ATX Form Factor)

ASRock H61M-DPS Quick Installation Guide

ASRock H61M-DPS Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

ﬁguration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

English

ASRock H61M-DPS Motherboard

English

1.2 Speciﬁcations

Platform - Micro ATX Form Factor

- Solid Capacitor for CPU power

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series CPU

Chipset - Intel®H61

- Supports Intel®Rapid Start Technology and Smart Connect

Technology

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered

memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3

1333 with Intel®Sandy Bridge CPU)

- Max. capacity of system memory: 16GB (see CAUTION 1)

- Supports Intel®Extreme Memory Proﬁle (XMP) 1.3 / 1.2 with

Intel®Ivy Bridge CPU

Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1 @ x16 mode)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x1 slot

- 1 x PCI slot

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

with Intel®Ivy Bridge CPU

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®HD Graphics 2000/3000, Intel®Advanced

Vector Extensions (AVX) with Intel®Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.

Max. shared memory 1759MB with Intel®Sandy Bridge

CPU.

6ASRock H61M-DPS Motherboard

English

- Dual VGA Output: support DVI and D-Sub ports by

independent display controllers

- Supports DVI with max. resolution up to 1920x1200 @

60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports HDCP function with DVI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI port

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports LAN Cable Detection

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug functions

- 1 x CIR header

- 1 x Print Port header

- 1 x COM port header

- 1 x Chassis Intrusion header

- 1 x CPU Fan connectors (4-pin)

- 1 x Chassis Fan connector (4-pin)

- 1 x Power Fan connector (3-pin)

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

ASRock H61M-DPS Motherboard

English

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®8 / 7 / VistaTM / XP. For Windows®OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

8ASRock H61M-DPS Motherboard

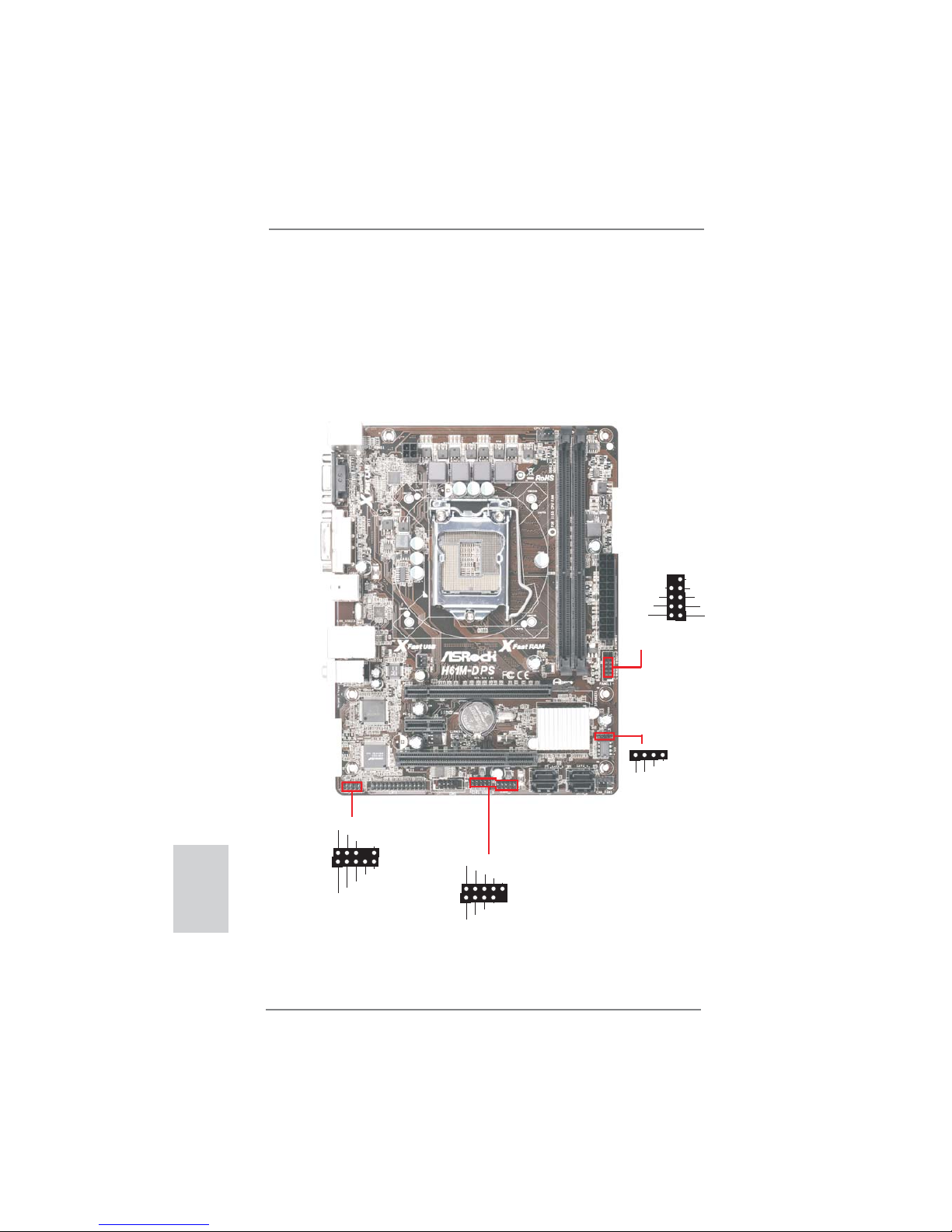

1.3 Pin Header Easy Installation Guide

ASRock motherboard is equipped with pin headers with obvious colors which indi-

cate you to recognize the crucial headers more easily. Please refer to below illustra-

tions for the pin deﬁnition of onboard headers. If you want to have more information

about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard

Headers and Connectors“ for details.

GND

PRESENCE#

MIC_RET

MIC2_L

MIC2_R

OUT2_R

J_SENSE

OUT2_L

OUT_RET

Front Panel Audio Header

PLED+

PLED-

PWRBTN#

HDLED+

HDLED-

GND

REST#

GND

DUMMY

System Panel Header

USB 2.0 Header

USB_PWR

P- P+

USB_PWR

P- P+

GND

DUMMY

Chassis Speaker Header

+5V

DUMMY

SPEAKER

DUMMY

English

ASRock H61M-DPS Motherboard

English

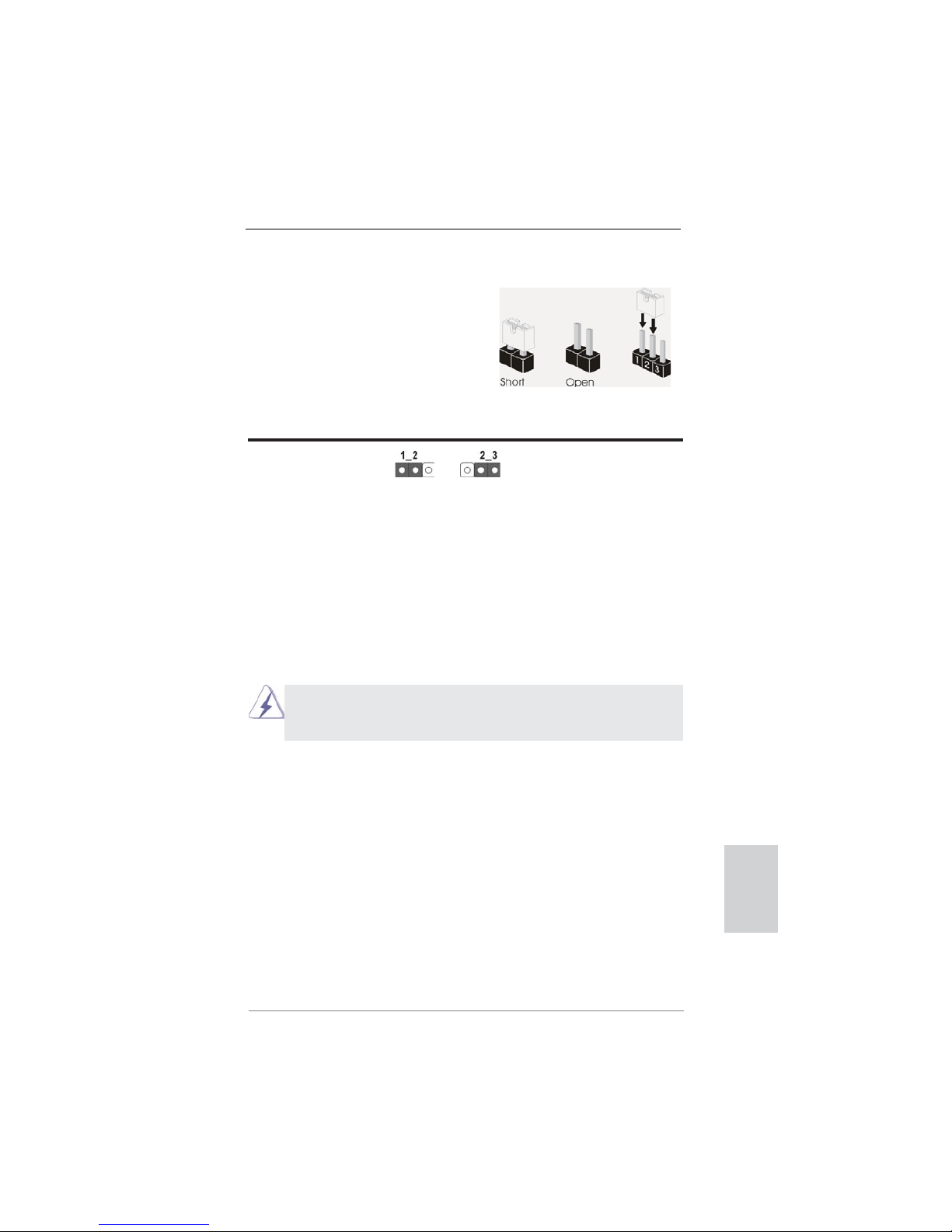

1.4 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 23)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just ﬁnish updating the BIOS, you must boot up

the system ﬁrst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time and user default proﬁle will be

cleared only if the CMOS battery is removed.

Clear CMOSDefault

If you clear the CMOS, the case open may be detected. Please adjust

the BIOS option “Clear Status” to clear the record of previous chassis

intrusion status.

10 ASRock H61M-DPS Motherboard

English

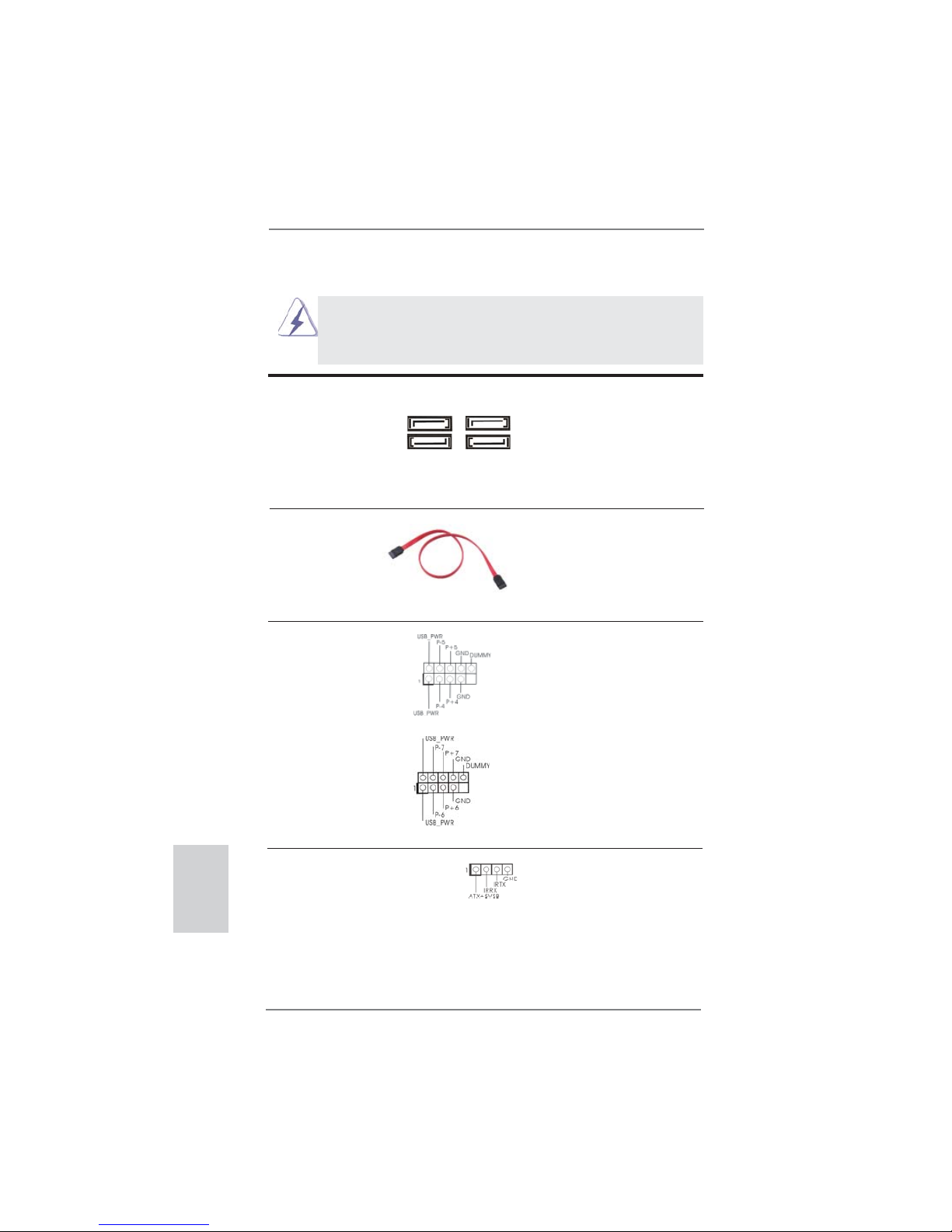

1.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2

(SATA_0: see p.2, No. 13) (SATA2) connectors support

(SATA_1: see p.2, No. 11) SATA data cables for internal

(SATA_2: see p.2, No. 14) storage devices. The current

(SATA_3: see p.2, No. 10) SATA2 interface allows up to

3.0 Gb/s data transfer rate.

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional) SATA2 hard disk or the SATA2

connector on this motherboard.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB4_5) ports on the I/O panel, there

(see p.2 No. 16) are two USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB6_7)

(see p.2 No. 15)

Consumer Infrared Module Header This header can be used to

(4-pin CIR1) connect the remote

(see p.2 No. 17) controller receiver.

SATA_3 SATA_1

SATA_2 SATA_0

Andere Handbücher für H61M-DPS

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK uBOX-110 Bedienungsanleitung

ASROCK

ASROCK 870 EXTREME Bedienungsanleitung

ASROCK

ASROCK H67DE3 Bedienungsanleitung

ASROCK

ASROCK H67M-HT Bedienungsanleitung

ASROCK

ASROCK G41MH USB3 Bedienungsanleitung

ASROCK

ASROCK H67M-ITX Bedienungsanleitung

ASROCK

ASROCK K10N78M PRO Bedienungsanleitung

ASROCK

ASROCK P75 Pro3 Bedienungsanleitung

ASROCK

ASROCK X570 Taichi Bedienungsanleitung

ASROCK

ASROCK Q87WSA-DL Bedienungsanleitung

ASROCK

ASROCK 748-M Bedienungsanleitung

ASROCK

ASROCK IMB-186-E Service-Handbuch

ASROCK

ASROCK M3A785GXH/128M Bedienungsanleitung

ASROCK

ASROCK Z390 Pro4 Bedienungsanleitung

ASROCK

ASROCK 4X4-4800U Bedienungsanleitung

ASROCK

ASROCK N68PV-GS Bedienungsanleitung

ASROCK

ASROCK M3A780GXH/128M Bedienungsanleitung

ASROCK

ASROCK B85 Anniversary Bedienungsanleitung

ASROCK

ASROCK A55M-HVS Bedienungsanleitung

ASROCK

ASROCK Z370M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK FM2A58M-DG3+ Bedienungsanleitung

ASROCK

ASROCK 970 Extreme4 Bedienungsanleitung

ASROCK

ASROCK IMB-785 Service-Handbuch

ASROCK

ASROCK B85 Pro4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
