IMB-110

User Manual

Version 1.0

Published August 2012

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 9

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Pre-installation Precautions ........................................... 11

2.2 Screw Holes................................................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slot (PCI Slot) ................................................ 13

2.5 Dual Monitor Feature ..................................................... 14

2.6 Jumpers Setup............................................................... 15

2.7 Onboard Headers and Connectors................................ 17

2.8 Serial ATA (SATA) / Serial ATA2 (SATA2) Hard Disks

Installation...................................................................... 22

2.9 Serial ATA3 (SATA3) Hard Disks Installation ................. 22

2.10 Hot Plug for SATA / SATA2 HDDs.................................. 23

2.11 Hot Plug and Hot Swap for SATA3 HDDs ...................... 23

2.12 SATA / SATA2 / SATA3 HDD Hot Plug Operation Guide 24

2.13 Driver Installation Guide ................................................ 26

2.14 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit

With RAID ...................................................................... 26

2.15 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP 64-bit Without RAID........................................ 27

2.15.1 Installing Windows®XP / XP 64-bit Without

RAID.................................................................... 27

2.15.2 Installing Windows®7 / 7 64-bit / VistaTM / VistaTM

64-bit Without RAID ............................................ 28

3 UEFI SETUP UTILITY......................................... 29

3.1 Introduction .................................................................... 29

3.1.1 UEFI Menu Bar .................................................... 29

3.1.2 Navigation Keys ................................................... 30

3.2 Main Screen................................................................... 30

3.3 Advanced Screen........................................................... 31

3.3.1 CPU Conguration ............................................... 32

3.3.2 Chipset Conguration........................................... 33

3.3.3 Storage Conguration .......................................... 35

3.3.4 Super IO Conguration ........................................ 36

3.3.5 ACPI Conguration............................................... 37

3.3.6 USB Conguration ............................................... 38

3.4 Hardware Health Event Monitoring Screen ................... 39

3.5 Boot Screen ................................................................... 40

3.6 Security Screen ............................................................. 41

3.7 Exit Screen .................................................................... 42

4 Software Support .............................................. 43

4.1 Install Operating System................................................ 43

4.2 Support CD Information ................................................. 43

4.2.1 Running Support CD............................................ 43

4.2.2 Drivers Menu........................................................ 43

4.2.3 Utilities Menu........................................................ 43

4.2.4 Contact Information.............................................. 43

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-110 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contains introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contains the congura-

tion guide to BIOS setup and information of the Support CD.

Because the motherboard’s specications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modications of this manual occur, the updated ver-

sion will be available on ASRock’s website without further notice. You

may nd the latest VGA cards and CPU support lists on ASRock’s web-

site as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-110 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-110 Driver CD

ASRock IMB-110 Jumper setting instruction

1 x I/O Panel Shield

2 x SATA HDD cables

1 x SATA Power cable

2 x Serial port cables

1 x DC-IN cable

1.2 Specications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Intel®Dual-Core AtomTM PineView Processor N455/D425/

D525

- Supports Hyper-Threading Technology (see CAUTION 1)

Chipset - Southbridge: Intel®NM10 Express

Memory - 2 x DDR3 SO-DIMM slots

- Supports DDR3 800 non-ECC, un-buffered memory with

D425/D525, Supports DDR3 667 non-ECC, un-buffered

memory with N455

- Max. capacity of system memory: 4GB (2GB with N455)

(see CAUTION 2)

Expansion Slot - 1 x PCI slot

- 1 x mini-PCIe slot

Graphics - Intel®Graphics Media Accelerator 3150

- Pixel Shader 2.0, DirectX 9

- Two VGA Output options: D-Sub and LVDS

- Supports D-Sub with max. resolution up to 2048x1536 @

60Hz (1400X1050@60Hz with N455)

- Supports LVDS with max. resolution up to 1366x768 @

60Hz

Audio - 2 CH Audio (Realtek ALC662 Audio Codec)

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports Dual LAN

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 3 x Com Ports

- 1 x D-Sub Port

- 4 x Ready-to-Use USB 2.0 Ports

- 2 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line out/Microphone

Connectors - 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug

- 2 x SATA3 6.0 Gb/s connectors by Marvell SE9172, support

RAID (RAID 0 and RAID 1), NCQ, AHCI and Hot Plug

- 1 x Print Port header

- 3 x COM port headers

- 1 x LVDS Connector

- 1 x Inverter Power Control Wafer header

- 1 x Backlight & Amp Volume Control header

- 2 x SATA Power Connectors

- 1 x CPU Fan connector (4-pin)

- 1 x Chassis Fan connector (3-pin)

- 4 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 16Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers

Unique Feature - Hybrid Booster:

- ASRock U-COP (see CAUTION 3)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis Tachometer

- CPU/Chassis Quiet Fan (Allows Chassis Fan Speed Auto-

Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft®Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit /

XP / XP 64-bit compliant

Certications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may affect your system’s stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. About the settings of “Hyper Threading Technology”, please check page

32.

2. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limita-

tion.

3. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

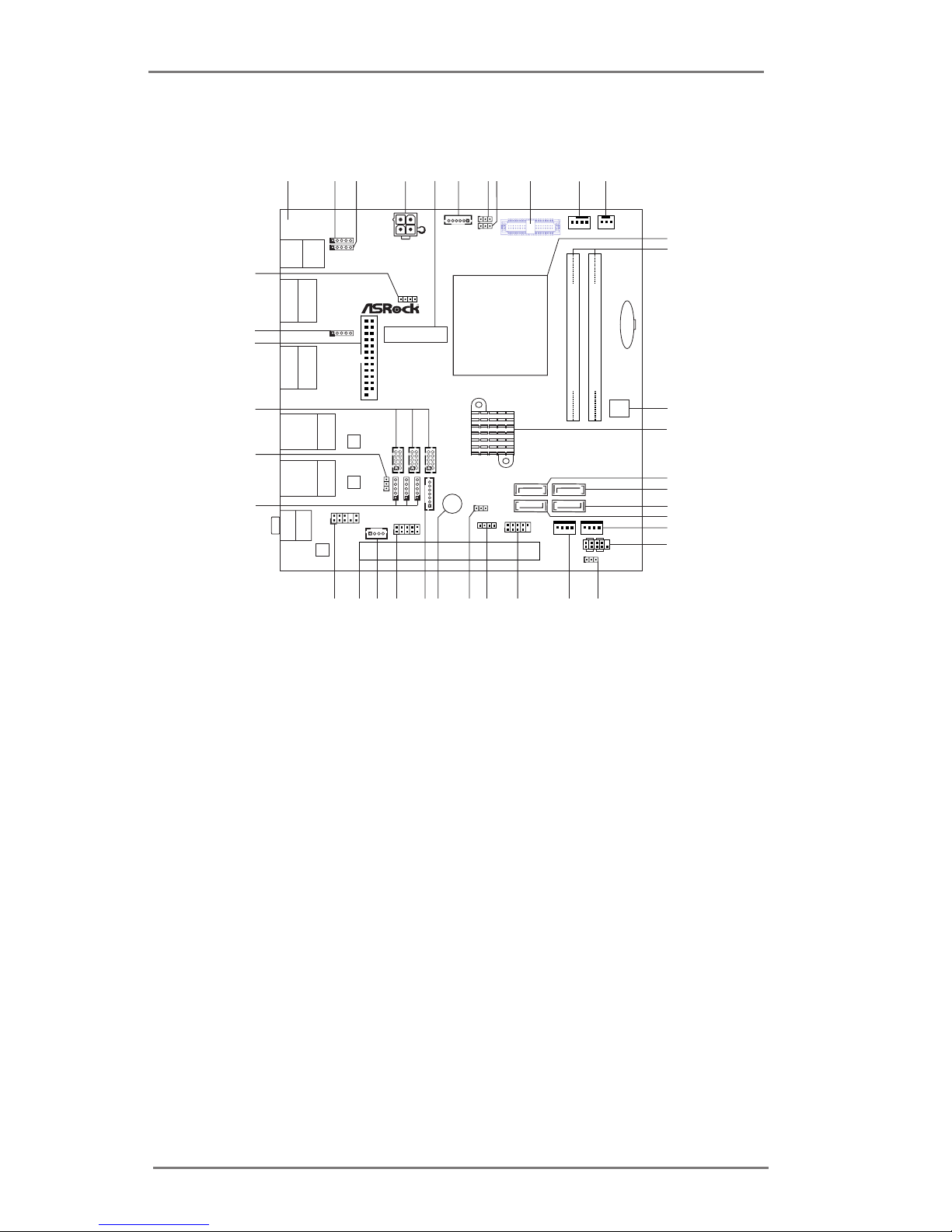

1.3 Motherboard Layout

1 Reserved for Antenna and Adapter Cable

2 COM Port Signal/Power Setting Jumper

(SET_CM2)

3 COM Port Signal/Power Setting Jumper

(SET_CM1)

4 4-pin Power Connector (DC12V1)

5 mini-PCIe Slot

6 Inverter Power Control Wafer Header

(BLT_PWR1)

7 Backlight Power Jumper (BKT_PWR1)

8 Panel Power Jumper (PNL_PWR1)

9 LVDS Panel Connector (LVDS1)

10 CPU Fan Connector (CPU_FAN1)

11 Chassis Fan Connector (CHA_FAN1)

12 CPU Socket

13 2 x 204-pin DDR3 SO-DIMM Slots

(DDR3_A1, DDR3_A2)

14 SPI Flash Memory (16Mb)

15 Intel®NM10 Chipset

16 SATA2 Connector (SATAII_1, Blue)

17 SATA2 Connector (SATAIII_1, Red)

18 SATA2 Connector (SATAIII_2, Red)

19 SATA2 Connector (SATAII_2, Blue)

20 SATA Power Connector (JPWR2)

21 System Panel Header (PANEL1)

22 ATX/AT Mode Jumper (PWR_JP1)

23 SATA Power Connector (JPWR1)

24 USB 2.0 Header (USB4_5)

25 USB 2.0 Header (USB6)

26 Clear CMOS Jumper (CLRCMOS1)

27 Buzzer

28 Backlight & Amp Volume Control Header

(BLT_VOL1)

29 Digital Input/Output Pin Header (JGPIO1)

30 3W Audio AMP Output Wafer Header

(SPEAKER1)

31 PCI Slot (PCI1)

32 Front Panel Audio Header (HD_AUDIO1)

33 COM Port Signal/Power Setting

Jumper (SET_CM4)

34 COM Port Signal/Power Setting

Jumper (SET_CM5)

35 COM Port Signal/Power Setting

Jumper (SET_CM6)

36 Digital Input/Output Power Jumper

(JGPIO_PWR1)

37 COM Port Header (COM4)

38 COM Port Header (COM5)

39 COM Port Header (COM6)

40 Print Port Header(LPT1)

41 COM Port Signal/Power Setting Jumper

(SET_CM3)

42 USB 2.0 Header (USB7)

SATAIII_2

CMOS

Battery

DDR3_A1

IMB-110

DC12V1

LVDS 1

DDR3_A2

SATAII_1

SATAII_2

SATAIII_1

PCI1

AUDIO

CODEC

PS2

Mouse

PS2

Keyboard

COM1

COM2

VGA1

COM3

RJ-45

USB 2.0

T: USB3

B: USB2

RJ-45

USB 2.0

T: USB1

B: USB0

Line Ou t

Mic In

16Mb

BIOS

PANEL1

HDLED RESET

PLED PWRBTN

JPWR2

JPWR1

CPU_FAN1

CLRCMOS1

HD_AUDIO1

SPEAKER1

LAN

PHY

LAN

PHY

PWR_JP1

JGP IO1

CHA_FAN1

JGPIO_PWR1

USB4_5

USB6

USB7

Designed in Taipei

RoHS

BLT_PWR1

BLT_VOL1

LPT1

SET_CM3

SET_CM1

SET_CM2

BKT_PWR1

PNL_PWR1

SET_CM4

SET_CM5

SET_CM6

PCIE1

123 4567810 11

2324

BUZZ1

COM4

COM5

COM6

3132

1.4 I/O Panel

* There are two LEDs next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse Port

2 COM Port (COM1)

3 VGA Port (VGA1)

* 4 LAN RJ-45 Port

* 5 LAN RJ-45 Port

6 Line out (Green)

7 Microphone (Pink)

8 USB 2.0 Ports (USB23)

9 USB 2.0 Ports (USB01)

10 COM Port (COM3)

11 COM Port (COM2)

12 PS/2 Keyboard Port

ACT/LINK

LED

SPEED

LED

LAN Port

12345

1011

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK H61M-ITX Bedienungsanleitung

ASROCK

ASROCK H61M-HP4 Bedienungsanleitung

ASROCK

ASROCK CONROE1333-ESATA2 - V1.0 Bedienungsanleitung

ASROCK

ASROCK N100M Bedienungsanleitung

ASROCK

ASROCK P4I65GV Bedienungsanleitung

ASROCK

ASROCK 990FX Extreme4 Bedienungsanleitung

ASROCK

ASROCK B650D4U Bedienungsanleitung

ASROCK

ASROCK FATALITY Z370 Bedienungsanleitung

ASROCK

ASROCK B560M-HDV Bedienungsanleitung

ASROCK

ASROCK 939N68PV-GLAN Bedienungsanleitung

ASROCK

ASROCK uBOX-110 Bedienungsanleitung

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Bedienungsanleitung

ASROCK

ASROCK H61M-HVGS Bedienungsanleitung

ASROCK

ASROCK Z690 PG Riptide Bedienungsanleitung

ASROCK

ASROCK P4S55FX2 Bedienungsanleitung

ASROCK

ASROCK 1U2LW Series Bedienungsanleitung

ASROCK

ASROCK Z490 AQUA Bedienungsanleitung

ASROCK

ASROCK H110 Pro BTC+ Bedienungsanleitung

ASROCK

ASROCK N7AD-SLI - V1.0 Bedienungsanleitung

ASROCK

ASROCK X58 DELUXE Bedienungsanleitung

ASROCK

ASROCK 4X4-R1000M Bedienungsanleitung

ASROCK

ASROCK Z68M-ITX/HT Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme3 Bedienungsanleitung

ASROCK

ASROCK PV530 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
