IMB-151

User Manual

Version 1.1

Published September 2014

Version 1.1

Published September 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slot............................................................... 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

3.3.1 CPU Conguration ............................................... 25

3.3.2 Chipset Conguration........................................... 26

3.3.3 Storage Conguration .......................................... 28

3.3.4 Intel(R) Smart Connect Technology ..................... 29

3.3.5 Super IO Conguration ........................................ 30

3.3.6 ACPI Conguration............................................... 31

3.3.7 USB Conguration ............................................... 32

3.4 Hardware Health Event Monitoring Screen ................... 33

3.5 Security Screen ............................................................. 34

3.6 Boot Screen ................................................................... 35

3.7 Exit Screen .................................................................... 37

4 Software Support .............................................. 38

4.1 Install Operating System................................................ 38

4.2 Support CD Information ................................................. 38

4.2.1 Running Support CD............................................ 38

4.2.2 Drivers Menu........................................................ 38

4.2.3 Utilities Menu........................................................ 38

4.2.4 Contact Information.............................................. 38

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-151 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-151 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-151 Driver CD

ASRock IMB-151 Jumper Setting Instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Intel®AtomTM Baytrail-M/D Processor

Supports Hyper-Threading Technology

Core

Number 4

Max Speed (By CPU)

Cache 2MB

Chipset N/A

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (half size) + 1 (full size) shared with mSATA

mSATA 1 (shared with SATA2_2)

PCIe 1

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3L-1333 MHz SDRAM

Max. 8GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®Gen7 Intel®Graphics DX 11, OGL3.2

VRAM Shared Memory

VGA Supports max. resolution 1920x1200

LVDS Dual Channel 24-bit, max resolution

1920x1200@60Hz

HDMI Supports HDMI 1.4a, max resolution 1920x1200

DVI No

DisplayPort No

Multi Display Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN Realtek

Connector 1 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/s)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 1

USB 4 (2 x USB 3.0, 2 x USB 2.0)

Audio 2 (Mic-in, Line-out)

Serial 0

PS/2 0

Internal

Connector

USB 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/

Inverter 1/1

VGA 1 (shared with rear I/O VGA COM)

Serial 5 (1 x RS-232/422/485, 4 x RS-232)

SATA 2 x SATA2 (3.0Gb/s)

mPCIe 1

Parallel 1

mSATA 1 (shared)

IrDA 0

GPIO 8-bit 4 x GPI + 4 x GPO

SATA PWR

Output Con 1

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR 9-19V DC-In (4-pin ATX PWR Con)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

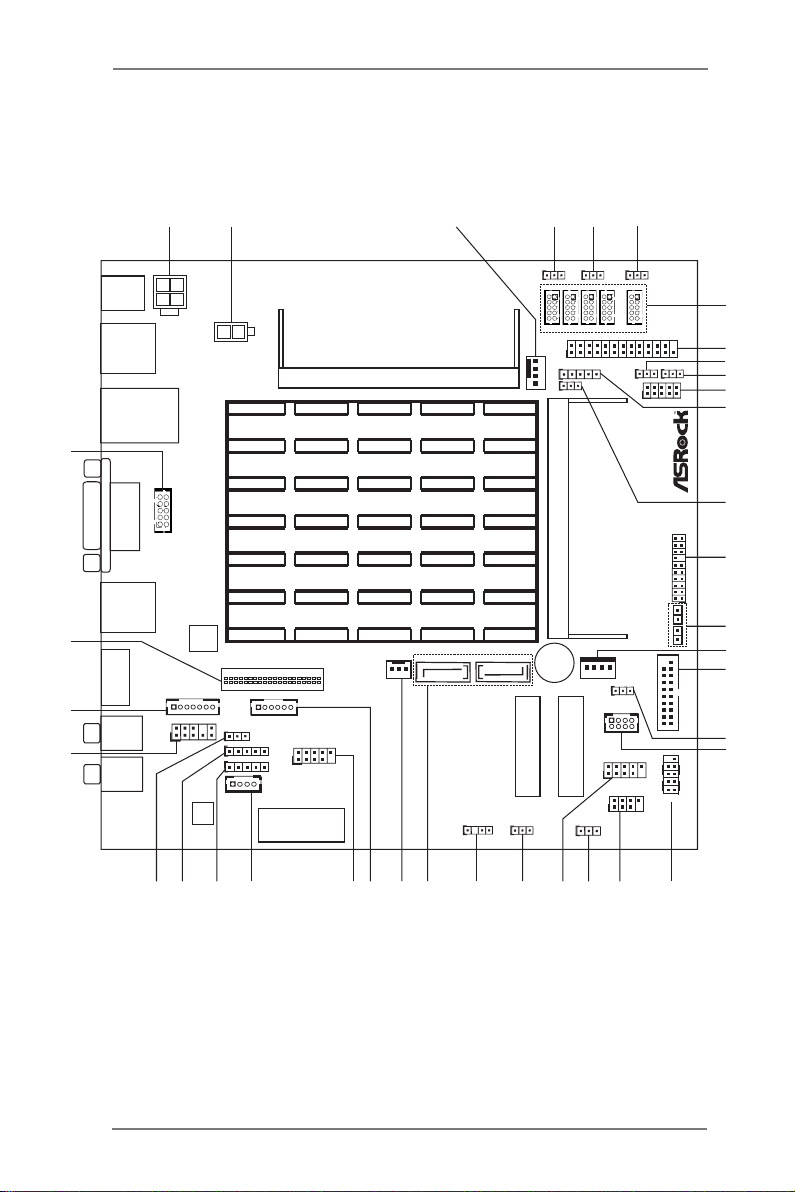

1.3 Motherboard Layout

Mic In

AUDIO

CODEC

BUZZ1

BIOS

Chip

USB2_56

HD_AUDIO1

IMB-151

2326

32 27

2528

33 31 30

1234 5 6

PWR_COM1

SATA2 _2

SATA2_1

CPU_FAN1

PCIE1

JGPIO1

DC_JACK1

mini-PCIe

TPM 1

PS2_KB_MS1

VGA2

CLRCMOS1

CHA_FAN1

SPEAKER1

LAN1

VGA1

Line Out

INT_DC1

HDMI1

ATX1 2V1

BLT_VOL1

BLT_PWM1

HDLED RESET

PLED PWRBTN

PANEL1

CI1

mini-PCIe / mini-SATA

LPT1

CI2

SATA_PWR1

USB3_34

MSATA_SEL1

USB2_34

LVDS 1

BLT_PWR1

PNL_PWR1

BKT_PWR1

Industrial

CIR1

ATX_ AT1

JGPIO_PWR1

PWR_COM2

USB 2.0

USB 3.0

DDR3_A1

COM6

COM4

COM3

COM2

COM1

PWR_COM6

PWR_COM4

PWR_COM3

DDR3_B1

SPDIF1

JGPIO_SET1

1 : ATX Power Connector (Input 9V-19V)

2 : 2-pin UPS Module Power Input Connector

3 :

4-Pin CPU FAN Connector (+12V)

4 : PWR_COM6 Jumper

5 : PWR_COM4 Jumper

6 : PWR_COM3 Jumper

7 : Internal COM Port Headers

COM1 (RS232/422/485)

COM2, 3, 4, 6 (RS232)

8 : Printer Port Header

9 : PWR_COM1 Jumper

10 : JGPIO_SET1 Jumper

11 : Digital Input / Output Pin Header

12 : PWR_COM2 Jumper

13 : Digital Input / Output Power Select

14 : TPM Header

15 : Chassis Intrusion Headers (CI1, Cl2)

6 : SATA Power Output Connector

17 :

USB3.0 Connector

18 :

mSATA Selection Jumper

19 :

PS2_KB_MS1

20 :

System Panel Header

21 :

CIR Header

22 : Clear CMOS Header

23 : USB2.0 Connector (USB2_56)

24 : ATX/AT Mode Jumper

25 : SPDIF Header

26 : SATA2 Connectors (SATA2_1, SATA2_2)

27 :

3-Pin Chassis FAN Connector (+12V)

28 :

Backlight Power Connector

29 : USB2.0 Connector (USB2_34)

30 : 3W Audio AMP Output Wafer

31 : Backlight Power Selection (BKT_PWR1)

32 : Panel Power Selection (PNL_PWR1)

33 :

Backlight Control Level (

BLT_PWM1)

34 :

Front Panel Audio Header

35 : Backlight Volume Control (BLT_VOL1)

36 : LVDS Panel Connector

37 : VGA2

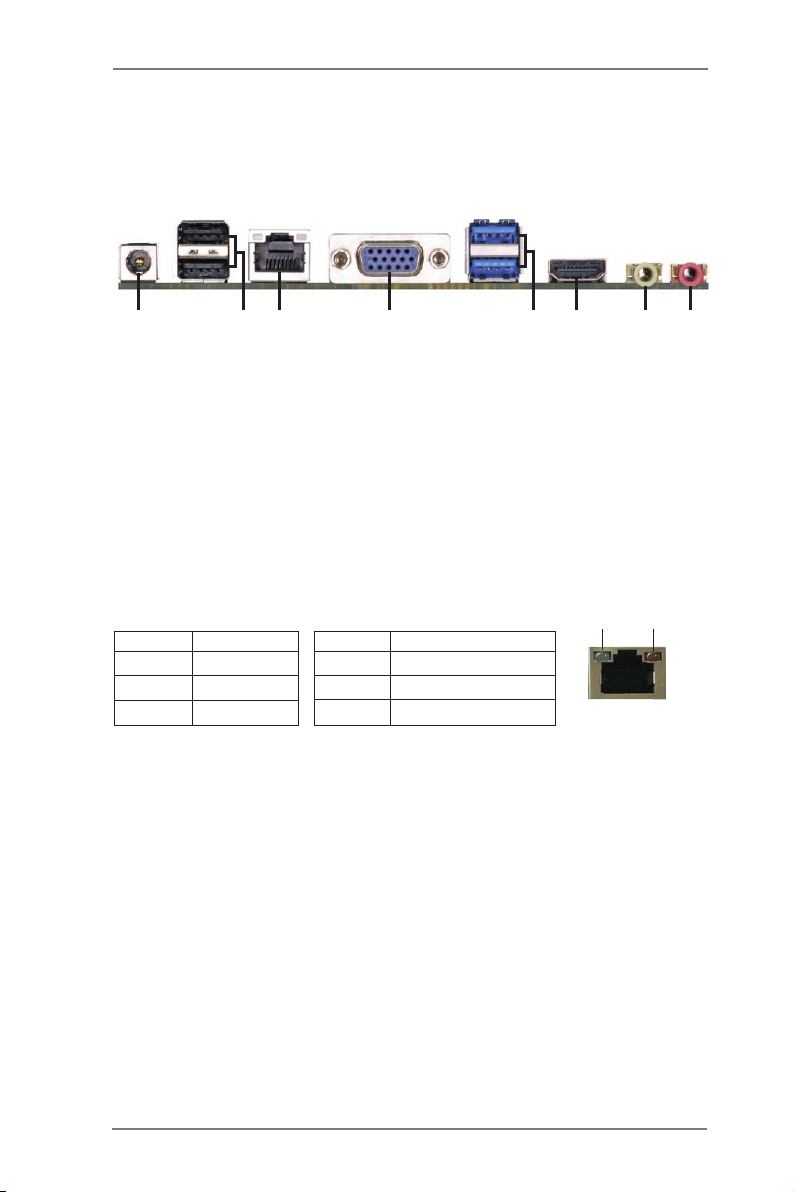

1.4 I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Off 100Mbps connection

On Link Green 1Gbps connection

1 DC Jack

2 USB 2.0 Ports (USB2_12)

3 LAN RJ-45 Port*

4 VGA Port (VGA1)

5 USB 3.0 Ports (USB3_12)

6 HDMI Port (HDMI1)

7 Line out (Green)

8 Microphone (Pink)

ACT/LINK

LED

SPEED

LED

LAN Port

12 4

358

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK A55DEL Bedienungsanleitung

ASROCK

ASROCK G41M-LE Bedienungsanleitung

ASROCK

ASROCK E3C246D4U2-2L2T Bedienungsanleitung

ASROCK

ASROCK Z370M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK 939N68PV-GLAN Bedienungsanleitung

ASROCK

ASROCK Z370 Taichi Bedienungsanleitung

ASROCK

ASROCK 939Dual-VSTA Bedienungsanleitung

ASROCK

ASROCK H570M Pro4 Bedienungsanleitung

ASROCK

ASROCK 4CORE1600P35-WIFI - V1.0 Bedienungsanleitung

ASROCK

ASROCK EPC621D6U Bedienungsanleitung

ASROCK

ASROCK 890GX Pro3 Bedienungsanleitung

ASROCK

ASROCK 970 Extreme3 R2.0 Bedienungsanleitung

ASROCK

ASROCK H61DEL Bedienungsanleitung

ASROCK

ASROCK 939NF4G-SATA2 Bedienungsanleitung

ASROCK

ASROCK EPC612D4U-2T8R Bedienungsanleitung

ASROCK

ASROCK CONROE865PE Bedienungsanleitung

ASROCK

ASROCK A75 Pro4/MVP Bedienungsanleitung

ASROCK

ASROCK IMB-X1314 Bedienungsanleitung

ASROCK

ASROCK X58 Extreme3 Bedienungsanleitung

ASROCK

ASROCK H310M-HG4 Bedienungsanleitung

ASROCK

ASROCK P4I65G Bedienungsanleitung

ASROCK

ASROCK 775XFire-RAID Bedienungsanleitung

ASROCK

ASROCK A75 Pro4 MVP Bedienungsanleitung

ASROCK

ASROCK Z170 Extreme7+ Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
