COM Port Headers

9 : COM3

10 : COM4

11 : COM5

12 : COM6

13 :

4-Pin CPU FAN Connector (+12V)

14 : Chassis Intrusion Header 2

15 : Chassis Intrusion Header 1

16 : 2 x SO-DIMM

17,18* :

IMB-171-D/IMB-171-L: SATA3

IMB-161-D/IMB-161-L: SATA2

19,20 :

SATA2

21 :

4-pin ATX Power Input Connector

22 : TPM Header

4 : Panel Power Selection

1-2 : +3V

2-3 : +5V

: Backlight Power Selection

1-2 : +5V

2-3 : +12V

6 : 24-pin ATX Power Input Connector

7 : Backlight & Amp Volume Control

8 : Inverter Power control Wafer

1 : USB2.0 Header (USB8_9)

2 : USB2.0 Header (USB6_7)

3* : LVDS Panel Connector

(For IMB-171-L and

IMB-161-L only)

IMB-171-D

IMB-171-L

IMB-161-D

IMB-161-L

Jumpers and headers setting guide

PIN Signal Name PIN Signal Name

2 R_LVDD 1 R_LVDD

4 LDDC_CLK 3 +3V

6 LVDS_A_DATA0# 5 LDDC_DATA

8 GND 7 LVDS_A_DATA0

10 LVDS_A_DATA1 9 LVDS_A_DATA1#

12 LVDS_A_DATA2# 11 GND

14 GND 13 LVDS_A_DATA2

16 LVDS_A_DATA3 15 LVDS_A_DATA3#

18 LVDS_A_CLK# 17 GND

20 GND 19 LVDS_A_CLK

22 LVDS_B_DATA0 21 LVDS_B_DATA0#

24 LVDS_B_DATA1# 23 GND

26 GND 25 LVDS_B_DATA1

28 LVDS_B_DATA2 27 LVDS_B_DATA2#

30 LVDS_B_DATA3# 29 DPLVDD_EN

32 GND 31 LVDS_B_DATA3

34 LVDS_B_CLK 33 LVDS_B_CLK#

36 CON_LBKLT_EN_R 35 GND

38 LCD_BLT_VCC 37 CON_LBKLT_CTL_R

40 LCD_BLT_VCC 39 LCD_BLT_VCC

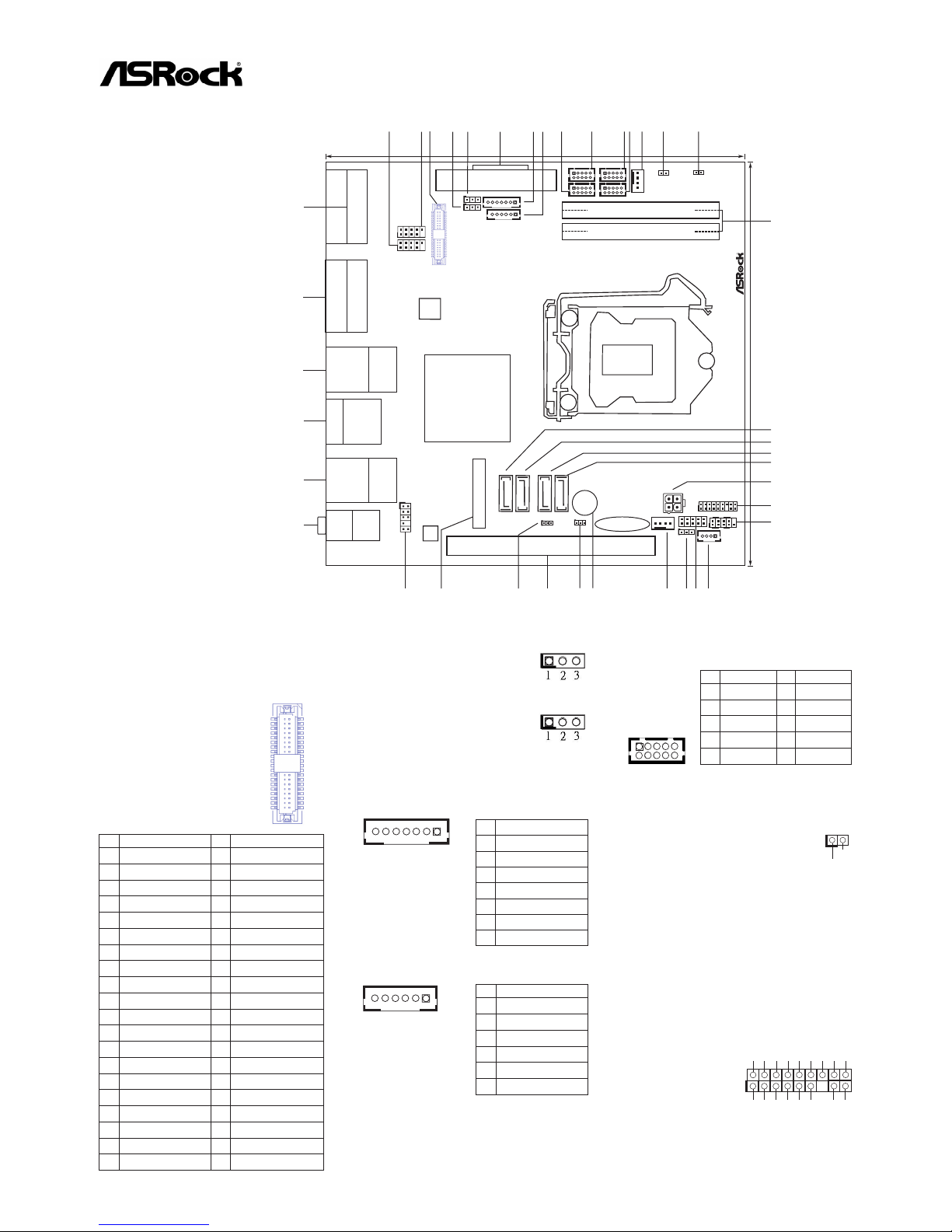

ATXPWR1

Intel

Q77/H61

DDR3_A1

DDR3_B1

PCIE1

HD_AUDIO1

CMOS

Battery

HDLED RESET

PLED PWRBTN

PANEL1

AUDIO

CODEC

SATA_3

CLRCMOS1

BIOS

ROM

CPU_FAN1

17.0cm (6.7 in)

USB6_7

USB8_9

CI1

CI2

JGPIO_PWR1

PWR_JP1

Top:

RJ-45

USB

3.0/2.0

T: USB0

B: USB1

USB 2.0

T: USB2

B: USB3

HDMI

LVDS 1

BLT_PWR1

BLT_VOL1

BUZZ1

Top:

Line Out

Bottom:

Mic In

MINI_PCIE1

SPEAKER1

JGP I O1

COM2

DVI1/VGA1

123* 4567910 11

812 13 14

17*

18*

24*

3233

35*

37*

38*

39*

RoHS

COM1

PS2

Keyboard

/Mouse

DISPLAY1

TPM1

PNL_PWR1

BKT_PWR1

COM4

COM3

COM5

COM6

ATX1 2V1

CHA_FAN1

SATA_2

SATA_1

SATA_0

Top:

RJ-45

USB

3.0/2.0

T: USB4

B: USB5

PIN Signal Name

1 GND

2 GND

3 CON_LBKLT_CTL

4 CON_LBKLT_EN

5 LCD_BLT_VCC

6 LCD_BLT_VCC

PIN Signal Name

1 GPIO_VOL_UP

2 GPIO_VOL_DW

3 PWRDN

4 GPIO_BLT_UP

5 GPIO_BLT_DW

6 GND

7 GND

PIN Signal Name PIN Signal Name

2 RRXD1 1 DDCD#1

4 DDTR#1 3 TTXD1

6 DDSR#1 5 GND

8 CCTS#1 7 RRTS#1

10 NC 9 COM PWR

Signal

GND

S_PWRDWN#

LAD2

SMB_CLK_MAIN

PCICLK

PCIRST#

LAD3

+3V

LAD0

GND

FRAME

SMB_DATA_MAIN

LAD1

SERIRQ#

GND

+3VSB

29 : Clear CMOS Header

1-2: Normal

2-3: Clear CMOS

30 : PCIE1 Slot

31 : ATX/AT mode Selection

1-2: AT mode

2-3: ATX mode

32 : mini-PCIE Slot

33 :

Front Panel Audio Header

34 :

Audio Jacks

Green - Line Out

Pink - Mic In

35* : Top : RJ45 LAN Port 2

Bottom :

IMB-171-D/IMB-171-L:

USB3.0 (USB45)

IMB-161-D/IMB-161-L:

USB2.0 (USB45)

36 : Top : USB2.0 (USB23)

Bottom : HDMI

37* : Top : RJ45 LAN Port 1

Bottom :

IMB-171-D/IMB-171-L:

USB3.0 (USB01)

IMB-161-D/IMB-161-L:

USB2.0 (USB01)

38* :

Top : COM2

Bottom :

IMB-171-D/IMB-161-D: DVI1

IMB-171-L/IMB-161-L: VGA1

39* :

Top : COM1

Bottom left: Display1

(For

IMB-171-D and IMB-161-D

only)

Bottom right: PS/2 Keyboard/Mouse

23 :

System Panel Header

24* : 3W Audio AMP Output Wafer

(For IMB-171-L

and IMB-161-L

only)

25 : Digital Input / Output

Pin Header

26 : Digital Input / Output Power select

1-2: +12V

2-3: +5V

27 :

4-Pin Chassis FAN Connector (+12V)

28 : Buzzer

ATXPWR1

Intel

Q77/H61

DDR3_A1

DDR3_B1

PCIE1

HD_AUDIO1

CMOS

Battery

HDLED RESET

PLED PWRBTN

PANEL1

AUDIO

CODEC

SATA_3

CLRCMOS1

BIOS

ROM

CPU_FAN1

17.0cm (6.7 in)

USB6_7

USB8_9

CI1

CI2

JGPIO_PWR1

PWR_JP1

Top:

RJ-45

USB

3.0/2.0

T: USB0

B: USB1

USB 2.0

T: USB2

B: USB3

HDMI

LVDS 1

BLT_PWR1

BLT_VOL1

BUZZ1

Top:

Line Out

Bottom:

Mic In

MINI_PCIE1

SPEAKER1

JGP I O1

COM2

DVI1/VGA1

123* 4567910 11

812 13 14

17*

18*

24*

3233

35*

37*

38*

39*

RoHS

COM1

PS2

Keyboard

/Mouse

DISPLAY1

TPM1

PNL_PWR1

BKT_PWR1

COM4

COM3

COM5

COM6

ATX1 2V1

CHA_FAN1

SATA_2

SATA_1

SATA_0

Top:

RJ-45

USB

3.0/2.0

T: USB4

B: USB5

GND

PWRBTN#

PLED-

PLED+

RESET#

HDLED-

HDLED+

DUMMY

PIN Signal Name

1 SPK L-

2 SPK L+

3 SPK R+

4 SPK R-

PIN Signal Name PIN Signal Name

1 Digital Output 0 2 Digital Input 0

3 Digital Output 1 4 Digital Input 1

5 Digital Output 2 6 Digital Input 2

7 Digital Output 3 8 Digital Input 3

9 JGPIO_PWR1 10 GND

J_SENSE

OUT2_L

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET
