ASROCK IMB-186-E Bedienungsanleitung

IMB-186-E

User Manual

Version 1.0

Published November 2014

Version 1.0

Published November 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slots ............................................................ 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

3.3.1 CPU Conguration ............................................... 25

3.3.2 Chipset Conguration........................................... 27

3.3.3 Storage Conguration .......................................... 29

3.3.4 Intel(R) Rapid Start Technology ........................... 30

3.3.5 Intel(R) Smart Connect Technology ..................... 31

3.3.6 Super IO Conguration ........................................ 32

3.3.7 ACPI Conguration............................................... 33

3.3.8 USB Conguration ............................................... 34

3.3.9 Voltage Conguration........................................... 35

3.4 Hardware Health Event Monitoring Screen ................... 36

3.5 Boot Screen ................................................................... 37

3.6 Security Screen ............................................................. 39

3.7 Exit Screen .................................................................... 40

4 Software Support .............................................. 41

4.1 Install Operating System................................................ 41

4.2 Support CD Information ................................................. 41

4.2.1 Running Support CD............................................ 41

4.2.2 Drivers Menu........................................................ 41

4.2.3 Utilities Menu........................................................ 41

4.2.4 Contact Information.............................................. 41

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-186-E motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-186-E Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-186-E Driver CD

ASRock IMB-186-E Jumper setting instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU

BGA type for Intel®Core i7-4650U / i5-4300U /

i3-4010U and Celeron 2980U / 2957U mobile

processor (Haswell ULT MCP)

Core

Number (By CPU, Max 4)

Max Speed (By CPU)

L3 Cache (By CPU)

Chipset (By CPU)

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (Half Size + USB2.0)

mSATA 1

PCIe 0

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3L 1333/1600 MHz SDRAM

Max. 16GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®HD Graphics (By CPU)

VRAM Shared Memory

VGA 1 (shared with HDMI)

eDP 1

HDMI

Supports HDMI 1.4a, supported with Level

Shifter, resolution up to 4096x2304 (4096x2304

resolution requires Intel®Core processor)

DVI 0

DisplayPort 1

Multi Display Yes (Three Monitors with appropriate driver

software)

Ethernet

Ethernet 10/100/1000 Mbps

Controller

- GbE LAN1: Intel®218LM, LAN2: RTL8111G

(Core i7 / i5 SKU)

- GbE LAN1: Intel®218V, LAN2: RTL8111G

(Core i3 / 2980U / 2957U SKU)

Connector 2 x RJ-45

SATA

Max Data

Transfer

Rate

SATA3 (6.0Gb/S)

Rear I/O

VGA 1 (shared with HDMI)

DVI 0

HDMI 1

DisplayPort 1

Ethernet 2

USB 4 x USB 3.0

Audio 2 (Mic-In, Line-Out)

eSATA 0

PS/2 0

Internal

Connector

USB 6 (2 x USB Header 2.54mm pitch)

eDP eDP 1.3

VGA 1

Serial 6 (2 x RS-232/422/485, 4 x RS-232)

SATA 2 x SATA3 (6.0Gb/s)

mPCIe 1

Parallel 1 (Co-lay with DIO)

mSATA 1

PS/2 1

GPIO 16-bit 8 x GPI + 8 x GPO (Co-lay with LPT)

SATA PWR

Output Con 2

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR DC 9-19 input

Power On

AT/ATX Supported

AT : Directly PWR on as power input ready

ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

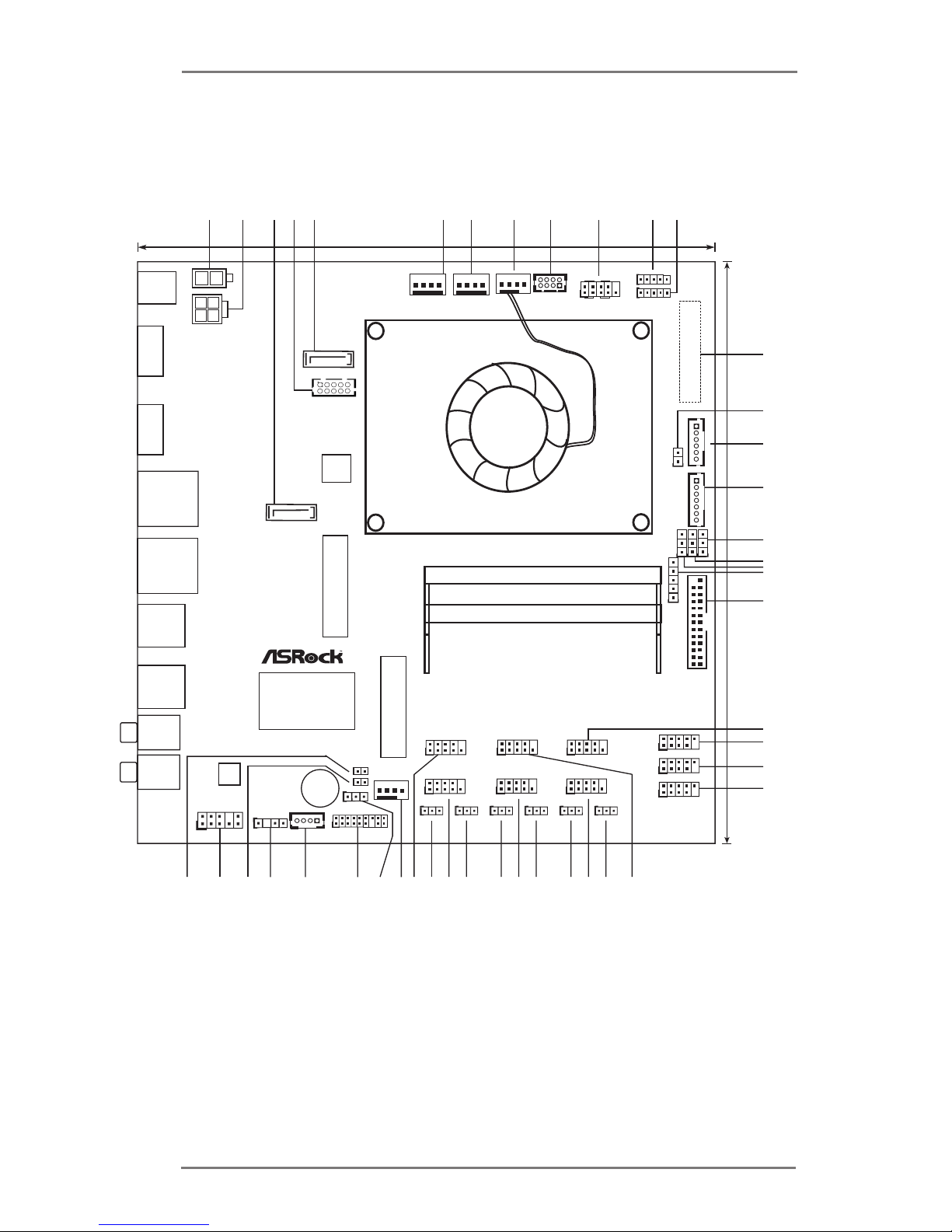

1.3 Motherboard Layout

Mic In

AUDIO

CODEC

BUZZ1

BIOS

ROM

USB8_9

HD_AUDIO1

IMB-186-E

32 2729

37 31 30

12345678910 11 12

13 (Backside)*

EDP1

FAN1

DC_JACK1

mini-PCIe

VGA1

CLRMOS1

FAN2

SPEAKER1

USB 3.0

T: USB0

B: USB1

LAN1

Line Out

SPDIF1

UPS_IN1

mini-SATA

INT_DC1

HDLED RESET

PLED PWRBTN

PANEL1

CI2

SATA3 _2

Industrial

PS2_KB_MS1

SATA3 _1

USB6_7

USB4_5

PWR_COM1

PWR_COM2

PWR_COM3

PWR_COM4

PWR_COM5

PWR_COM6

COM1

COM2

COM3

COM4

COM5

COM6

SATA_PWR1 SATA_PWR2

PNL_PWR1

BKT_PWR1

SIM1

CI1

LPC1

LPT_GPIO1

BLT_VOL1

BLT_PWR1

JGPIO_PWR1

111

PWR_JP1

JGPIO_SET1

BLT_PWM1

HDMI1 DP1

LAN2

USB 3.0

T: USB2

B: USB3

17.0cm (6.7 in)

4142

EDP_SET1

1 :

2-pin UPS Module Power Input Connector

2 : 4-pin ATX Power Input/Output Connector

3 : SATA3 Connector (SATA3_1)

4 : VGA Connector

5 : SATA3 Connector (SATA3_2)

6 : SATA Power Output Connector (SATA_PWR1)

7 : SATA Power Output Connector (SATA_PWR2)

8 :

4-Pin FAN Connector (+12V)

9 :

PS2 Keyboard/Mouse Header

10 :

System Panel Header

11 : Panel Power Selection (LCD_VCC) (PNL_PWR1)

12 : Backlight Power Selection (LCD_BLT_VCC) (BKT_PWR1)

13* : eDP Connector (on the Backside of PCB)

14 : EDP_SET1 Selection

15 :

Backlight Power Connector

(BLT_PWR1)

16 : Backlight Volume Control (BLT_VOL1)

17 :

Backlight Control Level

(CON_LBKLT_CTL) (BLT_PWM1)

18 : ATX/AT Mode Selection (PWR_JP1)

19 :

Digital Input / Output

Default Value Setting (JGPIO_SET1)

20 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

21 : Printer Port / GPIO Header (LPT_GPIO1)

22 : COM Port Header (RS232) (COM6)

23 : USB2.0 Header (USB4_5)

24 : USB2.0 Header (USB6_7)

25 : USB2.0 Header (USB8_9)

26 : COM Port Header (RS232) (COM4)

27 : COM Port Pin9 PWR Setting Jumper (PWR_COM6) (For COM Port6)

28 : COM Port Header (RS232) (COM5)

29 : COM Port Pin9 PWR Setting Jumper (PWR_COM5) (For COM Port5)

30 : COM Port Pin9 PWR Setting Jumper (PWR_COM4) (For COM Port4)

31 : COM Port Header (RS232) (COM3)

32 : COM Port Pin9 PWR Setting Jumper (PWR_COM3) (For COM Port3)

33 : COM Port Pin9 PWR Setting Jumper (PWR_COM2) (For COM Port2)

34 : COM Port Header (RS232/422/4485) (COM1)

35 : COM Port Pin9 PWR Setting Jumper (PWR_COM1) (For COM Port1)

36 : COM Port Header (RS232/422/4485) (COM2)

37 :

4-Pin FAN Connector (+12V)

38 : Clear CMOS Header

39 : LPC Header

40 : 3W Audio AMP Output Wafer

41 : SPDIF Header

42 : Chassis Intrusion Header (CI1)

43 :

Front Panel Audio Header

44 : Chassis Intrusion Header (Cl2)

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 DC Jack (DC_JACK1)

2 HDMI Port (HDMI1)

3 DisplayPort (DP1)

4 LAN RJ-45 Port* (

Intel

I218V / I218LM

)

5 LAN RJ-45 Port* (Realtek RTL8111G)

6 USB 3.0 Ports (USB01)

7 USB 3.0 Ports (USB23)

8 Line Out (Lime)

9 Microphone (Pink)

124

358

Andere Handbücher für IMB-186-E

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK FM2A55M-VG3 Bedienungsanleitung

ASROCK

ASROCK IMB-792 Bedienungsanleitung

ASROCK

ASROCK E350M1-USB3 - Bedienungsanleitung

ASROCK

ASROCK G41M-S3 Bedienungsanleitung

ASROCK

ASROCK X79 Extreme9 Bedienungsanleitung

ASROCK

ASROCK A790GMH128M Bedienungsanleitung

ASROCK

ASROCK IMB-156 Gebrauchsanweisung

ASROCK

ASROCK 990FX Extreme9 Bedienungsanleitung

ASROCK

ASROCK Z790M-ITX WiFi Bedienungsanleitung

ASROCK

ASROCK G31M-VS2 Bedienungsanleitung

ASROCK

ASROCK P4TWINS-HDTV Bedienungsanleitung

ASROCK

ASROCK H61M-ITX Bedienungsanleitung

ASROCK

ASROCK Z490 Extreme4 Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-GLAN - V1.0 Bedienungsanleitung

ASROCK

ASROCK 990FX EXTREME3 Bedienungsanleitung

ASROCK

ASROCK H61M-HG4 Bedienungsanleitung

ASROCK

ASROCK H310M-G/M.2 Bedienungsanleitung

ASROCK

ASROCK FATAL1TY P67 PROFESSIONAL Bedienungsanleitung

ASROCK

ASROCK FM2A78M-DG3+ Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK FM2A85X-ITX Bedienungsanleitung

ASROCK

ASROCK STX-1000B Bedienungsanleitung

ASROCK

ASROCK P4I945GC Bedienungsanleitung

ASROCK

ASROCK G41M-VS3 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
