IMB-A1000

User Manual

Version 1.0

Published September 2019

Version 1.0

Published September 2019

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility

for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRockInd, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRockInd has been advised of the possibility of such damages arising

from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRockInd Website: http://www.asrockind.com

Contents

1. Introduction ................................................................ 5

1.1 Package Contents.......................................................... 5

 1.2 Specications ................................................................. 6

1.3 Motherboard Layout ..................................................... 7

1.4 I/O Panel ...................................................................... 9

2. Installation .................................................................. 10

2.1 Installing Memory Modules (DIMM) ............................... 11

2.2 Expansion Slot ............................................................... 12

2.3 Jumpers Setup ............................................................... 14

2.4 Onboard Headers and Connectors ................................ 16

3. UEFI SETUP UTILITY.................................................. 20

3.1 Introduction .................................................................... 20

3.1.1 UEFI Menu Bar ..................................................... 20

3.1.2 Navigation Keys .................................................... 21

3.2 Main Screen ................................................................... 22

3.3 Advanced Screen........................................................... 23

  3.3.1CPUConguration ............................................... 24

  3.3.2ChipsetConguration........................................... 25

  3.3.3StorageConguration .......................................... 27

  3.3.4SuperIOConguration ........................................ 28

  3.3.5ACPIConguration............................................... 29

  3.3.6USBConguration ............................................... 30

3.3.7 Trusted Computing............................................... 31

3.4 Hardware Health Event Monitoring Screen.................... 32

3.5 Security Screen.............................................................. 33

3.6 Boot Screen ................................................................... 34

3.7 Exit Screen..................................................................... 36

4. Software Support ....................................................... 37

4.1 Install Operating System ................................................ 37

4.2 Support CD Information ................................................. 37

4.2.1 Running The Support CD..................................... 37

4.2.2 Drivers Menu........................................................ 37

4.2.3 Utilities Menu........................................................ 37

4.2.4 Contact Information.............................................. 37

 4.3 AMDEyenityMultidisplayTechnologySetting.............. 38

1. Introduction

Thank you for purchasing ASRockInd IMB-A1000 motherboard, a reliable

motherboard produced under ASRockInd’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRockInd’s commitment to quality and endurance.

In this manual, chapter 1 and 2 contains the introduction of the mother-

board and step-by-step hardware installation guide. Chapter 3 and 4 con-

tainsthecongurationguideofUEFIsetupandinformationoftheSupport

CD.

BecausethemotherboardspecicationsandtheBIOSsoftware

might be updated, the content of this manual will be subject to

changewithoutnotice.Incaseanymodicationsofthismanual

occur, the updated version will be available on ASRockInd web-

sitewithoutfurthernotice.YoumayndthelatestCPUsupport

lists on ASRockInd website as well.

ASRockInd website https://www.asrockind.com/

If you require technical support related to this motherboard,

pleasevisitourwebsiteforspecicinformationaboutthemodel

you are using.

https://www.asrockind.com/support/index.asp

1.1 Package Contents

ASRockInd IMB-A1000 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRockInd IMB-A1000 Quick Installation Guide

ASRockInd IMB-A1000 Support CD

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU

AMD Ryzen Series-Raven Ridge (2200G, QC,

3.5GHz, 65W) (2400G, QC, 3.6GHz, 65W)

AMD Ryzen 3000-Matisse CPU, sku TBD, up to

TDP 95W

Chipset AMD Promontory B450

Expansion

Slot

PCIe 1 x PCIe x16 (PCIe GEN III x8 for Raven Ridge

CPU) (PCIe GEN IV x16 for Matisse CPU)

M.2

1 x Key M (2242/2260/2280) with PCIe x4 and

SATA3 for SSD

1 x Key M (2242/2280) with PCIe x1 for SSD

1 x Key B (3042) with PCIe x1, USB 2.0 and

SIM Socket for 4G

1 x Key E (2230) with PCIe x1 and USB2.0 for

Wireless

Memory

Technology Raven Ridge: Dual Channel DDR4 2933 MHz

Matisse: Dual Channel DDR4 3200 MHz

Max. 32 GB

Socket 2 x SO-DIMM

ECC

Support N/A

Graphics

Controller AMD Radeon™ Vega Series Graphics in Ryzen

Series APU (For Raven Ridge CPU)

VGA N/A

DVI N/A

LVDS N/A

HDMI N/A

DisplayPort DisplayPort 1.2 with max resolution up to

4096x2160@60Hz

MultiDisplay Triple Display

eDP eDP 1.4 (share with DisplayPort) with max

resolution up to 4096x2160@60Hz

Ethernet Ethernet 10/100/1000 Mbps

Controller 2 x Intel®I210-AT

* For detailed product information, please visit our website: http://www.asrockind.com

Rear I/O

VGA N/A

DVI N/A

HDMI N/A

DisplayPort 3

Ethernet 2

USB 6 x USB 3.1

Audio 1 (Mic-in, Line-out)

Serial N/A

PS2 N/A

Internal

Connector

USB 2 x USB3.0, 4 x USB2.0

LVDS/

inverter N/A

eDP 1 (share with DisplayPort)

VGA N/A

Serial 2 x COM(RS-232/422/485)

SATA 3 x SATA3

Parallel N/A

GPIO N/A

SATA PWR

Output 1

Speaker

Header 1

TPM 1 x Onboard TPM 2.0 IC

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255sec

Power

Requirements

Input PWR ATX PWR 24+8-pin

Power On

AT/ATX Supported

AT: Directly PWR on as Power input ready

Environment ATX: Press Button to PWR on

after Power input ready

Environment

Temperature 0ºC – 60ºC

Operating

Temp -40ºC – 85ºC

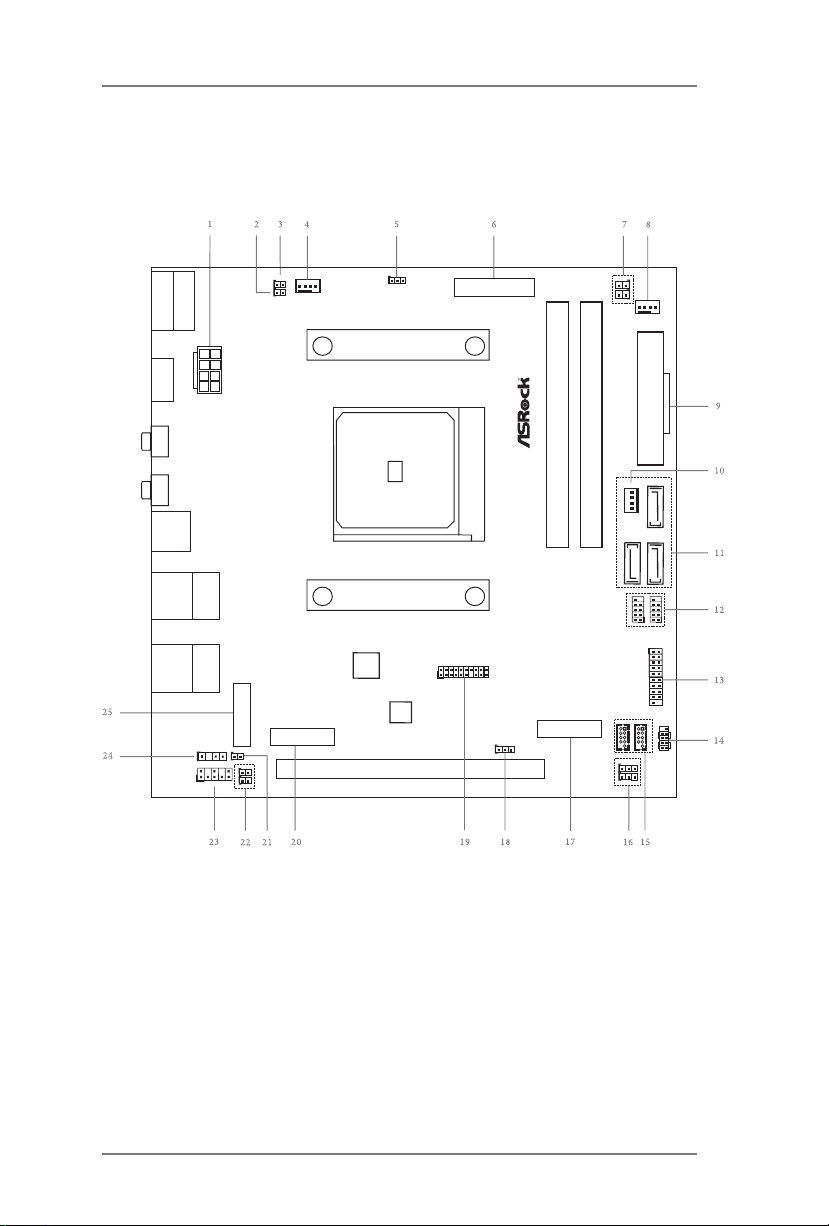

1.3 Motherboard Layout

ATXPWR1

HD_AUDIO1

HDLED RESET

PLED PW RBTN

PANEL1

Top:

LAN1

USB 3.0

T: USB0

B: USB1

Line Out

ATX1 2V 2

LPC1

Industrial

BIOS

ROM

USB3_16_17

CLRCMOS1

USB 3. 0

T: USB14

B: USB15

DP0

SATA3_1

M2_KEYM1

SPDIF1

SOCKET AM4

PCIE1

DP1

USB2_4_5

USB2_6_7

SATA_PWR1

CPU_FAN1

DDR4_A1

DDR4_B1

DP2

Mic In

Top:

LAN2

USB 3.0

T: USB2

B: USB3

M2_KEYE1

BUZZ2

CI2

CI1

BUZZ1

PWR_JP1

M2_KEYB1

PWR_COM3

PWR_COM4

COM3

COM4

SATA3_2

SATA3_3

CHA_FAN1

BL1

BL2

EDP1

CLRCMOS2

PWR_BAT2

IMB-A1000

1 : ATX 12V Power Connector

2 : PWR_BAT2

3 : Clear CMOS Header (CLRMOS2)

4 :

CPU FAN Connector (+12V)

5 : Clear CMOS Header (CLRMOS1)

6 : eDP Connector

7 : BL1, BL2

8 :

Chassis FAN Connector (+12V)

9 :

24-pin ATX Power Input Connector

10 : SATA Power Output Connector

11 : SATA3 Connectors (SATA3_1~3)

12 : USB 2.0 Headers (

USB2_4_5, USB2_6_7

)

13 : USB 3.0 Header (

USB3_16_17

)

System Panel Header

15 : COM Port Headers (COM3, 4) (RS232)

16 : COM Port PWR Setting Jumpers

PWR_COM3 (For COM Port3)

PWR_COM4 (For COM Port4)

17 : M.2 Key-B Socket

(M2_KEYB1)

18 : ATX/AT Mode Select (PWR_JP1)

19 : LPC Header

20 : M.2 Key-E Socket (M2_KEYE1)

21 : Buzzer (BUZZ2)

22 : Chassis Intrusion Headers (CI1, CI2)

23 :

Front Panel Audio Header

24 : SPDIF Header

25 : M.2 Key-M Socket (M2_KEYM1)

Back Side :

M.2 Key-M Socket (M2_KEYM2)

SIM Card Socket (SIM1)

1.4 I/O Panel

1 LAN RJ-45 Port (LAN1)*

2 LAN RJ-45 Port (LAN2)*

3 USB 3.0 Ports (USB3_2_3)

4 USB 3.0 Ports (USB3_0_1)

5 USB 3.0 Ports (USB3_14_15)

6 Microphone (Pink)

7 Front Speaker (Lime)

8 DisplayPort (DP2)

9 DisplayPort (DP0)

10 DisplayPort (DP1)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

Chapter 2: Installation

This is a Mini-ITX form factor motherboard. Before you install the mother-

board,studythe conguration of yourchassistoensurethat the mother-

boardtsintoit.

Pre-installation Precautions

Take note of the following precautions before you install motherboard com-

ponents or change any motherboard settings.

1. Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause

physical injuries to you and damages to motherboard com-

ponents.

2. In order to avoid damage from static electricity to the moth-

erboard’s components, NEVER place your motherboard

directly on a carpet. Also remember to use a grounded wrist

strap or touch a safety grounded object before you handle

the components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any components, place them on a

grounded anti-static pad or in the bag that comes with the

components.

5. When placing screws to secure the motherboard to the

chassis, please do not over-tighten the screws! Doing so

may damage the motherboard.

Andere Handbücher für IMB-A1000

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 970 Pro3 R2.0 Bedienungsanleitung

ASROCK

ASROCK B75 Pro3-M Bedienungsanleitung

ASROCK

ASROCK K10N78D Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X79 Professional series Bedienungsanleitung

ASROCK

ASROCK P55 EXTREME Bedienungsanleitung

ASROCK

ASROCK Z270 SUPERCARRIER Bedienungsanleitung

ASROCK

ASROCK A780GM-LE128M Bedienungsanleitung

ASROCK

ASROCK H61DE-S3 Bedienungsanleitung

ASROCK

ASROCK C226M WS Bedienungsanleitung

ASROCK

ASROCK H67M-GE/THW Bedienungsanleitung

ASROCK

ASROCK H61M-DP3/ASM Bedienungsanleitung

ASROCK

ASROCK H77 Pro4/MVP Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X370 Gaming X Series Bedienungsanleitung

ASROCK

ASROCK N3160-NUC IPC Bedienungsanleitung

ASROCK

ASROCK ALIVEXFIRE-ESATA2 Bedienungsanleitung

ASROCK

ASROCK 970 Extreme4 Bedienungsanleitung

ASROCK

ASROCK AMD A620A Series Bedienungsanleitung

ASROCK

ASROCK Fatal1ty Z77 Professional Bedienungsanleitung

ASROCK

ASROCK H81TM-ITX Bedienungsanleitung

ASROCK

ASROCK X399M Taichi Bedienungsanleitung

ASROCK

ASROCK N68C-S Bedienungsanleitung

ASROCK

ASROCK B75M-GL R2.0 Bedienungsanleitung

ASROCK

ASROCK N3700M Bedienungsanleitung

ASROCK

ASROCK H61M-GE Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
