K7VM4

User Manual

Version 1.1

Published July 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout ....................................................... 7

1.4 ASRock I/OTM .................................................................. 8

2 Installation ...................................................... 9

2.1 Screw Holes ................................................................... 9

2.2 Pre-installation Precautions ............................................ 9

2.3 CPU Installation ............................................................... 10

2.4 Installation of Heatsink and CPU fan .............................. 10

2.5 Installation of Memory Modules (DIMM) .......................... 11

2.6 Expansion Slots .............................................................. 11

2.7 Jumpers Setup ................................................................ 12

2.8 Connectors ..................................................................... 15

3 BIOS Setup ...................................................... 17

3.1 BIOS Setup Utility ............................................................ 17

3.1.1 BIOS Menu Bar ..................................................... 17

3.1.2 Legend Bar ........................................................... 17

3.2 Main Menu ....................................................................... 18

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 20

4 Software Support ........................................... 21

4.1 Installing Operating System ............................................ 21

4.2 Support CD Information ................................................... 21

4.2.1 Running Support CD ............................................. 21

4.2.2 Drivers Menu ........................................................ 21

4.2.3 Utilities Menu ......................................................... 21

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 21

4.2.5 Contact Information ............................................... 21

Appendix ........................................................... 22

1. Advanced Menu ............................................................. 22

2. Security Menu ................................................................. 26

3. Power Menu ................................................................... 27

4. Boot Menu ....................................................................... 28

5. Exit Menu ......................................................................... 29

Chapter 1 Introduction

Thank you for purchasing ASRock K7VM4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to

quality and endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 22 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7VM4 motherboard

(Micro ATX form factor: 9.6" x 8.6", 24.4 x 21.8 cm)

ASRock K7VM4 Quick Installation Guide

ASRock AMD-VIA Series Support CD

1 cable for IDE devices (1 x ATA 66/100/133)

1 cable for floppy drive (1 x ribbon cable)

1 ASRock I/O shield

1 COM port bracket

1 ASRock MR Card (Optional)

1.2 Specifications

Platform: Micro ATX form factor (9.6" x 8.6", 24.4 x 21.8 cm)

CPU: Supports Socket A (462 pins) for

AMDAthlonTM / AthlonTM XP/ DuronTM processor

Chipsets: North Bridge: VIA KM400, FSB@333/266/200 MHz, AGP 8X/4X

South Bridge: VIA VT8235CE, supports USB 2.0, ATA 133

VGA: VIA UniChrome Graphics, Max. 64MB VRAM

Memory: 2 DDR DIMM slots: DDR1 and DDR2

PC2700 (DDR333) / PC2100 (DDR266) / PC1600 (DDR200),

Max. 2GB (see CAUTION 1)

IDE: IDE1: ATA 133 / Ultra DMA Mode 6;

IDE2: ATA 133 / Ultra DMA Mode 6;

Can connect up to 4 IDE devices

Floppy Port: Supports 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing;

Chassis temperature sensing;

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 2);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 3 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 3)

AMR slot: 1 slot, supports ASRock MR card (optional)

USB 2.0: 4 default USB 2.0 ports and 1 extra set of header for two

additional USB 2.0 ports upgrade (see CAUTION 4)

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port;

1 RJ 45 port; 4 rear default USB 2.0 ports;

1 VGA port; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 5)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. PC1600 (DDR200) is supported ONLY when using

FSB200 (Duron) processor.

2. While CPU overheat is detected, the system will automati-

cally shutdown. Please check if the CPU fan on the

motherboard functions properly before you resume the

system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when

you install the PC system.

3. Do NOT insert a 3.3V AGP card into the AGP slot of

K7VM4 motherboard! It may cause permanent damage!

4. Power Management for USB 2.0 works fine under

Microsoft®Windows®XP. It may not work properly under

Microsoft®Windows®98/ME/2000. Please refer to

Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

5. Although K7VM4 offers stepless control, it is not

recommended to perform over clocking. When the CPU

frequency of K7VM4 is set to perform over clocking,

other clocks, such as PCI clock, AGP clock, and Memory

clock will also be overclocked proportionally.

Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or

damage the CPU.

PCI 2

PCI 1

2MB

BIOS

USB45

IR1

K7VM4

SPEAKER1

FLOPPY1

CHA_FAN1

ATXPWR1

IDE2 IDE1

ATA133

Super

I/O

AGP1

CPU_FAN1

AUDIO1

Mic

GAME AUDIO1

USB 2.0

Ports

LAN

Mic in

Line out

GAME AUDIO1

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

VGA

Line

Line in

USB 2.0

Ports

VIA

VT8235CE

VIA

KM400

Chipset

PS2_USB_PWR1

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

CLRCMOS1

CMOS

Battery

HDLED RST

PLED PWRBTN

PANEL 1

JR1 JL1

AMR1

LAN

PHY

AUDIO

CODEC

COM1

21.8cm (8.6 in)

24.4cm (9.6 in)

12 4

563

1516

AGP 8X

USB2.0

PCI 3

FID0

FID1

FID2

FID3

FID4

FS0

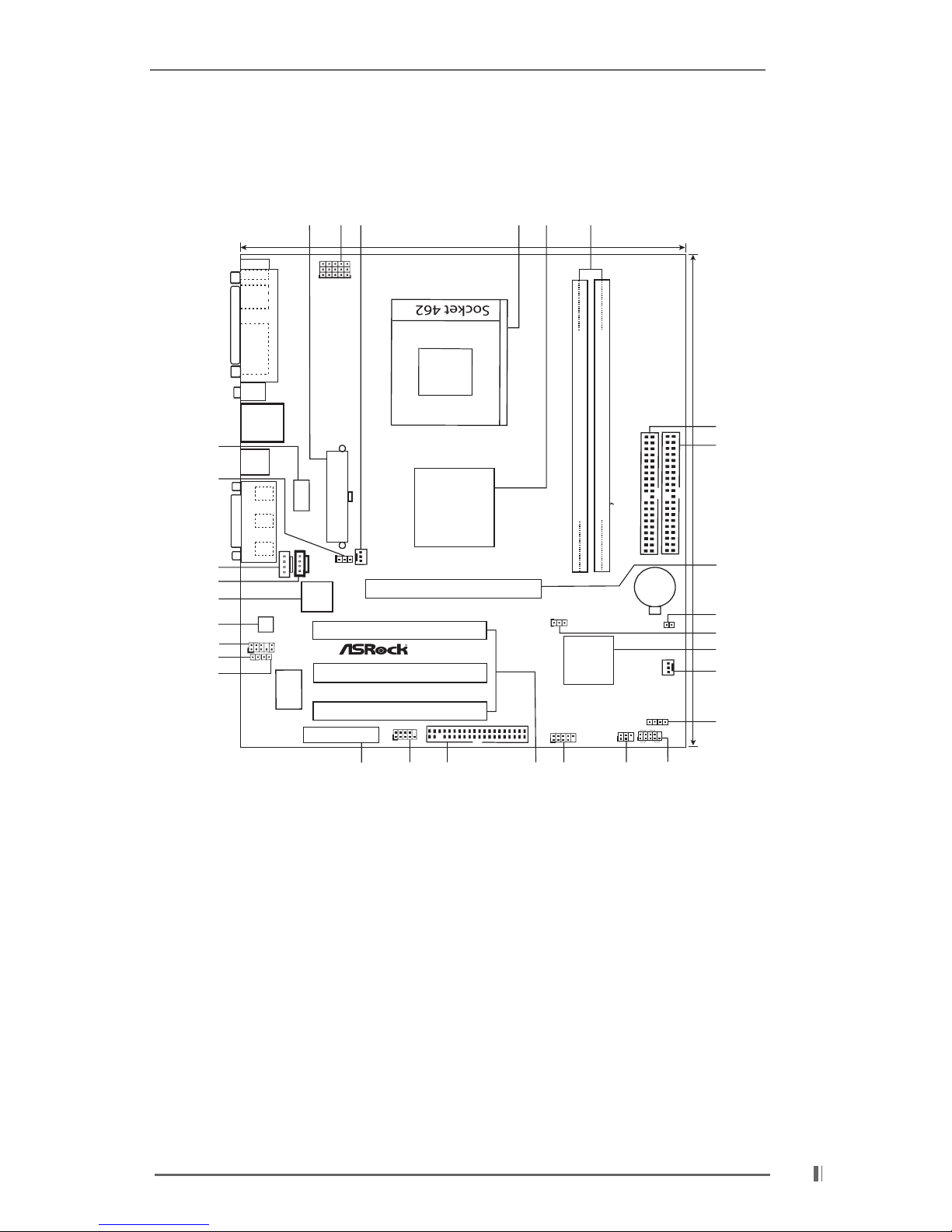

1.3 Motherboard Layout

1 ATX power connector (ATXPWR1) 2 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

3 CPU fan connector (CPU_FAN1) 4 CPU socket

5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)

7 Secondary IDE connector (IDE2, Black) 8 Primary IDE connector (IDE1, Blue)

9 AGP slot (AGP1) 10 Clear CMOS (CLRCMOS1, 2-pin jumper)

11 FSB select jumper (FS0) 12 South Bridge controller

13 Chassis fan connector (CHA_FAN1) 14 External speaker connector (SPEAKER 1)

15 System panel connector (PANEL1) 16 Infrared module connector (IR1)

17 USB 2.0 header (USB45, Blue) 18 PCI slots (PCI 1- 3)

19 Floppy connector (FLOPPY1) 20 Serial port connector (COM1)

21 AMR slot (AMR1) 22 JL1 jumper

23 JR1 jumper 24 Front panel audio connector (AUDIO1)

25 AUDIO CODEC 26 Flash Memory

27 Internal audio connector: CD1 (Black) 28 Internal audio connector: AUX1 (White)

29 PS2_USB_PWR1 jumper 30 LAN PHY

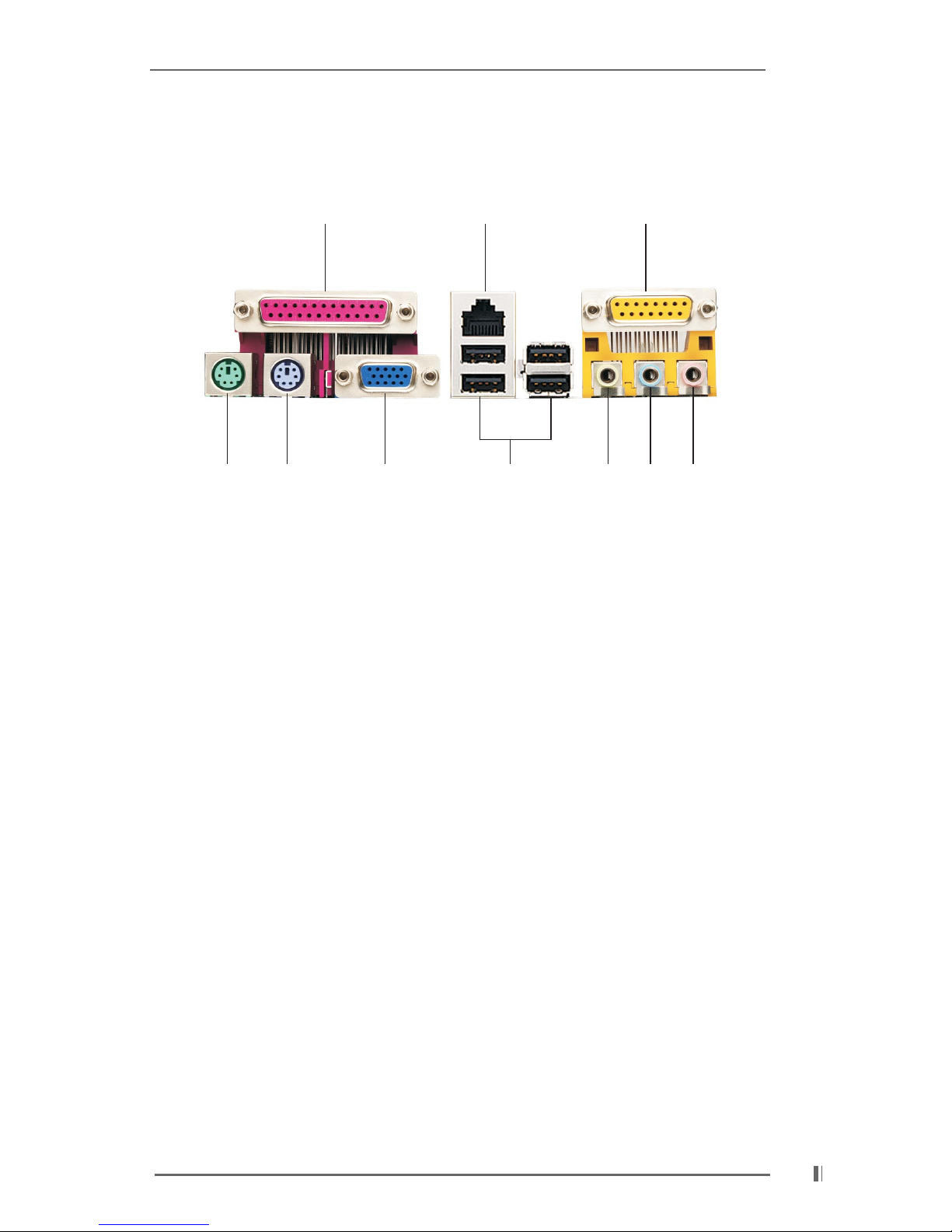

1.4 ASRock I/OTM

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 2.0 ports 8 VGA port

9 PS/2 keyboard port (Purple) 10 PS/2 mouse port (Green)

11 23

1098 765

Chapter 2 Installation

K7VM4 is a Micro ATX form factor (9.6" x 8.6", 24.4 x 21.8 cm) motherboard. Before

you install the motherboard, study the configuration of your chassis to ensure that

the motherboard fits into it.

Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure that the power

is switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

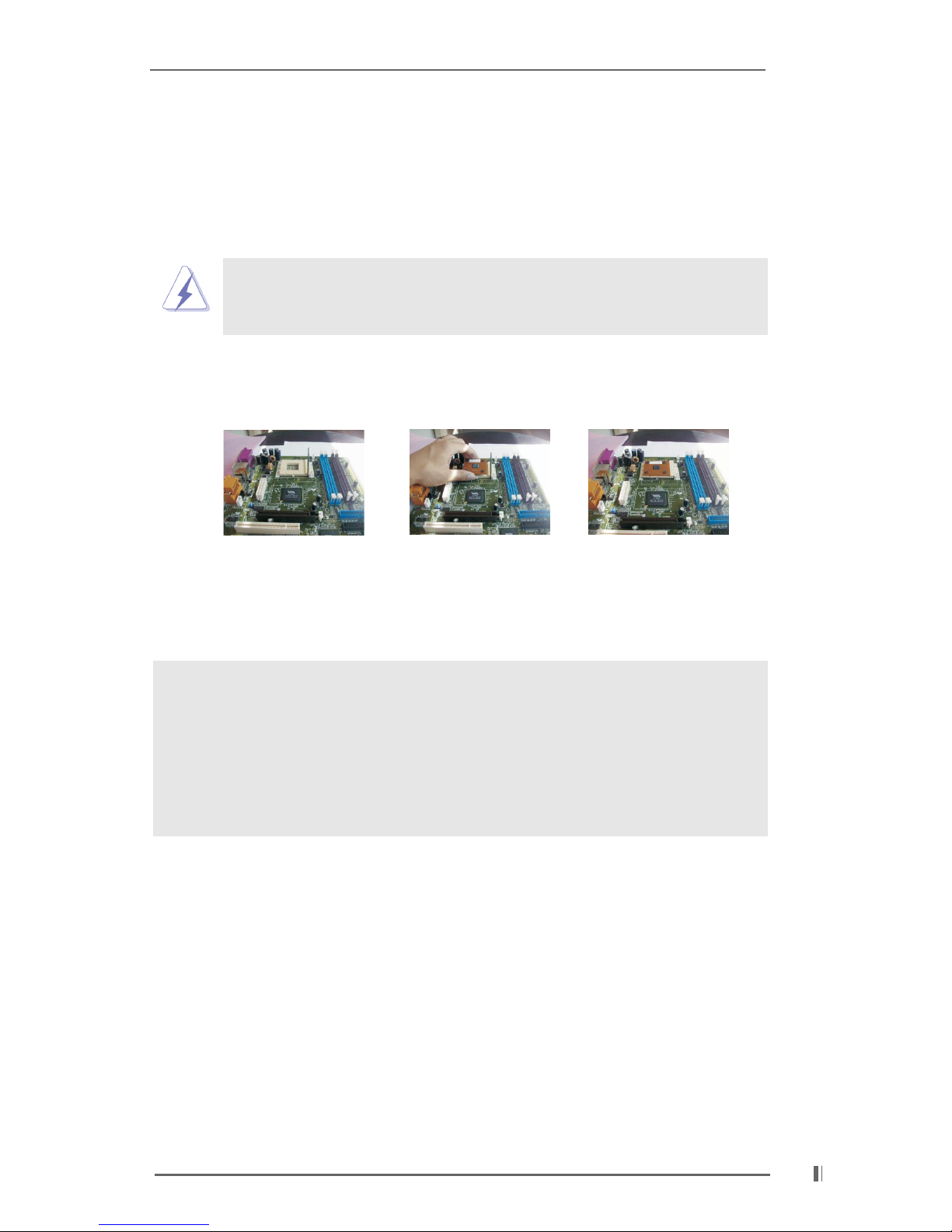

2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink

AMDAthlonTM / AthlonTM XP/ DuronTM family CPUs with a speed of 600 MHz and

higher require larger heatsink and cooling fan. Thermal grease between the

CPU and the heatsink is also needed to improve heat transfer. Make sure that

the CPU and the heatsink are securely fastened and in good contact with

each other. For proper installation, please kindly refer to the instruction

manuals of vendors of CPU fan and heatsink.

Step 1 Step 2, 3 Step 4

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK Z690 AQUA OC Bedienungsanleitung

ASROCK

ASROCK EP2C622D24LM Bedienungsanleitung

ASROCK

ASROCK SBC-310 Bedienungsanleitung

ASROCK

ASROCK ALIVENF7G-GLAN - V1.0 Bedienungsanleitung

ASROCK

ASROCK 870iCafe Bedienungsanleitung

ASROCK

ASROCK P55 DELUXE3 - Bedienungsanleitung

ASROCK

ASROCK E350M1 - Bedienungsanleitung

ASROCK

ASROCK A785GM-LE - V1.0 Bedienungsanleitung

ASROCK

ASROCK CONROE1333-DVI-H - V1.0 Bedienungsanleitung

ASROCK

ASROCK IMB-1313 Bedienungsanleitung

ASROCK

ASROCK 990FX EXTREME3 Bedienungsanleitung

ASROCK

ASROCK B150TM-ITX TPM R2.0 Bedienungsanleitung

ASROCK

ASROCK M3A785GM-LE/128M Bedienungsanleitung

ASROCK

ASROCK STX-1000B Bedienungsanleitung

ASROCK

ASROCK FM2A75M-DGS R2.0 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X299 Professional Gaming i9 XE... Bedienungsanleitung

ASROCK

ASROCK Z390 Phantom Gaming 9 Bedienungsanleitung

ASROCK

ASROCK Z87 Extreme11/ac Bedienungsanleitung

ASROCK

ASROCK E3V5 Performance Gaming Bedienungsanleitung

ASROCK

ASROCK Taichi B550 Bedienungsanleitung

ASROCK

ASROCK 880GMH USB3 R2.0 Bedienungsanleitung

ASROCK

ASROCK FATAL1TY P67 PROFESSIONAL Bedienungsanleitung

ASROCK

ASROCK FM2A88X-ITX Bedienungsanleitung

ASROCK

ASROCK X58 DELUXE3 - Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
