ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published February 2011

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

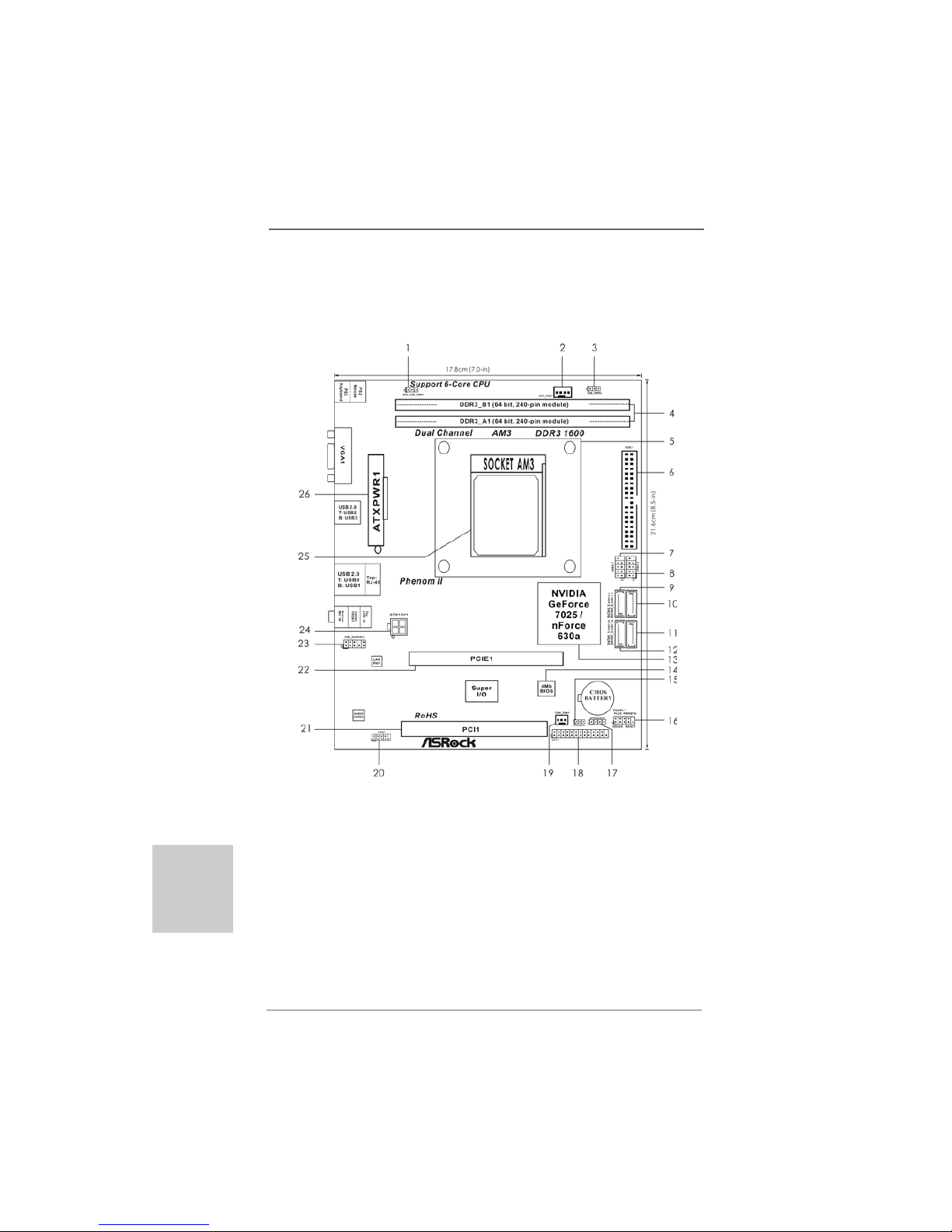

Motherboard LayoutMotherboard Layout

Motherboard Layout

(N68-(N68-

(N68-VGS3 UCC / N68-VGS3 UCC / N68-

VGS3 UCC / N68-VGS3 UCC / N68-

VGS3 UCC / N68-VS3 UCC)VS3 UCC)

VS3 UCC)VS3 UCC)

VS3 UCC)

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Jumper (CLRCMOS1)

2 CPU Fan Connector (CPU_FAN1) 16 System Panel Header (PANEL1, White)

3 USB_PWR2 Jumper 17 Chassis Speaker Header

4 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 18 Print Port Header (LPT1, White)

5 CPU Heatsink Retention Module 19 Chassis Fan Connector (CHA_FAN1)

6 Primary IDE Connector (IDE1, Blue) 20 Serial Port Connector (COM1)

7 USB 2.0 Header (USB6_7, Blue) 21 PCI Slot (PCI1)

8 USB 2.0 Header (USB4_5, Blue) 22 PCI Express x16 Slot (PCIE1)

9 SATAII Connector (SATAII_2 (PORT 0.1)) 23 Front Panel Audio Header

10 SATAII Connector (SATAII_4 (PORT 1.1)) (HD_AUDIO1, Lime)

11 SATAII Connector (SATAII_3 (PORT 1.0)) 24 ATX 12V Power Connector (ATX12V1)

12 SATAII Connector (SATAII_1 (PORT 0.0)) 25 AM3 CPU Socket

13 NVIDIA GeForce 7025 / nForce 630a 26 ATX Power Connector (ATXPWR1)

14 SPI Flash Memory (4Mb)

ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

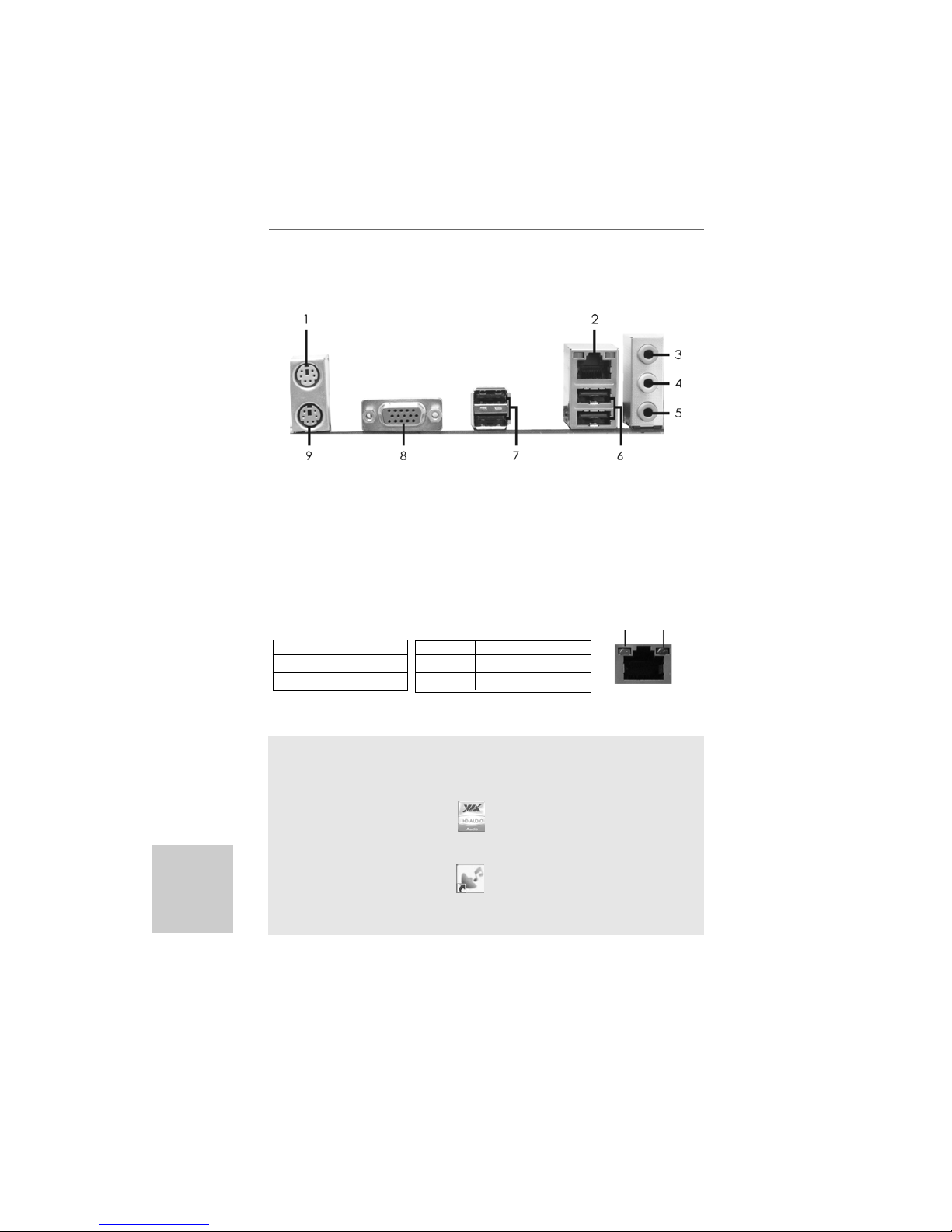

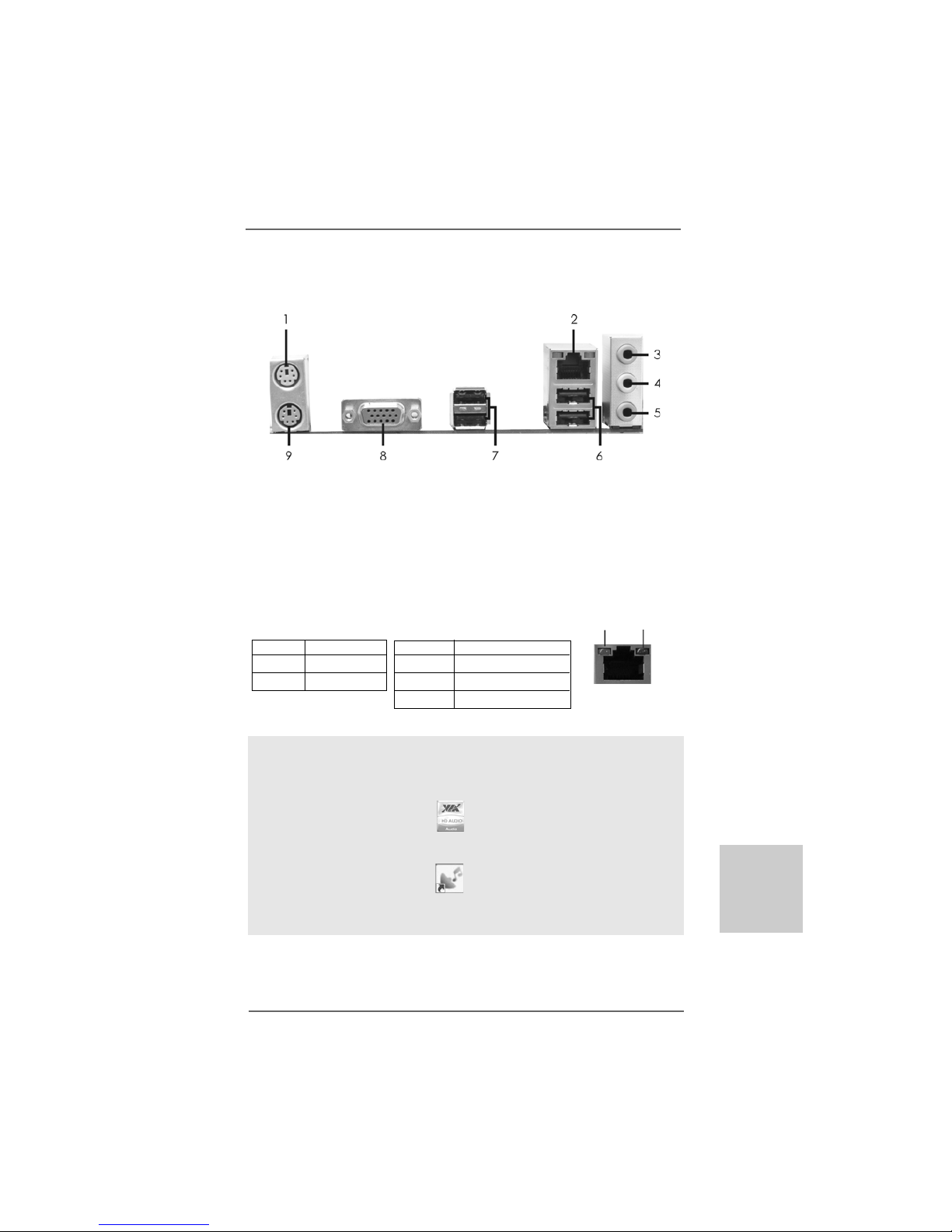

I/O PI/O P

I/O Panel (N68-anel (N68-

anel (N68-anel (N68-

anel (N68-VGS3 UCC)VGS3 UCC)

VGS3 UCC)VGS3 UCC)

VGS3 UCC)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection LAN Port

ACT/LINK

LED SPEED

LED

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel” or “4 Channel”. Click “Power” to save your change.

For Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGAPort

4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink)

4ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

I/O PI/O P

I/O Panel (N68-anel (N68-

anel (N68-anel (N68-

anel (N68-VS3 UCC)VS3 UCC)

VS3 UCC)VS3 UCC)

VS3 UCC)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection LAN Port

ACT/LINK

LED SPEED

LED

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel” or “4 Channel”. Click “Power” to save your change.

For Windows®7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGAPort

4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink)

ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock N68-VGS3 UCC / N68-VS3 UCC motherboard, a

reliable motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s com-

mitment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

One ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

(Micro ATX Form Factor: 8.5-in x 7.0-in, 21.6cm x 17.8 cm)

One ASRock N68-VGS3 UCC / N68-VS3 UCC Quick Installation Guide

One ASRock N68-VGS3 UCC / N68-VS3 UCC Support CD

Two Serial ATA (SATA) Data Cables (Optional)

One I/O Panel Shield

6ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 8.5-in x 7.0-in, 21.6cm x 17.8 cm

CPU - Support forAM3 processors: AMDPhenomTM II X6 / X4 / X3 /

X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron

processors (see CAUTION 1)

- Supports Six-Core CPU

- Supports UCC feature (Unlock CPU Core) (see CAUTION 2)

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 1000 MHz (2.0 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports Hyper-Transport Technology

Chipset - NVIDIA®GeForce 7025 / nForce 630a

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 4)

- 2 xDDR3DIMM slots

- Support DDR3 1600/1333/1066/800 non-ECC, un-buffered

memory (see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI slot

Graphics - Integrated NVIDIA®GeForce 7025 graphics

- DX9.0 VGA, Pixel Shader 3.0

- Max. shared memory 256MB (see CAUTION 7)

- Supports D-Sub with max. resolution up to 1920x1440

@ 60Hz

Audio - 5.1 CH HDAudio (VIA®VT1705 Audio Codec)

LAN -N68-VGS3 UCC

Realtek Giga PHY RTL8211CL, speed 10/100/1000 Mb/s

-N68-VS3 UCC

Realtek PHY RTL8201EL, speed 10/100 Mb/s

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort withLED (ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Line in / Front Speaker / Microphone

Connector - 4 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1, RAID 0+1, RAID5, JBOD),NCQ and “Hot Plug”

functions (see CAUTION 8)

ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Print port header

- 1 x COM port header

- CPU/Chassis FANconnector

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio header

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU, VCCMVoltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

ASRock Software Suite (CyberLink DVD Suite - OEM and

Trial; Creative Sound Blaster X-Fi MB - Trial)

Unique Feature - ASRock OC Tuner (see CAUTION 9)

- Intelligent Energy Saver (see CAUTION 10)

- Instant Boot

- ASRock Instant Flash (see CAUTION 11)

- ASRock OC DNA (see CAUTION 12)

- ASRock AIWI (see CAUTION 13)

- ASRock APP Charger (see CAUTION 14)

- SmartView (see CAUTION 15)

- ASRock XFast USB (see CAUTION 16)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 17)

- ASRock U-COP (see CAUTION 18)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. This motherboard supports CPU up to 95W. Please refer to our website for

CPU support list. ASRock website http://www.asrock.com

2. UCC (Unlock CPU Core) feature simplifies AMD CPU activation. As long as

a simple switch of the BIOS option “ASRock UCC”, you can unlock the extra

CPU core to enjoy an instant performance boost. When UCC feature is

enabled, the dual-core or triple-core CPU will boost to the quad-core CPU, and

some CPU, including quad-core CPU, can also increase L3 cache size up to

6MB, which means you can enjoy the upgrade CPU performance with a better

price. Please be noted that UCC feature is supported with AM3 CPU only, and

in addition, not every AM3 CPU can support this function because some

CPU’s hidden core may be malfunctioned.

3. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 21 for details.

4. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

5. Whether 1600MHz memory speed is supported depends on the AM3 CPU

you adopt. If you want to adopt DDR3 1600 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limitation.

7. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check NVIDIA®website for the latest

information.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 24 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

9. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

10. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

11. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

12. The software name itself – OC DNA literally tells you what it is capable of.

OC DNA, an exclusive utility developed by ASRock, provides a conve-

nient way for the user to record the OC settings and share with others. It

helps you to save your overclocking record under the operating system

and simplifies the complicated recording process of overclocking settings.

With OC DNA, you can save your OC settings as a profile and share with

your friends! Your friends then can load the OC profile to their own system

to get the same OC settings as yours! Please be noticed that the OC

profile can only be shared and worked on the same motherboard.

13. To experience intuitive motion controlled games is no longer only available

at Wii. ASRock AIWI utility introduces a new way of PC gaming operation.

ASRock AIWI is the world's first utility to turn your iPhone/iPod touch as

a game joystick to control your PC games. All you have to do is just to

install the ASRock AIWI utility either from ASRock official website or

ASRock software support CD to your motherboard, and also download the

free AIWI Lite from App store to your iPhone/iPod touch. Connecting your

PC and apple devices via Bluetooth or WiFi networks, then you can start

experiencing the exciting motion controlled games. Also, please do not

forget to pay attention to ASRock official website regularly, we will

continuously provide you the most up-do-date supported games!

ASRock website: http://www.asrock.com/Feature/Aiwi/index.asp

1010

10 ASRock N68-VGS3 UCC / N68-VS3 UCC Motherboard

EnglishEnglish

English

14. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

15. SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your OS

version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your browser

version is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

16. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

17. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

18. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

Andere Handbücher für N68-VGS3 UCC -

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK A770DE Bedienungsanleitung

ASROCK

ASROCK H97 Pro4 Bedienungsanleitung

ASROCK

ASROCK 4COREDUAL-SATA2 - 11-2007 Bedienungsanleitung

ASROCK

ASROCK uBOX-110 Bedienungsanleitung

ASROCK

ASROCK 775i65GV Bedienungsanleitung

ASROCK

ASROCK H81M-VG4 R2.0 Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING X670E PG Lightning Bedienungsanleitung

ASROCK

ASROCK X399M Taichi Bedienungsanleitung

ASROCK

ASROCK Fatal1ty FM2A88X Plus Killer Bedienungsanleitung

ASROCK

ASROCK H77 Pro4/MVP Bedienungsanleitung

ASROCK

ASROCK FM2A88M Extreme4 Bedienungsanleitung

ASROCK

ASROCK H61M-HG4 Bedienungsanleitung

ASROCK

ASROCK B460M Steel Legend Bedienungsanleitung

ASROCK

ASROCK X99 WS-E/10G Bedienungsanleitung

ASROCK

ASROCK Z68 Extreme4 Gen3 Bedienungsanleitung

ASROCK

ASROCK FM2A58M+ BTC Bedienungsanleitung

ASROCK

ASROCK SBC-311 Bedienungsanleitung

ASROCK

ASROCK X570 Phantom Gaming-ITX/TB3 Bedienungsanleitung

ASROCK

ASROCK Super Alloy B660M PG Riptide Bedienungsanleitung

ASROCK

ASROCK AM2CPU Bedienungsanleitung

ASROCK

ASROCK G965M-S Bedienungsanleitung

ASROCK

ASROCK H61M-U3S3 Bedienungsanleitung

ASROCK

ASROCK Z97 Pro3 Bedienungsanleitung

ASROCK

ASROCK EPYCD8-2T Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
