No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

PublishedAugust 2008

2ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

(P45XE-(P45XE-

(P45XE-WW

WiFiF

iFiF

iFiN / P45XE-R)iN / P45XE-R)

iN / P45XE-R)iN / P45XE-R)

iN / P45XE-R)

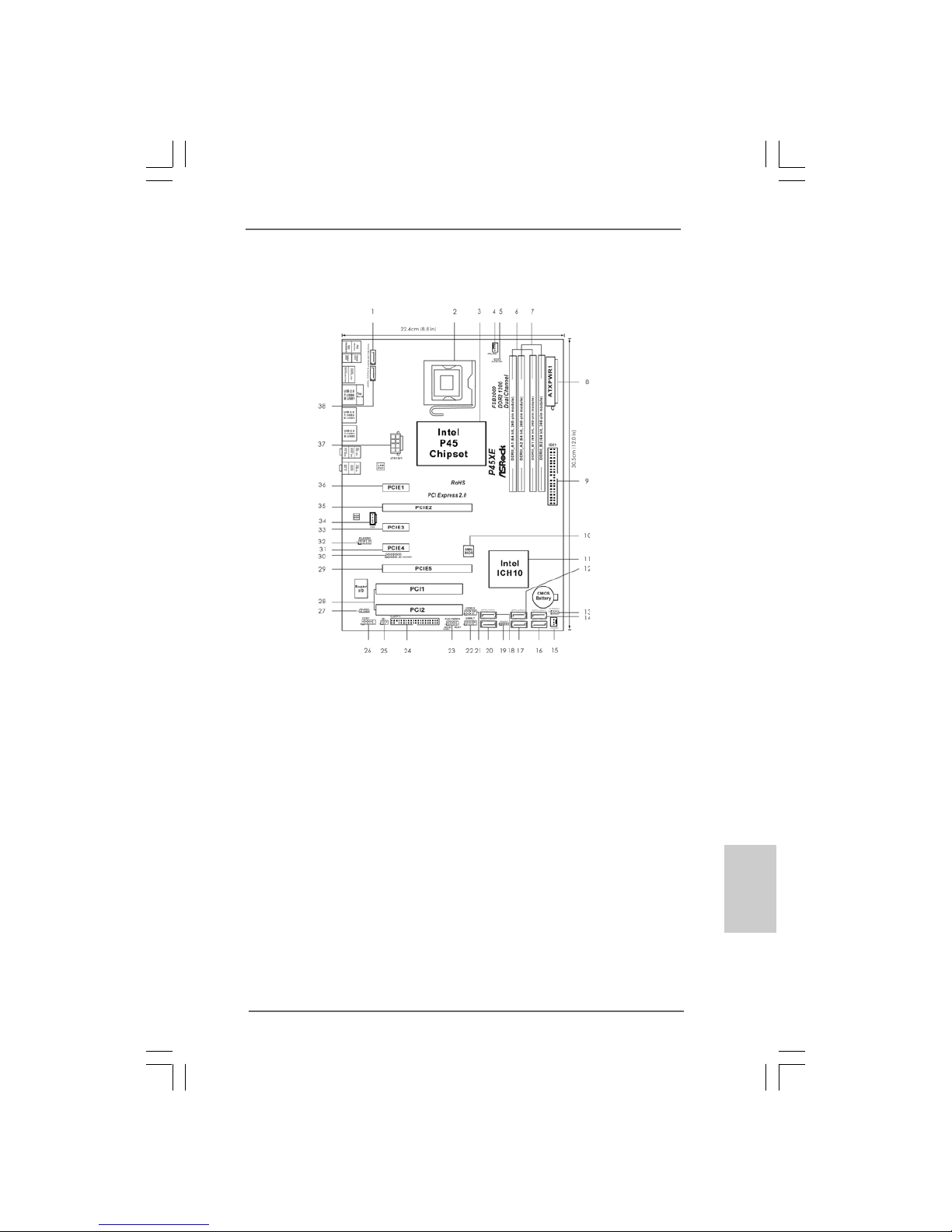

1 eSATAII Connector 21 SATAII Connector

(eSATAII_BOTTOM (Port 5), Orange) (SATAII_5 (Port4), Orange)

2 775-Pin CPU Socket 22 USB 2.0 Header (USB8_9, Blue)

3 North Bridge Controller 23 USB 2.0 Header (USB6_7, Blue)

4 CPU Fan Connector (CPU_FAN1) 24 System Panel Header (PANEL1, Orange)

5 PS2_USB_PWR1 Jumper 25 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 26 Infrared Module Header (IR1)

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) 27 COM Port Header (COM1)

7 2 x 240-pin DDR2 DIMM Slots 28 HDMI_SPDIF Header

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) (HDMI_SPDIF1, Yellow)

8 ATX Power Connector (ATXPWR1) 29 PCI Slots (PCI1 - 2)

9 IDE1 Connector (IDE1, Blue) 30 PCI Express 2.0 x16 Slot (PCIE5, Blue)

10 SPI BIOS Chip 31 USB/WiFi Header (USB/WIFI, Yellow)

11 Front Panel IEEE 1394 Header 32 PCI Express x1 Slot (PCIE4)

(FRONT_1394, Red) 33 Front Panel Audio Header

12 South Bridge Controller (HD_AUDIO1, Lime)

13 SATAII Connector (SATAII_4 (Port3), Red) 34 PCI Express x1 Slot (PCIE3)

14 Clear CMOS Jumper (CLRCMOS1) 35 Internal Audio Connector: CD1 (Black)

15 SATAII Connector (SATAII_2 (Port1), Red) 36 PCI Express 2.0 x16 Slot (PCIE2, Green)

16 Chassis Fan Connector (CHA_FAN1) 37 PCI Express x1 Slot (PCIE1)

17 SATAII Connector (SATAII_1 (Port0), Red) 38 ATX 12V Connector (ATX12V1)

18 SATAII Connector (SATAII_3 (Port2), Red) 39 eSATAII Connector

19 SATAII Connector (SATAII_6 (Port5), Orange) (eSATAII_TOP (Port 4), Orange)

20 Chassis Speaker Header (SPEAKER 1)

ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

Motherboard Layout (P45XE)Motherboard Layout (P45XE)

Motherboard Layout (P45XE)

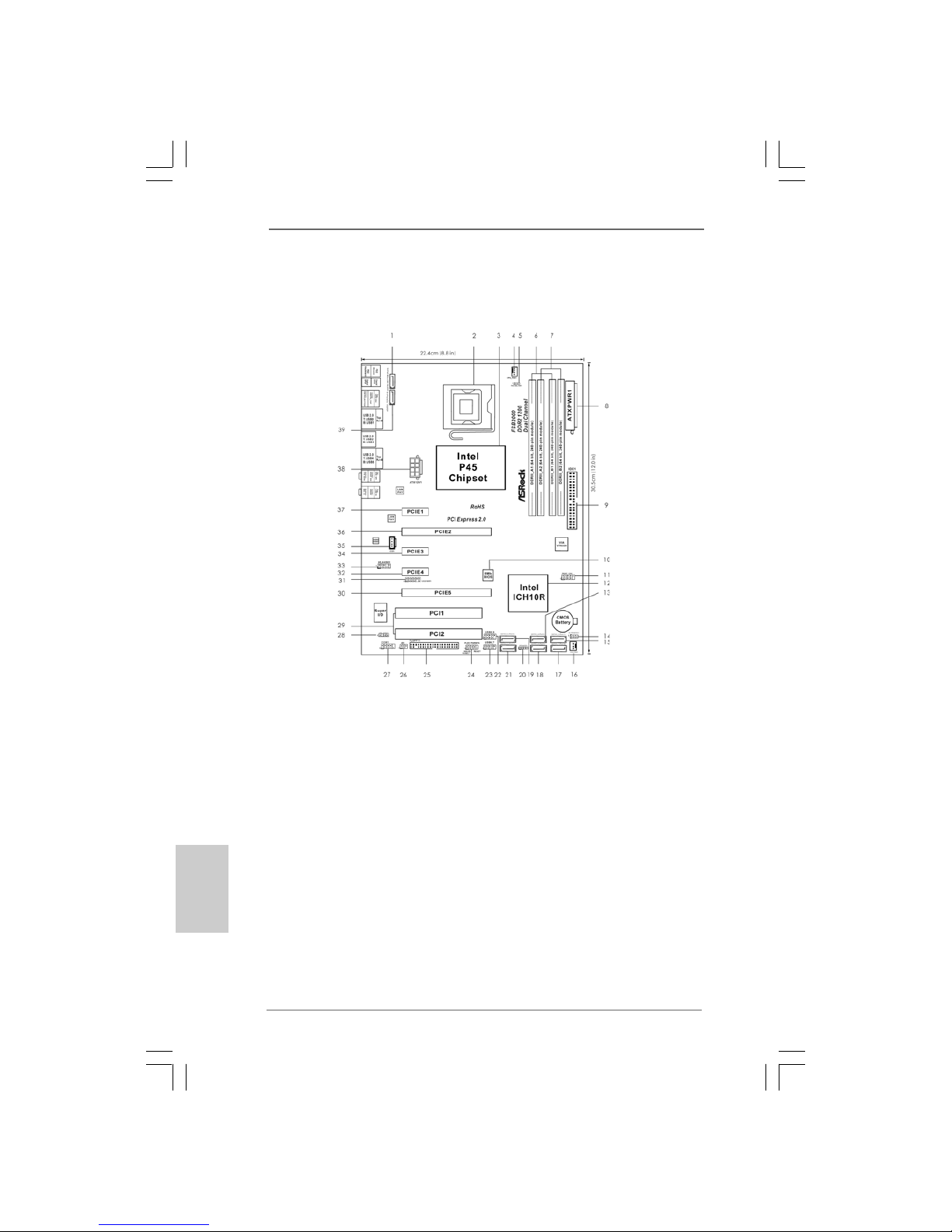

1 eSATAII Connector 21 USB 2.0 Header (USB8_9, Blue)

(eSATAII_BOTTOM (Port 5), Orange) 22 USB 2.0 Header (USB6_7, Blue)

2 775-Pin CPU Socket 23 System Panel Header (PANEL1, Orange)

3 North Bridge Controller 24 Floppy Connector (FLOPPY1)

4 CPU Fan Connector (CPU_FAN1) 25 Infrared Module Header (IR1)

5 PS2_USB_PWR1 Jumper 26 COM Port Header (COM1)

6 2 x 240-pin DDR2 DIMM Slots 27 HDMI_SPDIF Header

(Dual Channel A: DDRII_A1, DDRII_B1; Yellow) (HDMI_SPDIF1, Yellow)

7 2 x 240-pin DDR2 DIMM Slots 28 PCI Slots (PCI1 - 2)

(Dual Channel B: DDRII_A2, DDRII_B2; Orange) 29 PCI Express 2.0 x16 Slot (PCIE5, Blue)

8 ATX Power Connector (ATXPWR1) 30 USB/WiFi Header (USB/WIFI, Yellow)

9 IDE1 Connector (IDE1, Blue) 31 PCI Express x1 Slot (PCIE4)

10 SPI BIOS Chip 32 Front Panel Audio Header

11 South Bridge Controller (HD_AUDIO1, Lime)

12 SATAII Connector (SATAII_4 (Port3), Red) 33 PCI Express x1 Slot (PCIE3)

13 Clear CMOS Jumper (CLRCMOS1) 34 Internal Audio Connector: CD1 (Black)

14 SATAII Connector (SATAII_2 (Port1), Red) 35 PCI Express 2.0 x16 Slot (PCIE2, Green)

15 Chassis Fan Connector (CHA_FAN1) 36 PCI Express x1 Slot (PCIE1)

16 SATAII Connector (SATAII_1 (Port0), Red) 37 ATX 12V Connector (ATX12V1)

17 SATAII Connector (SATAII_3 (Port2), Red) 38 eSATAII Connector

18 SATAII Connector (SATAII_6 (Port5), Orange) (eSATAII_TOP (Port 4), Orange)

19 Chassis Speaker Header (SPEAKER 1)

20 SATAII Connector (SATAII_5 (Port4), Orange)

4ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

ASRASR

ASRock DualLock DualL

ock DualLock DualL

ock DualLAN_SPDIF I/O (P45XE-AN_SPDIF I/O (P45XE-

AN_SPDIF I/O (P45XE-AN_SPDIF I/O (P45XE-

AN_SPDIF I/O (P45XE-WW

WiFiF

iFiF

iFiN)iN)

iN)iN)

iN)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4 V -- -- V

6V--VV

8 VVVV

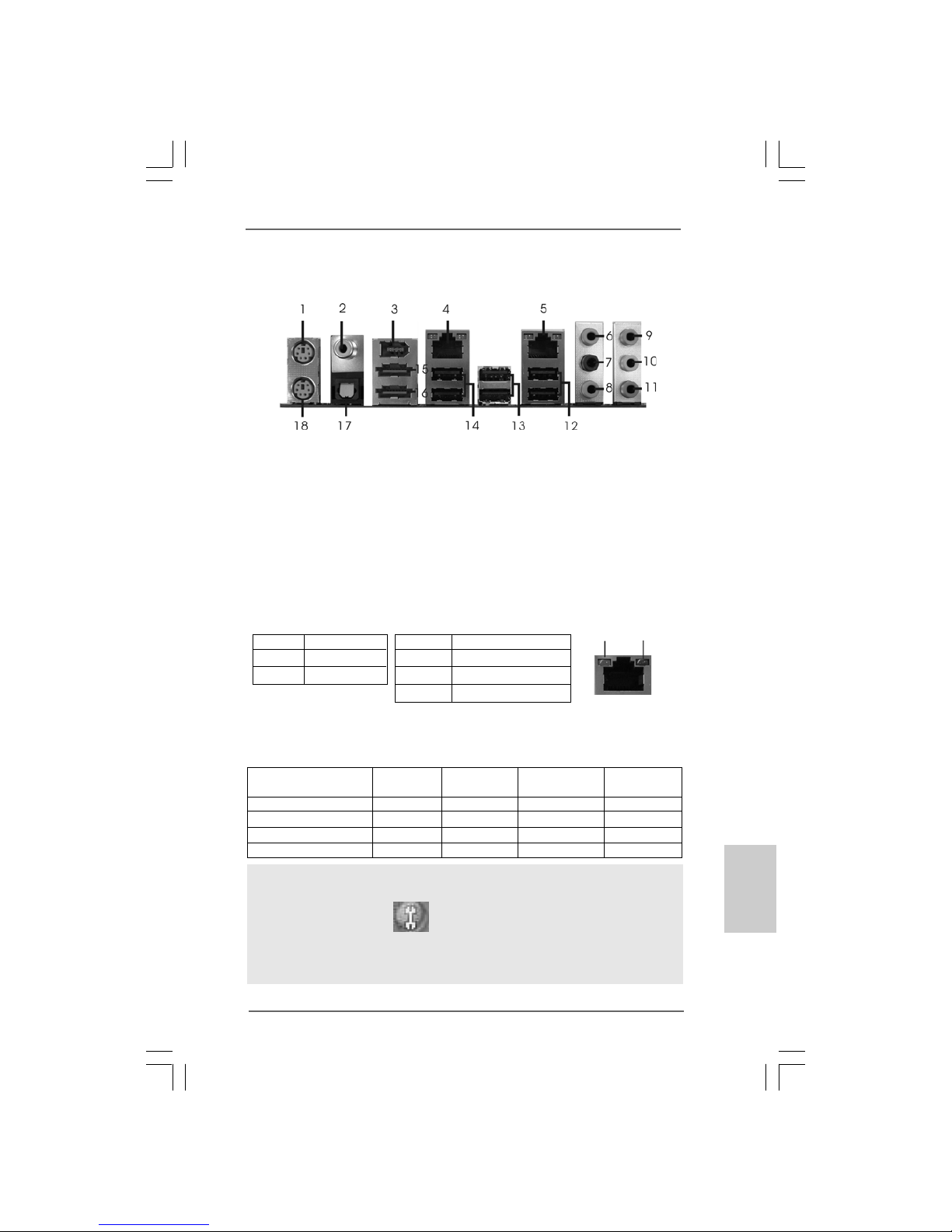

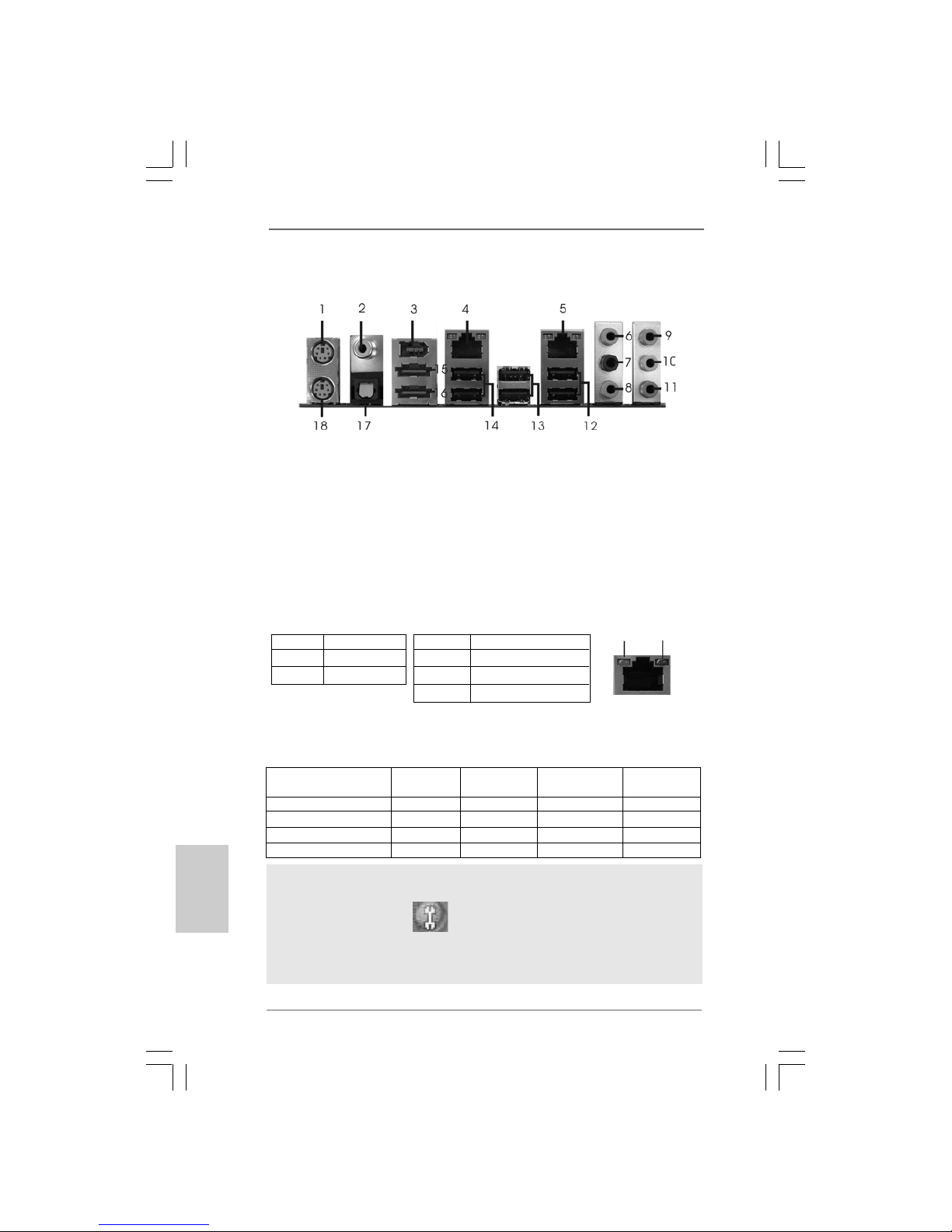

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 11 Microphone (Pink)

3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port (LAN1) 13 USB 2.0 Ports (USB23)

* 5 LAN RJ-45 Port (LAN2) 14 USB 2.0 Ports (USB01)

6 Side Speaker (Gray) 15 eSATAII Port (eSATAII_TOP)

7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM)

8 Central / Bass (Orange) 17 Optical SPDIF Out Port

9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

LAN Port

/LINK

ED SPEED

LED

ASRock DualLAN_SPDIF I/O (P45XE-R)ASRock DualLAN_SPDIF I/O (P45XE-R)

ASRock DualLAN_SPDIF I/O (P45XE-R)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE forAudio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 11 Microphone (Pink)

3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)

* 4 LAN RJ-45 Port (LAN1) 13 USB 2.0 Ports (USB23)

* 5 LAN RJ-45 Port (LAN2) 14 USB 2.0 Ports (USB01)

6 Side Speaker (Gray) 15 eSATAII Port (eSATAII_TOP)

7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM)

8 Central / Bass (Orange) 17 Optical SPDIF Out Port

9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

6ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

ASRock SPDIF I/O Plus (P45XE)ASRock SPDIF I/O Plus (P45XE)

ASRock SPDIF I/O Plus (P45XE)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 8) (No. 5) (No. 6) (No. 4)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

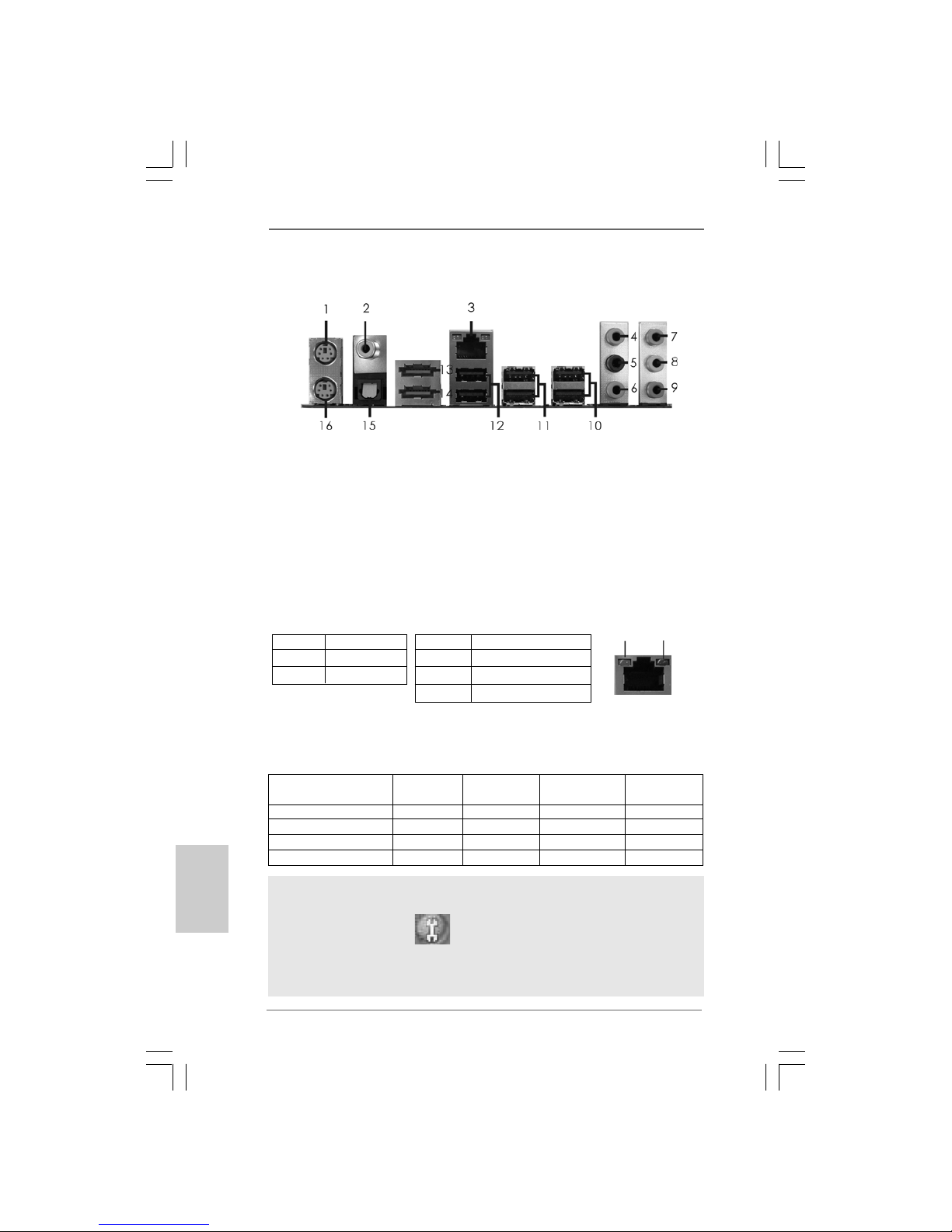

1 PS/2 Mouse Port (Green) 9 Microphone (Pink)

2 Coaxial SPDIF Out Port 10 USB 2.0 Ports (USB45)

* 3 LAN RJ-45 Port (LAN1) 11 USB 2.0 Ports (USB23)

4 Side Speaker (Gray) 12 USB 2.0 Ports (USB01)

5 Rear Speaker (Black) 13 eSATAII Port (eSATAII_TOP)

6 Central / Bass (Orange) 14 eSATAII Port (eSATAII_BOTTOM)

7 Line In (Light Blue) 15 Optical SPDIF Out Port

** 8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEEDLED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

ASRock WiFi-802.11n Module SpecificationsASRock WiFi-802.11n Module Specifications

ASRock WiFi-802.11n Module Specifications

(F(F

(For P45XE-or P45XE-

or P45XE-or P45XE-

or P45XE-WW

WiFiF

iFiF

iFiN Only)iN Only)

iN Only)iN Only)

iN Only)

LAN Port

T/LINK

ED SPEED

LED

EnglishEnglish

English

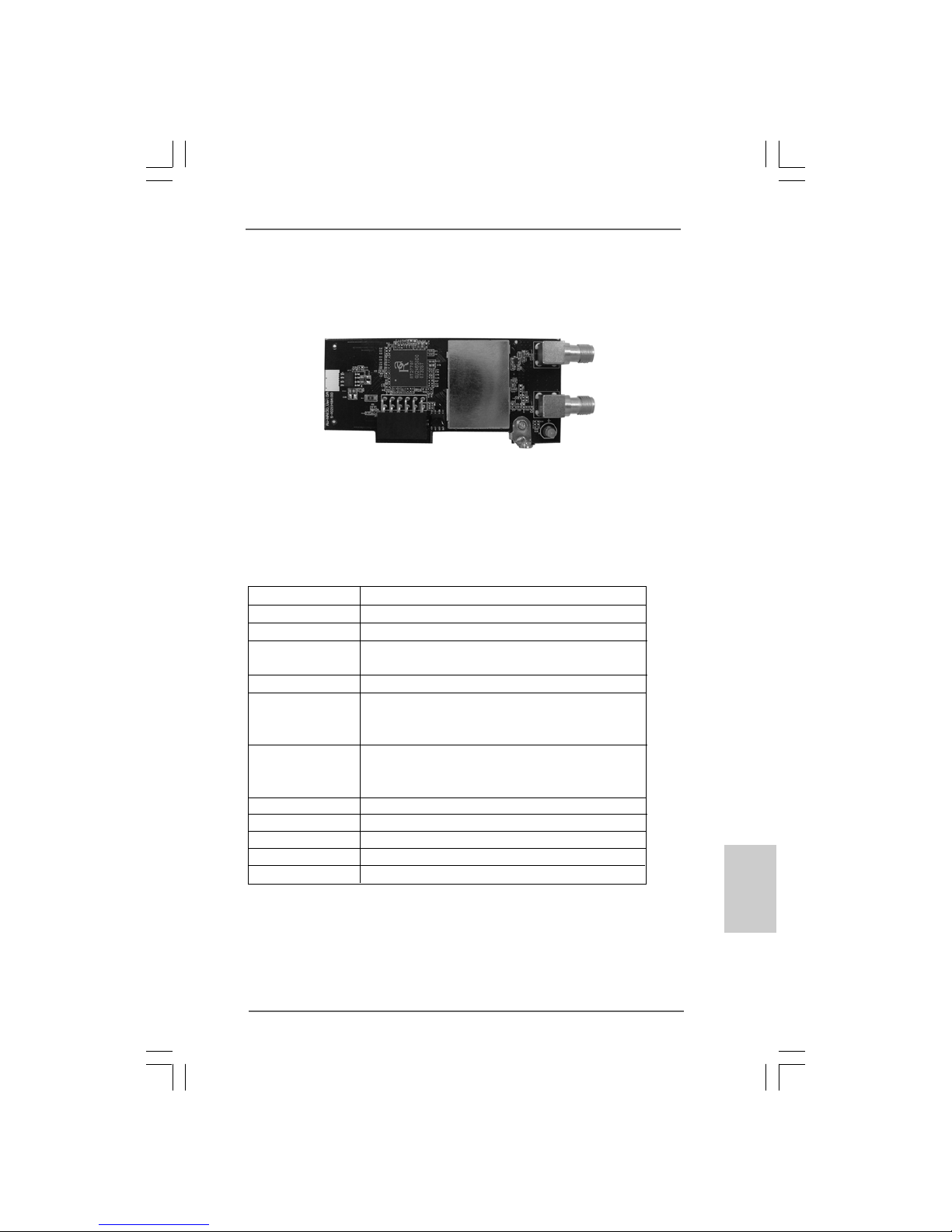

ASRock WiFi-802.11n module is an easy-to-use wireless local area network (WLAN)

adapter to support WiFi+AP function. WithASRock WiFi-802.11n module, you can

easily create a wireless environment and enjoy the convenience of wireless network

connectivity. Therefore, from anywhere within the signal range, you will be able to play

LANgames, connect to the internet, access and share printers, and make Internet

phone calls easily.

Standard - IEEE 802.11n

Data Rate - 15, 30, 45, 60, 90, 120, 135, 150Mbps

Security - Access Point mode (AP mode): WEP, WPA

Network - Access Point mode (AP mode)

Architecture Types - Station mode: Infrastructure mode andAd-Hoc mode

Frequency Band - 2.4GHz ISM radio band

Operating Range - Indoor: 330ft (100m)

Outdoor: 980ft (300m)

* The range varies in different environments

Number of - up to 16 stations

Connected Devices

(AP Mode)

Antenna -ASRock WiFi-802.11n omni-directional antenna

LED -Green data transmission (AIR) LED

Support OS - Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit

Compatibility - Full compatible with IEEE 802.11n standard products

Software Support - ASRock WiFi-802.11n Wizard

If you want to start to use ASRock WiFi-802.11n module on this motherboard, please

carefully read “ASRock WiFi-802.11n Module OperationGuide” in the package for

the detailed introduction and operation procedures. You can also read the document in

the following path ofASRock motherboard support CD:

..\ ASRock WiFi-802.11n \ Vista64_Vista_XP64_XP

8ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasingASRock P45XE-WiFiN / P45XE-R / P45XE motherboard, a

reliable motherboard produced underASRock’s consistently stringent quality control. It

delivers excellent performance with robust design conforming toASRock’s commitment

to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock P45XE-WiFiN / P45XE-R / P45XE Quick Installation Guide

ASRock P45XE-WiFiN / P45XE-R / P45XE Support CD

ASRock WiFi-802.11n Module Operation Guide (For P45XE-WiFiNOnly)

Motherboard Accessories

One 80-conductor UltraATA66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in FloppyDrive

Four SerialATA(SATA)Data Cables (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One “ASRockDualLAN_SPDIF I/O” I/O Panel Shield (P45XE-WiFiN/ P45XE-R)

One “ASRock SPDIF I/O Plus” I/O Panel Shield (P45XE)

WiFi Accessories (For P45XE-WiFiN Only)

OneASRock WiFi-802.11n Module

TwoAntennas

One WiFi Bracket

ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

-All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield andDual Core Wolfdale

processors

- Compatible with FSB2000/1600/1333/1066/800 MHz

(see CAUTION 1)

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P45

- Southbridge: Intel®ICH10R (P45XE-WiFiN / P45XE-R)

- Southbridge: Intel®ICH10 (P45XE)

Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 4)

- 4 xDDR2 DIMM slots

-SupportDDR21200/1066/800/667 non-ECC,un-buffered

memory (see CAUTION 5)

- Max. capacity of system memory: 16GB (see CAUTION 6)

Expansion Slot - Supports ATITM CrossFireTM

- 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 3 x PCI Express x1 slots

- 2 x PCI slots

Audio P45XE-WiFiN

- 7.1 CH Windows® VistaTM Premium Level HDAudio with

Content Protection

-DAC with 110dB dynamic range (ALC890Audio Codec)

-DTS (Digital Theater Systems) support (see CAUTION 7)

P45XE-R

- 7.1 CH Windows® VistaTM Premium Level HDAudio with

Content Protection

-DAC with 110dB dynamic range (ALC890Audio Codec)

P45XE

- 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888Audio Codec)

1010

10 ASRock P45XE-WiFiN / P45XE-R / P45XE Motherboard

EnglishEnglish

English

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111B/RTL8111C

- Supports Wake-On-LAN

- SupportsDual LANfeature (For P45XE-WiFiN/ P45XE-R Only)

Wireless LAN -ASRock WiFi-802.11n module

(For - 150Mbps IEEE 802.11n / 54Mbps IEEE 802.11g /

P45XE-WiFiN 11Mbps IEEE 802.11b

Only) - Supports Software Access Point mode (APmode) and

Station mode (Infrastructure mode andAd-hoc mode)

Rear Panel I/O P45XE-WiFiN / P45XE-R

ASRockDualLAN_SPDIF I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 2 x RJ-45 LAN Ports with LED

(ACT/LINK LEDand SPEEDLED)

- 1 x IEEE 1394 Port

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 8)

P45XE

ASRock SPDIF I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x eSATAII Ports

- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 8)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID 0,

RAID 1, RAID10, RAID5 and Intel Matrix Storage),NCQ,

AHCI and “Hot Plug” functions (see CAUTION 9)

* RAID functions are for P45XE-WiFiN / P45XE-R only

- 2 x eSATAII 3.0Gb/s connectors (shared with 2 SATAII

connectors) (see CAUTION 10)

- 1 xATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

Andere Handbücher für P45XE

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK A75 Pro4-M Bedienungsanleitung

ASROCK

ASROCK H77 Pro4-M Bedienungsanleitung

ASROCK

ASROCK H81M-HG4 Bedienungsanleitung

ASROCK

ASROCK H470M-HVS R2.0 Bedienungsanleitung

ASROCK

ASROCK B660 Steel Legend Bedienungsanleitung

ASROCK

ASROCK FM2A75 Pro4 Bedienungsanleitung

ASROCK

ASROCK Z390 Phantom Gaming 9 Bedienungsanleitung

ASROCK

ASROCK FM2A58M-DG3+ Bedienungsanleitung

ASROCK

ASROCK PV530-ITX - V1.0 Bedienungsanleitung

ASROCK

ASROCK 4CoreDual-VSTA Bedienungsanleitung

ASROCK

ASROCK H510M/ac Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X99X Killer Series Bedienungsanleitung

ASROCK

ASROCK H570M Pro4 Bedienungsanleitung

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Bedienungsanleitung

ASROCK

ASROCK M3A785GM-LE Bedienungsanleitung

ASROCK

ASROCK AD2550-ITX Bedienungsanleitung

ASROCK

ASROCK P55M PRO - Bedienungsanleitung

ASROCK

ASROCK 4Core1600Twins-P35 Bedienungsanleitung

ASROCK

ASROCK 939A785GMH/128M Bedienungsanleitung

ASROCK

ASROCK H61M-VG3 Bedienungsanleitung

ASROCK

ASROCK H61TM-ITX Bedienungsanleitung

ASROCK

ASROCK B450 Pro4 R2.0 Bedienungsanleitung

ASROCK

ASROCK FM2A78M Pro3+ Bedienungsanleitung

ASROCK

ASROCK 2CORE1066-2.13G - V1.0 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
