Motherboard

P4i45D+

User Manual

Version 1.0

Published March 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout ....................................................... 8

1.4 ASRock I/OTM .................................................................. 9

2 Installation ...................................................... 10

2.1 Screw Holes ................................................................... 10

2.2 Pre-installation Precautions ............................................ 10

2.3 CPU Installation ............................................................... 11

2.4 Installation of Heatsink and CPU fan .............................. 11

2.5 Installation of Memory Modules (DIMM) .......................... 12

2.6 Expansion Slots .............................................................. 12

2.7 Jumpers Setup ................................................................ 14

2.8 Connectors ..................................................................... 15

3 BIOS Setup ...................................................... 17

3.1 BIOS Setup Utility ............................................................ 17

3.1.1 BIOS Menu Bar ..................................................... 17

3.1.2 Legend Bar ........................................................... 17

3.2 Main Menu ....................................................................... 18

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 20

4 Software Support ........................................... 21

4.1 Installing Operating System ............................................ 21

4.2 Support CD Information ................................................... 21

4.2.1 Running Support CD ............................................. 21

4.2.2 Drivers Menu ........................................................ 21

4.2.3 Utilities Menu ......................................................... 21

Appendix ........................................................... 22

1. Advanced Menu ............................................................. 22

2. Security Menu ................................................................. 26

3. Power Menu ................................................................... 27

4. Boot Menu ....................................................................... 28

5. Exit Menu......................................................................... 29

Chapter 1 Introduction

Thank you for purchasing ASRock P4i45D+ motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide for new DIY system builders. Chapter 3 and 4 contain basic

BIOS setup and support CD information. For advanced users’ reference, the Appen-

dix appearing on page 22 offers more advanced BIOS setup information.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4i45D+ motherboard

(ATX form factor: 12.0" x 7.0", 30.5 x 17.8 cm)

ASRock P4i45D+ Quick Installation Guide

ASRock Intel-Intel Series Support CD

1 cable for IDE devices (1 x ATA 66 / 100)

1 cable for floppy drive (1 x Ribbon cable)

1 ASRock I/O shield

1.2 Specifications

Platform: ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm)

CPU: Socket 478 for Intel®Pentium® 4/ Celeron®(Prescott, Northwood,

Willimate) processor

Chipsets: North Bridge:

Intel®845D chipsets, standard FSB 400MHz,

supports FSB 533MHz / 800MHz at over-clocking mode

(see CAUTION 1),

with Hyper-Threading Technology ready (see CAUTION 2);

South Bridge:

Intel®ICH2

Memory: 2 DDR DIMM Slots: DDR1 and DDR2

supports PC2100(DDR266), Max. 2GB

PC3200(DDR400) at overclocking mode, Max.1GB

(see CAUTION 1)

IDE: IDE1: ATA 100 / Ultra DMA Mode 5;

IDE2: ATA 100 / Ultra DMA Mode 5;

Can connect up to 4 IDE devices

Floppy Port: Supports 1 floppy disk drive

Audio: 5.1 channels AC’97 Audio

PCI LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing (ASRock U-COP);

Chassis temperature sensing;

CPU overheat shutdown Vcore to protect CPU life

(ASRock U-COP)(see CAUTION 3);

Voltage monitoring: +12V, +5V, +3V, Vcore;

CPU fan tachometer; Chassis fan tachometer

PCI slots: 4 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 4X AGP card (see CAUTION 4)

USB 2.0: 2 default USB 2.0 ports with legacy support and 1 extra set of

header for two additional USB 2.0 ports upgrade

(see CAUTION 5)

USB 1.1: 2 default USB 1.1 ports with legacy support

ASRock I/OTM:PS/2: 1 keyboard port / 1 mouse port; 1 RJ 45 port;

2 rear default USB 2.0 ports; 2 rear default USB 1.1 ports

1 serial port: COM 1; 1 parallel port: ECP/EPP support;

Audio Jack: Line Out / Line In / Microphone + Game port

BIOS: AMI legal BIOS; Supports “Plug and Play”;

ACPI 1.1 compliance wake up events;

Supports jumperfree; SMBIOS 2.3.1 support;

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 6)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR400*

533 DDR266

400 DDR266

*Please refer to the NOTE on page 7 for the details.

2. About the setting of “Hyper Threading Technology”, please check page 22

of “User Manual” in the Support CD.

3. While CPU overheat is detected, the system will automatically shutdown

Vcore. Please check if the CPU fan on the motherboard functions properly

before you resume the system. To improve heat dissipation, remember to

spray thermal grease between the CPU and the heatsink when you install

the PC system.

4. Do NOT use a 3.3V AGP card on P4i45D+’s AGP slot!

It may cause permanent damage!

5. Power Management for USB 2.0 works fine under Microsoft®Windows®XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows®98/

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

6. Although P4i45D+ offers stepless control, it is not recommended to

perform over clocking. When the CPU frequency of P4i45D+ is set to

perform over clocking, it’s Memory clock will also be overclocked

proportionally. Frequencies other than the recommended CPU bus

frequencies may cause the instability of the system or damage the CPU

and the motherboard.

NOTE

The Recommended Memory Modules lists for P4i45D+ motherboard.

FSB 800 MHz / DDR 400 Mode (DIMM1)

DRAM SIZE TYPE CELL CELL NO. SINGLE SIDE /

VENDOR (MB) VENDOR DOUBLE SIDE

ADATA 512 DDR400 ADATA ADD8608A8A-58 DOUBLE SIDE

ADATA 256 DDR450 ADATA ADD8608A8A-4.58 SINGLE SIDE

APACER 256 DDR400 INFINEON HYB25D256800BT-5 SINGLE SIDE

APACER 256 DDR400 SAMSUNG K4H560838D-TCCC SINGLE SIDE

INFINEON 256 DDR400 INFINEON HYB25D256800BT-5 SINGLE SIDE

KINGMAX 256 DDR400 KINGMAX KDL3888P4EA-50 SINGLE SIDE

SAMSUNG 256 DDR400 SAMSUNG K4H560838E-TCC C SINGLE SIDE

TWINMOS 512 DDR400 M.tec TTD7608F8E50B DOUBLE SIDE

TWINMOS 256 DDR400 TWINMOS TMD7608F8E50B SINGLE SIDE

Since the memory types are changing rapidly,

Please visit ASRock website (http://www.asrock.com/support/index.htm)

for the latest recommended memory support list.

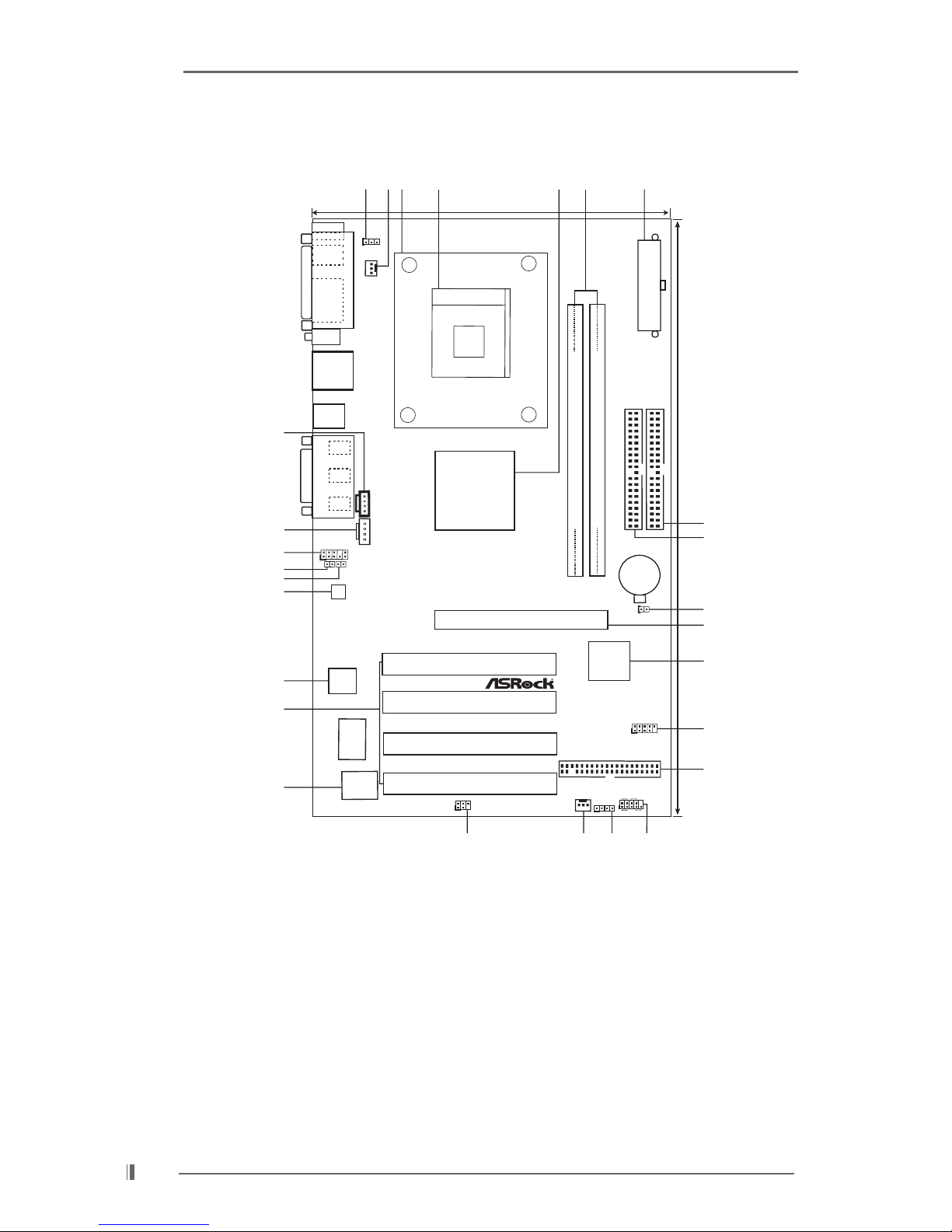

1.3 Motherboard Layout

1 PS2_USB_PWR1 jumper 2 CPU fan connector (CPU_FAN1)

3 CPU heatsink retention module 4 CPU socket

5 North Bridge controller 6 184-pin DDR DIMM slots (DDR 1- 2)

7 ATX power connector (ATXPWR1) 8 Primary IDE connector (IDE1, Blue)

9 Secondary IDE connector (IDE2, Black) 10 Clear CMOS (CLRCMOS0, 2-pin jumper)

11 AGP slot (AGP1) 12 South Bridge controller

13 USB 2.0 header (USB45, Blue) 14 Floppy connector (FLOPPY1)

15 System panel connector (PANEL1) 16 External speaker connector (SPEAKER 1)

17 Chassis fan connector (CHA_FAN1) 18 Infrared module connector (IR1)

19 BIOS FWH chip 20 PCI slots (PCI 1- 4)

21 PCI LAN 22 AUDIO CODEC

23 JL1 jumper 24 JR1 jumper

25 Front panel audio connector (AUDIO1) 26 Internal audio connector: AUX1 (White)

27 Internal audio connector: CD1 (Black)

17.8cm (7.0 in)

30.5cm (12.0 in)

PANEL 1

HDLED RST

PLED PWRBTN

SPEAKER1

USB45

FLOPPY1

IR1

CLRCMOS0

Intel

ICH2

CMOS

Battery

IDE1IDE2

CHA_FAN1

USB2.0

5.1CH

PCI 2

PCI 3

PCI 4

PCI 1

AGP1

P4i45D+

DDR 1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

ATXPWR1

2MB

BIOS

Super

I/O

PCI

LAN

Intel

845D

Chipsets

AUDIO CODEC

JR1 JL1

AUDIO1

AUX1

CD1

CPU_FAN1

PS2_USB_PWR1

mPGA478B

Mic

GAME AUDIO1

Mic in

Line out

GAME AUDIO1

Line

Line in

USB 1.1

Ports

USB 2.0

Ports

PARALLEL PORT

PS/2

Mouse

PS/2

Keyboard

COM1

374

17 16 15

LAN

Prescott 800

FSB 800

DDR400

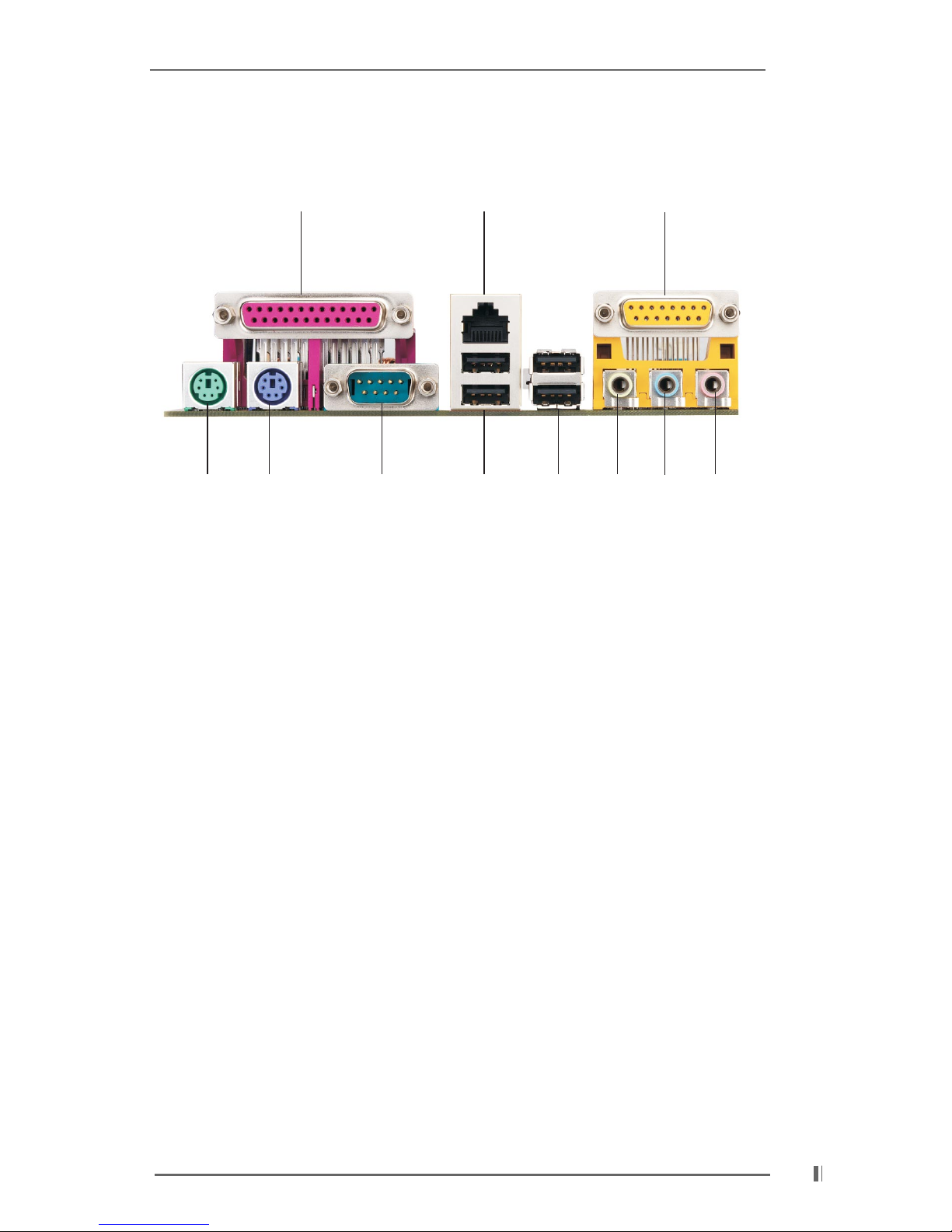

1.4 ASRock I/OTM

1 Parallel port 2 RJ-45 port

3 Game port 4 Microphone (Pink)

5 Line In (Light Blue) 6 Line Out (Lime)

7 USB 1.1 ports (USB 2,3) 8 USB 2.0 ports (USB 0,1)

9 Serial port (COM1) 10 PS/2 keyboard port (Purple)

11 PS/2 mouse port (Green)

123

4567

910

Chapter 2 Installation

P4i45D+ is an ATX form factor (12.0" x 7.0", 30.5 x 17.8 cm) motherboard. Before you

install the motherboard, please study the configuration of your chassis to ensure that

the motherboard fits into it.

Make sure to unplug the power cord before installing or re-

moving the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Please place screws into the holes indicated by circles to secure the motherboard to

the chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, please place it on a grounded antistatic

pad or in the bag that comes with the component.

Before you install or remove any component, pleasse ensure that the

power is switched off or the power cord is detached from the power

supply. Failure to do so may cause severe damage to the motherboard,

peripherals, and/or components.

Andere Handbücher für P4I45D

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK FM2A88M-HD+ R3.0 Bedienungsanleitung

ASROCK

ASROCK Z270 Extreme4 Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING 4 B550 Bedienungsanleitung

ASROCK

ASROCK X299E-ITX/ac Bedienungsanleitung

ASROCK

ASROCK CREATOR X299 Bedienungsanleitung

ASROCK

ASROCK G41M-GE3 Bedienungsanleitung

ASROCK

ASROCK EPC612D4I Bedienungsanleitung

ASROCK

ASROCK 960GC-GS FX Bedienungsanleitung

ASROCK

ASROCK N68C-GS FX Bedienungsanleitung

ASROCK

ASROCK ALIVENF7G-HD720P - V2.0 V5.0 Bedienungsanleitung

ASROCK

ASROCK B250M PRO4 Bedienungsanleitung

ASROCK

ASROCK AB350 Pro4 Bedienungsanleitung

ASROCK

ASROCK H55M Bedienungsanleitung

ASROCK

ASROCK H67M-GE Bedienungsanleitung

ASROCK

ASROCK A780LM-S - V1.0 Bedienungsanleitung

ASROCK

ASROCK X299 GAMING i9 Bedienungsanleitung

ASROCK

ASROCK QC5000M Bedienungsanleitung

ASROCK

ASROCK Z68 Pro3 Gen3 Bedienungsanleitung

ASROCK

ASROCK 775Twins-HDTV R2.0 Bedienungsanleitung

ASROCK

ASROCK ALIVENF5SLI-1394 Bedienungsanleitung

ASROCK

ASROCK A785GMH128M Bedienungsanleitung

ASROCK

ASROCK H67M-GE Bedienungsanleitung

ASROCK

ASROCK K8UPGRADE-VM - Bedienungsanleitung

ASROCK

ASROCK X570 PHANTOM GAMING 4 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
