2ASRock P4i945GC Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

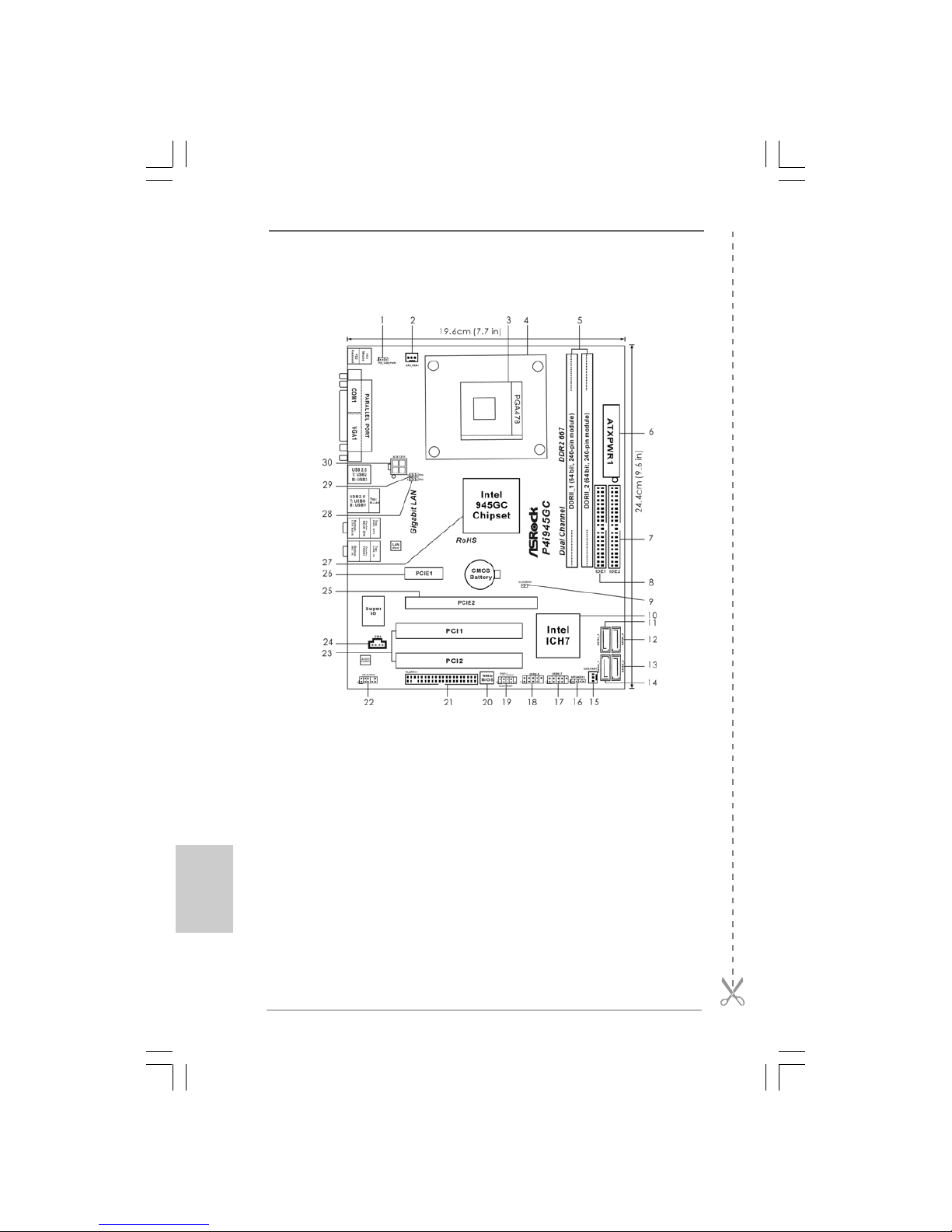

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Header (SPEAKER1,Purple)

2 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB6_7, Blue)

3 478-Pin CPU Socket 18 USB 2.0 Header (USB4_5, Blue)

4 CPU Heatsink Retention Module 19 System Panel Header (PANEL1, Orange)

5 2 x 240-pin DDR2 DIMM Slots 20 BIOS SPI Chip

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

6 ATX Power Connector (ATXPWR1) 22 Front Panel Audio Header

7 Secondary IDE Connector (IDE2, Black) (HD_AUDIO1, Lime)

8 Primary IDE Connector (IDE1, Blue) 23 PCI Slots (PCI1- 2)

9 Clear CMOS Jumper (CLRCMOS1) 24 Internal Audio Connector: CD1 (Black)

10 South Bridge Controller 25 PCI Express x16 Slot (PCIE2)

11 Third SATAII Connector (SATAII_3; Orange) 26 PCI Express x1 Slot (PCIE1)

12 Fourth SATAII Connector (SATAII_4; Orange) 27 North Bridge Controller

13 Secondary SATAII Connector (SATAII_2; Red) 28 FD2 Jumper

14 Primary SATAII Connector (SATAII_1;Red) 29 FD0 Jumper

15 Chassis Fan Connector (CHA_FAN1) 30 ATX 12V Connector (ATX12V1)

ASRock P4i945GC Motherboard

EnglishEnglish

English

I/O PI/O P

I/O Panelanel

anelanel

anel

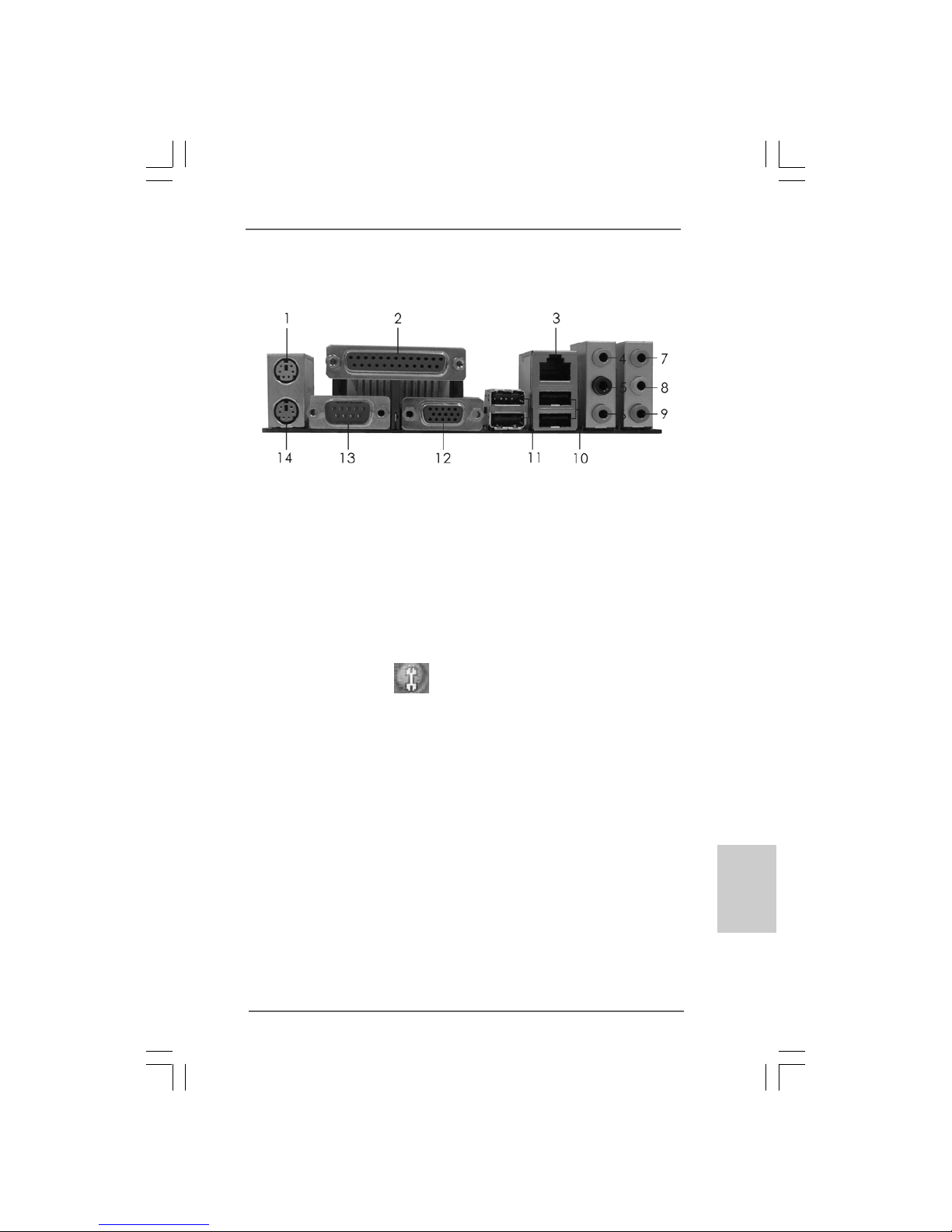

1 PS/2 Mouse Port (Green) * 8 Front Speaker (Lime)

2 Parallel Port 9 Microphone (Pink)

3 RJ-45 Port 10 USB 2.0 Ports (USB01)

4 Side Speaker (Gray) 11 USB 2.0 Ports (USB23)

5 Rear Speaker (Black) 12 Serial Port: COM1

6 Central / Bass (Orange) 13 VGA Port

7 Line In (Light Blue) 14 PS/2 Keyboard Port (Purple)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

4ASRock P4i945GC Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P4i945GC motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P4i945GC Motherboard

(Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cm)

ASRock P4i945GC Quick Installation Guide

ASRock P4i945GC Support CD

One 80-conductor Ultra ATA IDE Ribbon Cable (Optional)

One SerialATA (SATA) Data Cable (Optional)

One I/O Panel Shield

ASRock P4i945GC Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 7.7-in, 24.4 cm x 19.6 cm

CPU - Socket 478 for Intel®Pentium®4 / Celeron®D(Prescott,

Northwood) processors

- FSB 800/533/400 MHz (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

Chipset -Northbridge: Intel®945GC

- Southbridge: Intel®ICH7

Memory - 2 xDDR2DIMM slots

- Supports DDR2 667/533/400 non-ECC, un-buffered memory

(see CAUTION 4)

- Max. capacity of system memory: 4GB (see CAUTION 5)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel®Graphics Media Accelerator 950

- Pixel Shader 2.0,DirectX 9.0

- Max. shared memory 224MB (see CAUTION 6)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(Realtek ALC888 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O ASRock 8CH I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Side Speaker / Rear Speaker / Central / Bass

/ Line in / Front Speaker / Microphone (see CAUTION 7)

Connector - 4 x SATAII 3.0 Gb/s connectors (No Support for RAID and

“Hot Plug” functions) (see CAUTION 8)

- 1 x ATA100 IDE connector by Intel®ICH7 (supports 2 x IDE

devices)

- 1 xATA133 IDE connector by VIA®VT6415 (supports 2 x IDE

devices)

6ASRock P4i945GC Motherboard

EnglishEnglish

English

- 1 x Floppy connector

- CPU/Chassis FANconnector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- AMBIOS 2.3.1 Support

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / VistaTM compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock P4i945GC Motherboard

EnglishEnglish

English

CAUTION!

1. If you adopt FSB400-CPU on this motherboard, you need to adjust the

jumpers. Please refer to page 11 for proper jumper settings.

2. About the setting of “Hyper Threading Technology”, please check page 26

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 16 for details.

4. Please check the table below for the CPU FSB frequency and its corre-

sponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR2 400, DDR2 533, DDR2 667

533 DDR2 400, DDR2 533

400 DDR2 400

5. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®XP and

Windows®VistaTM.

6. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check Intel®website for the latest information.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 20 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM / XP SP1 or SP2 / 2000 SP4.

10. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

11. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

8ASRock P4i945GC Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push down

the socket lever to secure the CPU. The lever clicks on the side tab to

indicate that it is locked.

Step 5. Install CPU fan and heatsink. For proper installation, please kindly refer to

the instruction manuals of your CPU fan and heatsink vendors.

ASRock P4i945GC Motherboard

EnglishEnglish

English

2.2 Installation of Memory Modules (DIMM)2.2 Installation of Memory Modules (DIMM)

2.2 Installation of Memory Modules (DIMM)

P4i945GC motherboard provides two 240-pin DDR2 (Double Data Rate 2) DIMM

slots.

1. It is not allowed to install a DDR memory module into DDR2 slot;

otherwise, this motherboard and DIMM may be damaged.

2. Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

•

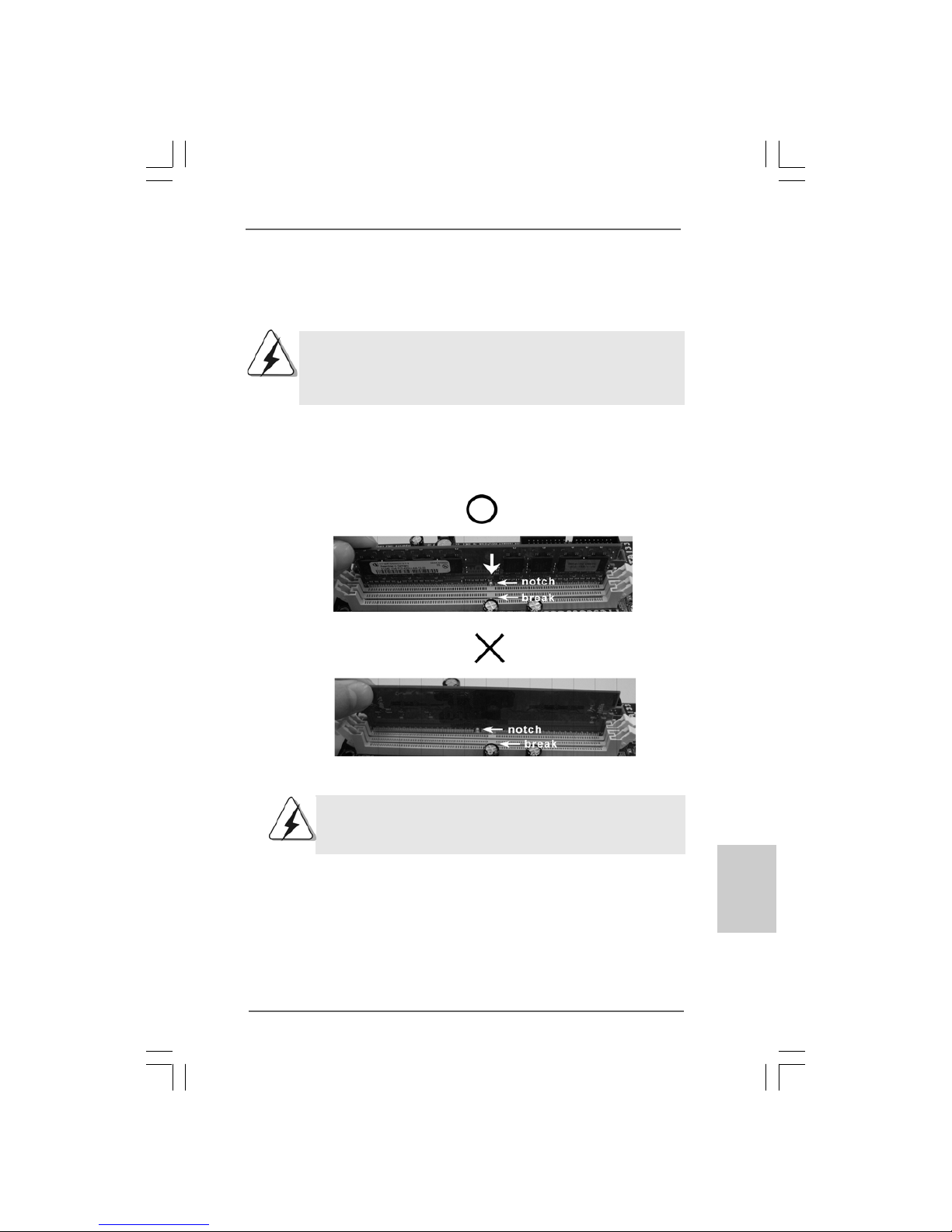

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on theDIMM matches the break

on the slot.

The DIMM only fits in one correct orientation. It will cause

permanent damage to the motherboard and the DIMM if you

force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insert theDIMM into the slot until the retaining clips at both ends fully

snap back in place and theDIMM is properly seated.

1010

10 ASRock P4i945GC Motherboard

EnglishEnglish

English

2.3 Expansion Slots (PCI and PCI Express Slots)2.3 Expansion Slots (PCI and PCI Express Slots)

2.3 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 2 PCI Express slots on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots:PCIE1 (PCIE x1 slot) is used for PCI Express cards with x1 lane width

cards, such as Gigabit LAN card, SATA2 card, etc.

PCIE2 (PCIE x16 slot) is used for PCI Express cards with x16 lane

width graphics cards.

If you install the add-on PCI Express VGA card to PCIE2 (PCIE x16 slot),

the onboard VGA will be disabled. If you install the add-on PCI Express

VGA card to PCIE2 (PCIE x16 slot) and adjust the “InternalGraphics

Mode Select” BIOS option to [Enabled, 1MB] or [Enabled, 8MB], the onboard

VGA will be enabled, and the primary screen will be onboard VGA.

Installing an expansion cardInstalling an expansion card

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the bracket facing the slot that you intend to use. Keep the screws

for later use.

Step 3. Align the card connector with the slot and press firmly until the card is

completely seated on the slot.

Step 4. Fasten the card to the chassis with screws.

Andere Handbücher für P4I945GC

Inhaltsverzeichnis

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK SP55 DELUXE Bedienungsanleitung

ASROCK

ASROCK H470M-STX Bedienungsanleitung

ASROCK

ASROCK B85M Pro4 Bedienungsanleitung

ASROCK

ASROCK Z690 PG Velocita Bedienungsanleitung

ASROCK

ASROCK 880GXH-USB3 - V1.0 Bedienungsanleitung

ASROCK

ASROCK H61M - ANNEXE 392 Bedienungsanleitung

ASROCK

ASROCK FM2A75 Pro4-M Bedienungsanleitung

ASROCK

ASROCK B85M Pro4 Bedienungsanleitung

ASROCK

ASROCK EP2C606-4L/D16 Bedienungsanleitung

ASROCK

ASROCK Z97 Extreme3 Bedienungsanleitung

ASROCK

ASROCK M3A760GMH - V1.0 Bedienungsanleitung

ASROCK

ASROCK B660 PRO RS Bedienungsanleitung

ASROCK

ASROCK H610TM-ITX Bedienungsanleitung

ASROCK

ASROCK A320M Pro4-F Bedienungsanleitung

ASROCK

ASROCK 960GM-VGS3 FX Bedienungsanleitung

ASROCK

ASROCK IMB-A160-H Bedienungsanleitung

ASROCK

ASROCK H87 Pro4 Bedienungsanleitung

ASROCK

ASROCK X99 Taichi Bedienungsanleitung

ASROCK

ASROCK P41C-DE Bedienungsanleitung

ASROCK

ASROCK 960GM-VGS3 FX Bedienungsanleitung

ASROCK

ASROCK P45X3 DELUXE - V1.0 Bedienungsanleitung

ASROCK

ASROCK H61MV-ITX Bedienungsanleitung

ASROCK

ASROCK A785GM-LE128M Bedienungsanleitung

ASROCK

ASROCK 760GM-GS3 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
