ASROCK WOLFDALE1333-D667 Bedienungsanleitung

ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published October 2007

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

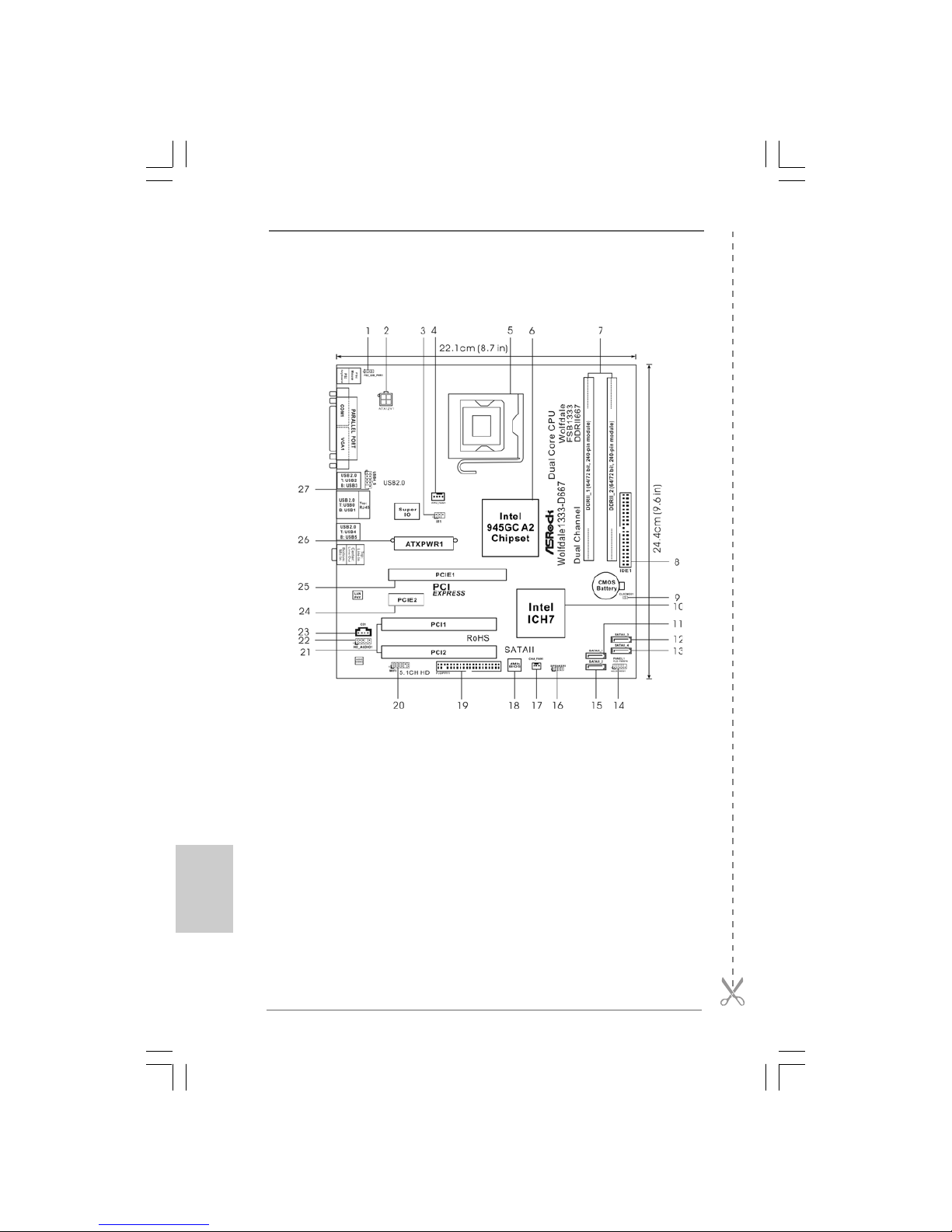

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 14 System Panel Header (PANEL1)

2 ATX 12V Connector (ATX12V1) 15 Secondary SATAII Connector

3 DeskExpress Hot Plug Detection Header (SATAII_2; Red)

(IR1) 16 Chassis Speaker Header (SPEAKER 1)

4 CPU Fan Connector (CPU_FAN1) 17 Chassis Fan Connector (CHA_FAN1)

5 775-Pin CPU Socket 18 BIOS SPI Chip

6 North Bridge Controller 19 Floppy Connector (FLOPPY1)

7 2 x 240-pin DDRII DIMM Slots 20 WiFi Header (WIFI)

(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 PCI Slots (PCI1- 2)

8 IDE1 Connector (IDE1, Blue) 22 Front Panel Audio Header (HD_AUDIO1)

9 Clear CMOS Jumper (CLRCMOS1) 23 AInternal Audio Connector: CD1 (Black)

10 South Bridge Controller 24 PCI Express x1 Slot (PCIE2)

11 Primary SATAII Connector (SATAII_1; Red) 25 PCI Express x16 Slot (PCIE1)

12 Third SATAII Connector (SATAII_3; Orange) 26 ATX Power Connector (ATXPWR1)

13 Fourth SATAII Connector (SATAII_4; Orange) 27 Shared USB 2.0 Header (USB4_5, Blue)

ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

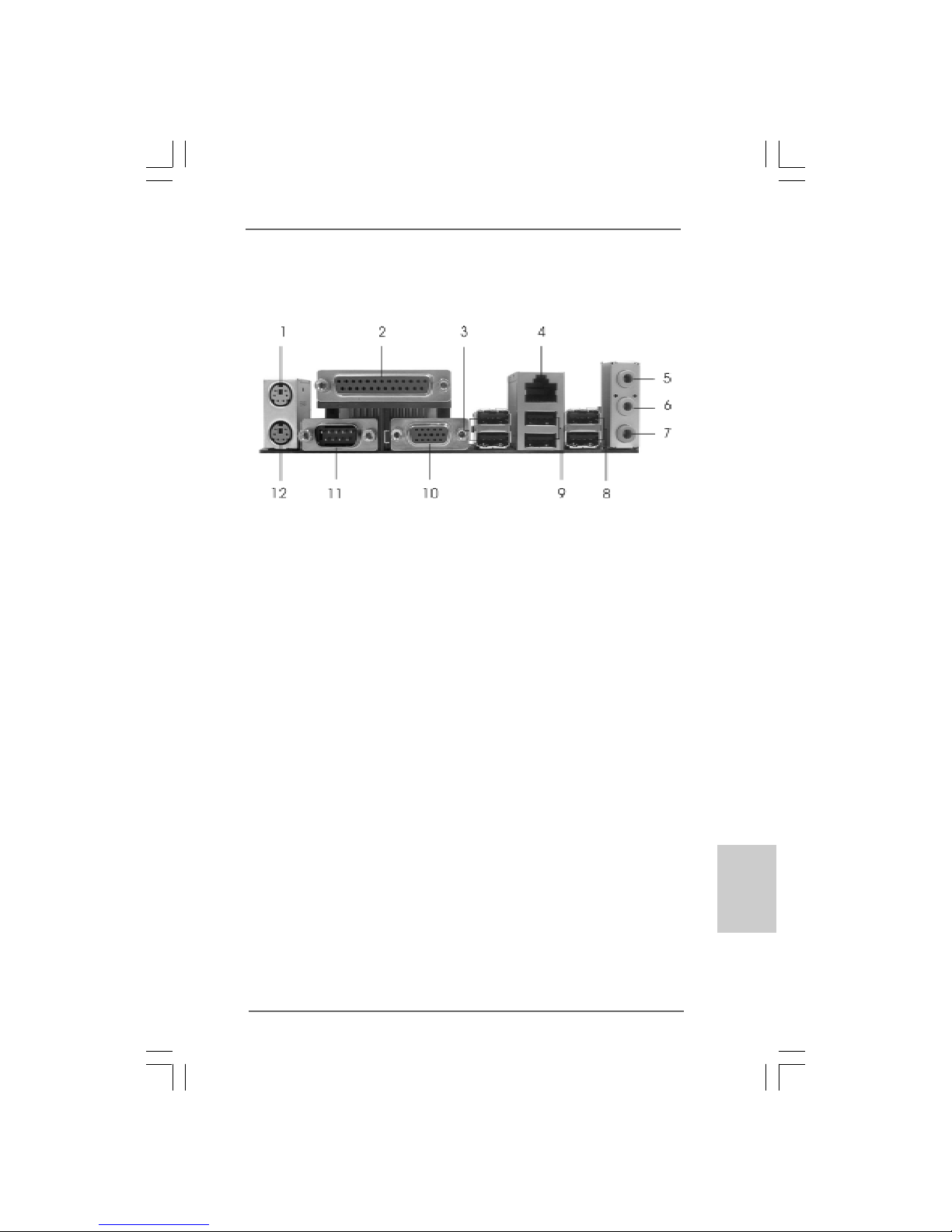

ASRock 6CH I/O PlusASRock 6CH I/O Plus

ASRock 6CH I/O PlusTMTM

TMTM

1 PS/2 Mouse Port (Green) 7 Microphone (Pink)

2 Parallel Port 8 Shared USB 2.0 Ports (USB45)

3 USB 2.0 Ports (USB23) 9 USB 2.0 Ports (USB01)

4 RJ-45 Port 10 VGA Port

5 Line In (Light Blue) 11 COM Port

6 Line Out (Lime) 12 PS/2 Keyboard Port (Purple)

4ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock Wolfdale1333-D667 motherboard, a reliable mother-

board produced underASRock’s consistently stringent quality control. It delivers excel-

lent performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRockWolfdale1333-D667 Motherboard

(MicroATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm)

ASRock Wolfdale1333-D667 Quick InstallationGuide

ASRock Wolfdale1333-D667 Support CD

One 80-conductor UltraATA66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in FloppyDrive

One SerialATA(SATA)Data Cable (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

One “ASRock 6CH I/O Plus” I/O Shield

ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - MicroATX Form Factor: 9.6-in x 8.7-in, 24.4 cm x 22.1 cm

CPU - LGA775 for Intel®Dual Core CoreTM 2 Extreme / CoreTM 2Duo

/ Pentium®Dual Core / Celeron®, supportingDual Core Wolfdale

processors

- Compatible with all FSB1333/1066/800/533MHz CPUs

except Quad Core (see CAUTION 1)

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®945GCA2

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDRII Memory Technology (see CAUTION 4)

- 2 xDDRIIDIMM slots

- SupportDDRII667/533 (see CAUTION 5)

- Max. capacity: 4GB (see CAUTION 6)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 7)

-ASRock U-COP (see CAUTION 8)

- Boot FailureGuard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 1 x PCI Express x1 slot

- 2 x PCI slots

Graphics - Intel®Graphics MediaAccelerator 950

- Pixel Shader 2.0,DirectX 9.0

- Max. shared memory 224MB (see CAUTION 9)

Audio - 5.1 CH HighDefinitionAudio (RealtekALC660VDAudio Codec)

LAN - Realtek PCIE x1 LAN 8101E

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O ASRock 6CH I/O Plus

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Line in / Front Speaker / Microphone

6ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

Connector - 4 x SATAII 3.0Gb/s connectors (No Support for RAIDand “Hot

Plug” functions) (see CAUTION 10)

- 1 xATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 xDeskExpress Hot Plug Detection header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 1 x USB 2.0 header (supports 2 USB 2.0 ports; shared with

USB45 ports on the I/O panel) (see CAUTION 11)

- 1 x WiFi header (see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis FanTachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1333-CPU will operate in overclocking mode. Under this situation,

PCIE frequency will also be overclocked to 115MHz.

2. About the setting of “Hyper Threading Technology”, please check page

28 of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 20 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 12 for proper

installation.

5. Please check the table below for the CPU FSB frequency and its corre-

sponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1333 DDRII533*, DDRII667

1066 DDRII533, DDRII667

800 DDRII400, DDRII533, DDRII667

533 DDRII400, DDRII533

* When you use a FSB1333-CPU on this motherboard, it will run at

DDRII500 if you adopt a DDRII533 memory module.

6. Due to the chipset limitation, the actual memory size may be less than

4GB for the reservation for system usage under Windows®XP, Win-

dows®XP 64-bit, Windows®VistaTM and Windows®VistaTM 64-bit.

7. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

8. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

9. The maximum shared memory size is defined by the chipset vendor

and is subject to change. Please check Intel®website for the latest

information.

10. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 19 to adjust your SATAII hard disk drive to

SATAII mode. You can also connect SATA hard disk to SATAII connector

directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

8ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

12. WiFi header supports WiFi+AP function with ASRock WiFi-802.11g /

WiFi-802.11n module, an easy-to-use wireless local area network

(WLAN) adapter. It allows you to create a wireless environment and

enjoy the convenience of wireless network connectivity. Please visit our

website for the availability of ASRock WiFi-802.11g / WiFi-802.11n

module.

ASRock website http://www.asrock.com

ASRock Wolfdale1333-D667 Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

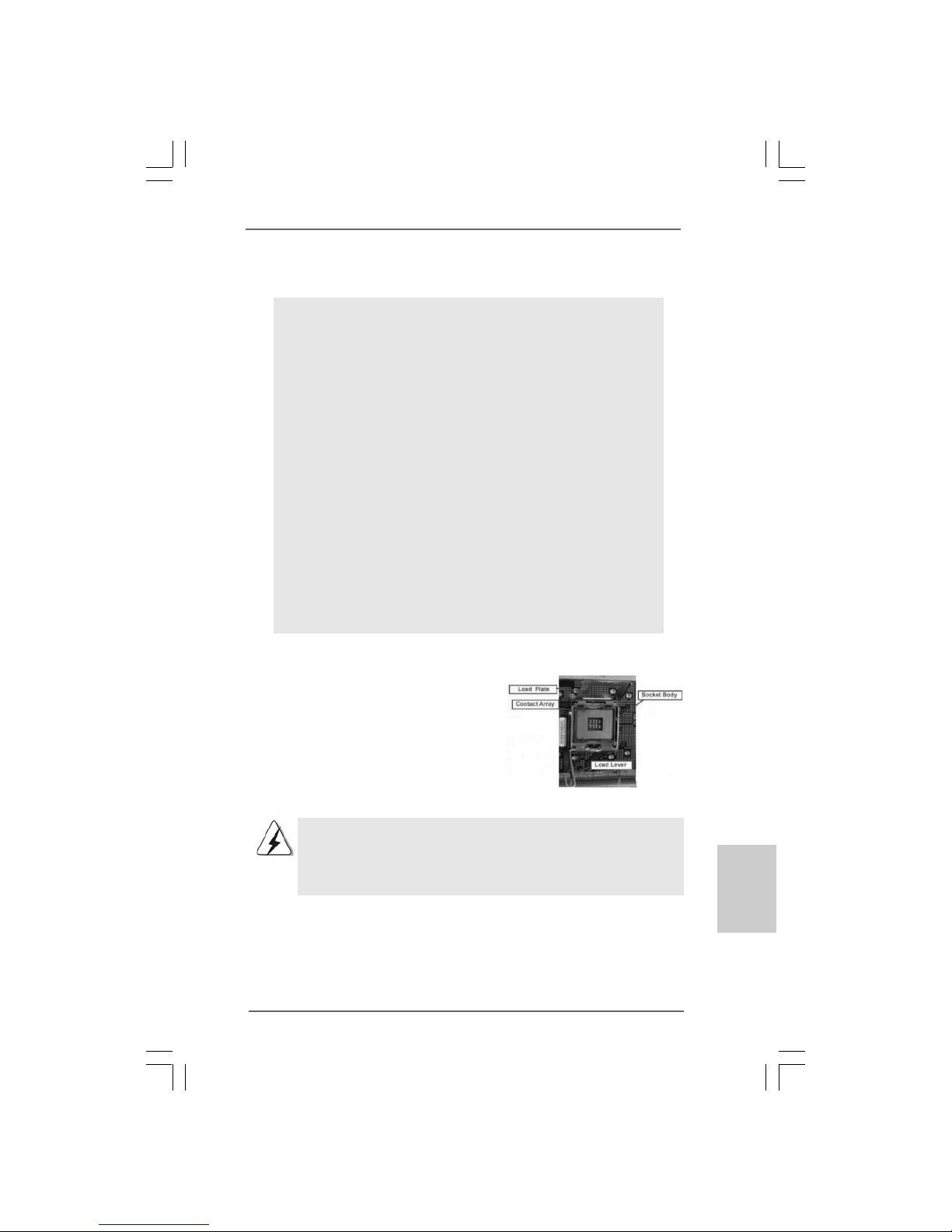

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock Wolfdale1333-D667 Motherboard

EnglishEnglish

English

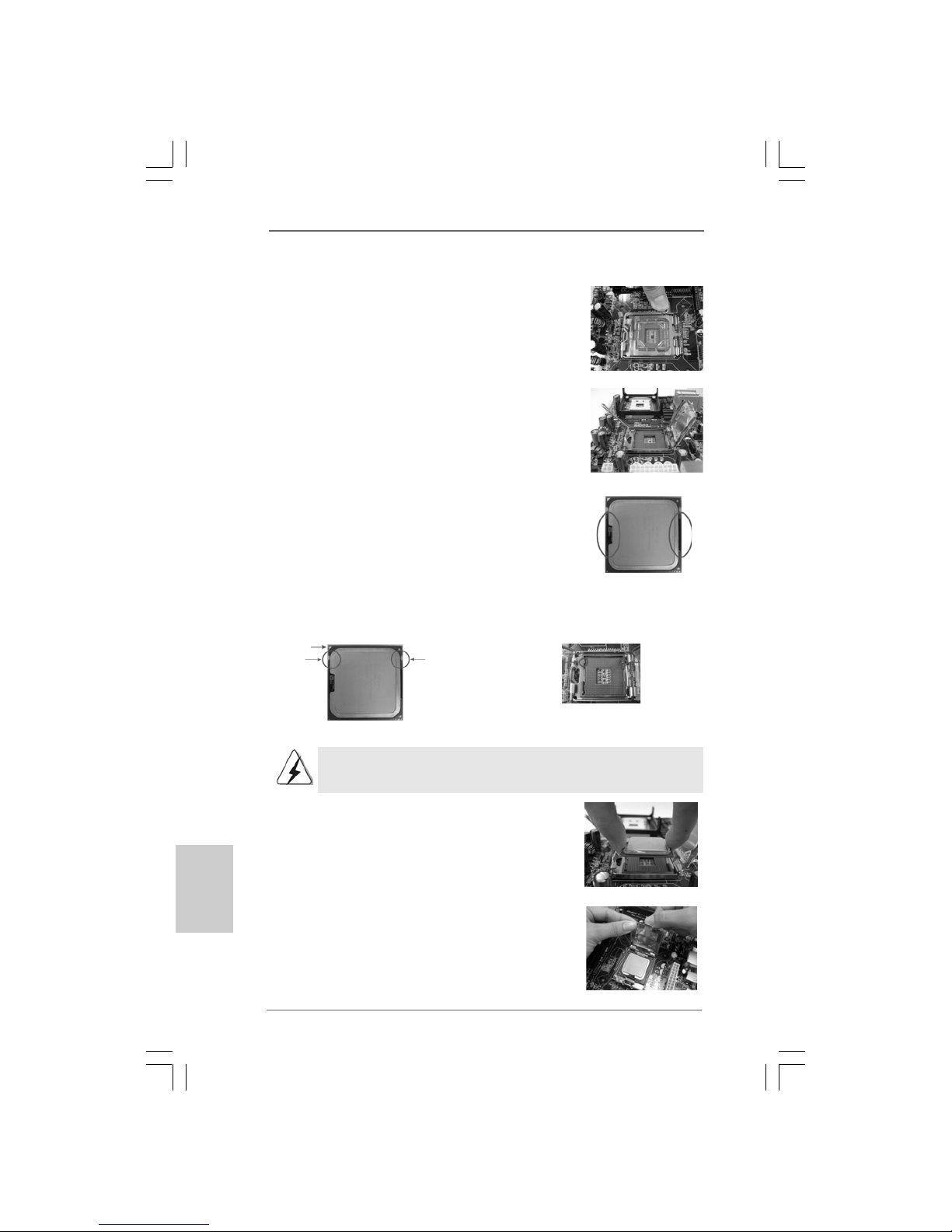

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Andere Handbücher für WOLFDALE1333-D667

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK 890GX EXTREME4 Bedienungsanleitung

ASROCK

ASROCK H77M-ITX Bedienungsanleitung

ASROCK

ASROCK N68-GS4/USB3 FX R2.0 Bedienungsanleitung

ASROCK

ASROCK G31M-S R2.0 QVL Bedienungsanleitung

ASROCK

ASROCK H670 PG Riptide Bedienungsanleitung

ASROCK

ASROCK SBC-210N Bedienungsanleitung

ASROCK

ASROCK Fatal1ty B360M Performance Bedienungsanleitung

ASROCK

ASROCK AM2NF4G-SATA2 Bedienungsanleitung

ASROCK

ASROCK IMB-146 Bedienungsanleitung

ASROCK

ASROCK 4Core1600-GLAN Bedienungsanleitung

ASROCK

ASROCK Q270 Pro BTC+ Bedienungsanleitung

ASROCK

ASROCK 4CoreN73PV-HD720p Bedienungsanleitung

ASROCK

ASROCK G31DE Bedienungsanleitung

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Bedienungsanleitung

ASROCK

ASROCK G41M-GS Bedienungsanleitung

ASROCK

ASROCK H81TM-ITX R2.0 Bedienungsanleitung

ASROCK

ASROCK B460M Pro4/ac Bedienungsanleitung

ASROCK

ASROCK K10N750SLI-110DB Bedienungsanleitung

ASROCK

ASROCK A780GXE/128M Bedienungsanleitung

ASROCK

ASROCK A55 Pro Bedienungsanleitung

ASROCK

ASROCK H61DEL Bedienungsanleitung

ASROCK

ASROCK P4VM900-SATA2 Bedienungsanleitung

ASROCK

ASROCK P43DE3 Bedienungsanleitung

ASROCK

ASROCK 939S56-M Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
