ASROCK Z87E-ITX Bedienungsanleitung

Version 1.0

Published April 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

Z87E-ITX

English

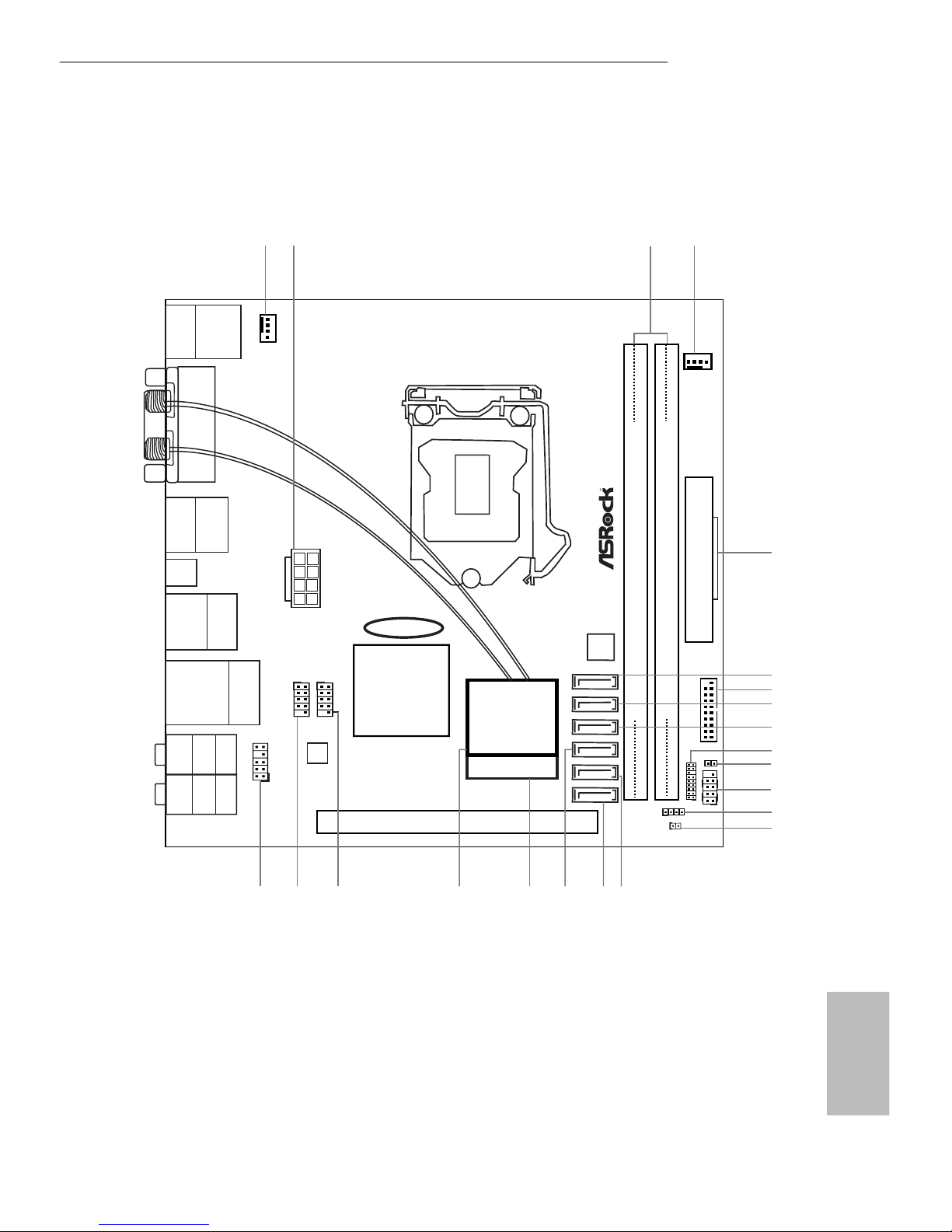

Motherboard Layout

Intel

Z87

PCIE1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

64Mb

BIOS

HDL ED R ESE T

PLED PWRBTN

PANEL1

HD_AUDIO1

CHA_FAN1

CPU_FAN1

USB 2.0

T: USBA0

B: USBA1

DVI1

HDMI

DP_1

Clr

CMOS

USB 3.0

T: USB1

B: USB2

eSATA5

Top:

RJ-45

USB 3.0

T: USB3

B: USB4

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

MINI_PCIE1

WiFi-802.11n

Module

ATXPWR1

RoHS

Z87E-ITX

AUDIO

CODEC

ATX12V1

SATA3_5

SATA3_4

SATA3_3

SATA3_2

SATA3_1

SATA3_0

1 2

CMOS

Battery

USB3_5_6

TPMS1

SPEAKER1

CLRCMOS1

USB_2_3

USB_4_5

16 15

21 18

CI1

PS2

Keyboard

/Mouse

English

mSATA/mini-PCIe

Z87E-ITX

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

4 Chassis Fan Connector (CHA_FAN1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_5) (shared with eSATA)

7 USB 3.0 Header (USB3_5_6)

8 SATA3 Connector (SATA3_4) (shared with mSATA)

9 SATA3 Connector (SATA3_3)

10 TPM Header (TPMS1)

11 Chassis Intrusion Header (CI1)

12 System Panel Header (PANEL1)

13 Chassis Speaker Header (SPEAKER1)

14 Clear CMOS Jumper (CLRCMOS1)

15 SATA3 Connector (SATA3_1)

16 SATA3 Connector (SATA3_0)

17 SATA3 Connector (SATA3_2)

18 mini-PCI Express Slot (MINI_PCIE1)

19 WiFi-802.11n Module

20 USB 2.0 Header (USB_4_5)

21 USB 2.0 Header (USB_2_3)

22 Front Panel Audio Header (HD_AUDIO1)

23 mSATA Connector (MINI_PCIE2)

English

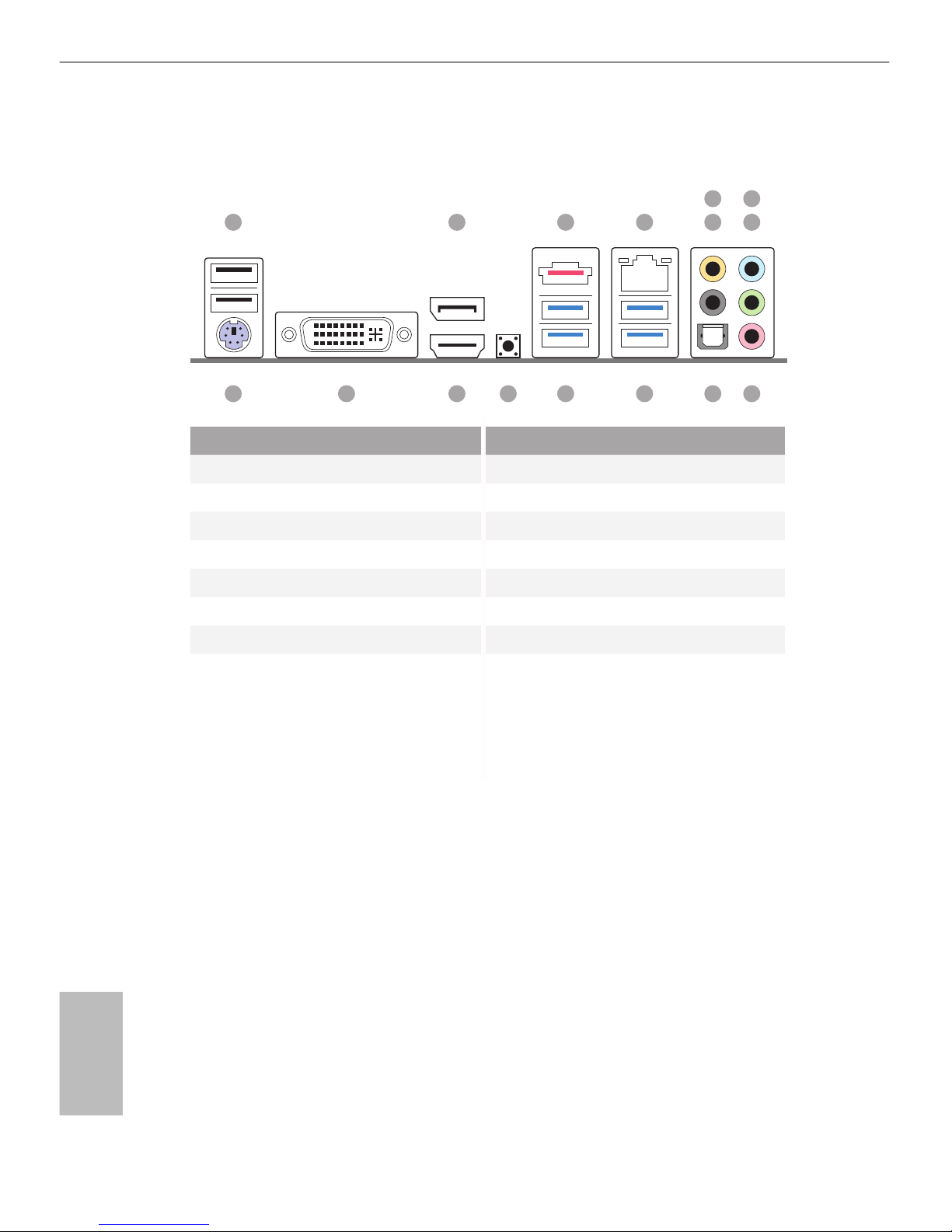

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 9 Microphone (Pink)

2Display Port 10 Optical SPDIF Out Port

3eSATA Connector*** 11 USB 3.0 Ports (USB3_34)

4 LAN RJ-45 Port 12 USB 3.0 Ports (USB3_12)

5 Central / Bass (Orange) 13 Clear CMOS Switch

6 Rear Speaker (Black) 14 HDMI Port

7 Line In (Light Blue) 15 DVI-I Port

8 Front Speaker (Lime)** 16 PS/2 Keyboard/Mouse Port

910111213141516

1 2 643

Z87E-ITX

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** e eSATA connector is shared with SATA3_5 connector.

ACT/LINK LED

SPEED LED

LAN Port

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

English

Chapter 1 Introduction

ank you for purchasing ASRock Z87E-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, Chapter 1 and 2 contains the introduction of the motherboard

and step-by-step installation guides. Chapter 3 contains the operation guide of the

soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.

1.1 Package Contents

• ASRock Z87E-ITX Motherboard (Mini-ITX Form Factor)

• ASRock Z87E-ITX Quick Installation Guide

• ASRock Z87E-ITX Support CD

• 4 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

• 1 x ASRock WiFi 2.4/5GHz Antenna

• 1 x DVI-to-D-Sub Converter

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard, please

visit our website for specic information about the model you are using. You may nd the

latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://

www.asrock.com.

Z87E-ITX

English

1.2 Specications

Platform • Mini-ITX Form Factor

• Premium Gold Capacitor design (100% Japan-made high-

quality Conductive Polymer Capacitors)

A-Style • Home Cloud

• WiFi 802.11ac

CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

• Digi Power Design

• 6 Power Phase Design

• DrMOS

• Supports Intel®Turbo Boost 2.0 Technology

• Supports Intel®K-Series unlocked CPU

• Supports ASRock BCLK Full-range Overclocking

Chipset • Intel®Z87

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM slots

• Supports DDR3 2933+(OC)/2800(OC)/2400(OC)/2133(OC)/

1866(OC)/1600/1333/1066 non-ECC, un-buered memory

• Max. capacity of system memory: 16GB

(see CAUTION)

• Supports Intel®Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 slot

• 1 x half mini-PCI Express slot: For WiFi + BT module

• 1 x mSATA/full mini-PCI Express slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

English

• ree VGA Output options: DVI-I, HDMI and DisplayPort

• Supports Triple Monitors

• Supports HDMI Technology with max. resolution up to 4K ×

2K (4096x2304) @ 24Hz

• Supports DVI-I with max. resolution up to 1920x1200 @

60Hz

• Supports DisplayPort with max. resolution up to 3840x2160 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

• Supports HDCP function with DVI-I, HDMI and DisplayPort

ports

• Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI-I, HDMI and DisplayPort ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC1150

Audio Codec)

• Premium Blu-ray audio support

• TI® NE5532 Premium Headset Amplier (supports up to 600

Ohms headsets)

• Supports DTS Connect

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I217V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Wireless

LAN

• Supports IEEE 802.11a/b/g/n/ac

• Supports Dual-Band (2.4/5 GHz)

• Supports High speed wireless connection up to 867Mbps

• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity

technology

• Supports Bluetooth 4.0 / 3.0 + High speed class II

Andere Handbücher für Z87E-ITX

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

ASROCK EP2C612D24-4L Bedienungsanleitung

ASROCK

ASROCK IMB-1004 Service-Handbuch

ASROCK

ASROCK H67DE3 Bedienungsanleitung

ASROCK

ASROCK B460TM-ITX Bedienungsanleitung

ASROCK

ASROCK H470M Pro4 Bedienungsanleitung

ASROCK

ASROCK 770 Extreme3 Bedienungsanleitung

ASROCK

ASROCK FM2A85X Extreme4 Bedienungsanleitung

ASROCK

ASROCK CONROE1333-ESATA2 Bedienungsanleitung

ASROCK

ASROCK P4I45D R3.0 Bedienungsanleitung

ASROCK

ASROCK Z690 Steel Legend/D5 Bedienungsanleitung

ASROCK

ASROCK Fatal1ty X99M Killer Series Bedienungsanleitung

ASROCK

ASROCK P43DE3L Bedienungsanleitung

ASROCK

ASROCK AM2NF6G-VSTA Bedienungsanleitung

ASROCK

ASROCK Z790 LiveMixer Bedienungsanleitung

ASROCK

ASROCK A520M-ITX/ac Bedienungsanleitung

ASROCK

ASROCK EP2C612D8 Bedienungsanleitung

ASROCK

ASROCK P45TS-R Bedienungsanleitung

ASROCK

ASROCK Rack C2750D4I Bedienungsanleitung

ASROCK

ASROCK X399M Taichi Bedienungsanleitung

ASROCK

ASROCK AM2NF6G-VSTA - V2.2 Bedienungsanleitung

ASROCK

ASROCK PHANTOM GAMING Z790 RIPTIDE WiFi Bedienungsanleitung

ASROCK

ASROCK P55 EXTREME Bedienungsanleitung

ASROCK

ASROCK M266A R3.0 Bedienungsanleitung

ASROCK

ASROCK B85M Pro3 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
