ASROCK Z87M Pro4 Bedienungsanleitung

Version 1.0

Published March 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Z87M Pro4

English

Motherboard Layout

Intel

Z87

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V 1

CMOS

Battery

Super

I/O

USB 2.0

T: USB0

B: USB1

PS2

Keyboard

ATXPWR1

USB10_11

LAN

Top:

RJ-45

USB 3.0

T: USB4

B: USB5

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE I N

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

CLRCMOS1

SPEAKER1

IR1

HDLED RESET

PLED PWRBTN

PANEL1

USB6_7

USB8_9

COM1

HD_AUDIO1

Z87M Pro4

SATA_0_1 SATA_2_3 SATA_4_5

CHA_FAN1

CHA_FAN2

PCI1

RoHS

CPU_FAN1

CPU_FAN2

64Mb

BIOS

HDMI1

VGA1

DVI1

PCI2

USB 3.0

T: USB2

B: USB3

Audio

CODEC

SPDIF1_OUT1

PCIE1

Fast USB

Fast RAM

Fast LAN

PCI Express 3.0

Front USB 3.0

PCIE2

PWR_FAN1

TPMS1

LPT1

CI1

English

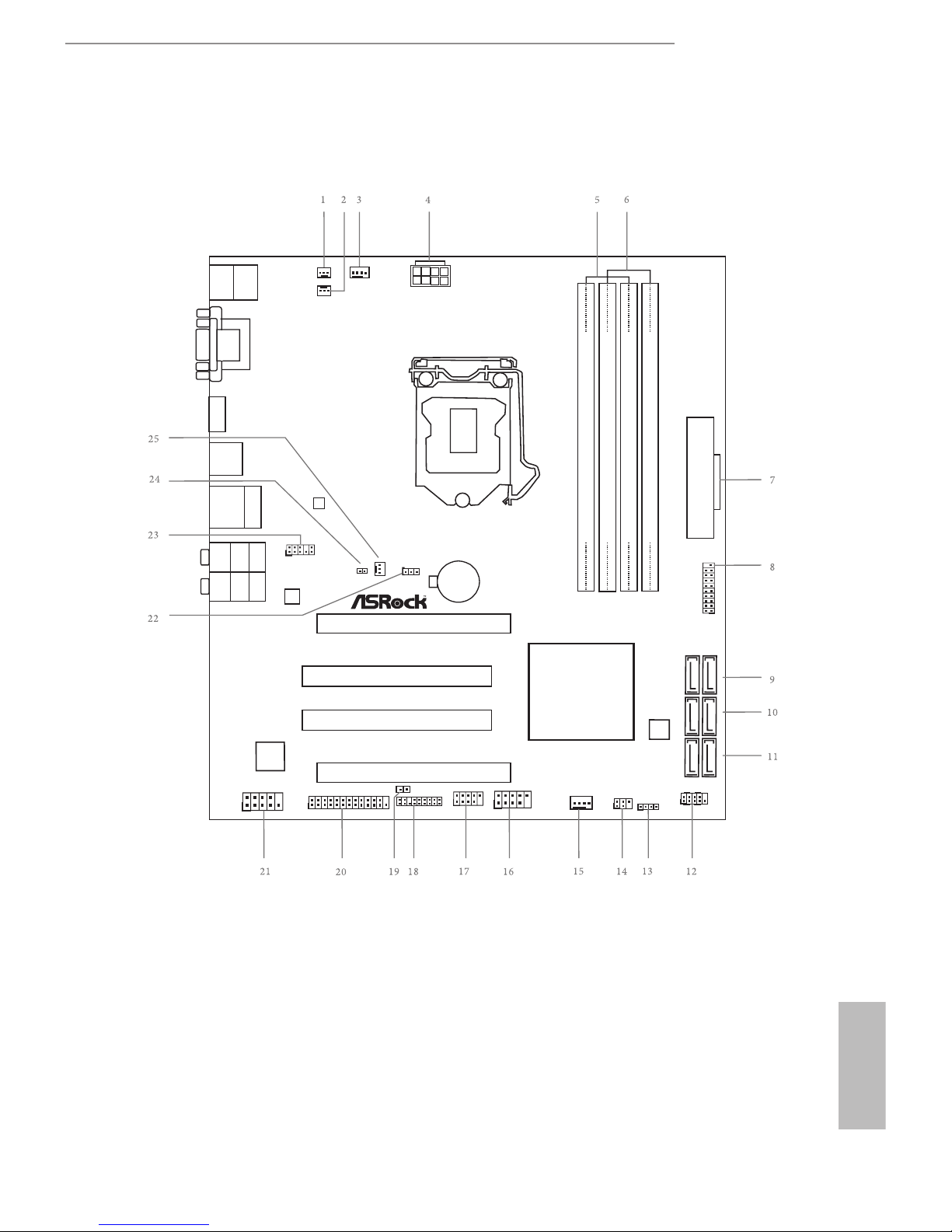

No. Description

1 Power Fan Connector (PWR_FAN1)

2 CPU Fan Connector (CPU_FAN2)

3 CPU Fan Connector (CPU_FAN1)

4 ATX 12V Power Connector (ATX12V1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

7 ATX Power Connector (ATXPWR1)

8 USB 3.0 Header (USB10_11)

9 SATA3 Connectors (SATA_4_5)

10 SATA3 Connectors (SATA_2_3)

11 SATA3 Connectors (SATA_0_1)

12 System Panel Header (PANEL1)

13 Chassis Speaker Header (SPEAKER1)

14 Infrared Module Header (IR1)

15 Chassis Fan Connector (CHA_FAN1)

16 USB 2.0 Header (USB8_9)

17 USB 2.0 Header (USB6_7)

18 TPM Header (TPMS1)

19 Chassis Intrusion Header (CI1)

20 Print Port Header (LPT1)

21 COM Port Header (COM1)

22 Clear CMOS Jumper (CLRCMOS1)

23 Front Panel Audio Header (HD_AUDIO1)

24 SPDIF Out Connector (SPDIF_OUT)

25 Chassis Fan Connector (CHA_FAN2)

Z87M Pro4

English

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 8 Microphone (Pink)

2 D-Sub Port 9 Optical SPDIF Out Port

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB_45)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB_23)

5 Rear Speaker (Black) 12 HDMI Port

6 Line In (Light Blue) 13 DVI-D Port

7 Front Speaker (Lime)** 14 PS/2 Keyboard Port

891011121314

1 2 3 5

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

Line In

(No. 6)

2V -- -- --

4V V -- --

6V V V --

8V V V V

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool

on your system. Please select “Mixer ToolBox” , click “Enable playback multi-

streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are

allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/

Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front

panel audio.

ACT/LINK LED

SPEED LED

LAN Port

Z87M Pro4

English

Chapter 1 Introduction

ank you for purchasing ASRock Z87M Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock Z87M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock Z87M Pro4 Quick Installation Guide

• ASRock Z87M Pro4 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

• Digi Power Design

• 4 Power Phase Design

• Supports Intel® Turbo Boost 2.0 Technology

• Supports Intel® K-Series unlocked CPU

Chipset • Intel® Z87

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM slots

• Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866

(OC)/1600/1333/1066 non-ECC, un-buered memory

• Max. capacity of system memory: 32GB

(see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)

• 2 x PCI slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree VGA Output options: D-Sub, DVI-D and HDMI

Z87M Pro4

English

• Supports Triple Monitors

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

• Supports HDCP function with DVI-D and HDMI ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray audio support

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I217V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 2 x USB 2.0 Ports

• 4 x USB 3.0 Ports

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

English

Storage • 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

12 and Intel Smart Response Technology), NCQ, AHCI and

“Hot Plug”

Connector • 1 x IR header

• 1 x Print Port header

• 1 x COM port header

• 1 x Chassis Intrusion header

• 1 x TPM header

• 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan connector (3-pin)

• 1 x 24 pin ATX power connector

• 1 x 8 pin 12V power connector

• 1 x Front panel audio connector

• 1 x SPDIF Out connector

• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

• 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with Multilingual GUI support

• ACPI 1.1 Compliance Wake Up Events

• SMBIOS 2.3.1 Support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-

ment

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Cy-

berLink MediaEspresso 6.5 Trial, Google Chrome Browser

and Toolbar, Start8, MeshCentral, Splashtop Streamer, Intel®

Extreme Tuning Utility (IXTU)

Hardware

Monitor

• CPU/Chassis Temperature Sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

• CPU/Chassis Fan Multi-Speed Control

• CASE OPEN detection

Andere Handbücher für Z87M Pro4

Inhaltsverzeichnis

Sprachen:

Andere ASROCK Hauptplatine Handbücher

ASROCK

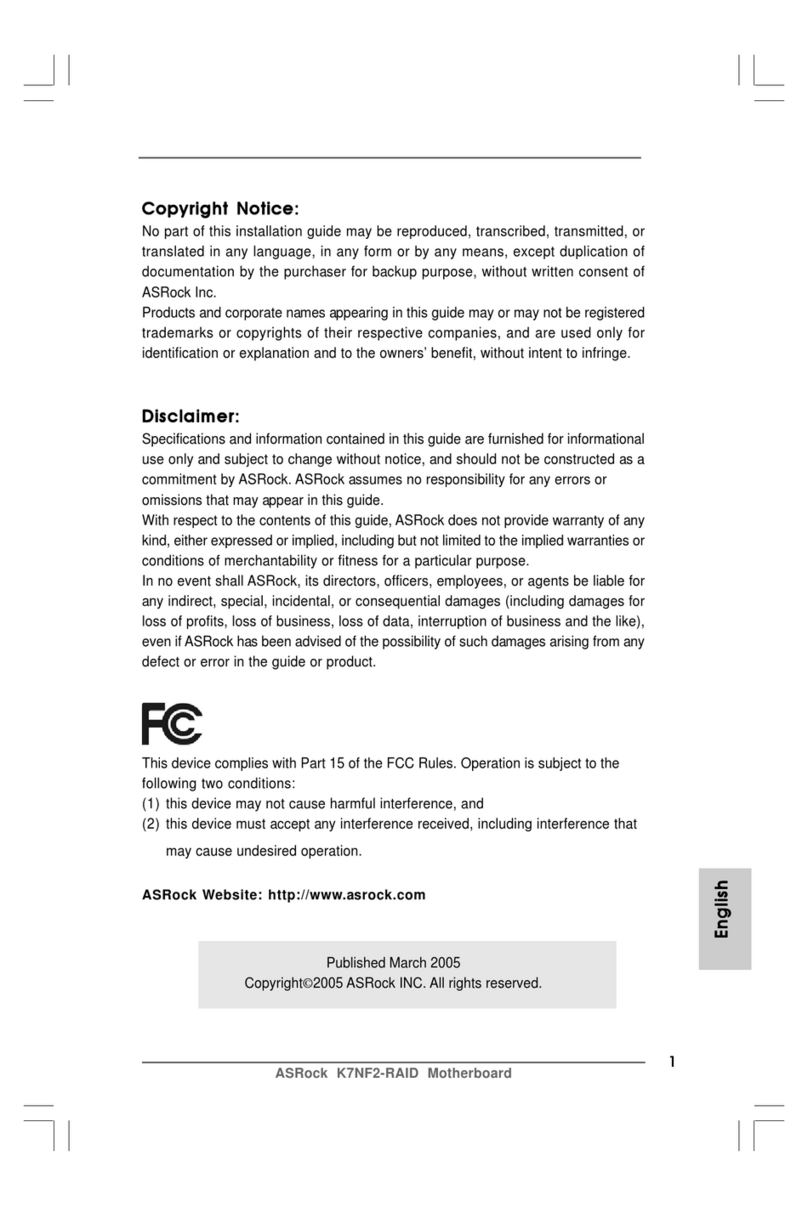

ASROCK K7NF2-RAID Bedienungsanleitung

ASROCK

ASROCK STX-1000B Bedienungsanleitung

ASROCK

ASROCK M3A760GMH - V1.0 Bedienungsanleitung

ASROCK

ASROCK 939A785GMH Bedienungsanleitung

ASROCK

ASROCK H61DEL Bedienungsanleitung

ASROCK

ASROCK 985GM-GS3 FX Bedienungsanleitung

ASROCK

ASROCK H61M-U3S3 Bedienungsanleitung

ASROCK

ASROCK B150M-ITX Bedienungsanleitung

ASROCK

ASROCK SBC-210N Bedienungsanleitung

ASROCK

ASROCK H61M-GS Bedienungsanleitung

ASROCK

ASROCK 775i915P-SATA2 Bedienungsanleitung

ASROCK

ASROCK Z97E-ITX/ac Bedienungsanleitung

ASROCK

ASROCK B560M-HDV Bedienungsanleitung

ASROCK

ASROCK B150M-HDS Bedienungsanleitung

ASROCK

ASROCK A780FULLHD - V1.0 Bedienungsanleitung

ASROCK

ASROCK H61M - ANNEXE 392 Bedienungsanleitung

ASROCK

ASROCK X370 KILLER SLI/AC Bedienungsanleitung

ASROCK

ASROCK 4CORE1600-GLAN - V1.0 Bedienungsanleitung

ASROCK

ASROCK 870iCafe Bedienungsanleitung

ASROCK

ASROCK Fatal1ty H87 Performance Series Bedienungsanleitung

ASROCK

ASROCK GE PRO-HT R3.0 Bedienungsanleitung

ASROCK

ASROCK H610M-H2/M.2 D5 Bedienungsanleitung

ASROCK

ASROCK G41M-GS3 Bedienungsanleitung

ASROCK

ASROCK P5B-DE Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung
