C-P55T2D CPU Card

USER'S MANUAL

ASUS C-P55T2D User's Manual

USER'S NOTICE

Product Name: ASUS C-P55T2D

Manual Revision: 1.43

Release Date: May 1997

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any lan-

guageinanyformbyanymeanswithouttheexpresswrittenpermissionofASUSTeK

COMPUTER INC. (hereinafter referred to as ASUS) except documentation kept

by the purchaser for backup purposes.

Specifications are subject to change without notice. ASUS provides this manual

“as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties or conditions of merchantability or fitness for a

particular purpose. In no event shallASUS be liable for any loss or profits, loss of

business, loss of use or data, interruption of business, or for indirect, special, inci-

dental, or consequential damages of any kind, even if ASUS has been advised of

the possibility of such damages arising from any defect or error in this manual or

product. ASUS may revise this manual from time to time without notice.

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies.

• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.

• IBM is a registered trademark of International Business Machines Corp.

• Symbios is a registered trademark of Symbios Logic Corporation.

• Windows and MS-DOS are registered trademarks of Microsoft Corporation.

• Sound Blaster AWE32 and SB16 are trademarks of Creative Technology Ltd.

• Adobe andAcrobat are registered trademarks of Adobe Systems Incorporated.

The product name and revision number are both printed on the board itself. Manual

revisions are released for each board design represented by the digit before and

after the period of the manual revision number. Manual updates are represented by

the third digit in the manual revision number. For previous or updated manuals,

BIOS, drivers, or product release information you may visit the ASUS home page

at http://www.asus.com.tw/ or contact ASUS from the following page.

ASUS C-P55T2D User's Manual III

ASUS CONTACT INFORMATION

ASUSTeK COMPUTER INC.

Marketing Info:

Address: 150 Li-Te Road, Peitou, Taipei, Taiwan, ROC

Telephone: 886-2-894-3447

Fax: 886-2-894-3449

Email: [email protected]

Technical Support:

Fax: 886-2-895-9254

BBS: 886-2-896-4667

Email: [email protected]

WWW: http://www.asus.com.tw/

Gopher: gopher.asus.com.tw

FTP: ftp.asus.com.tw/pub/ASUS

ASUS COMPUTER INTERNATIONAL

Marketing Info:

Address: 721 Charcot Avenue, San Jose, CA 95131, USA

Telephone: 1-408-474-0567

Fax: 1-408-474-0568

Email: [email protected]

Technical Support:

BBS: 1-408-474-0569

Email: [email protected]

ASUS COMPUTER GmbH

Marketing Info:

Address: Harkort Str. 25, 40880 Ratingen, BRD, Germany

Telephone: 49-2102-445011

Fax: 49-2102-442066

Email: [email protected]

Technical Support:

BBS: 49-2102-448690

Email: [email protected]

ASUS C-P55T2D User's Manual

CONTENTS

I. INTRODUCTION........................................................1

How this manual is organized..........................................................1

Item Checklist ..................................................................................1

II. FEATURES .................................................................2

Map of the CPU Card.................................................................2

Features of This CPU card...............................................................2

Parts of the CPU Card ................................................................2

III. INSTALLATION ......................................................3

Jumper Settings ..........................................................................3

Dual CPU Compatibility ............................................................5

Dual CPU Identification Table .............................................6

Power Connection Procedures..............................................7

BIOS Chip ..................................................................................7

Support Software........................................................................7

IV. BIOS SOFTWARE ....................................................8

Flash Memory Writer Utility ...........................................................8

The Flash Memory Writer Utility Screen: ............................8

BIOS Setup .................................................................................... 11

Load Defaults .....................................................................12

Standard CMOS Setup .............................................................12

Details of Standard CMOS Setup:......................................13

BIOS Features Setup ................................................................16

Details of BIOS Features Setup:.........................................16

Chipset Features Setup .............................................................19

Power Management Setup........................................................22

Details of Power Management Setup: ................................22

PNP and PCI Setup ..................................................................24

Load BIOS Defaults .................................................................26

Load Setup Defaults .................................................................26

Supervisor Password and User Password ................................27

IDE HDD Auto Detection ........................................................28

Save and Exit Setup .................................................................29

Exit Without Saving .................................................................29

ASUS C-P55T2D User's Manual V

CONTENTS

V. DESKTOP MANAGEMENT...................................31

Desktop Management Interface (DMI)..........................................31

Introducing the DMI Configuration Utility ........................31

System Requirements .........................................................31

Using the DMI Configuration Utility .................................32

Notes:..................................................................................32

ASUS C-P55T2D User's Manual

FederalCommunications Commission Statement

This device complies with FCC Rules Part 15. Operation is subject to the following

two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with manufacturer's instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the inter-

ference by one or more of the following measures:

• Re-orient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Theuseofshieldedcablesforconnectionofthemonitortothegraphics

card is required to assure compliance with FCC regulations. Changes or modifica-

tions to this unit not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

CanadianDepartment of CommunicationsStatement

This digital apparatus does not exceed the Class B limits for

radio noise emissions from digital apparatus set out in the Radio Interference Regu-

lations of the Canadian Department of Communications.

FCC & DOC COMPLIANCE

ASUS C-P55T2D User’s Manual 1

I. INTRODUCTION

How this manual is organized

This manual is divided into the following sections:

I. Introduction: Manual information and checklist

II. Features: Information and specifications concerning this product

III. Installation: Instructions on setting up the CPU card

IV. BIOS Setup: BIOS software setup information

V. DMI Utility: BIOS supported Desktop Management Interface

Item Checklist

Please check that your package is complete. If you discover damaged or missing

items, please contact your retailer.

√The C-P55T2D CPU card

√Support software (view FILELIST.TXT detailed contents and description)

• Bus Master IDE Drivers

• PFLASH BIOS Utility

√This user's manual

I. INTRODUCTION

(Manual / Checklist)

2ASUS C-P55T2D User’s Manual

II. FEATURES

Features of This CPU card

The C-P55T2D is carefully designed for the demanding PC user who wants great

versatility in the assembly of a computer system. This CPU card:

•PS/2 Connectors: PS/2 Mouse & PS/2 Keyboard connectors on bracket.

•VersatileProcessorSupport: IntelPentium

75-233MHz(P55C-MMX

™

,P54C/

P54CS), IBM

/Cyrix

6x86-PR166+ (Rev 2.7 or later), IBM

/Cyrix

6x86MX

™

(PR166 & above), AMD-K5

™

(PR75-PR133), AMD-K6

™

(PR166-PR233).

Note: Only Intel CPUs support dual-processor configuration. See page 6 table.

•Intel Chipset: Features Intel's 430HX PCIset with I/O subsystems.

•ErrorChecking and Correcting (ECC): Using Intel's 430HX PCIset and par-

ity DRAM modules can detect and correct 1-bit memory errors.

•Oncard L2 Cache Memory: Oncard 512KB Pipelined Burst SRAM.

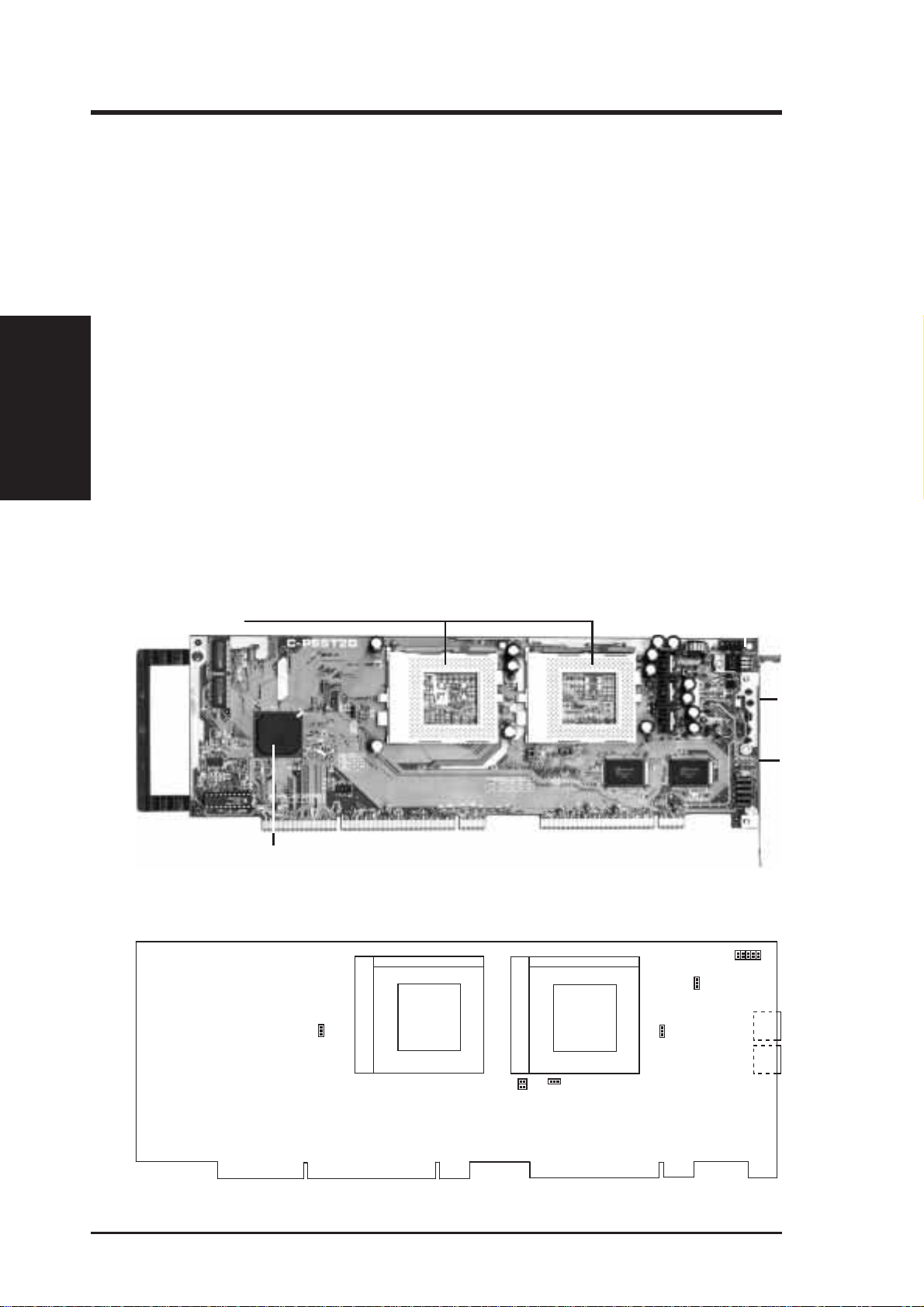

Parts of the CPU Card

(Features)

II. FEATURES

PS/2 Mouse

PS/2 Keyboard

3V-CPU Vcore

Voltage Selection

JP1

CPU Fan Power

JP14

APIC Dual CPU Selection

Freq. Ratio

JP15

JP16

CPU Fan Power

JP20

CPU Vcore

Voltage Selection

12 543

Processor 2

CPU ZIF Socket 7 CPU ZIF Socket 7

Processor 1

Map of the CPU Card

PS/2

Mouse

PS/2

Keyboard

Dual ZIF Socket 7

Intel 430HX PCIset

ASUS C-P55T2D User’s Manual 3

III. INSTALLATION

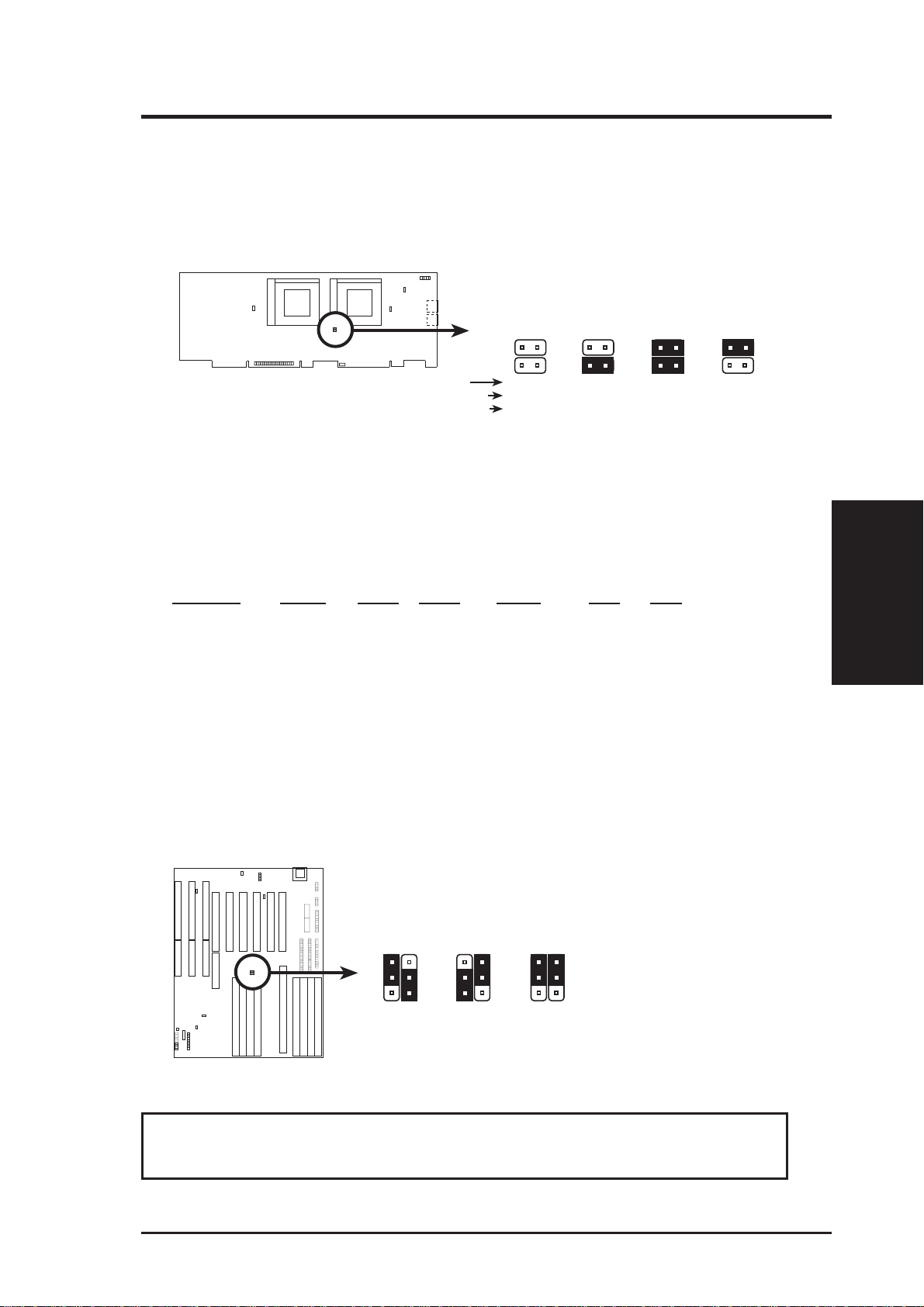

Jumper Settings

CPU to BUS Frequency Ratio (JP15, 16)

These jumpers set the frequency ratio between the Internal frequency of the

CPU and the External frequency (called the BUS Clock) within the CPU.

CPU : BUS Frequency Ratio

Complete Names:

Intel Pentium P54C, P55C-MMX

AMD K5, K6

IBM/Cyrix 6X86, 6x86MX

P54C/K5

P55C/K6/MX

IBM/Cyrix6X86

3.0x(3/1)

4.0x(4/1)

2.5x(5/2)

1.0x(1/1)

2.0x(2/1)

1.5x(3/2)

3.5X(7/2)

3.0x(3/1)

JP15

JP16

3/2 2 5/2 3

Setthejumpersby theInternalspeedof theIntelPentium orcompatibleCPUs as follows:

(CPU Card (CPU Ext. Freq

CPU BUS BUS Ratio) Ext. on Baseboard)

Internal Ratio JP15 JP16 Freq. JP3 JP2

233MHz 3.5x [OFF] [OFF] 66MHz [1-2] [2-3]

200MHz 3.0x [ON] [OFF] 66MHz [1-2] [2-3]

166MHz 2.5x [ON] [ON] 66MHz [1-2] [2-3]

150MHz 2.5x [ON] [ON] 60MHz [2-3] [1-2]

133MHz 2.0x [OFF] [ON] 66MHz [1-2] [2-3]

120MHz 2.0x [OFF] [ON] 60MHz [2-3] [1-2]

100MHz 1.5x [OFF] [OFF] 66MHz [1-2] [2-3]

90MHz 1.5x [OFF] [OFF] 60MHz [2-3] [1-2]

75MHz 1.5x [OFF] [OFF] 50MHz [1-2] [1-2]

CPU External Clock (BUS) Frequency Selection

60MHz

JP2

JP3

66MHz

JP2

JP3

350MHz

JP2

JP3

III. INSTALLATION

(Jumpers)

WARNING: The CPU and/or motherboard will overheat if there is no

airflow across the CPU and onboard heatsinks.

4ASUS C-P55T2D User’s Manual

III. INSTALLATION

Single/Dual Power Plane CPU Voltage Regulator Selections (JP1, 20)

The following jumpers set the voltage supplied to the CPU. Determine whether

your CPU has a Single Power Plane or Dual Power Planes and then the volt-

age that it uses. When a single power plane CPU is installed, the dual power

plane selections will be automatically disabled. When a dual power plane CPU

is installed, the single power plane selections will be automatically disabled.

You may have one jumper on the Single Power Plane and another on the Dual

Power Planes at the same time.

WARNING: Incorrect setting can damage your CPU. If you are not

exactly clear on CPU jumper settings, check with your retailer.

3 Volt CPU Vcore Voltage Selection (JP1)

Single Power Plane CPU Voltage Selection

P54C/CS

(STD 3.4V) Default

JP13

JP1

P54C/CS/K5/6x86

(VRE 3.5V)

2.x Volt CPU Vcore Voltage Selection (JP20: 1-5)

Dual Power Plane CPU Voltage Selection

JP20

P55C/6x86MX (2.8V)

12 543 12 543

JP20

K6-PR233 (3.2V)

JP20

K6-PR166/200 (2.9V)

Power Type: Single Power Plane Dual Power Planes

CPU Voltage: STD VRE 2.5V 2.7V 2.8V 2.9V 3.2V

JP1 [1-2] [2-3] ----- ----- ----- ----- -----

JP20 ----- ----- [Short1] [Short2] [Short3] [Short4] [Short5]

IMPORTANT: When installing only one processor, you must use the

“Processor 1” CPU ZIF Socket.

(Jumpers)

III. INSTALLATION

Inhaltsverzeichnis

Andere Asus Computerhardware Handbücher

Asus

Asus LSISAS RAID Card PIKE 1064E Bedienungsanleitung

Asus

Asus Q16328 Bedienungsanleitung

Asus

Asus AAEON BOXER-6616 Bedienungsanleitung

Asus

Asus AAEON UP Squared i12 Edge Bedienungsanleitung

Asus

Asus USB 3.1 TYPE-C CARD Bedienungsanleitung

Asus

Asus AAEON UP-AUDIO Bedienungsanleitung

Asus

Asus AAEON BOXER-8233AI Bedienungsanleitung

Asus

Asus AAEON GENE-SKU6 Bedienungsanleitung

Asus

Asus Xonar HDAV Slim Bedienungsanleitung

Asus

Asus AAEON UP Squared Pro 7000 Bedienungsanleitung

Asus

Asus AAEON HPC-ADSC Bedienungsanleitung

Asus

Asus AAEON BOXER-8640AI Bedienungsanleitung

Asus

Asus PIKE 1078 Bedienungsanleitung

Asus

Asus ROG RYUJIN II Series Bedienungsanleitung

Asus

Asus AAEON GENE-SKU6 Bedienungsanleitung

Asus

Asus AAEON GENE-APL7 Bedienungsanleitung

Asus

Asus ROG STRIX LC II ARGB Series Bedienungsanleitung

Asus

Asus Aaeon NanoCOM-EHL Bedienungsanleitung

Asus

Asus AGP-V3100 Bedienungsanleitung

Asus

Asus ROG STRIX LC RGB Series Bedienungsanleitung

Asus

Asus ROG Front Base Bedienungsanleitung

Asus

Asus ThunderboltEX II Bedienungsanleitung

Asus

Asus TUF B365-PLUS GAMING Bedienungsanleitung

Asus

Asus CMI8330 Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
