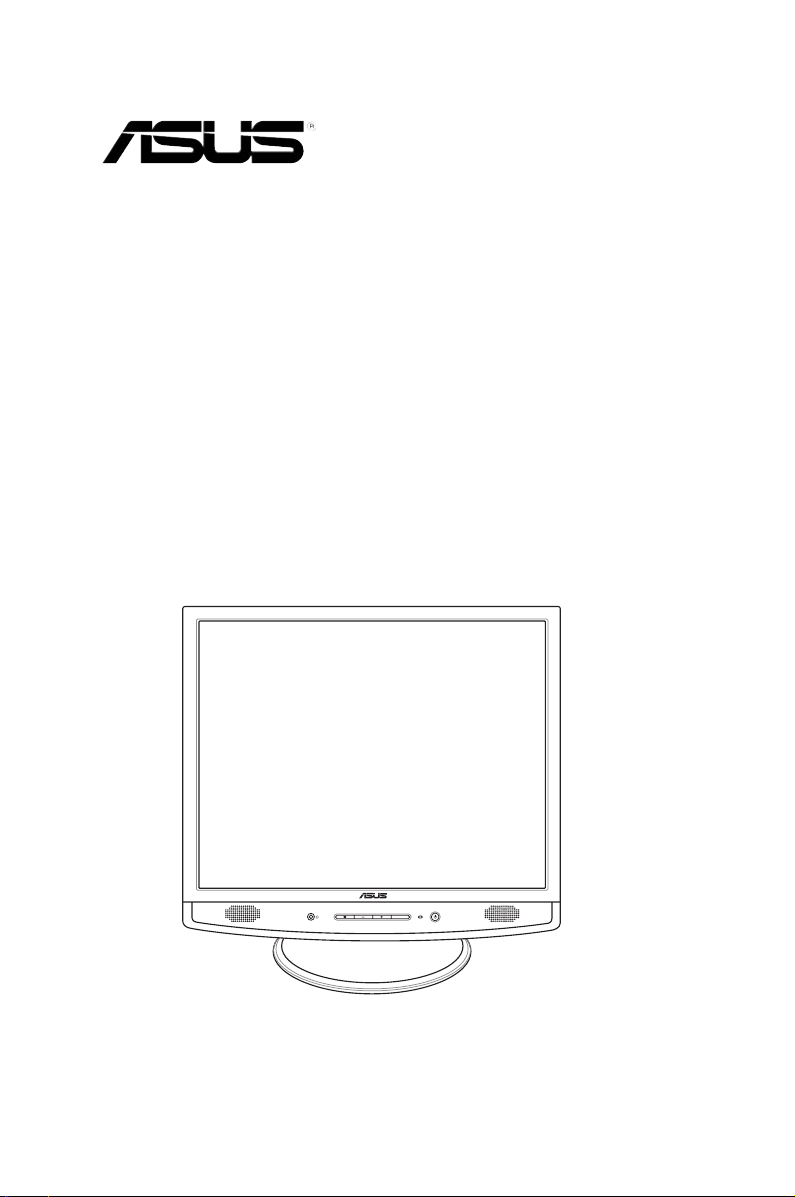

Asus MB19 Series Bedienungsanleitung

MB19 Series/

MB17 Series

LCD Monitor

User Guide

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form

or by any means, except documentation kept by the purchaser for backup purposes, without the

express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the

serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS,

ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS

OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND

SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY

OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E2624

First Edition V1

May 2006

iii

Table of contents

Notices ................................................................................................ iv

Safety information ............................................................................... v

Care & Cleaning .................................................................................. vi

Package contents...............................................................................viii

Chapter 1: Product introduction

1.1 Features................................................................................ 1-2

1.2 Assembling the monitor base ............................................... 1-2

1.3 Monitor introduction ............................................................. 1-3

Front of the LCD monitor ..................................................... 1-3

Rear of the LCD monitor ...................................................... 1-5

Chapter 2: Setup

2.1 Connecting the cables .......................................................... 2-2

2.2 Turning the monitor on......................................................... 2-3

2.3 Adjusting the monitor........................................................... 2-3

Chapter 3 General Instruction

3.1 OSD (On-Screen Display) menu ........................................... 3-2

3.2 Troubleshooting (FAQ) ......................................................... 3-4

3.3 Specication summary.......................................................... 3-5

3.4 Supported operating modes ............................................... 3-11

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

manufacturer’s instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian

ICES-003.

As an Energy Star® Partner, our company has determined that this product

meets the Energy Star® guidelines for energy efciency.

Safety information

• Before setting up the monitor, carefully read all the documentation that

came with the package.

• To prevent re or shock hazard, never expose the monitor to rain or

moisture.

• Never try to open the monitor cabinet. The dangerous high voltages

inside the monitor may result in serious physical injury.

• If the power supply is broken, do not try to x it by yourself. Contact a

qualied service technician or your retailer.

• Before using the product, make sure all cables are correctly connected

and the power cables are not damaged. If you detect any damage,

contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for

ventilation. Do not block these slots. Never place this product near or

over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supply

to your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power

standard.

• Do not overload power strips and extention cords. Overloading can

result in re or electric shock.

• Avoid dust, humidity, and temperature extremes. Do not place the

monitor in any area where it may become wet. Place the monitor on a

stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a

long period of time. This will protect the monitor from damage due to

power surges.

• Never push objects or spill liquid of any kind into the slots on the

monitor cabinet.

• To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate congured receptacles marked

between 100-240V AC.

• If you encounter technical problems with the monitor, contact a

qualied service technician or your retailer.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect

the cables and power cord. Follow the correct lifting techniques when

positioning the monitor. When lifting or carrying the monitor, grasp the

edges of the monitor. Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the

monitor surface with a lint-free, non-abrasive cloth. Stubborn stains

may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner

intended for use with the LCD. Never spray cleaner directly on the

screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may icker during the initial use due to the nature of the

uorescent light. Turn off the Power Switch and turn it on again to

make sure that the icker disappears.

• You may nd slightly uneven brightness on the screen depending on the

desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the

previous screen may remain after switching the image. The screen will

recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or ashes, or cannot work anymore,

contact your dealer or service center to x it. Do not repair the screen

by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when

trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Tips and additional information to aid in completing a task.

vii

Where to nd more information

Refer to the following sources for additional information and for product

and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS

hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation, such

as warranty card, that may have been added by your dealer. These

documents are not part of the standard package.

viii

Package contents

Check your MB19/MB17 Series LCD package for the following items:

LCD monitor

Quick Start Guide

Support CD

1 x Power cord

1 x VGA cable

1 x DVI cable (MB19TU only)

1 x Audio cable

1 x Cable holder

If any of the above items is damaged or missing, contact your retailer

immediately.

Chapter 1

Product introduction

This chapter gives a general description of

the ASUS LCD monitor MB19/MB17 Series.

The chapter lists the monitor features

including introduction on the front and rear

panels.

1-2 Chapter 1: Product introduction

1.1 Features

• 19”/17” LCD Monitor

• Recommended resolution: 1280 X 1024

• MB19TU: 2ms (Gray to Gray) Rapid response time

MB19SE/MB17SE: 5ms (Tr+Tf) Quick response time

• SPLENDID™ Video Enhancement Technology

• 5 Video preset modes switiched by hotkey

• 3 Skin-tones selection

• Microsoft Windows®2000/XP compliance

• VESA Display Data Channel DDC2B compliance

• VESA wall mount compliance (100x100mm)

• EPA ENERGY STAR® and ergonomic design

• Both VGA and DVI-D Inputs (MB19TU only)

• 2W x 2 Stereo speakers and earphone output

• RoHS compliance

1.2 Assembling the monitor base
