Asus VZ239HE-W Bedienungsanleitung

VZ239 Series

LCD Monitor

User Guide

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

First Edition

January 2017

iii

Table of Contents

Notices......................................................................................................... iv

Safety Information ....................................................................................... v

Care & Cleaning.......................................................................................... vi

Takeback Services..................................................................................... vii

1.1 Welcome! ...................................................................................... 1-1

1.2 Package Contents........................................................................ 1-1

1.3 Assembling the Monitor Base..................................................... 1-2

1.4 Connect Cables............................................................................ 1-3

1.4.1 Rear of the LCD Monitor ................................................. 1-3

1.5 Monitor Introduction.................................................................... 1-4

1.5.1 Using the Control Buttons ............................................... 1-4

1.5.2 QuickFit Function ............................................................ 1-6

2.1 Adjusting the Monitor.................................................................. 2-1

3.1 OSD (On-Screen Display) Menu.................................................. 3-1

3.1.1 HowtoRecongure ........................................................ 3-1

3.1.2 OSD Function Introduction.............................................. 3-2

3.2 Specifications.............................................................................3-15

3.3 Troubleshooting (FAQ)............................................................... 3-16

3.4 Supported Timing List ............................................................... 3-17

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with manufacturer’s instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This product implements power management functionality. In case of no

signal input after 10 seconds, the product automatically goes to sleep/

standby mode.

As an Energy Star® Partner, our company has determined

that this product meets the Energy Star® guidelines for

energyefciency.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio

noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

AEEEYönetmeliine Uygundur

Safety Information

• Before setting up the monitor, carefully read all the documentation that

came with the package.

• To prevent fire or shock hazard, never expose the monitor to rain or

moisture.

• Never try to open the monitor cabinet. The dangerous high voltages

inside the monitor may result in serious physical injury.

• If the power supply is broken, do not try to fix it by yourself. Contact a

qualified service technician or your retailer.

• Before using the product, make sure all cables are correctly connected

and the power cables are not damaged. If you detect any damage,

contact your dealer immediately.

• Slots and openings on the back or top of the cabinet are provided for

ventilation. Do not block these slots. Never place this product near or

over a radiator or heat source unless proper ventilation is provided.

• The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supply to

your home, consult your dealer or local power company.

• Use the appropriate power plug which complies with your local power

standard.

• Do not overload power strips and extension cords. Overloading can

result in fire or electric shock.

• Avoid dust, humidity, and temperature extremes. Do not place the

monitor in any area where it may become wet. Place the monitor on a

stable surface.

• Unplug the unit during a lightning storm or if it will not be used for a

long period of time. This will protect the monitor from damage due to

power surges.

• Never push objects or spill liquid of any kind into the slots on the

monitor cabinet.

• To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate configured receptacles marked

between 100-240V AC.

• The socket-outlet shall be installed near the equipment and shall be

easily accessible.

• If you encounter technical problems with the monitor, contact a

qualified service technician or your retailer.

• This product may contain chemicals known to the State of California

to cause cancer, and birth defects or other reproductive harm. Wash

hands after handling.

Care & Cleaning

• Before you lift or reposition your monitor, it is better to disconnect the

cables and power cord. Follow the correct lifting techniques when

positioning the monitor. When lifting or carrying the monitor, grasp the

edges of the monitor. Do not lift the display by the stand or the cord.

• Cleaning. Turn your monitor off and unplug the power cord. Clean the

monitor surface with a lint-free, non-abrasive cloth. Stubborn stains

may be removed with a cloth dampened with mild cleaner.

• Avoid using a cleaner containing alcohol or acetone. Use a cleaner

intended for use with the LCD. Never spray cleaner directly on the

screen, as it may drip inside the monitor and cause an electric shock.

The following symptoms are normal with the monitor:

• The screen may flicker during the initial use due to the nature of the

fluorescent light. Turn off the Power Switch and turn it on again to

make sure that the flicker disappears.

• You may find slightly uneven brightness on the screen depending on

the desktop pattern you use.

• When the same image is displayed for hours, an afterimage of the

previous screen may remain after switching the image. The screen will

recover slowly or you can turn off the Power Switch for hours.

• When the screen becomes black or flashes, or cannot work anymore,

contact your dealer or service center to fix it. Do not repair the screen

by yourself!

Conventions used in this guide

WARNING: Information to prevent injury to yourself when trying

to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

IMPORTANT: Information that you MUST follow to complete a

task.

NOTE: Tips and additional information to aid in completing a task.

vii

Where to find more information

Refer to the following sources for additional information and for product

and software updates.

1. ASUS websites

The ASUS websites worldwide provide updated information on ASUS

hardware and software products. Refer to http://www.asus.com

2. Optional documentation

Your product package may include optional documentation that may

have been added by your dealer. These documents are not part of

the standard package.

Takeback Services

ASUS recycling and takeback programs come from our commitment to the

highest standards for protecting our environment. We believe in providing

solutions for our customers to be able to responsibly recycle our products,

batteries and other components as well as the packaging materials.

Please go to http://csr.asus.com/english/Takeback.htm for detail recycling

information in different region.

1-1 Chapter 1: Product Introduction

1.1 Welcome!

Thank you for purchasing the ASUS®LCD monitor!

The latest widescreen LCD monitor from ASUS provides a crisper,

broader, and brighter display, plus a host of features that enhance your

viewing experience.

With these features, you can enjoy the convenience and delightful visual

experience that the monitor brings to you!

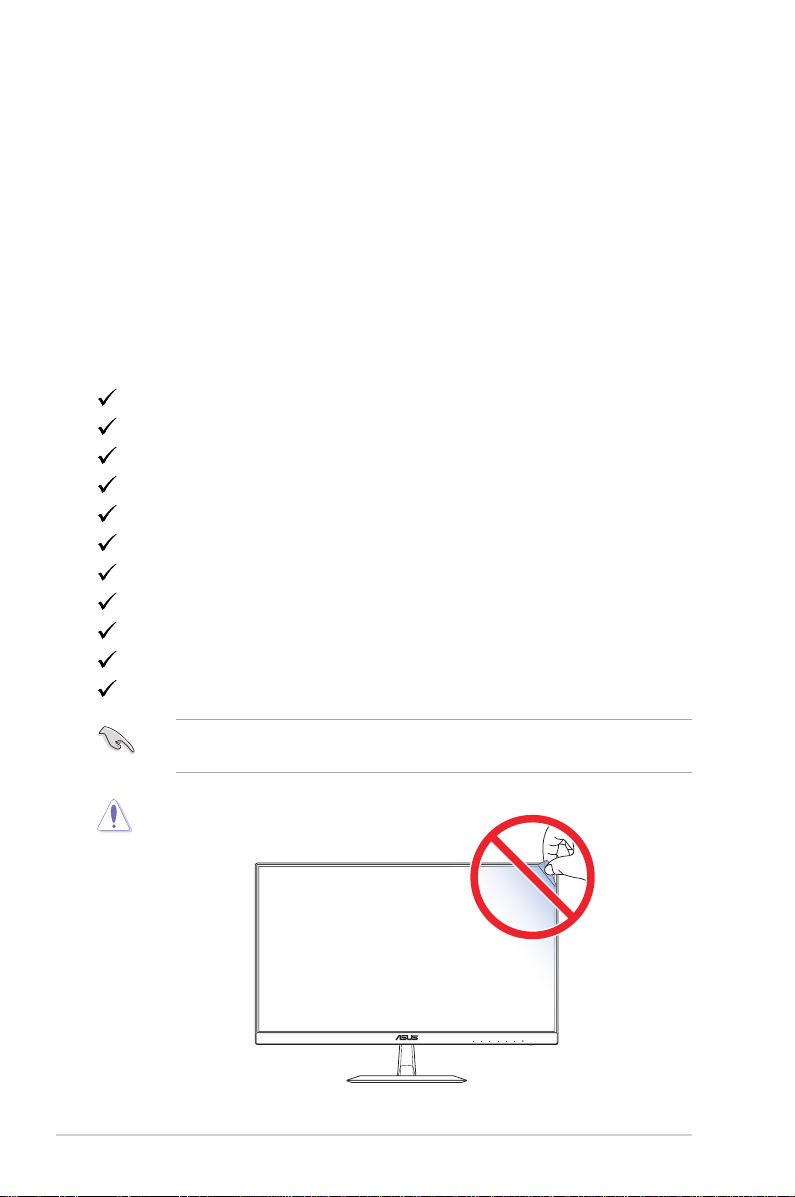

1.2 Package Contents

Check your package for the following items:

LCD monitor

Monitor Base

Quick Start Guide

Warranty Card

Adaptor

Power Cord (optional)

VGA cable

DVI cable (optional)

HDMI cable (optional)

Audio cable (optional)

DP cable (optional)

•If any of the above items is damaged or missing, contact your retailer

immediately.

CAUTION

1-2

ASUS LCD Monitor VZ239 Series

1.3 Assembling the Monitor Base

1. Have the front of the monitor face down on a table.

2. Attach the base to the arm.

3. Turn the screw clockwise to secure the base. Then adjust the monitor

to the angle that is most comfortable for you.

•We recommend that you cover the table surface with soft cloth to prevent

damage to the monitor.

1-3 Chapter 1: Product Introduction

1.4 Connect Cables

1.4.1 Rear of the LCD Monitor

VGA

HDMI

VGA

HDMI

7 8

1 3 1

4 6

VGA

HDMI

VGA

HDMI

7 8

1 3 1

4 6

VZ239H VZ239HR

VGA

DVI

VGA

DVI

9 6

VGA

HDMI

VGA

HDMI

7 8

1 3 1

4 5 6

VZ239N VZ239Q

1. Speakers

2. Control buttons

3. Kensington Lock

4. HDMI port

5. DisplayPort

6. VGA port

7. Audio-IN port

8. DC-IN port

9. DVI port

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Asus Monitor Handbücher

Asus

Asus MB16ACE Bedienungsanleitung

Asus

Asus VN279H Bedienungsanleitung

Asus

Asus MB17AHG Bedienungsanleitung

Asus

Asus Republic of Games ROG SWIFT PG329Q Bedienungsanleitung

Asus

Asus BE24A Series Bedienungsanleitung

Asus

Asus VW192 Series Bedienungsanleitung

Asus

Asus CP220 Series Bedienungsanleitung

Asus

Asus PB27U Series Bedienungsanleitung

Asus

Asus VP278 Series Bedienungsanleitung

Asus

Asus VX207NE Bedienungsanleitung

Asus

Asus VW22A L Series Bedienungsanleitung

Asus

Asus VG289Q1A Series Bedienungsanleitung

Asus

Asus Designo MX25A Series Bedienungsanleitung

Asus

Asus VT168N Series Bedienungsanleitung

Asus

Asus BE24D Series Bedienungsanleitung

Asus

Asus VG328QA1A Series Bedienungsanleitung

Asus

Asus VK266H - 25.5" LCD Monitor Bedienungsanleitung

Asus

Asus ZenScreen MB16AH Bedienungsanleitung

Asus

Asus VA321N-W Bedienungsanleitung

Asus

Asus ProArt PA328Q Bedienungsanleitung

Asus

Asus VA27V Series Bedienungsanleitung

Asus

Asus BE27ACSBK Series Bedienungsanleitung

Asus

Asus VW190D Bedienungsanleitung

Asus

Asus W193T Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

NEC

NEC AccuSync LCD5V Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung

LG M1950D-PZ Bedienungsanleitung
