Asus GRYPHON ARMOR KIT Bedienungsanleitung

Q8211

Contents

English .......................................................................................... 2

繁體中文 ......................................................................................... 7

󰒫󰟈 ....................................................................................... 12

日本語........................................................................................... 17

English

Package contents

Check your GRYPHON ARMOR KIT package for the following items:

Thermal Armor

TUF Fortier

1 x Back I/O port cap set

(LAN cap, HDMI cap, DVI cap,

DP cap, Front USB 3.0 cap)

9 x SATA/eSATA connector caps

10 x Onboard USB 2.0 connector caps

6 x Audio port caps

2 x DIMM slot covers

3 x PCIe x16 slot covers

1 x PCIe x1 slot cover

1 x bag of screws

1 x 40mm I/O cover fan lid

1 x Adhesive foam for 35mm fan

Thermal Armor and TUF

Fortier

Dust Grid Dust Frame

Back I/O Dust Filter TUF Connector Dust

Defender package

Back I/O Assistant fan

(35mm)

3 x Thermistor cables TUF Accessory package

Phillips screwdriver Installation Guide

• If any of the above items is damaged or missing, contact your retailer.

• To support various models, your TUF Connector Dust Defender package may include

additional onboard connector caps and back I/O port caps.

• The illustrated items above are for reference only.

English

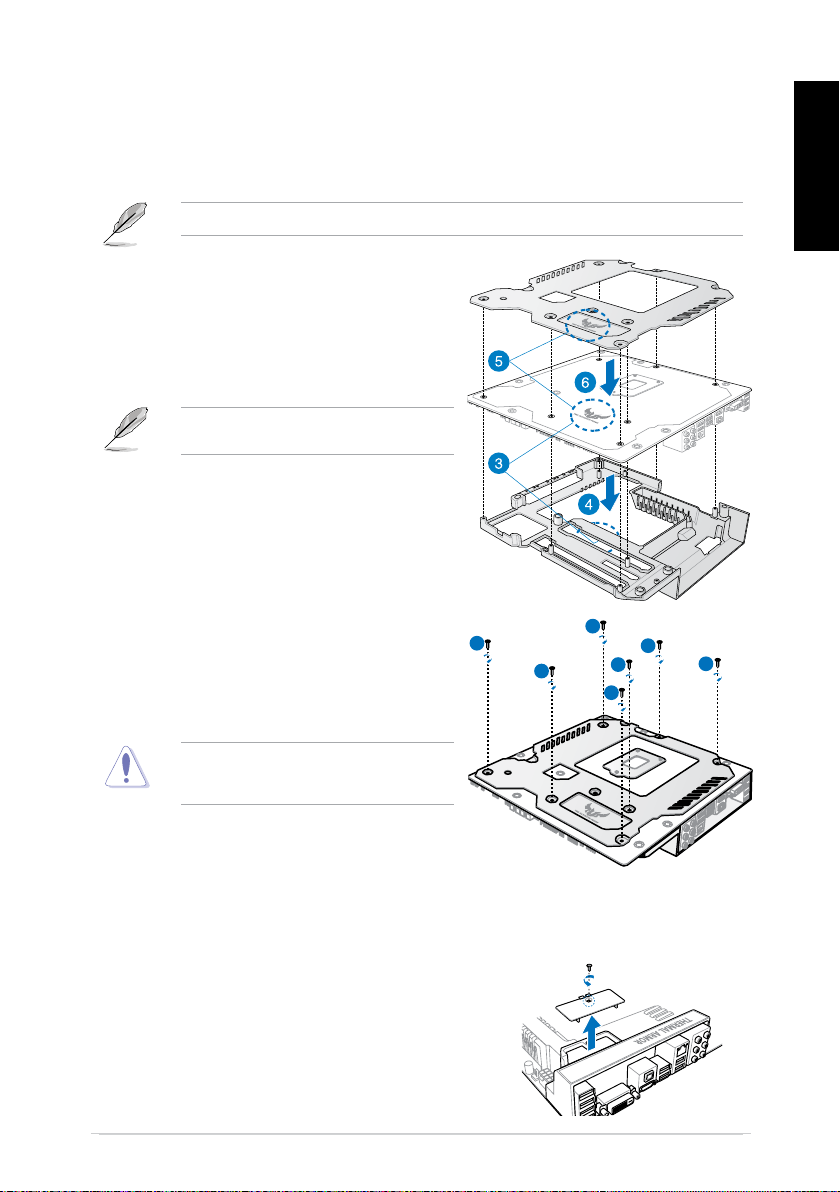

Assembling the Thermal Armor and the TUF Fortier with your MB

To assemble your motherboard with the Thermal Armor and TUF Fortier:

3. Position your motherboard upside down to an

orientation that aligns its THE ULTIMATE FORCE logo

with the printed THE ULTIMATE FORCE logo on the

Thermal Armor.

4. Carefully put your motherboard on the Thermal Armor

matching the screw holes of the Thermal Armor with the

screw holes of your motherboard.

Ensure that your motherboard ts neatly on the

Thermal Armor and no part is out-of-place.

5. Get the TUF Fortier and position it upside down to an

orientation that aligns its THE ULTIMATE FORCE logo

with the printed THE ULTIMATE FORCE logo on your

motherboard.

6. Carefully put the TUF Fortier on your motherboard and

Thermal Armor assembly. Ensure that the screw holes

of the TUF Fortier matches the screw holes on your

motherboard and Thermal Armor assembly.

1. Take the Thermal Armor, the TUF Fortier and all accessories out of the box.

2. Using the empty box as a base support, place the Thermal Armor upside down on the open box.

Ensure that the Thermal Armor is tted neatly and rmly in the box.

7. Secure the TUF Fortier, motherboard, and Thermal

Armor assembly with the bundled set of seven (7)

screws using the bundled Phillips screwdriver.

Refer to the illustration for the recommended sequence

of fastening the screws.

Fasten the screws to just about the proper tightness to

avoid damaging the TUF Fortier, motherboard, or the

Thermal Armor.

Installing the back I/O assistant fan

The 35mm back I/O assistant fan draws additional cold air into your Thermal Armor and expel more heat from your

motherboard to ensure that its temperature stays low and help improve your system’s stability.

To install the back I/O assistant fan:

1. Locate and remove the screw on the Thermal Armor then

remove the back I/O fan cover lid.

Keep the screw for later use.

TUF Fortier

Motherboard

Thermal Armor

English

2. Position the back I/O assistant fan to an orientation

where the THE ULTIMATE FORCE logo on the back I/O

fan is facing towards the back I/O shield and the airow

arrow indicator is pointing towards the motherboard.

3. Match the two screw holes on the back I/O fan with the

two screw holes on the cover lid and secure it with the

bundled set of two (2) screws for the back I/O assistant

fan.

Ensure that the back I/O assistant fan is oriented to the

proper direction.

4. Get the adhesive foam then peel off the adhesive’seel off the adhesive’s

cover.

5. Align and attach the adhesive foam to the bottom of the

back I/O assistant fan.

• Avoid touching the adhesive surface.

• The adhesive foam is placed to ll the gap

between the motherboard and the fan. It is not

needed if you are installing a 40mm fan.

6. Align and insert the cover lid with the back I/O assistantAlign and insert the cover lid with the back I/O assistant

fan into the Thermal Armor and secure it with the screw

that you removed in step 1.

Ensure to tuck the fan cable inside the cable corner slot.

7. Connect the fan cable connector to the assistant fan

(ASST_FAN) header on the motherboard.

Installing the Dust Defenders

The Dust Defenders are designed to prevent dust and small particles from building up in the motherboard’s expansion

and memory slots or connectors.

Installing the onboard connector caps

Install the onboard connector caps into unused SATA or Onboard USB 2.0 connectors on your motherboard.

To support various models, your package may include additional onboard connector caps for your motherboard.

Adhesive

Fan cable corner slot

English

Installing the DIMM slot covers

Install the DIMM slot covers into unused DIMM slots on your motherboard.

Installing the PCIe x16/PCIe x1 slot covers

Install the PCIe x16 or PCIe x1 slot covers into unused PCIe x16 or

PCIe x1 slots on your motherboard.

Installing the back I/O caps

The GRYPHON ARMOR KIT takes protection to the next level with the back I/O port caps.

Refer to the illustrated guide below for the proper placement of back I/O port caps:

To support various models, your package may include additional back I/O port caps for your motherboard.

English

Installing the back I/O dust lter

The back I/O dust lter helps reduce the intake of dust and small particles into the system

To install the back I/O dust lter:

1. Match and align four corner holes of the back I/O dust

grid and four corner fasteners of the back I/O dust frame

then attach the dust grid to the dust frame.

2. Match and align the four corner fasteners of the back I/O

dust frame and grid assembly to the four circular holes

on the back I/O fan vent of the I/O shield then push to

fasten the back I/O dust grid into the I/O shield with the

back I/O dust frame.

• Clean your back I/O dust lter from time to time, especially when it is dirty to ensure optimum airow.

• The back I/O shield is not included in the GRYPHON ARMOR KIT package.

Installing the Thermistor cable

The Thermistor cable works together with the Thermal Radar 2 utility to allow you to monitor the temperature of

selected devices or critical components inside your motherboard.

To install the Thermistor cable:

1. Locate the thermal sensor headers labeled T_SENSOR1,

T_SENSOR2, or T_SENSOR3 on your motherboard then connect

the thermistor cable connector to any of these headers.

Thermistor sensor

Thermistor

connector

2. Put the thermistor sensor in contact with the surface of the component

or part you want to monitor and secure it with an adhesive tape.

The adhesive tape is purchased separately.

• The Thermistor sensor operating temperature ranges from 0oC – 80oC.

• We strongly recommend that you purchase a high temperature or heat

resistant adhesive tape for safety.

3. Launch the Thermal Radar 2 utility on your computer.

Back I/O dust frame

Back I/O dust grid

I/O shield

adhesive tape

www.asus.com



󰏠󰚸



󰆸󰎉

 󰔙󰆸󰈬󰀟󰇷󰔙󰆸󰈬󰀟󰇷

󰏭

 󰉻  󰉻    

󰀫󰀟󰀫

 󰆸󰂈󰐦󰆸󰂈󰐦

󰅁󰘱󰅁󰘱



󰀫󰀫

 󰀫 󰀫󰀫 󰀫󰀫 󰀫󰀫󰀫

󰀫 󰀫󰀫 󰀫󰀫󰀫

   󰀫󰀫󰀫

󰀫󰀫

      

󰀫

󰀫󰀫

󰉔󰚸󰄜󰀫󰉔󰚸󰄜󰀫

󰄜󰀫󰄜󰀫

󰄜󰀫󰄜󰀫

󰐏󰐏

󰀫󰀫

󰑣󰀈  󰑣󰀈  



󰅁󰘱󰀟󰅁󰘱󰀟



󰀄 󰀄 

  󰒊󰒊󰒊 

  󰁟󰁟󰁟

 󰅁󰅿󰅁󰅿 

󰐏 



󰏠󰚸

󰐏󰓢󰀂󰇨󰀂

󰐳󰔙󰉻󰀟

󰅁󰘱

󰅁󰘱󰀟󰉻

󰆸󰛘󰅁󰘱󰀟󰉻

 󰆸󰅁󰘱󰀟

 󰄀󰅁󰘱

󰆸󰅞󰁊󰅁󰘱󰀂󰀟

 󰂢󰉻            󰂢󰉻                      

 󰀟   󰅁󰘱󰀟   󰅁󰘱  󰅁󰘱

   

 󰉻󰅁󰘱

󰂢󰉻󰀟󰅁󰘱

󰐏

󰆸󰅞󰁊󰉻󰀟   󰅁

󰘱



 󰂢    󰂢        

󰀟󰉻  󰀟󰉻  󰉻    



   

󰉻󰀟󰅁󰘱󰆸󰅞

󰁊  󰐏󰉻󰀟

󰅁󰘱󰐏

 󰐏󰀟󰐏  󰐏    

󰉻󰀟󰅁󰘱

󰓢󰀂

 󰆸󰓢󰀂󰐏



󰉻



󰅁󰘱

  󰁟󰁟󰁟

  󰁟   󰅁󰘱󰉻  󰁟   󰅁󰘱󰉻󰁟   󰅁󰘱󰉻󰁟  󰅁󰘱󰉻󰅁󰘱󰉻󰅁󰘱󰉻

󰅁󰅞󰀋󰕃

󰆸󰛘  󰁟󰁟󰁟

    󰅁󰘱󰐏   󰅁󰘱󰐏  󰅁󰘱󰐏󰅁󰘱󰐏

󰀫

 󰆸󰐏󰘤



󰏠󰚸

 󰅿󰉻󰁟

󰌹



󰘱󰉻󰑳󰄜󰀟󰉔󰚸󰄜󰀟



󰀫

󰆸󰀫󰉻

󰉻    

󰀫

   󰄛  

 󰉛

󰅬󰌹󰄛󰁇󰉻

   󰐏󰂢󰀫

󰐏󰐏

󰓢󰀂

󰆸󰅞󰁊  󰅞



 󰑣󰀈󰄄󰀈

 󰀈󰂢󰑣

 󰆸󰐳󰗤󰑣

 󰀈󰉻󰀟

󰂆󰌐

 󰂋

󰑣󰀈

 󰂢󰉚󰀫  

  󰅁󰘱󰛘 

󰐏󰓢󰀂󰉻

󰆸󰅞󰁊󰅿󰅿󰓘

󰄜

󰑣

󰅿󰓘󰄜



󰏠󰚸

󰉔󰚸󰄜󰀫

󰆸󰉔󰚸󰄜󰀫󰉻

󰉔󰚸󰄜

󰀟󰄜󰘱󰀫

󰆸      󰄜󰀫      󰄜󰀫󰄜󰀫

󰉻󰄜

󰀫

󰀫󰘱

󰀟󰅞󰀫

󰀫
