1.1 How This Manual Is Organized

This manual is divided into the following sections:

1. INTRODUCTION Manual information and checklist

2. FEATURES Production information and specifications

3. HARDWARE SETUP Instructions on setting up the motherboard.

1.2 Item Checklist

Check that your package is complete. If you discover damaged or missing items,

contact your retailer.

Package Contents

(1) Motherboard

1. INTRODUCTION

6P4B266-LA Quick Start Manual

2. FEATURES

2.1 The P4B266-LA

The P4B266-LA motherboard is carefully designed for the demanding PC user who

wants advanced features processed by the fastest processors.

2.1.1 Core Specifications

•Latest Intel Processor Support

Pentium4

Socket 478 / Northwood 100MHz FSB.

•North bridge controller. The Intel Memory Controller Hub (MCH) is one part

of the Intel 845 (Brookdale) chipset.The MCH along with the south bridge Intel

I/O Controller Hub 2 (ICH2) are interconnected through the Intel proprietary

Hub interface. The MCH provides the processor interface, system memory in-

terface, AGP interface, and Hub Interface.

•South bridge controller. Referred to as the Intel I/O Controller Hub 2 (ICH2)

of the Intel 845 chipset, this controller provides the I/O subsystem that allows

access to the rest of the system. The ICH2 integrates I/O functions such as sys-

tem bus interface, Ultra ATA/100, Low Pin Count (LPC) interface, Universal

Serial Bus (USB) 1.1 interface, PCI interface.

•DDR 200 / 266 SDRAM DIMM Memory Sockets: Equipped with two Dual

InlineMemory Module (DIMM)sockets tosupport DDR200/266-compliant non-

ECC SDRAMs (available in 64, 128, 256, 512Mb densities) up to 512MB.

•Super I/O chipset. A Low Pin Count (LPC) chipset combines the commonly

used Super I/O functionality and system hardware monitoring capability. The

chipset incorporates Fan Speed Control Monitor (FSCM), event wake-up

feature, floppy disk controller, keyboard/mouse controller, a parallel port, two

enhanced serial ports, watchdog timer, and a MIDI interface compatible with

MPU-401 UART mode.

•UltraDMA33/66/100 Support: Comes with an onboard PCI Bus Master IDE

controller with two connectors that support four IDE devices on two channels.

Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and

Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM,

CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.

•FlashEEPROM: 2Mb firmware programmable BIOS program offers enhanced

ACPI for Windows 98/ME/2000 compatibility, and autodetection of most de-

vices for virtually automatic setup..

P4B266-LA Quick Start Manual 7

2. FEATURES

2.1.2 Connections

•CPU socket: 478-pin surface mount, ZIF socket PGA478 B.

•DDR DIMM socket: Two 184-pin surface mount, DDR DRAM socket

supporting 2.5 Volt DDR 200 / 266, (PC1600 / PC2100).

•PCI Expansion Slots: Three 32-bit PCI (PCI 2.2 compliant) expansion slots.

All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI

supports up to 133MB/s maximum throughput.)

•IDE connectors: These dual-channel bus master IDE connectors support up to

four Ultra DMA/100/66, PIO Modes 3 & 4 IDE devices. Both the primary (blue)

and secondary (black) connectors are slotted to prevent incorrect insertion of the

IDE ribbon cable.

•Floppy disk connector. This connector accommodates the floppy disk drive

ribbon cable. One side of the connector is slotted to prevent incorrect insertion

of the floppy disk cable.

•ATX powerconnector.This 20-pin connector supplies anATX 12Vpower sup-

ply. The power supply must have at least 1Aon the +5V standby lead (+5VSB).

•ATX 12V connector. This power connector supplies the 4-pin 12V plug from

the ATX 12V power supply.

•AGP slot: The Accelerated Graphics Port (AGP) slot supports 1.5V AGP4X

mode graphics cards for 3D graphical applications.

•RJ-45port: This port allows connection toa LocalAreaNetwork(LAN) through

a network hub.

•Microphone jack: Pink jack connects a microphone.

•Line In jack: Light blue jack connects a tape player or other audio sources.

•Line Out jack: Lime jack connects a headphone or a speaker.

•USB ports. Two 4-pin Universal Serial Bus (USB) ports are available for con-

necting USB devices such as a mouse and PDA.

•Game/MIDI connector. This connector supports a joystick or a game pad for

playing games, and MIDI devices for playing or editing audio files.

•Serial ports: Two 9-pin COM1/COM2 ports are for pointing devices or other

serial devices.

•Parallel port: A 25-pin port connects a parallel printer, a scanner, or other de-

vices.

•PS/2 mouse port: Green 6-pin connector is for a PS/2 mouse.

•PS/2 keyboard port: Purple 6-pin connector is for a PS/2 keyboard.

8P4B266-LA Quick Start Manual

2. FEATURES

2.1.3 Performance

•Onboard LED: The onboard LED will light up when there is standby power to

the motherboard. This acts as a reminder to the user to turn OFF the power

before plugging and unplugging devices so as not to damage the motherboard,

peripherals, and/or components.

•UltraPerformance:OnboardIDEBus Mastercontrollerwith two connectorsthat

support four IDE devices in two channels. Supports UltraDMA/100, UltraDMA/

66,UltraDMA/33 (IDE DMAMode 2), PIOModes 3 &4, and supportsEnhanced

IDEdevices:DVD-ROM, CD-ROM,CD-R/RW,LS-120,andTapeBackupdrives.

•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-

ter buses to memory and processor.

•SDRAM Optimized Performance: This motherboard supports PC1600/2100

DDR-200/266-compliant Synchronous Dynamic RandomAccess Memory (DDR-

SDRAM).

•ACPIReady:ACPI (Advanced ConfigurationandPower Interface) isalsoimple-

mented on all smart series motherboards. ACPI provides more Energy Saving

Features for operating systems (OS) supporting OS Direct Power Management

(OSPM). With these features implemented in the OS, PCs can be ready around

the clock, yet satisfy all the energy saving standards. To gain all the benefits, an

ACPI-supported OS, such as Windows 98/2000/ME/XP is required.

•Audio CODEC. This AC ‘97 audio codec provides stereo analog I/O on the

motherboard and peripheral devices to deliver high quality audio to PC-con-

nected speakers, headphones, and microphones. The codec includes analog-to-

digital and digital-to-analog sample rate converters, as power amplifiers and

programmable gain blocks.

•NewCompliancy: Both the BIOS and hardware levels of the motherboard meet

the stringent requirements for PC 99 certification.The new PC 99 requirements

for systems and components are based on high-level goals: support for Plug and

Play compatibility and power management for managing all system compo-

nents, and 32-bit device drivers and installation procedures for Windows 95/98/

NT. Color-coded connectors and descriptive icons make identification easy.

P4B266-LA Quick Start Manual 9

2. FEATURES

2.1.4 Intelligence

•CPU socket: 478-pin surface mount, ZIF socket PGA478 B., power supply, and

system fans can be monitored for RPM and failure. All the fans are set for its

normal RPM range and alarm thresholds. All fan speeds may vary according to

the temperature settings found in

•TemperatureMonitoringandAlert:Topreventsystem overheat and systemdam-

age, this motherboard supports processor thermal sensing and auto-protection.

•Dual Function Power Button: Through BIOS, the power button can be defined

as the “Stand by”(a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX

Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.

Regardless of the setting, pushing the power button for more than 4 seconds will

enter the Soft-Off mode.

10 P4B266-LA Quick Start Manual

3. HARDWARE SETUP

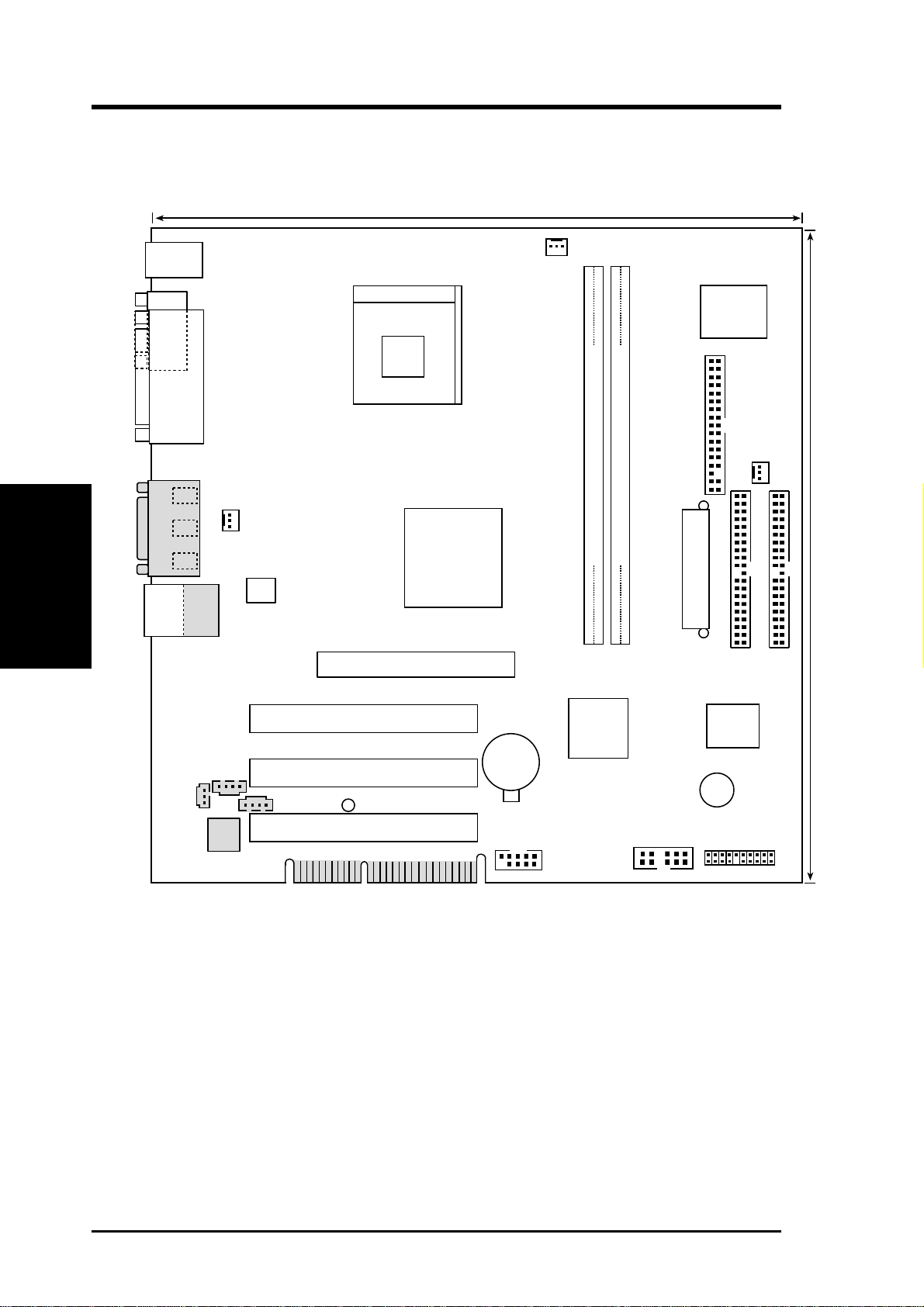

3.1 P4B266-LA Motherboard Layout

Motherboard Layout

2. H/W SETUP

24.4cm (9.6in)

PS/2KBMS

T: Mouse

B: Keyboard

PCI3 HPD-PANEL

FLOPPY

SECONDARYIDE

PRIMARYIDE

Intel I/O

Controller

Hub

(ICH2)

P4B266-LA

Accelerated Graphics Port (AGP)

CR2032 3V

Lithium Cell

CMOS Power

ATX Power Connector

2Mbit

Firmware

Hub

Multi

I/O

ATX12V

Intel 845

Memory

Controller

Hub (MCH)

AUX

CPU_FAN

Audio

Codec

CD_IN

BUZZER

LED1

USB1

USB2

Bottom:

RJ-45

Top:

COM1

PARALLEL PORT

PCI2

PCI1

Socket 478

GAME_AUDIO

Mic

Line

Out

Line

SYSTEM_FAN

HPDCOM2

SPKR_OUT

USB-HPD

PS_FAN

DDR DIMM1 (64/72 bit, 184-pin module)

0 1

DDR DIMM2 (64/72 bit, 184-pin module)

2 3

Grayed components are optional at the time of purchase.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Asus Hauptplatine Handbücher

Asus

Asus Sabertooth X99 Bedienungsanleitung

Asus

Asus SABERTOOTH 55i - Motherboard - ATX Bedienungsanleitung

Asus

Asus PRIME B350M-A Bedienungsanleitung

Asus

Asus P4B533-V Bedienungsanleitung

Asus

Asus SABERTOOTH Z77 Bedienungsanleitung

Asus

Asus PRIME H310M-R R2.0 Bedienungsanleitung

Asus

Asus CUV4X-CME Bedienungsanleitung

Asus

Asus B85M-E/DASH Leitfaden

Asus

Asus N3050T Bedienungsanleitung

Asus

Asus PRIME B760M-A D4 Bedienungsanleitung

Asus

Asus P9D-V Bedienungsanleitung

Asus

Asus PRIME H310M-AT Bedienungsanleitung

Asus

Asus F1A75-I DELUXE Bedienungsanleitung

Asus

Asus PRIME H110M2/FPT Bedienungsanleitung

Asus

Asus Pro A520M-C Bedienungsanleitung

Asus

Asus PRIME A320M-C R2.0 Bedienungsanleitung

Asus

Asus TUF B450-PLUS GAMING Bedienungsanleitung

Asus

Asus P8H67-V R3 Bedienungsanleitung

Asus

Asus P8H61-M2 SI Bedienungsanleitung

Asus

Asus Z9PA-U8 Bedienungsanleitung

Asus

Asus PRIME B360M-A Bedienungsanleitung

Asus

Asus P2B-N Bedienungsanleitung

Asus

Asus P3V133 Bedienungsanleitung

Asus

Asus AM1M-E Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Bedienungsanleitung

Epson

Epson S5U13700P00C000 Bedienungsanleitung

Gigabyte

Gigabyte GA-K8N Ultra-SLI Bedienungsanleitung

Albatron

Albatron PX925XE Series Bedienungsanleitung
