Asus Prodigy P4S Original Betriebsanleitung

P4SVersion1.1A

TableofContent

FB11362000000

Quick Installation ......................................................3

BeforeInstallation........................................................................3

Layout...........................................................................................4

ItemChecklist.......................................................................4

Jumpers/Connectors..................................................................5

Feature.....................................................................10

MotherboardComponentsPlacement......................................10

BlockDiagram..............................................................................12

Specifications..............................................................................13

HardwareSetup.......................................................15

Install theProcessor...................................................................15

Install MemoryModules..............................................................17

ATXPowerSupplyConnector....................................................18

Back Panel...................................................................................19

Chapter1QuickInstallation

BIOSSetup ..............................................................20

BIOSSetup.................................................................................20

MainMenu...................................................................................22

StandardCMOSFeatures..........................................................22

AdvancedBIOSFeatures ...........................................................26

AdvancedChipsetFeatures........................................................29

IntegratedPeripherals...............................................................31

PowerManagementSetup..........................................................36

PnP/PCIConfigurations.............................................................40

PCHealthStatus.........................................................................42

IWILL SmartSetting....................................................................42

LoadFail SafeDefaults..............................................................44

LoadOptimizedDefaults............................................................44

SetSupervisor/UserPasswordSetting....................................45

Save&ExitSetup.......................................................................46

ExitWithoutSaving....................................................................46

OnboardAudio.......................................................47

AudioFeatures............................................................................47

IWILL 6ChannelsAudio/SuperAudio(Optional)..........................49

DriverInstallation.......................................................................51

TheAudioRack..........................................................................53

Chapter1QuickInstallation

QuickInstallation

BeforeInstallation

Forinstallation,you mayneed someorall ofthefollowing tools:

Mediumsize flatblade screwdriver

MediumsizePhillips headscrewdriver

A3/16 inch nutdriverorwrench

Users must follow these guidelines to ensure the

motherboard is protected during installation.

1.Make sure your computer is powered-off whenever

working in with inside components

2.The motherboard, like all other electronic equipment,

is sensitive to static. Please take the proper precautions

when handling it. If possible, ground yourself by touching a

metal table or desk. keep the board in its conductive

wrapping until it is configured and ready to be installed in

your system.

3.Keep all magnets away from both your hard and floppy

disk drives, especially magnetic screwdrivers. Keep both

floppy and hard disks apart if disassembed.

4.Keep water and liquids away from your computer and its

components.

Chapter1QuickInstallation

ItemChecklist

[V]The motherboard

[V]Operation manual

[V]ATA100/66 IDEcable

[V]Floppy cable

[V]PowerInstallerCD

[V]6ChannelsAudio(withcable&Bracket)

Optional

[]USB riserkit

[]ThermalSensorforSystem

[]Infrared portcable

[]OptionalModule(SPDIFversion only)

[]IWILL SuperAudio(forSPDIF)

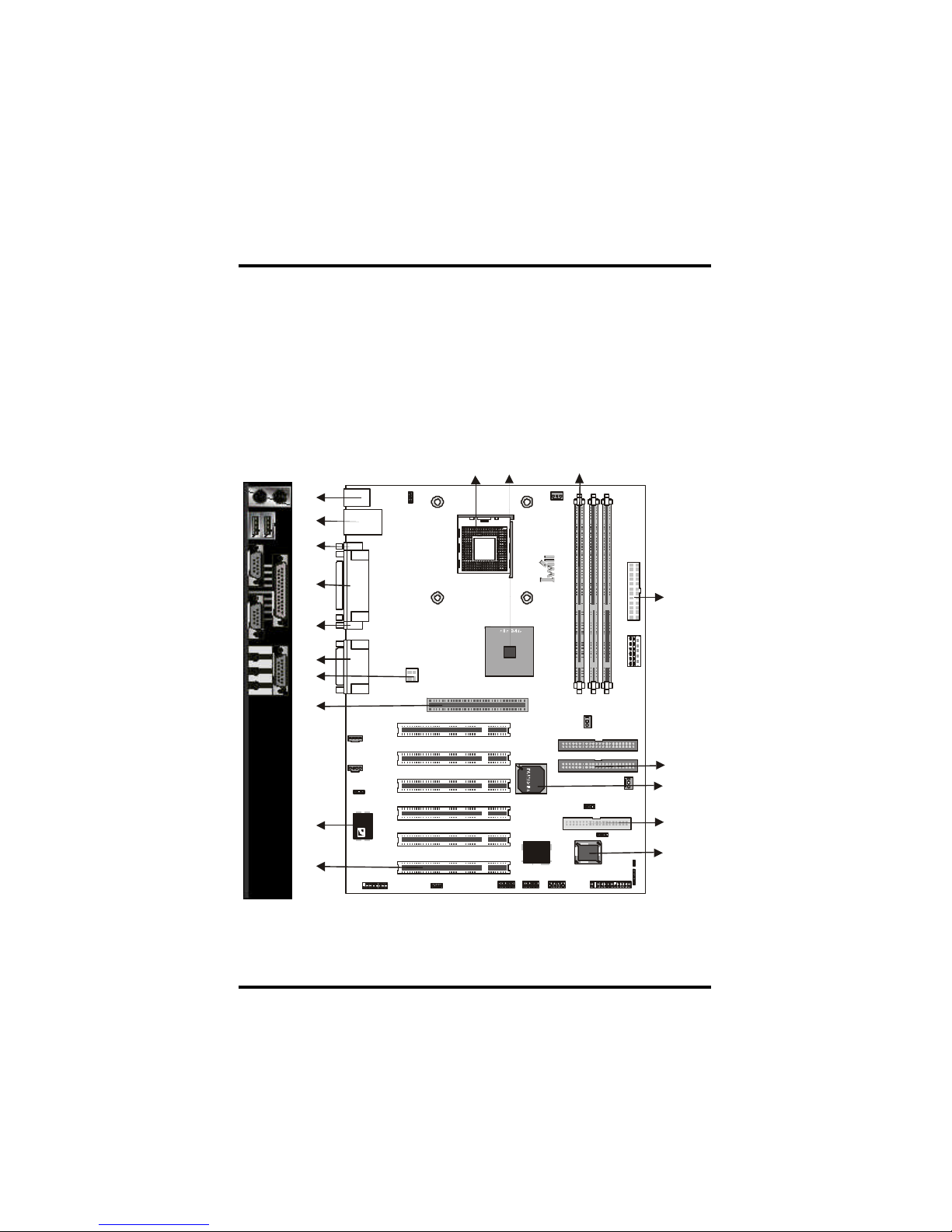

Layout

CD-IN

AUDIO

Aux-IN

ATX12v

mPGA478B

CPU

FCPUPS2_SB

AGP

PCI1

PCI2

PCI3

PCI4

PCI5

PCI6

WOL IR

CMOS

Flash

Fsys

FDD

IDE0

IDE1 Faux

ATXPWR

AT PWR

USB

SMART CARD

Front Pannel Connector

SPDIF

IWILL 6CH bracket

Chapter1QuickInstallation

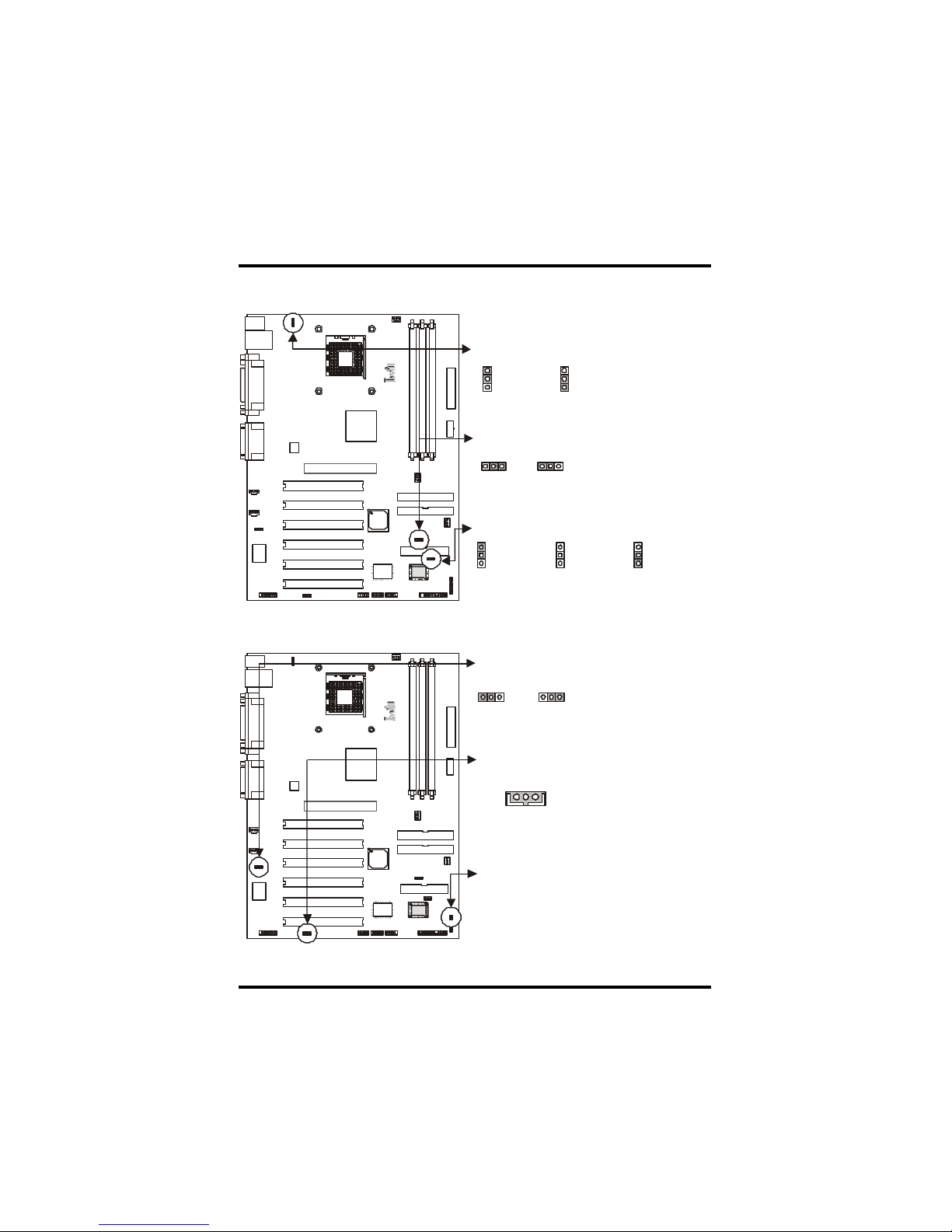

Jumpers/Connectors

PS2_SB

Clear CMOS

Flash Protect jumper

Disabled(Default) Enabled

Clear CMOS

Flashable by H/W Protected by H/WControl by BIOS

(Default)

Normal(Default)

Audio Jumper

Wake-ON-LAN

Case Open

Disabled

PIN Assignment

1: 5VSB

2: GND

3: LAN_Wake

Enabled

(Default)

1 1

2 2

3 3

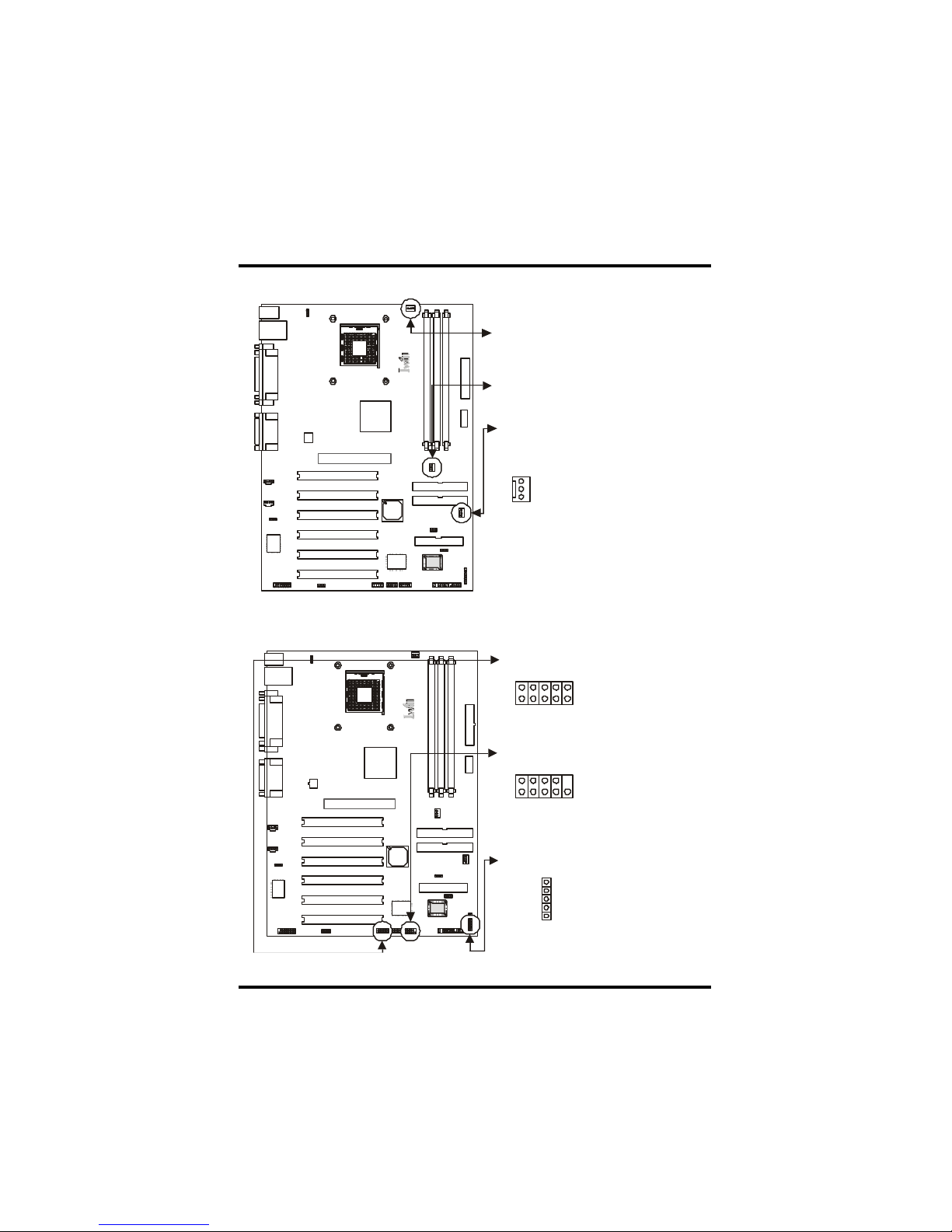

Chapter1QuickInstallation

CPU Fan

Auxiliary Fan

System Fan

PIN Assignment

1: GND

2: 12V

3: Sensor

Infrared connector (IR)

Internal USB connector

SMBus connector

PIN Assignment

1: SMBUSCLK

2: NC

3: GND

4: SMBDATA

5: VCC

PIN Assignment

1: 5V 6: NC

2: NC 7: CIRRX

3: IRRX 8: 5VSB

4: GND 9: NC

5: IRTX 10: NC

PINAssignment

1: 5V 6: 5V

2: USBDT2- 7: USBDT3-

3: USBDT2+ 8: USBDT3+

4: GND 9: GND

5: GND 10: NC

6 7 8 9

2 3 4 5

Chapter1QuickInstallation

Aux_In/ CD_In Connector

SMART CARD

SPDIF & IWILL 6CH bracket

PIN Assignment

1: +12V 2:NC

3: NC 4: SPDIFO

5: SPDIFI 6: GND

7: NC 8: SPGPIO

9: NC 10: NC

11: BASS 12: XREARR

13: GND 14: GND

15: CENTER 16: XREARL

PIN Assignment

1: Left Channel

2: GND

3: GND

4: Right Channel

PIN Assignment

1: VCC 6: GND

2: SCPWR- 7: SCRST-

3: NC 8: NC

4: SCIO 9: NC

5: SCCLK 10: SCDSNT

2 3 4 5

SPDIF

6 CH bracket

162

AT-PWR connector

ATX12V connector

PIN Assignment

1: GND

2: GND

3: GND

4: 3.3V

5: 3.3V

6: 5V

PIN Assignment

1: GND

2: GND

3: 12V

4: 12V

Chapter1QuickInstallation

PIN No. Definition PIN No Definition

1+3.3V 11 +3.3V

2+3.3V 12 -12V

3Ground 13 Ground

4+5V 14 Power Supply On

5 Ground 15 Ground

6+5V 16 Ground

7Ground 17 Ground

8Power Good 18 -5V

9+5V 19 +5V

10 +12V 20 +5V

ATXpowerconnector

Chapter1QuickInstallation

Function PIN NO. Definition

PWR_ON

(Power/Soft_Off) 1,13

ACPI(ACPI LED) 3,4 PIN 3:Anode

PIN 4:Cathode

ALED(IDE LED) 7,8 PIN 7:Anode

PIN 8:Cathode

RST(RESET) 11,12 PIN 11:RST

PIN 12:GND

PLED

(System PowerLED) 15,16,17 PIN 15:VCC

PIN 16:NC

PIN 17:GND

(Keyborard Lock) 18,19 PIN 18:KL

PIN 19:GND

SPKR(Speaker) 21,22,23,24

PIN 21:VCC

PIN 22:NC

PIN 23:NC

PIN 24:SPEAK

(BUZZ)

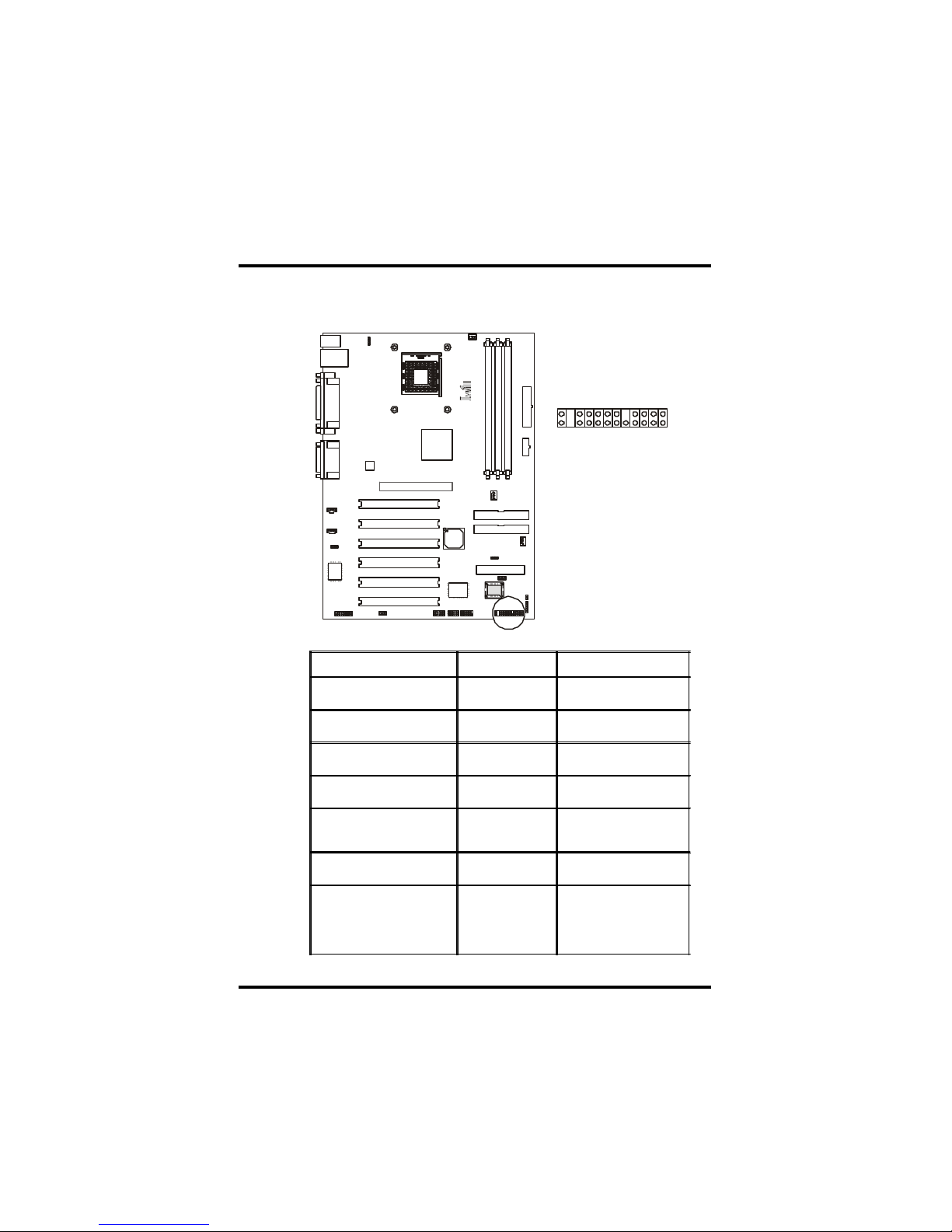

Front panel connector

Chapter2Feature

Features

MotherboardComponentsPlacement

C3DX

HSP56

CMI8

738
