3
English

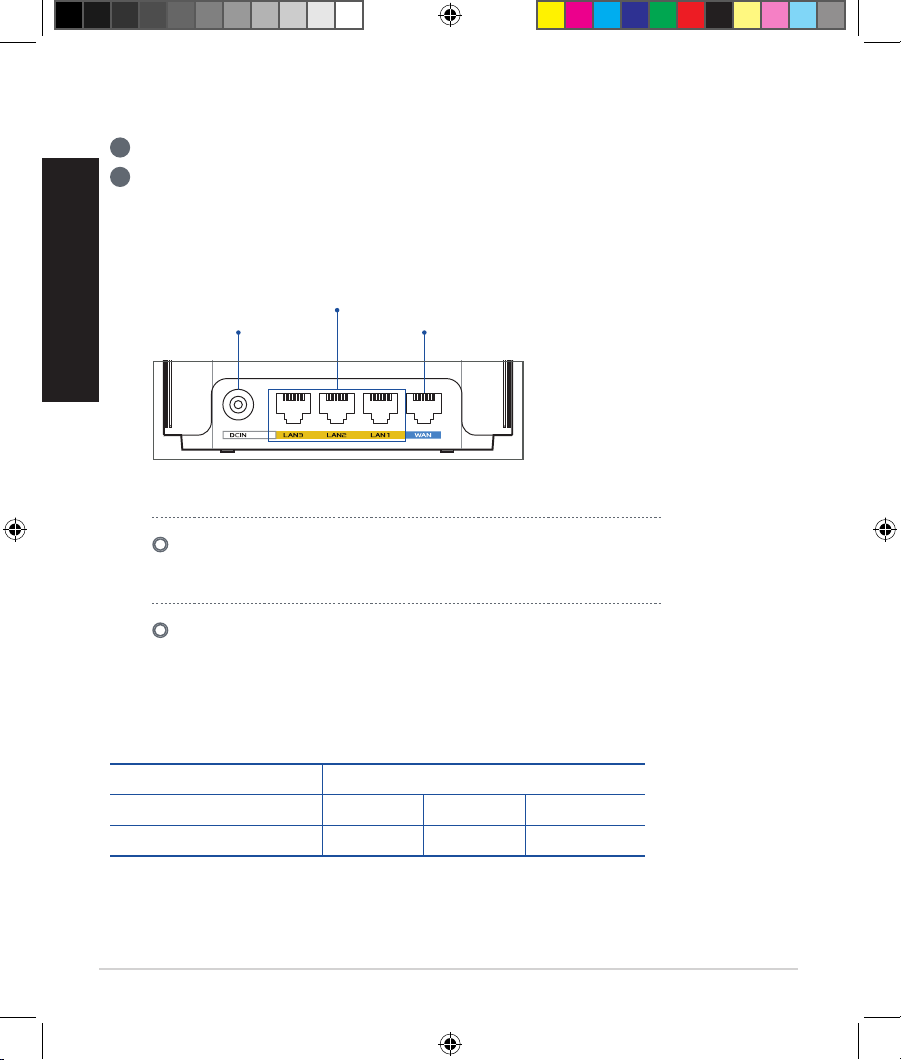

Hardware Explanations
1
Plug the adapter into the DCIN port.
2
The power LED will light up when your hardware is ready.
WAN port
Connect your modem to this port with a network cable.
LAN ports 1~3
Connect your PC to a LAN port with a network cable.
DC Power adapter DC Output: +12V with max 2A current
Operating Temperature 0~40oC Storage 0~70oC
Operating Humidity 50~90% Storage 20~90%
Specications:
Button and Port Explanations
LAN ports 1~3
DCIN port WAN port
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 3A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 3 2021/4/7 10:21:102021/4/7 10:21:10
4
English
Before Setup

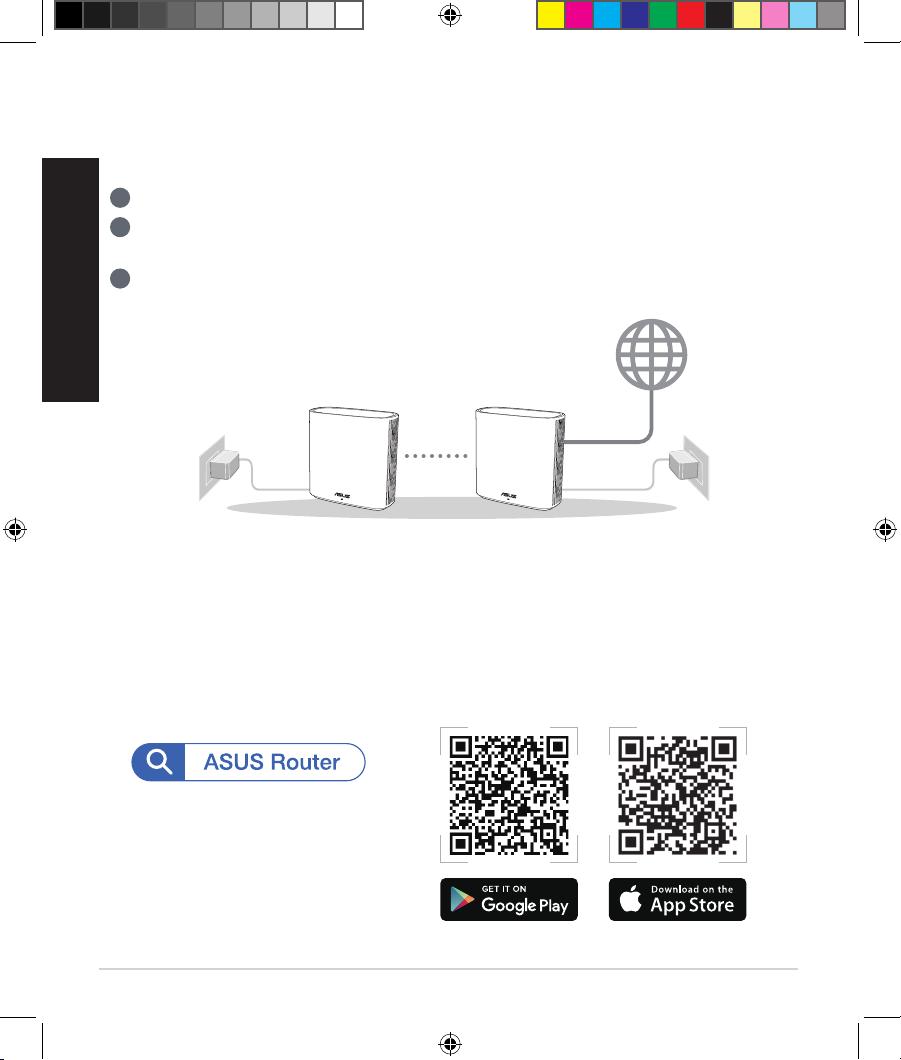

1
Find two ZenWiFi XD6, and power them on.
2
Use a network cable to connect your optical modem to the WAN port of either ZenWiFi XD6. This
ZenWiFi XD6 will be the AiMesh router, and the other ZenWiFi XD6 will be the AiMesh node.
3
The LED turns solid blue to indicate that ZenWiFi XD6 is ready for setup.
Preparing to set up an AiMesh WiFi system

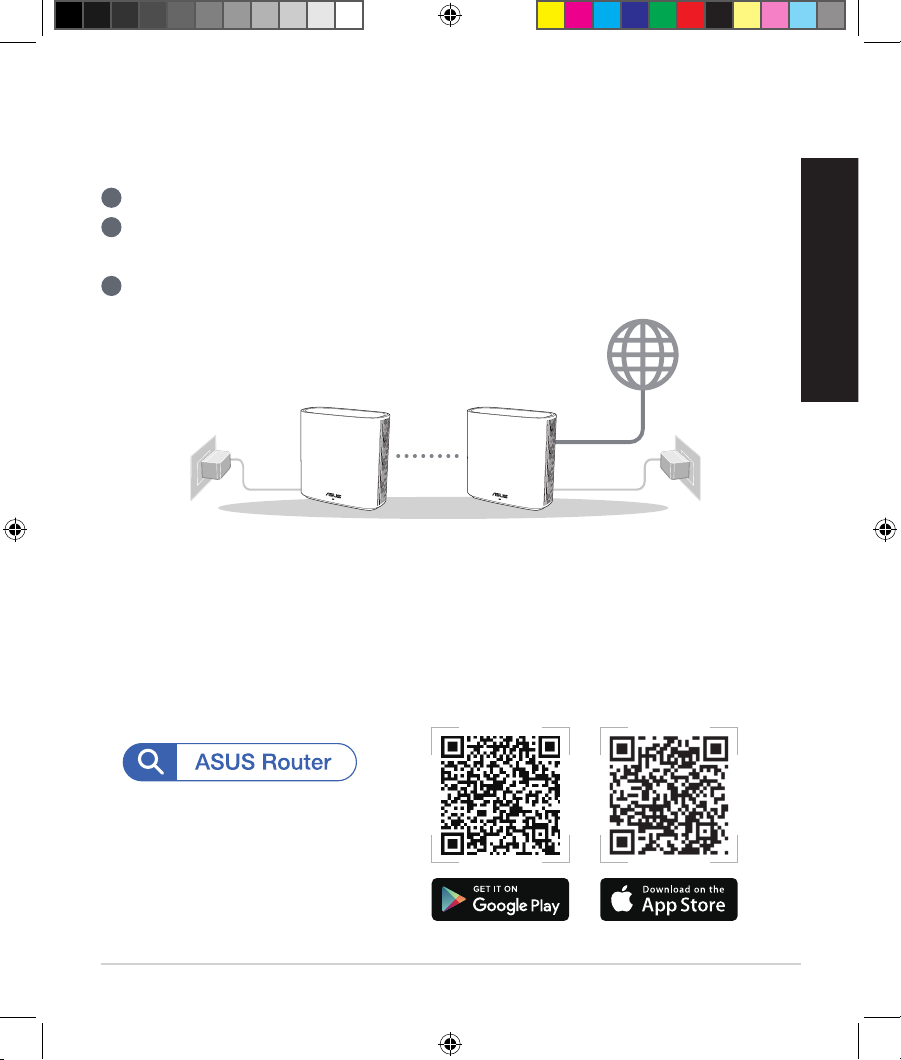

ASUS Router App
Download free ASUS Router APP to set up and manage your router(s).
AiMesh Setup Steps
AiMesh routerAiMesh node
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 4A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 4 2021/4/7 10:21:102021/4/7 10:21:10
5
English
AiMesh Setup Steps

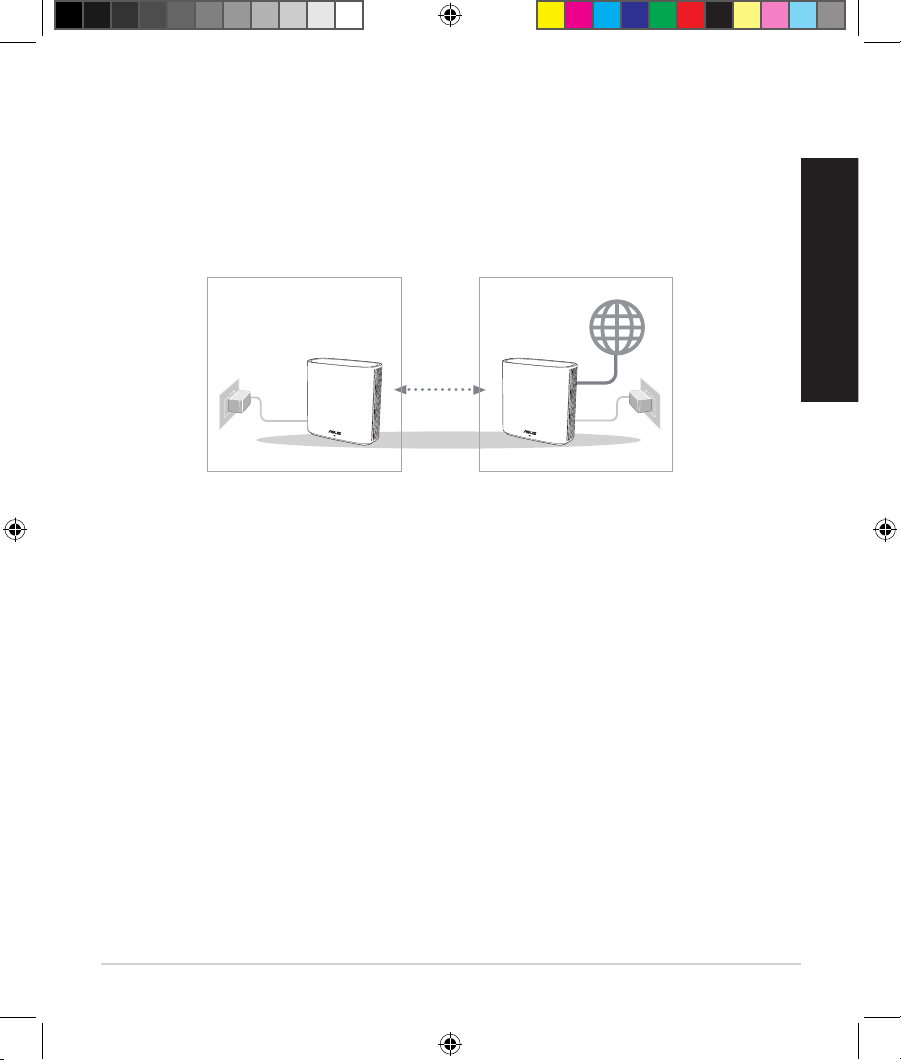

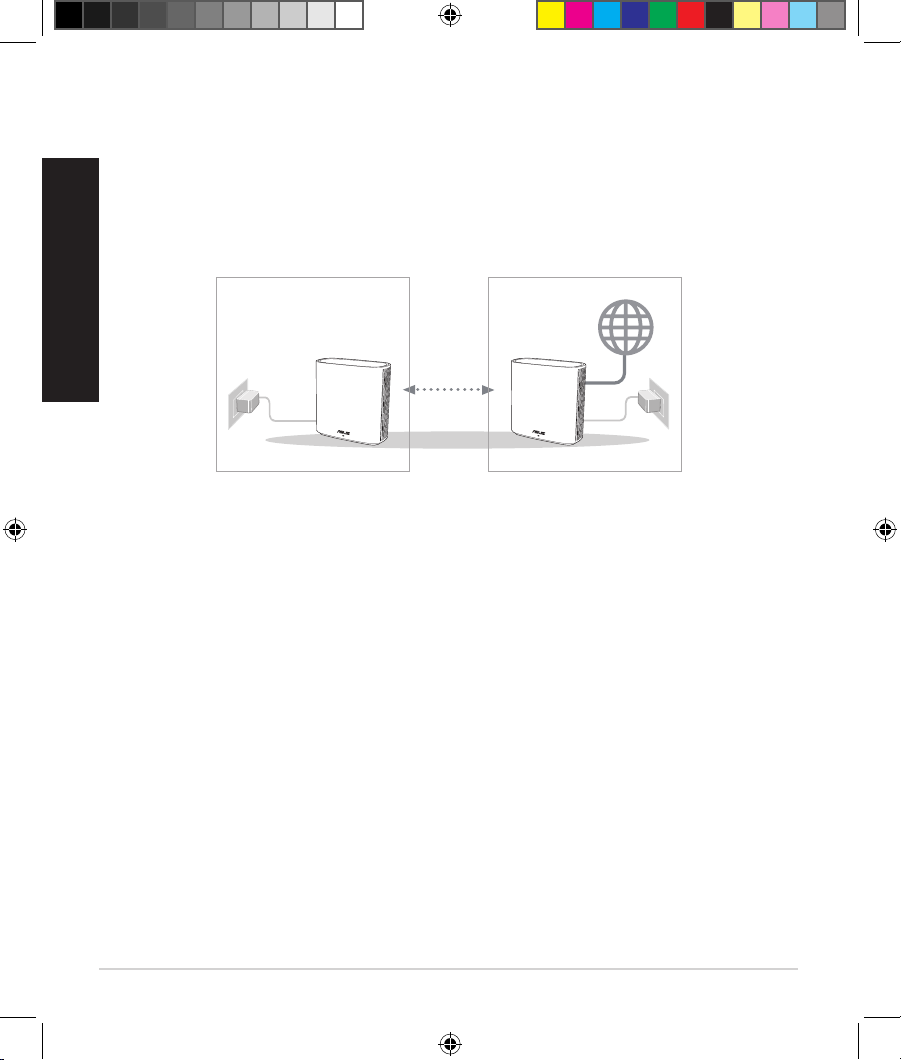

Prepare
01
Place your ZenWiFi XD6 router and node within 3 meters of each other during the
setup process.
AiMesh node
02
Keep your AiMesh node powered on and standby for AiMesh system settings.
Launch ASUS Router APP, and then follow the on-screen instructions to nish the
AiMesh setup.
Launching ASUS Router APP
03
within
3 meters
AiMesh routerAiMesh node
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 5A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 5 2021/4/7 10:21:102021/4/7 10:21:10
6
English
Troubleshooting
If your AiMesh router cannot nd any AiMesh node nearby or synchronization fails,
please check the following and try again.
a
Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3 meters.
b
Your AiMesh node is powered on.
Relocation
THE BEST PERFORMANCE
Locate the AiMesh router and node at the best place.
NOTES: To minimize interference, keep the routers away from devices like cordless phones, Bluetooth devices
and microwave ovens.
We recommend that you place the routers in an open or spacious location.

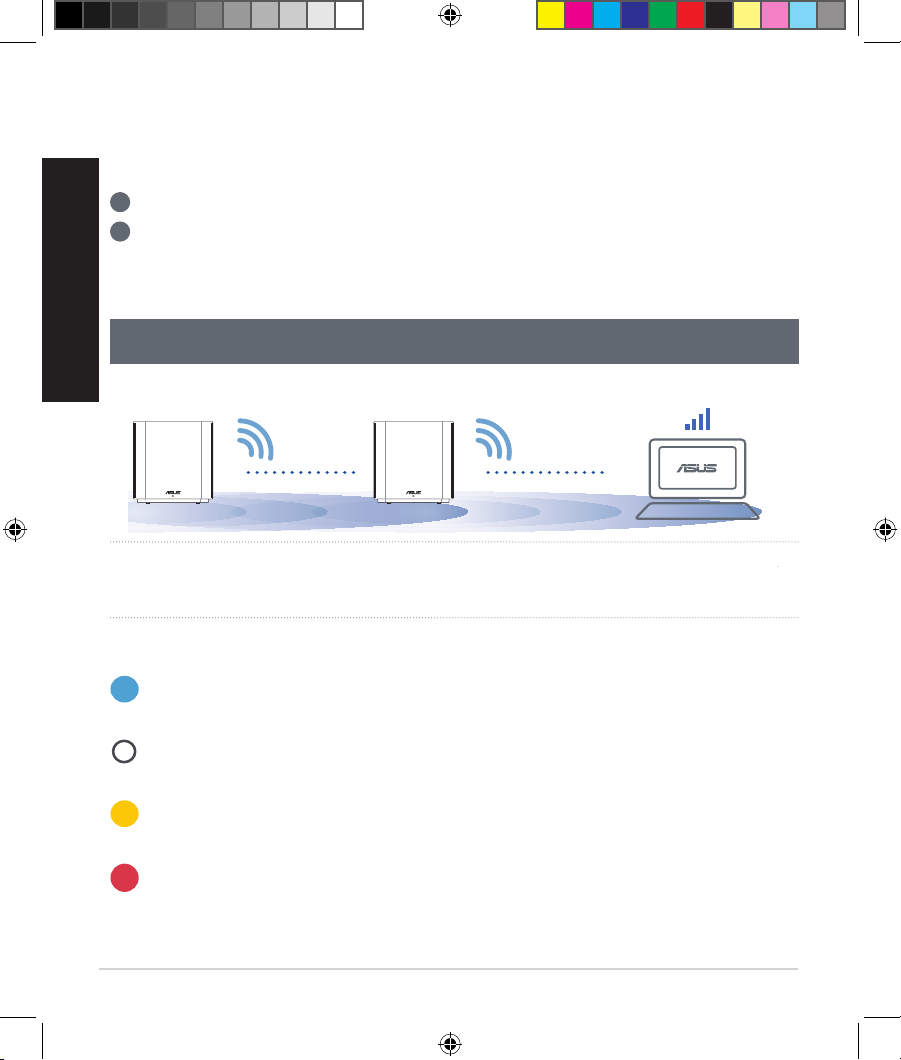

ZenWiFi XD6 LED indications
Solid blue:
Your ZenWiFi XD6 is ready for setup.
Solid red:
Your ZenWiFi XD6 router has no Internet connection. / Your node is disconnected
from the router.
Solid yellow:
The signal between your ZenWiFi XD6 router and the node is weak.
Solid white:
Your ZenWiFi XD6 is online and works well.
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 6A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 6 2021/4/7 10:21:112021/4/7 10:21:11
7
English
Could I setup wired connection between AiMesh routers (Ethernet backhaul)?
A: Yes. AiMesh system supports both wireless and wired connection between
AiMesh router and node to maximize throughput and stability. AiMesh analyzes the
wireless signal strength for each frequency band available, and then determines
automatically whether a wireless or wired connection is best to serve as the inter-
router connection backbone.
1
Follow the setup steps to establish a connection between the AiMesh router
and node via WiFi rst.
2
Place the node in the ideal locations
for best coverage. Run an Ethernet
cable from the LAN port of the
AiMesh router to the WAN port of
AiMesh node.
3
AiMesh system will auto-select the
best path for data transmission,
whether wired or wireless.
Q2:
FAQ
FREQUENTLY ASKED QUESTIONS
Q1:

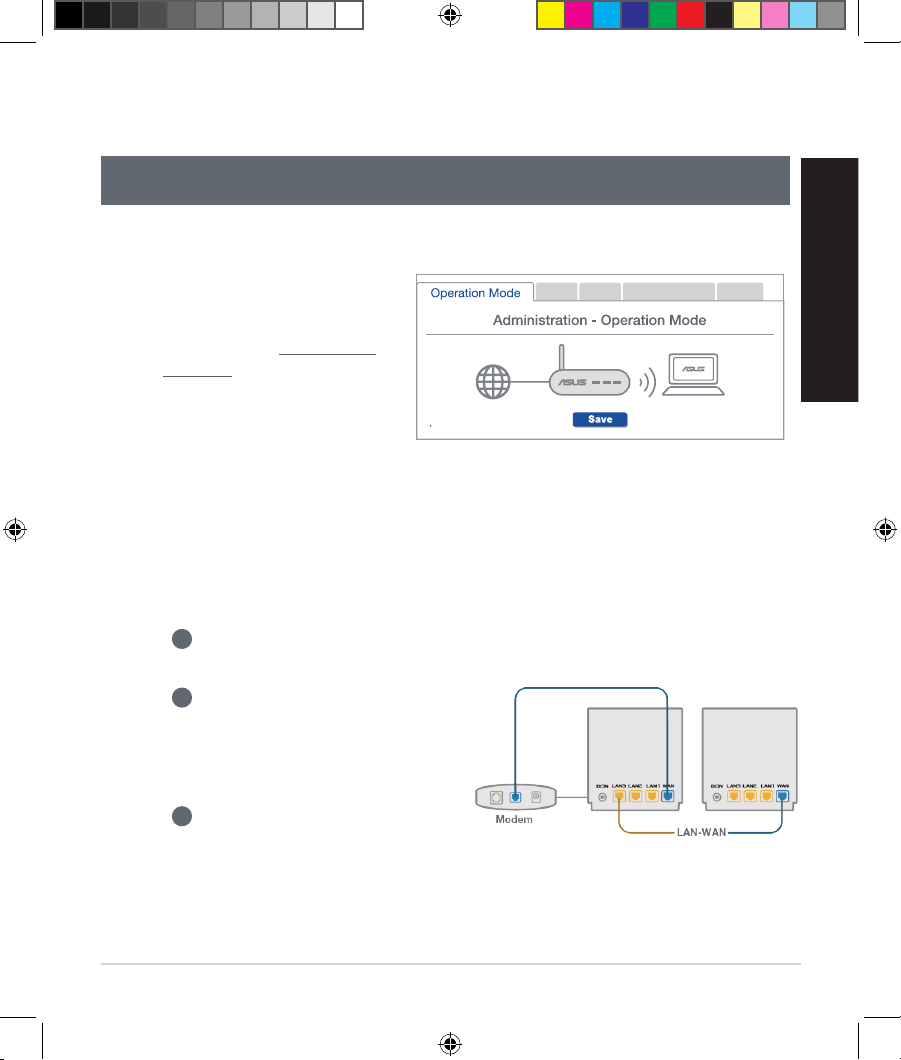

Does the AiMesh router support Access Point mode?
A: Yes. You can choose to set the
AiMesh router as router mode
or access point mode. Please
go to web GUI (http://router.
asus.com), and go to the page
Administration > Operation
Mode.
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 7A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 7 2021/4/7 10:21:112021/4/7 10:21:11
8
繁體中文
硬體說明
1 將電源變壓器插入無線路由器的電源插孔（DCIN）。
2當您的路由器準備就緒後，電源指示燈將會亮起。
WAN 連接埠
請使用網路線將您的數據機連接至此連接埠。
LAN 1~3 連接埠
請使用網路線將您的電腦連接至LAN連接埠。
直流電源變壓器 DC輸出：12V電壓，最大電流2A
運作溫度 0~40°C 儲存溫度 0~70°C
運作濕度 50~90% 儲存濕度 20~90%
規格：
按鈕及插孔說明
LAN 1~3 連接埠
電源插孔 WAN 連接埠
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 8A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 8 2021/4/7 10:21:112021/4/7 10:21:11
9
繁體中文
開始設定前
1 準備兩台ZenWiFiXD6並連接電源。
2 將網路線的一端插入您選配的數據機，另一端插入ZenWiFiXD6的WAN連接埠。
此ZenWiFiXD6即為AiMesh路由器，另一台ZenWiFiXD6即為AiMesh節點。
3 LED指示燈變為藍色恆亮說明ZenWiFiXD6已準備就緒。
準備設定 AiMesh WiFi 系統
ASUS Router App
下載免費的 ASUS Router APP 設定和管理您的路由器。
AiMesh 設定步驟
AiMesh路由器AiMesh節點
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 9A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 9 2021/4/7 10:21:122021/4/7 10:21:12
10
繁體中文
AiMesh 設定步驟
準備
01
設定過程中，請將ZenWiFiXD6節點距離ZenWiFiXD6路由器3公尺內放
置。
AiMesh 節點
02
設定AiMesh系統時，請保持路由器處於通電及運作狀態。
開啟ASUSRouterApp，並依照螢幕指示完成AiMesh設定。
開啟 ASUS Router App
03
3公尺內
AiMesh路由器AiMesh節點
A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 10A18146_ZenWiFi_XD6_no_wallmount_booklet_2pk_QSG.indb 10 2021/4/7 10:21:122021/4/7 10:21:12
