ASUSTeK COMPUTER ROG Rapture GT-AC5300 Bedienungsanleitung
E12817
2
Copyright © 2017 ASUSTeK Computer Inc. All Rights Reserved.
No part of this manual, including the products and software described
in it, may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ASUSTeK Computer Inc. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired,
modified or altered, unless such repair, modification of alteration is authorized
in writing by ASUS; or (2) the serial number of the product is defaced or
missing.
ASUS PROVIDES THIS MANUAL “AS IS”WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS
AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR
PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE
AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A
COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY
FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be
registered trademarks or copyrights of their respective companies, and are used
only for identification or explanation and to the owners’benefit, without intent
to infringe.
E12817
First Edition
May 2017
3
Table of contents
1 Getting to know your wireless router
1.1 Welcome! ........................................................................................7
1.2 Package contents.........................................................................7
1.3 Your wireless router.....................................................................8
1.4 Positioning your router........................................................... 10
1.5 Setup Requirements ................................................................ 11
2 Getting started
2.1 Router Setup............................................................................... 12
A. Wired connection..................................................................12
B. Wireless connection.............................................................13
2.2 Quick Internet Setup (QIS) with Auto-detection ........... 15
2.3 Connecting to your wireless network................................ 18
3 Configuring the General Settings of ROG
Gaming Center
3.1 Logging into the Web GUI ..................................................... 19
3.2 Dash Board ................................................................................. 21
3.3 Game IPS ..................................................................................... 22
3.3.1 Configuring Game IPS .........................................................23
3.3.2 Blocking Malicious Sites .....................................................25
3.3.3 Two-Way IPS............................................................................26
3.3.4 Infected Device Prevention and Blocking....................27
3.3.5 Setting up Parental Control...............................................28
3.4 Game Boost................................................................................. 31
3.4.1 QoS.............................................................................................32
3.4.2 Web History.............................................................................33
4
Table of contents
3.5 Game Private Network ............................................................ 34
3.6 Game Profile................................................................................ 36
3.7 Game Radar................................................................................. 38
3.8 WiFi Radar .................................................................................... 40
3.8.1 WiFi Site Survey......................................................................41
3.8.2 Wireless Channel Statistics ................................................42
3.8.3 Advanced Troubleshooting...............................................42
3.9 VPN................................................................................................. 43
3.10 Traffic Analyzer........................................................................... 44
4 Configuring the Advanced Settings
4.1 Using the Network Map ......................................................... 45
4.1.1 Setting up the wireless security settings......................46
4.1.2 Managing your network clients.......................................47
4.1.3 Monitoring your USB device.............................................49
4.2 Wireless......................................................................................... 51
4.2.1 General......................................................................................51
4.2.2 WPS ............................................................................................53
4.2.3 Bridge ........................................................................................55
4.2.4 Wireless MAC Filter ...............................................................57
4.2.5 RADIUS Setting ......................................................................58
4.2.6 Professional .............................................................................59
4.3 Creating a Guest Network...................................................... 63
4.4 LAN................................................................................................. 65
4.4.1 LAN IP ........................................................................................65
4.4.2 DHCP Server............................................................................66
4.4.3 Route .........................................................................................68
4.4.4 IPTV ............................................................................................69
4.5 WAN ............................................................................................... 70
4.5.1 Internet Connection.............................................................70
5
Table of contents
4.5.2 Dual WAN .................................................................................73
4.5.3 Port Trigger..............................................................................74
4.5.4 Virtual Server/Port Forwarding........................................76
4.5.5 DMZ............................................................................................79
4.5.6 DDNS .........................................................................................80
4.5.7 NAT Passthrough...................................................................81
4.6 Using the USB Application..................................................... 82
4.6.1 Using AiDisk ............................................................................83
4.6.2 Using Servers Center............................................................85
4.6.3 3G/4G ........................................................................................90
4.7 Using AiCloud 2.0...................................................................... 91
4.7.1 Cloud Disk................................................................................92
4.7.2 Smart Access...........................................................................94
4.7.3 Smart Sync...............................................................................95
4.8 IPv6................................................................................................. 96
4.9 Firewall.......................................................................................... 97
4.9.1 General......................................................................................97
4.9.2 URL Filter ..................................................................................97
4.9.3 Keyword filter .........................................................................98
4.9.4 Network Services Filter .......................................................99
4.9.5 IPv6 Firewall ......................................................................... 100
4.10 Administration .........................................................................101
4.10.1 Operation Mode ................................................................. 101
4.10.2 System.................................................................................... 102
4.10.3 Firmware Upgrade............................................................. 103
4.10.4 Restore/Save/Upload Setting ........................................ 103
4.11 System Log ................................................................................104
4.12 Smart Connect .........................................................................105
4.12.1 Setting up Smart Connect .............................................. 105
4.12.2 Smart Connect Rule .......................................................... 106
6
5 Utilities
5.1 Device Discovery.....................................................................109
5.2 Firmware Restoration ............................................................110
5.3 Setting up your printer server ............................................111
5.3.1 ASUS EZ Printer Sharing .................................................. 111
5.3.2 Using LPR to Share Printer .............................................. 115
5.4 Download Master....................................................................120
5.4.1 Configuring Bit Torrent download settings.............. 121
5.4.2 NZB settings......................................................................... 122
6 Troubleshooting
6.1 Basic Troubleshooting...........................................................123
6.2 Frequently Asked Questions (FAQs) ................................125
Appendices
Notices .....................................................................................................134
ASUS Contact information..................................................................149
Networks Global Hotline Information.............................................150
7
1 Getting to know your wireless
router
1.1 Welcome!
Thank you for purchasing ROG Rapture GT-AC5300 Wireless
Router!
The stylish GT-AC5300 features 2.4GHz, 5GHz-1 and 5 GHz-2
triple bands for an unmatched concurrent wireless HD streaming;
SMB server, UPnP AV server, and FTP server for 24/7 file sharing;
a capability to handle 300,000 sessions; and the ASUS Green
Network Technology, which provides up to 70% power-saving
solution.
1.2 Package contents
NOTES:
• Ifanyoftheitemsisdamagedormissing,contactASUSfor
technical inquiries and support, Refer to the ASUS Support
Hotline list at the back of this user manual.
• Keeptheoriginalpackagingmaterialincaseyouwouldneed
future warranty services such as repair or replacement.
GT-AC5300 Wireless Router AC adapter
Network cable (RJ-45) Quick Start Guide
8
1.3 Your wireless router
Power button
Press this button to power on or off the system.
Power (DC-IN) port
Insert the bundled AC adapter into this port and connect your router to a power source.
USB 3.0 port
Insert USB 3.0 devices such as USB hard disks or USB flash drives into this port.
WAN (Internet) port
Connect a network cable into this port to establish WAN connection.
Gaming ports (1~2)
Connect network cables into these ports to prioritize the packets.
Link Aggregation ports (5~6)
Connect network cables into these ports to use link aggregation (802.11ad).
LAN ports (3~4,7~8)
Connect network cables into these ports to establish LAN connection.
Power LED
Off: No power.
On: Device is ready.
Flashing slow: Rescue mode.
2.4GHz LED
Off: No 2.4GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
9
NOTES:
• Useonlytheadapterthatcamewithyourpackage.Usingother
adapters may damage the device.
• Specifications:
DC Power adapter DC Output: +19V with max 3.42A current
Operating
Temperature 0~40oCStorage 0~70oC
Operating Humidity 50~90% Storage 20~90%
5GHz LED
Off: No 5GHz signal.
On:Wireless system is ready.
Flashing:Transmitting or receiving data via wireless connection.
WAN (Internet) LED
Red: No IP or no physical connection.
On: Has physical connection to a wide area network (WAN).
LAN LED
Off: No power or no physical connection.
On: Has physical connection to a local area network (LAN).
WPS LED
Off:WPS verification process is off or completed.
Flashing:WPS verification process is activated.
LED On/Off button
Press this button to turn on/off the LEDs on the panel.
WPS button
This button launches the WPS Wizard.
Wi-Fi On/Off button
Press this button to turn on /off the Wi-Fi connection.
10

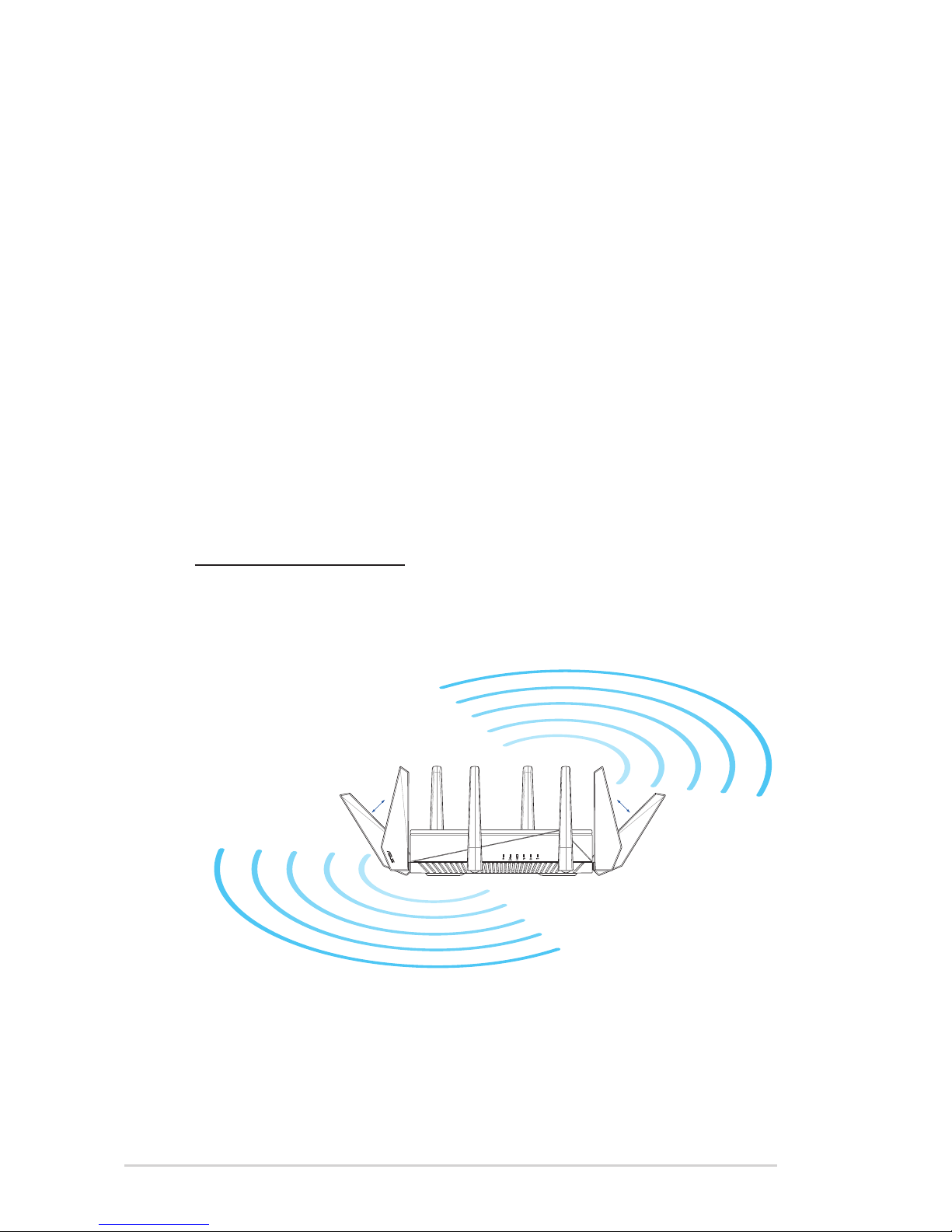

1.4 Positioning your router
For the best wireless signal transmission between the wireless
router and the network devices connected to it, ensure that you:
• Placethewirelessrouterinacentralizedareaforamaximum
wireless coverage for the network devices.
• Keepthedeviceawayfrommetalobstructionsandawayfrom
direct sunlight.
• Keepthedeviceawayfrom802.11gor20MHzonlyWi-Fi
devices, 2.4GHz computer peripherals, Bluetooth devices,
cordless phones, transformers, heavy-duty motors, fluorescent
lights, microwave ovens, refrigerators, and other industrial
equipment to prevent signal interference or loss.
• Alwaysupdatetothelatestfirmware.VisittheASUSwebsiteat
http://www.asus.com to get the latest firmware updates.
• Toensurethebestwirelesssignal,orientthefourdetachable
antennas as shown in the drawing below.
45°45°
Inhaltsverzeichnis
