Asymptote EF600 Series Bedienungsanleitung

EF600 Series Instruction Manual

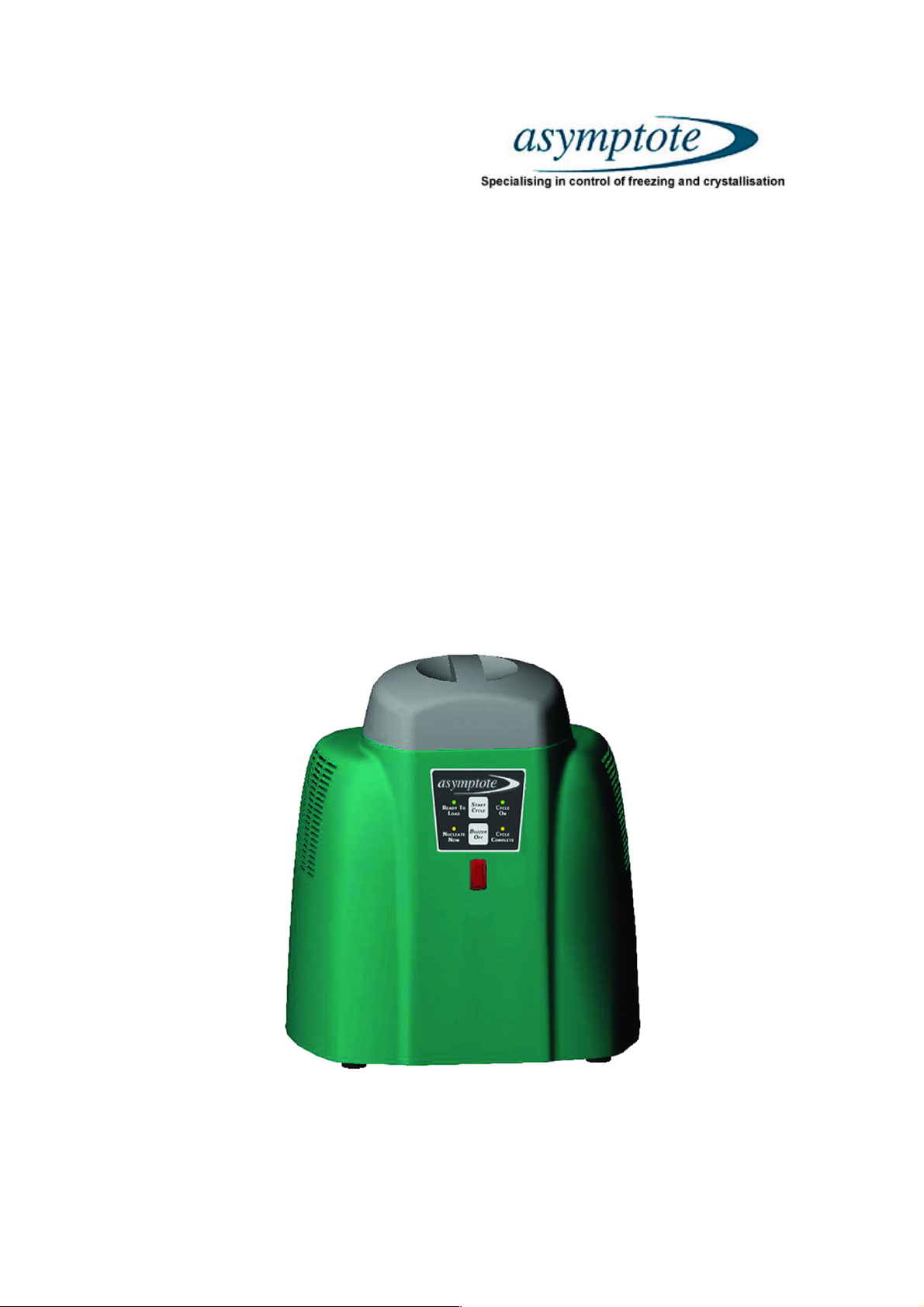

Asymptote nitrogen-free controlled rate freezer

Asymptote Ltd

St John's Innovation Centre

Cowley Road

Cambridge CB4 0WS

Tel: +44 1223 421161 Fax: +44 1223 421166

e-mail: info@asymptote.co.uk

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

Contents

1. INTRODUCTION ................................................................................................5

1.1 WARNING..............................................................................................................6

1.2 SAFETY PRECAUTIONS...........................................................................................6

1.3 MAINTENANCE.......................................................................................................6

2. INSTALLING THE FREEZER UNIT ...............................................................7

2.1 UNPACKING ...........................................................................................................7

2.2 POSITIONING THE FREEZER....................................................................................7

2.3 ELECTRICAL CONNECTION ....................................................................................7

2.4 SWITCHING THE FREEZER ON .................................................................................7

4. USER INTERFACE (EF600-01, EF600-10).....................................................10

4.1 SELECTING THE LOGGING INTERVAL (EF600-01, EF600-10) AND FREEZING

PROFILE (EF600-10) ............................................................................................10

4.2 LOG FILE NAMES (EF600-01, EF600-10).............................................................11

5. OPERATING PROCEDURE FOR THE EF600 FREEZER .........................13

5.1 PRE-OPERATION CHECKS......................................................................................13

5.2 PREPARING THE NUCLEATING TOOL .....................................................................13

5.3 PREPARING THE STRAWS......................................................................................13

5.4 LOADING THE STRAWS ........................................................................................13

5.5 STARTING THE DATA LOGGING (EF600-01, EF600-10) .......................................14

5.6 STARTING THE FREEZING CYCLE ..........................................................................14

5.7 SAMPLE NUCLEATION..........................................................................................15

5.8 END OF CYCLE .....................................................................................................15

5.9 STOPPING THE DATA LOGGING .............................................................................16

5.10 RESTARTING THE CYCLE ......................................................................................16

5.11 CLEANING THE UNIT ............................................................................................16

6. FREEZING CYCLES ........................................................................................17

6.1 HUMAN EMBRYO CRYOPRESERVATION ................................................................17

6.2 HUMAN OOCYTE CRYOPRESERVATION .................................................................17

6.3 HUMAN BLASTOCYST CRYOPRESERVATION .........................................................18

6.4 HUMAN EMBRYONIC STEM CELL CRYOPRESERVATION.........................................18

6.5 HUMAN SPERMATOZOA CRYOPRESERVATION –LINEAR COOLING ........................19

6.6 HUMAN SPERMATOZOA CRYOPRESERVATION –NON-LINEAR COOLING ................20

7. REFERENCES....................................................................................................21

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

APPENDIX 1: TROUBLESHOOTING ..................................................................21

A1.1 FREEZING CYCLE WILL NOT START ....................................................................22

A1.2 NO POWER TO UNIT ...........................................................................................22

A1.3 DATA LOGGING DOES NOT FUNCTION ................................................................22

A1.4 STRAWS STUCK TO SAMPLE PLATE ....................................................................22

APPENDIX 2: INSTALLING ASYMPTOTE’S DATA LOGGING SOFTWARE

......................................................................................................................................24

A2.1 SYSTEM REQUIREMENTS ...................................................................................24

A2.2 INSTALLING THE PROGRAM ...............................................................................24

APPENDIX 3: UNINTERRUPTIBLE POWER SUPPLY (UPS).........................29

APPENDIX 4: CRYOPEN NUCLEATING TOOL OPERATION......................29

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

List of Figures

Figure 3 – Desktop shortcut icon...................................................................................9

Figure 4 – User interface..............................................................................................10

Figure 4.1 – Freezing profile .......................................................................................11

Figure 4.2 – Log file names .........................................................................................12

Figure 5.4 – Straws positioned in sample plate ...........................................................14

Figure 5.7 – Nucleation of straws................................................................................15

Figure 6.1 – Pre-programmed human embryo freezing cycle .....................................17

Figure 6.2 – Pre-programmed human oocyte freezing cycle.......................................18

Figure 6.3 – Pre-programmed human blastocyst freezing cycle..................................18

Figure 6.4 – Pre-programmed human embryonic stem cell freezing cycle .................19

Figure 6.5 – Pre-programmed human sperm freezing cycle........................................19

Figure 6.6 – Pre-programmed human spermatozoa non-linear freezing cycle............20

Figure A2.1 – Installation box 1 ..................................................................................24

Figure A2.2 – Installation box 2 ..................................................................................25

Figure A2.3 – Installation box 3 ..................................................................................25

Figure A2.4 – Installation box 4 ..................................................................................26

Figure A2.5 – Installation box 5 ..................................................................................26

Figure A2.6 – Installation box 6 ..................................................................................27

Figure A2.7 – Installation box 7 ..................................................................................27

Figure A2.8 – Installation box 8 ..................................................................................28

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

1. Introduction

There are three versions of the Asymptote controlled rate freezer:

EF600-00: Stand alone freezer with no data logging capacity.

The EF600-00 is pre-loaded with a single default program for the

cryopreservation of human embryos (Lasalle et al., 1985). An alternative

program may be specified at the time of ordering.

EF600-01: Freezer with data logging to a dedicated PC (supplied by

Asymptote Ltd.).

The EF600-01 is pre-loaded with a single default program for the

cryopreservation of human embryos (Lasalle et al., 1985). An alternative

program may be specified at the time of ordering.

EF600-10: Freezer with data logging to a dedicated PC (supplied by

Asymptote Ltd.).

The EF600-10 is pre-loaded with six standard freezing programs (embryo,

oocyte, blastocyst, stem cell, spermatozoa linear program and spermatozoa

non-linear program), which the user selects in the supplied data logging

software. Additional programs, up to a total of 10, may be specified at the

time of ordering.

This manual includes operating instructions for all three versions. The following

optional extras may also be supplied with the EF600 series freezer:

Cryopen nucleating tool (EF-611)

Uninterruptible power supply (UPS) (EF-613)

Conversion kit to allow portability (EF-614)

Data logging software for upgrading the EF600-00 (EF-620) and EF600-01

(EF-621)

Software for programming linear temperature profiles (EF-622)

Software for programming non-linear temperature profiles (EF-023)

Operating instructions for these optional extras are given in Appendices 2 - 7.

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

1.1 Warning

It is essential that this instruction manual is read before using the EF600

freezer. Particular attention should be paid to the safety precautions

below.

1.2 Safety precautions

Operating the freezer

Temperatures down to -100ºC are reached within this equipment. Ensure that

protective gloves are worn when accessing the freezing plate, during and after

the freezing cycle, to avoid cold burns. Do not move the freezer whilst

operating as the baseplate will be hot.

Operating the cryopen nucleating tool

Read the instruction manual and safety instructions supplied with the cryopen

nucleating tool. Ensure that gloves are worn during use and never point the

cryopen towards the face.

Plate temperature

The plate temperature should never exceed 30ºC. If it does, turn the freezer

off immediately.

1.3 Maintenance

A service contract on the EF600 series freezers is available. Contact

[email protected] for full details. Please note that there are no user

serviceable parts within the EF600 and that breaking the security tags

invalidates any warranties.

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

2. Installing the Freezer Unit

2.1 Unpacking

Carefully unpack the Asymptote EF600 controlled rate freezer from its carton

and place upon a suitable bench. Only lift the freezer by placing hands

underneath the freezer; do not move the freezer by pressing on the casework.

Inspect the unit to ensure that no damage has occurred during transit. The

following items should be included in the carton:

EF600-00:

a) EF600 freezer unit and lid

b) Instruction manual – on CD

c) Power lead

EF600-01 and EF600-10:

a) EF600 freezer unit

b) Instruction manual – on CD

c) Power lead

d) Communications cable

e) Laptop computer with data logging software for either EF600-01 or

EF600-10 installed

f) CD back up of installed software

Optional extras, such as a cryopen nucleating tool and UPS, will have been

supplied with the EF600 freezer if ordered.

If the unit shows any sign of damage, or if any of the items listed above are

missing, please contact the supplier immediately.

2.2 Positioning the freezer

Ensure the freezer is positioned so that the vents at the side of the freezer unit

and the air outlet at the rear of the freezer unit are not blocked. Leave a

clearance of at least 200 mm.

2.3 Electrical connection

For normal connection to the mains, plug the power lead into the rear of the

freezer unit and connect to an appropriate single-phase mains supply. If an

UPS is being used please refer to Appendix 3. If operating as a portable unit

please read Appendix 5 before using the freezer.

2.4 Switching the freezer on

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

Connect the communications lead (9-pin D-type male to female) between com

port 1 (the serial port) on the computer and the back of the freezer. Power-up

the freezer unit using the ON/OFF switch on the front panel of the unit (figure

2.4). The switch illuminates red when the power is switched on.

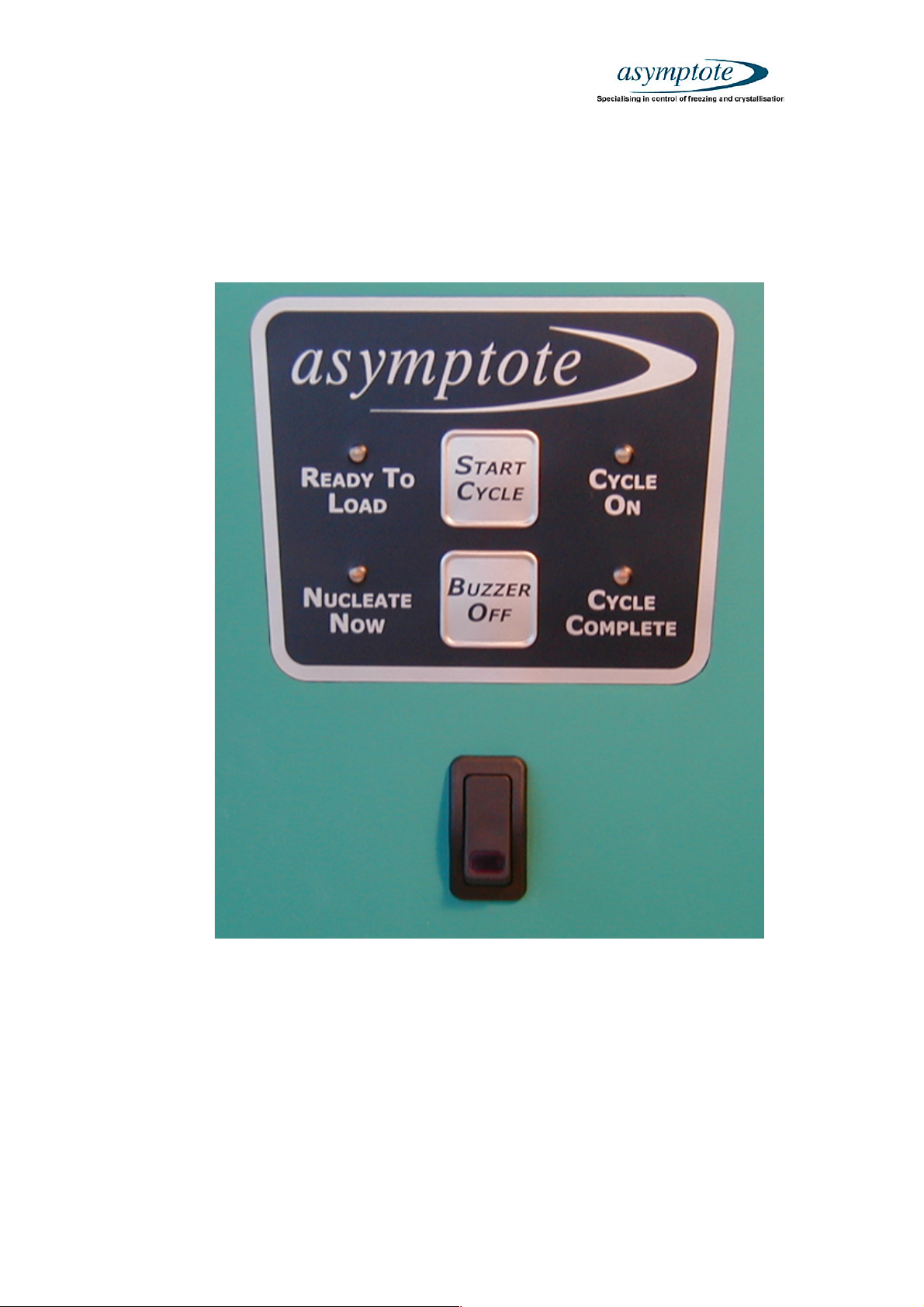

Figure 2.4 – Front panel of freezer unit (keypad and ON/OFF switch)

3. Starting Asymptote’s Data Logging Software (EF600-01,

EF600-10)

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

Start the software by either double-clicking on the shortcut icon on your

desktop (figure 3) or by selecting ‘Asymptote Data Logger’ from the program

list in the start menu on your computer.

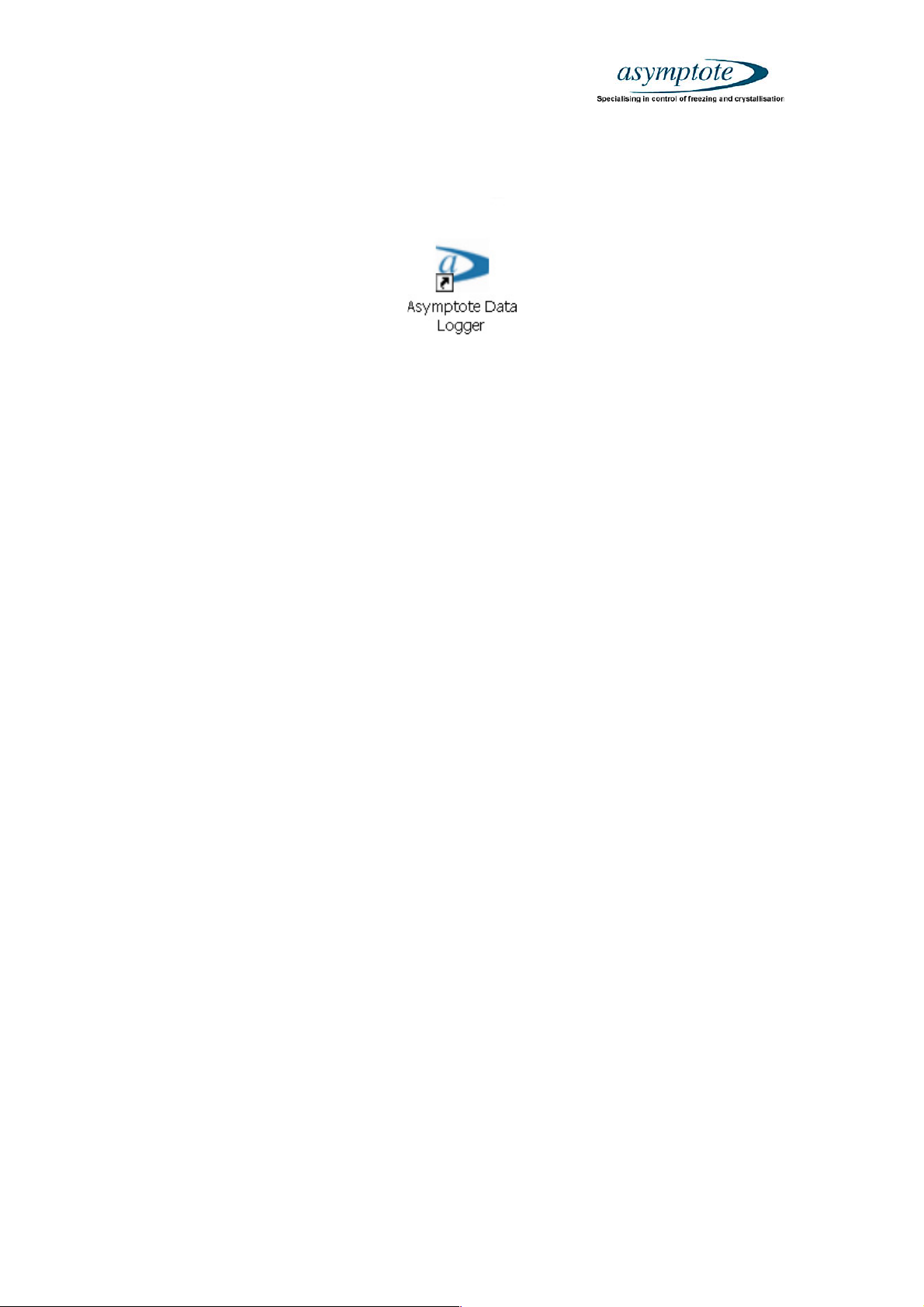

Figure 3 – Desktop shortcut icon

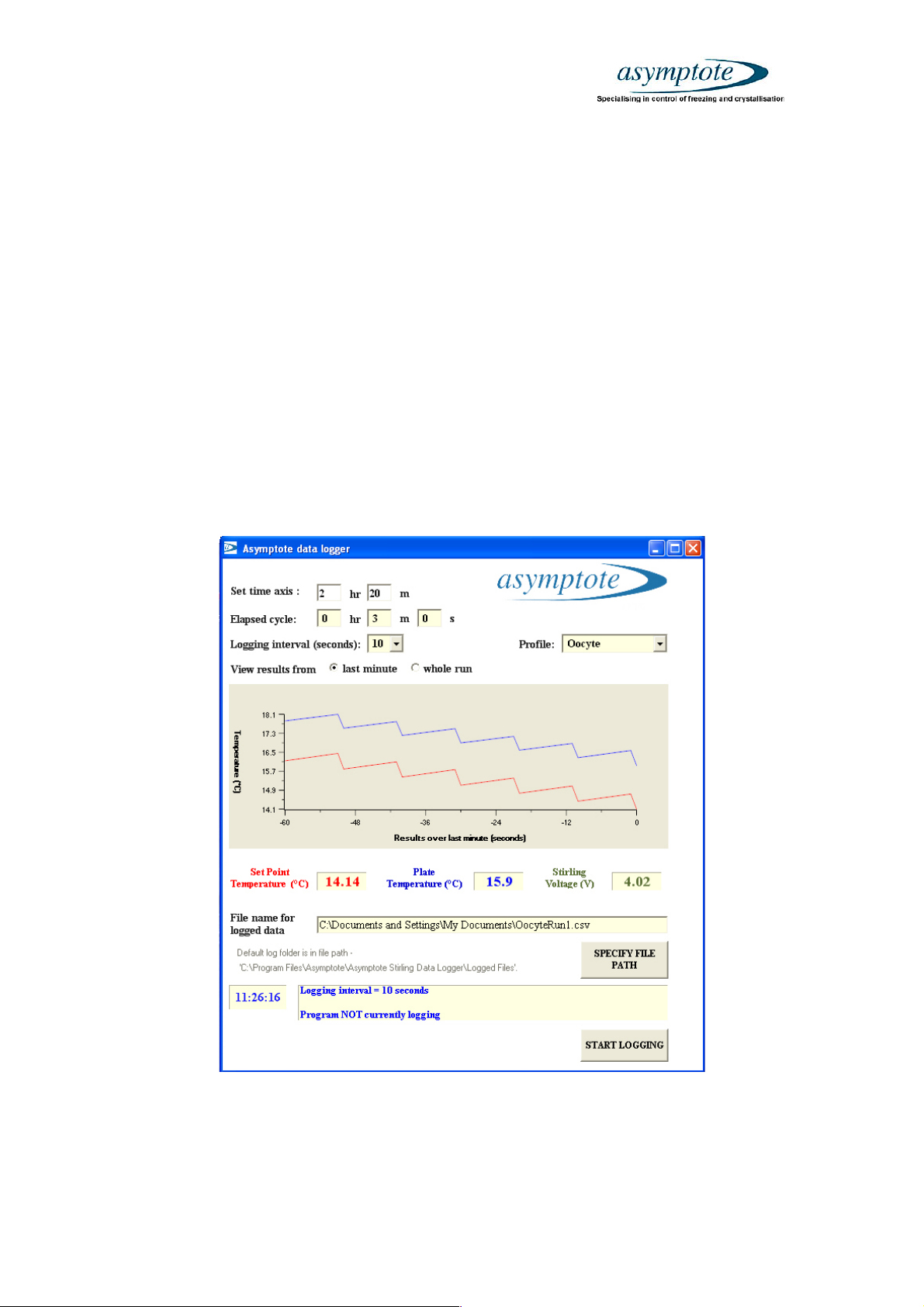

The program window will open. Initial values for the ‘Set Point

Temperature’, ‘Plate Temperature’ and ‘Stirling Voltage (V)’ will be

displayed as ‘999.00’; these will automatically update once communications

between the freezer and the computer have been established.

EF600 Instruction Manual

Asymptote Ltd.

St John’s Innovation Centre, Cowley Road, Cambridge, CB4 0WS, UK

Tel: +44 1223 421161, Fax: +44 1223 421166, E-mail: info@asymptote.co.uk

4. User Interface (EF600-01, EF600-10)

The current ‘Set Point Temperature’ of the freezer is displayed in red on the

left of the screen. This is the required temperature of the sample plate.

The current ‘Plate Temperature’ is displayed in blue in the centre of the

screen. This is the actual temperature of the sample plate.

The current ‘Stirling Voltage (V)’ is displayed in green on the right of the

screen. This is the output level of the Stirling Engine and is only provided for

diagnostic engineering purposes only.

The graph can show either the last minute of the cycle or the whole run.

Check ‘last minute’ or ‘whole run’ to switch between these features. The time

elapsed and the total run time of the cycle is displayed in the top left hand

corner of the user interface. The bottom of the user interface displays

information on the status of the cycle.

Figure 4 – User interface

4.1 Selecting the logging interval (EF600-01, EF600-10) and freezing profile

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Asymptote Gefrierschrank Handbücher

Asymptote

Asymptote VIA Freeze Series Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
