Atdec AWM-P40X Bedienungsanleitung

AWM-P40X Page 1 of 2

Installation Guide

AWM-P40X

AWM Post 40 Stackable

COMPONENT CHECKLIST

REQUIRED TOOLS

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is compatible with Atdec AWM products, including the AWM Stack Kit (AWM-X40).

! When using the AWM Stack Kit a heavy duty desk clamp must be used for the post (AWM-FH, AC-GC, Atdec Custom Rail Clamp).

! Both posts must be AWM-P40X when stacking with Stack Kit (AWM-X40).

! The manufacturer accepts no responsibility for incorrect installation.

• All tools provided

Post

(x1)

Post Cap

(x1)

Cable Cover

(x2)

Cable Clip

(x2)

M8x60mm

Screw

(x2)

AWM-P40X Page 2 of 2

Unstacked Stacked

Cables can

exit from the

side of the

cable cover

PUSH

DO NOT

remove label

and ensure

alignment

insert stays

in place.

Use guide marks on post

channels as a reference

for setting the height of

each arm.

NOTE Additional

adjustments may be

required once monitors

are installed.

PUSH

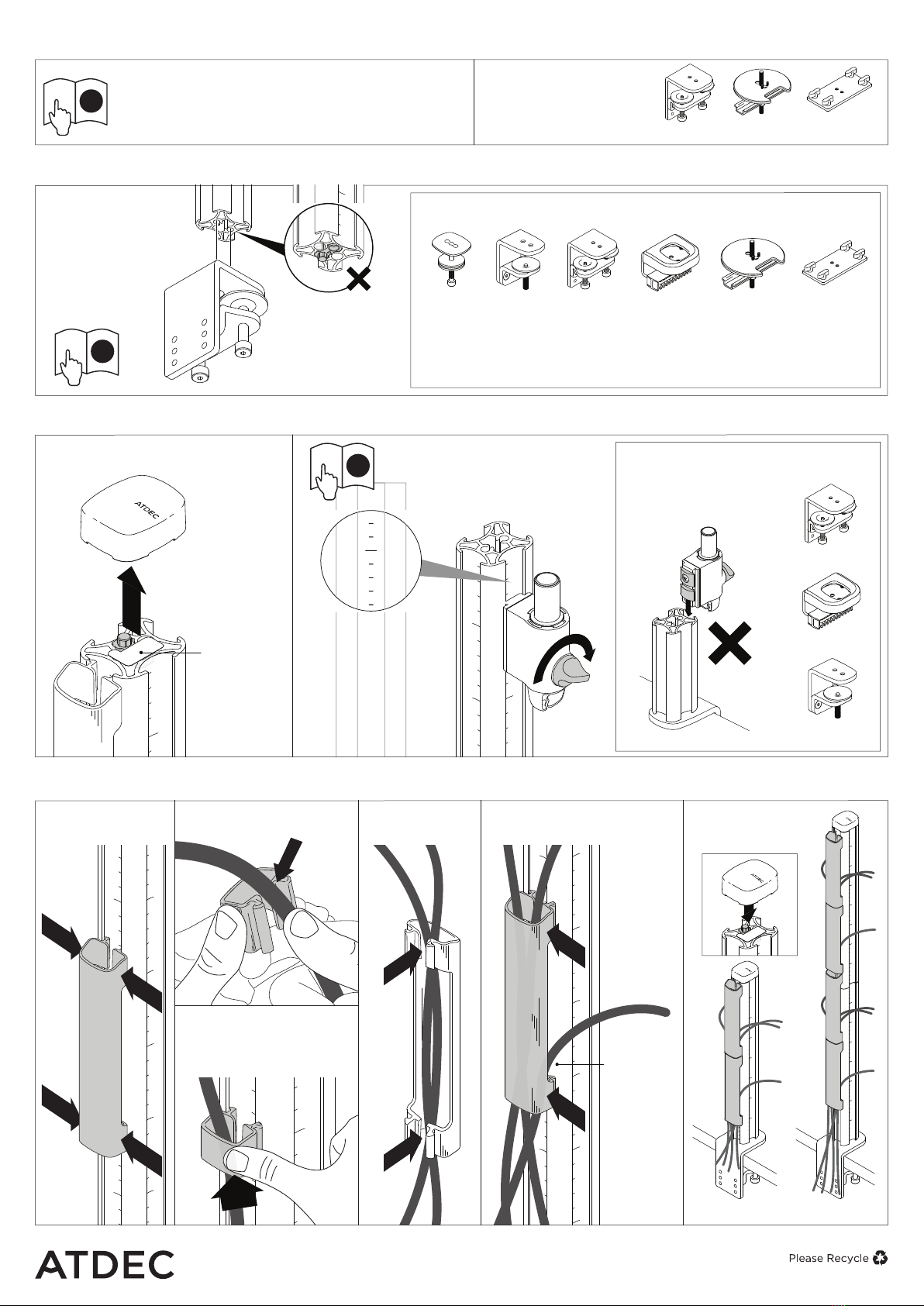

2. Attach Post to Fixing (xing sold separately)

1. Optional Stack Posts (Stack Kit AWM-X40 sold separately)

3. Mount Arms onto Post

4. Cable Management

NOTE: Do not mount monitor

arms on rear channel of post

when using the following

desk clamps:

3.1 Remove post cap 3.2 Follow the installation guide

provided with your arm(s) to

mount it to the post.

4.2a Load cables into

cable clip.

4.1 Unclip clips and

covers from post.

4.2b Insert one side of the

cable clip into a channel

on the post, then push in

the other side.

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

AWM-FH

AWM-FC

AWM-FF

AWM Fixing options

AWM-FH

Heavy Duty

F Clamp

AWM-FH

AWM-FC

C Clamp

AC-GC

Grommet

Clamp

AC-GC

Atdec

Custom

Rail Plate

Atdec Custom

Rail Plate

AWM-FF

F Clamp

AWM-FB

Bolt

Through

Kit

2.1 Follow the

installation

guide provided

with your xing

to attach it to

the post and

t it to the

worksurface.

1.1 Follow the installation

guide provided with the

AWM Stack Kit to extend

the post to 800mm (31.5”).

Load cables into

cable cover

SQUEEZE

4.3a Load cables

into cable cover.

IMPORTANT:

When stacking posts

only the following heavy

duty xings can be used:

NOTE:

Posts can be stacked

before or after attaching

to desk xing.

4.3b Clip the cable cover onto

any of the four post channels.

4.4 Fit post cap

to complete

installation

DO NOT Attach

ﬁxing to end of

post with label

and alignment

insert.
