ATI Technologies 9000 - Radeon Pro Bedienungsanleitung

RADEON

™

9000

User’s Guide

P/N 137-40442-10

ATI and all ATI product and product feature names are trademarks and/or registered

trademarks of ATI Technologies Inc. All other company and/or product names are

trademarks and/or registered trademarks of their respective owners. Features,

performance and specifications are subject to change without notice. Product may not

be exactly as shown in the diagrams.

Reproduction of this manual, or parts thereof, in any form, without the express written

permission of ATI Technologies Inc. is strictly prohibited.

Disclaimer

While every precaution has been taken in the preparation of this document, ATI

Technologies Inc. assumes no liability with respect to the operation or use of ATI

hardware, software or other products and documentation described herein, for any act

or omission of ATI concerning such products or this documentation, for any

interruption of service, loss or interruption of business, loss of anticipatory profits, or

for punitive, incidental or consequential damages in connection with the furnishing,

performance, or use of the ATI hardware, software, or other products and

documentation provided herein.

ATI Technologies Inc. reserves the right to make changes without further notice to a

product or system described herein to improve reliability, function or design. With

respect to ATI products which this document relates, ATI disclaims all express or

implied warranties regarding such products, including but not limited to, the implied

warranties of merchantability, fitness for a particular purpose, and non-infringement.

Product Notice

MACROVISION

A.Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and

4,907,093 licensed for limited viewing users only.

B.In the printed collateral material that accompanies the Product, the following notice

must be printed in an appropriate place in such materials:

This product incorporates copyright protection technology that is protected by method

claims of certain U.S. patents and other intellectual property rights owned by

Macrovision Corporation and other rights owners. Use of this copyright protection

technology must be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses unless otherwise authorized by Macrovision

Corporation. Reverse engineering or disassembly is prohibited.

iii

Table of Contents

Disclaimer .............................................................................................. ii

Product Notice........................................................................................ ii

MACROVISION.................................................................................... ii

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features At A Glance .................................................................................. 2

ATI’s Catalyst™ Software Suite ................................................................ 3

Multiple Displays and 3D Gaming Experience...................................... 3

Direct3D® and OpenGL® ..................................................................... 3

HydraVision™ ....................................................................................... 4

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . 5

Display Configurations................................................................................ 6

Catalyst™ Software Suite . . . . . . . . . . . . . . . . . . . . . . 7

ATI Displays Tab......................................................................................... 7

Ratiometric Expansion ........................................................................... 7

ATI Color Tab ............................................................................................. 8

ATI Options Tab........................................................................................ 10

ATI Overlay Tab ....................................................................................... 11

Video Overlay ...................................................................................... 11

Direct3D® Control Panel . . . . . . . . . . . . . . . . . . . . . . 13

Main and Custom Settings........................................................................ 13

Direct3D® Compatibility Settings ........................................................... 16

OpenGL® Control Panel . . . . . . . . . . . . . . . . . . . . . . 18

Main and Custom Settings........................................................................ 18

OpenGL® Compatibility Settings............................................................ 21

SMARTGART™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Set AGP Settings .................................................................................. 23

Fast Write ............................................................................................. 23

Retest All.............................................................................................. 24

Using TV Out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

View your PC’s display on a TV.......................................................... 25

Connecting to a TV or a VCR .................................................................. 26

Starting Windows® with TV Display Enabled .................................... 27

Using SCART Connectors for European TVs ..................................... 28

How To Enable/Disable The TV Display ............................................ 28

Using and Adjusting TV Out................................................................ 28

Using a Monitor vs. Using the TV Display.......................................... 29

Adjusting Monitor Display................................................................... 29

Viewing Text on a TV.......................................................................... 29

Reducing Edge Distortion .................................................................... 30

Changing Display Configurations ........................................................ 31

Using Games and Applications ............................................................ 32

Introduction

The RADEON™ 9000 graphics accelerator delivers

ground breaking 3D graphics performance.

• Designed and built by ATI Technologies Inc.

• Powered by the RADEON 9000 Visual Processing

Unit (VPU).

• Awesome 3D gaming performance.

• Support for OpenGL®applications.

• Support for Direct3D®applications.

• High resolution in 3D up to 2048x1536.

• Best performance for today’s and tomorrow’s

applications.

• Supports TV-Out to connect your PC to your TV or

VCR.

Features At A Glance

The RADEON 9000 provides high performance

acceleration for today's demanding 3D graphic

applications. Its main features includes:

• VIDEO IMMERSION™ which provides industry-

leading DVD playback and digital TV decode

capability.

• CHARISMA ENGINE™ II performs complex

transformation, clipping, and lighting calculations

faster than the CPU or 3D graphics chip.

• PIXEL TAPESTRY™ II which can apply 6

textures per pass to a complex 3D gaming scene.

• TV output support.

• TRUFORM™ technology which makes the curved

surfaces of 3D objects look smoother and more

life-like.

• SMARTSHADER™ technology which can

realistically create the visual properties of any

material, like glass, metal, wood, and produce 3D

depth by rendering the object’s shadows.

• SMOOTHVISION™ which provides users with

various degrees of jagged edge removal from 3D

images, allowing users to configure their own high

quality or high performance gaming experience.

ATI’s Catalyst

™

Software Suite

Multiple Displays and 3D Gaming Experience

ATI’s Catalyst Software Suite provides multiple

display functionality, and the advanced graphic

features, such as TRUFORM, for the ultimate 3D

gaming experience. For help on installing the

Catalyst Software Suite, refer to the Getting Started

Guide.

The Catalyst Software Suite installs the ATI display

tabs. These tabs are accessed through the Windows®

Display Control Panel, through the Advanced...

button located on the Settings tab. For a detailed

explanation of each ATI tab, refer to Catalyst™

Software Suite on page 7.

Direct3D®and OpenGL®

The Catalyst Software Suite also supports the latest

versions of Direct3D®and OpenGL®. Many new 3D

game titles, and the latest versions of older titles, will

virtually come to life as they utilize their advanced

Direct3D®or OpenGL®features. Gamers can tweak

their settings for the ultimate experience in 3D image

quality or 3D gaming performance.

ATI’s Direct3D® and OpenGL®tabs are available

through the Windows®Display Control Panel,

through the Advanced... button located on the

Settings tab.

For a detailed explanation of the Direct3D®and

OpenGL®tabs, refer to Direct3D® Control Panel

on page 13, and OpenGL® Control Panel on

page 18.

HydraVision™

In addition to the multiple display functionality

available with ATI’s Catalyst Software Suite, you can

also use HydraVision for advanced multi-display

(CRT + TV) management. For more information on

HydraVision, please refer to the HydraVision User’s

Guide PDF located on your ATI Installation CD.

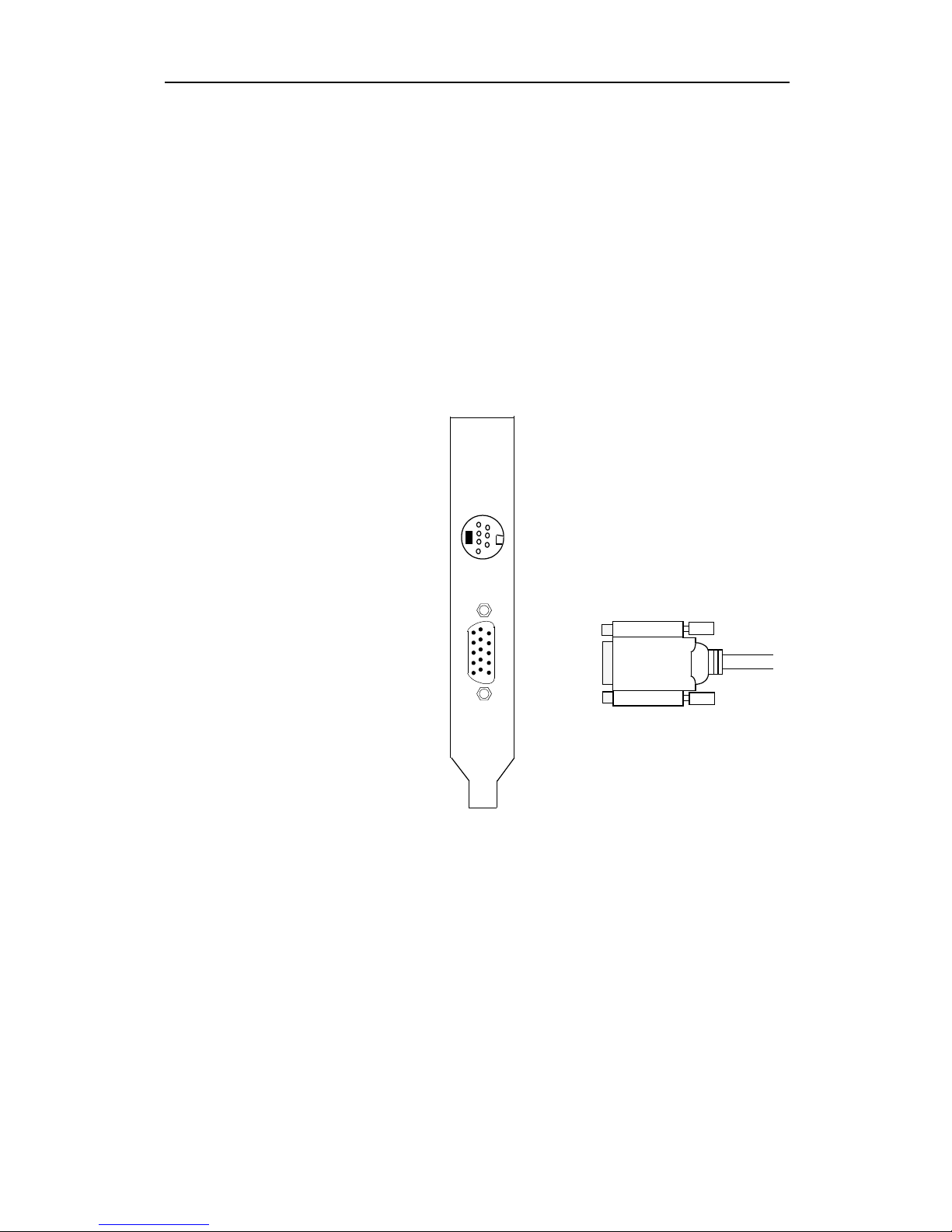

Connecting Your Monitor

The RADEON 9000 provides hardware support for

one VGA monitor. A TV can also be used to expand

your desktop by using the S-Video out.

Turn off computer before connecting monitor.

Plug the monitor cable into your card then turn

on the PC and monitor.

S-VIDEO OUT

VGA

CONNECTOR

FROM

MONITOR

STANDARD VGA

S-VID OUT

CRT

MONITOR CONNECTOR

Display Configurations

Your RADEON 9000 card provides support for TV

Out. The following table lists the different ways you

can connect displays to your card.

Display

Configuration Connector(s) Used Comments

One CRT

display VGA connector CRT- cathode ray tube

analog display

One TV S-Video Out

The S-Video Uut can also

support a composite

connection via the S-Video-

to-Composite adapter

CRT display +

VGA connector +

S-Video Out
