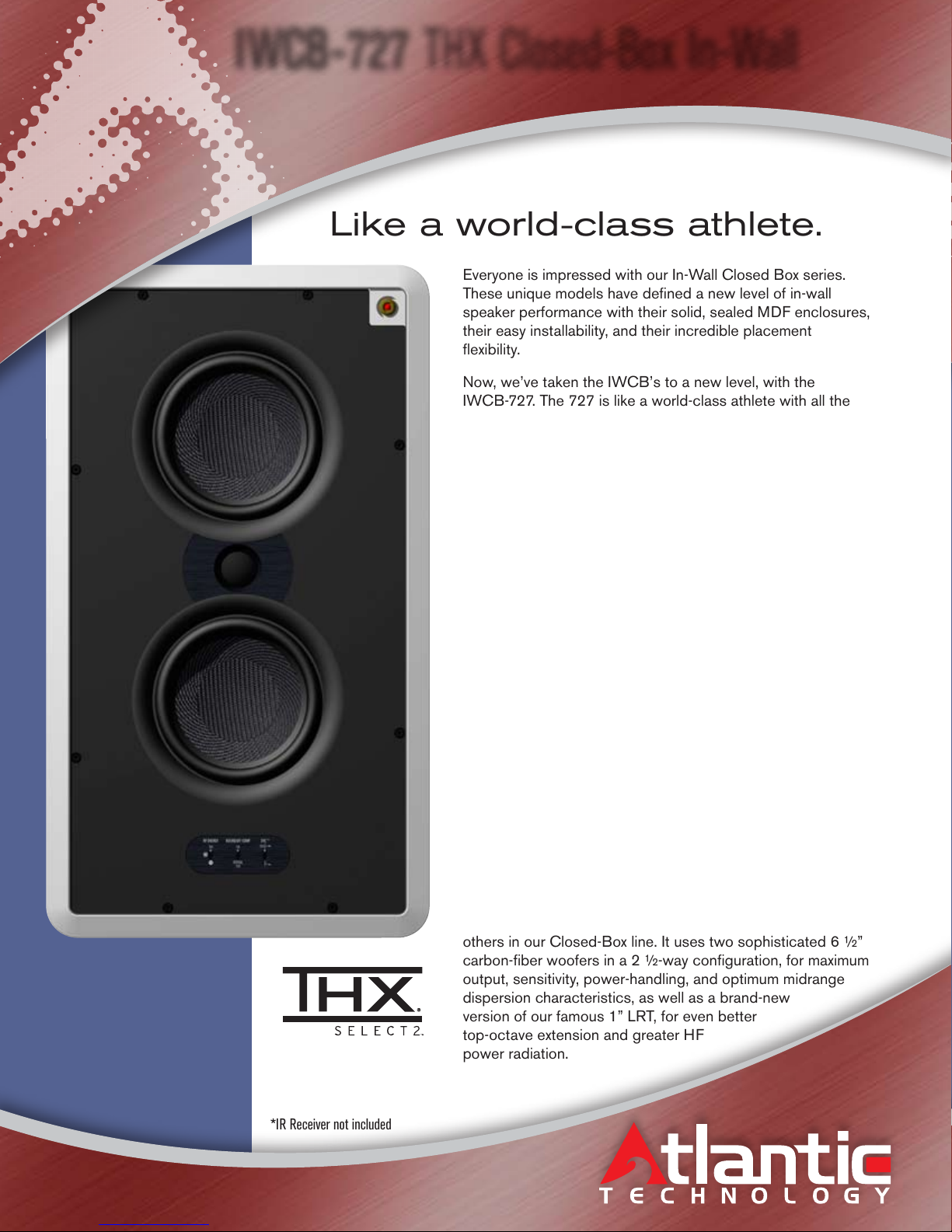

Like a world-class athlete.

Everyone is impressed with our In-Wall Closed Box series.

These unique models have deﬁned a new level of in-wall

speaker performance with their solid, sealed MDF enclosures,

their easy installability, and their incredible placement

ﬂexibility.

Now, we’ve taken the IWCB’s to a new level, with the

IWCB-727. The 727 is like a world-class athlete with all the

right moves: fast, powerful, and adaptable to virtually any

situation.

In fact, the 727’s performance is so good, it’s the very ﬁrst

speaker of any kind to earn THX’s new stringent Select2

certiﬁcation.

The 727 retains all the great features and technology of the

IWCB-52, -525, and -626:

•SealedMDFenclosureoptimizesperformance,removes

acoustic variability of wall cavity

•Atlantic-exclusiveLowResonanceTweeter(LRT™)handles

greater portion of sonic spectrum for wider dispersion

throughout listening area

•Atlantic-exclusiveDirectionalVectorControl(DVC™)

electronically directs sound up or down without the

mechanical or acoustic compromises of a “pivoting”

tweeter assembly

•Separategrille/frame,speakerenclosureallowsgrille/frame

tobeinstalled/paintedrst;speakerportioncanbeadded

later

•SoundoptimizationcontrolsforHFlevel,boundary

compensation

But the IWCB-727’s performance goes beyond that of the

others in our Closed-Box line. It uses two sophisticated 6 ½”

carbon-ﬁber woofers in a 2 ½-way conﬁguration, for maximum

output, sensitivity, power-handling, and optimum midrange

dispersion characteristics, as well as a brand-new

versionofourfamous1”LRT,forevenbetter

top-octave extension and greater HF

power radiation.

*IR Receiver not included

Product Information Sheet

IWCB-727 THX Closed-Box In-Wall

Norwood, MA 02062 •781.762.6300

www.atlantictechnology.com 11.07

Atlantic Technology is a registered trademark of Atlantic Technology

International. THX and THX Select2 are trademarks of THX Inc.

Speciﬁcations subject to change without notice.

Speciﬁcations

IWCB-727

Type 2½-way M-T-M array

Drivers Woofer (2) 6 ½” (165mm) Carbon Fiber

Tweeter 1” (25mm) LRT™ soft dome

Frequency Response 75Hz – 20kHz ±3dB

Nominal Impedance 6 Ohms

Crossover Frequency 800Hz, 2.2kHz

Sensitivity 89dB

Recommended Power 10 – 140 Watts RMS

Dimensions (W x H x D) 12 5⁄16 x 21 5⁄8 x 3 7⁄8”

312 x 547 x 100mm

Cutout Dimensions (W x H x D) 11 1⁄8 x 20 3⁄8”

283 x 518mm

Net Weight 13lbs; 5.9kg each

*IR Receiver not included

Punchout for use with IR Receivers*

Boundary Compensation, High Frequency

Energy and Directivity switches

Solid MDF construction

Paintable grille and frame

Carbon ﬁber 6½” woofers

Installation-friendly three piece system

The systems are uniquely easy to mount, since their GFR grille/frame assemblies are sold separately. This means the

installer can run the wire to the speaker locations, then mount and paint the grille/frames to match the room. The

speaker assemblies can be installed at a later time if desired, optimizing the timing of the project.

For ease of installation

and total ﬂexibility/

convenience, the

IWCB-727 uses the

same grill/frame

assembly and New

Construction Bracket

as the IWCB-626 (the

GFR-626 and

IN-NC-626).

IWCB-727 THX Closed-Box In-Wall
