Atlantis Solar Powered Air Conditioner
Installation and Operating Instruction
Atlantis Solar Powered Air Conditioner Co.,
2
Version No.：AS_272
Notes to Users
We appreciate your purchasing Atlantis Solar Air conditioner. We will serve for you loyally.
Atlantis Solar Air conditioner is manufactured under the strictest quality control, and is
provided with excellent performance and reliable security property. For protecting your
rights and interests, for guaranteeing the eximious performance of Atlantis Solar Air
conditioner to function normally, and for ensuring you receiving the better service, we
plead you to necessarily advert to the following items.
I. The part of the Installation Guide in the Notes only provides for the
consultation of professional installers.
II. When you are going to use the Atlantis Solar Air conditioner, please be sure
to read the Notices to avoid damaging the Atlantis Solar Air conditioner or other accidents
as a result of false operations.
III. Please be sure to cut off the power of the Atlantis Solar Air conditioner, just
like the other apparatus, when you stop using.
IV. The correct installation and application assure the eximious performance of
the Atlantis Solar Air conditioner. Please read the Operation Instruction before installation,
adjustment and application.
V. This machine and the Operation Instruction are subject to ameliorate without
notice.
VI. The carried standard of the product is Q/320583FSC007-2006
VII. Please properly keep your purchase invoice, Warranty Card and Operation
Instruction.
3
CONTENTS
I. The Performance Characteristics of the Atlantis Solar Air
Conditioner…………………….3
II. The Performance Parameter………………………………………………………....4
III. The Application Notice…………………………………………………………..….…6
1. The Security Specifications………………………………………….……………….6
2. The Examination before Application………………………………………..………7
3. The Optimum Operation……………………………….……………………………..7
4. The Operating Temperature Range………………………………………………...7
IV. The Name of Each Part of the Atlantis Solar Air
Conditioner……..…………………….….8
V. Operation Manual………………………………..…………..………………….……9
1. Operation Instruction………………………………………………………………….9
2. Preparations before Application…………………………….……………………...11
VI. The Maintenance……………………………………………………………………..17
VII. The Diagnose of Common Troubles and Processing Methods……..……..…….18
VIII. The Installation Guide………………………………………………………………..20
IX. The Circuit Diagram……………..…………………………………………..……….27
X. The Packing List……………………….………………………………………….….28
XI. Three Guarantees…………………………………………………………………….29
XII. Maintenance Situation Recording…………………………………………………..30
XIII. The Maintenance Card……………………………………………………………….31
XIV. The Installation Card………………………………………………….………………32
XV. The Installation Evaluation Form……………………………………………………35
4
The Performance Characteristics of the Atlantis Solar Air Conditioner
The product adopts both solar and electric energy. The solar energy is the
supplementary.
According to the fluid mechanics principle and the photo-electrical complementary
effect, the Atlantis Solar Air conditioner saves energy greatly.
The compressor, which is of the international famous brand, cools and heats
powerfully, operates most smoothly, and runs on low load. Service life is extended.
The operation is calm and silent. The air conditioner adopts the advanced off-center
blades and foam air duct. The high performance low noise blower is adopted. The noise
reduces remarkably.
Via auxiliary heating by electricity energy, the Atlantis Solar Air conditioner is exactly
fit for the freezing area, and brings warmth in severe cold days. It saves more electricity
compared with electric heating.
It is provided with an elegant, graceful, grand design of a new appearance.
It is provided with the microcomputer control technique. The remote control and the
control panel can be applied interchangeably. The operation is convenient and simple.
The air conditioner is also provided with an automatic detection display system. You will
feel beneficial, comfortable, and enjoyable with Atlantis Solar Air conditioner.
Notice: The above-mentioned advantages are the main functions of Atlantis Solar Air
conditioner. We hereby inform that they maybe slightly different literally with advertising
materials.
5
Chief Property Parameters
SK Series
Item/Mode SK Series SK Series
Rated Cooling Capacity(W) 3200 3300
Rated Heating Capacity (W) 3530(Heat) 3630(Heat)
Rated Power Input (V/HZ) -220V/50HZ -220/50HZ
Rated Cooling Power Input(W) 860 920
Rated Cooling Input Current(A) 3.9 4.2
Max Cooling Power Input(W) 1480 1540
Max Cooling Input Current(A) 6.7 7.0
Rated Heating Power Input(W) 860/1360 920/1420
Rated Heating Input Current(A) 3.9/6.2 4.2/6.5
Max Heating Power
Input of Heat Pump (W) 860/1360 920/1420
Max Input Current of
Heat Pump (A) 3.9/6.2 4.2/6.5
Auxiliary Electric Heating
Rated Power Input(W) 1000 1000
Auxiliary Electric Heating
Rated Input Current (A) 4.54 4.54
Inhaling Maximum
Working Pressure（MP）0.8 0.8
Exhausting Maximum
Working Pressure（MP）2.8 2.8
Amount of Added Refrigerant (Kg) 970g 970g
Air Circulation of Outdoor Unit（M3/H）
570 550
Waterproof Grade 1PX4 1PX4
Outdoor unit 35 35
Net Weight (KG) Indoor unit 12 12
Outdoor unit 760*300*685 760*300*685
Dimensions(MM)
length*height*width
Indoor unit 845*285*336 845*285*336
Outdoor unit <50 <50
Noise Level (DB) Indoor unit <39 <39
Note:1. Parameters in the form are measured in the rated working state according to
GB/T7725-
2004. Changes may appear according to the real working state.
2 Parameters may change due to the product improvement.
Please refer to the products nameplate.
6
Chief Property Parameters
SK Series
Item/Mode SK Series SK Series
Rated Cooling Capacity(W) 3500 3700
Rated Heating Capacity (W) 3850(Heat) 4070(Heat)
Rated Power Input (V/HZ) -220V/50HZ -220/50HZ
Rated Cooling Power Input(W) 1025 1050
Rated Cooling Input Current(A) 4.7 4.8
Max Cooling Power Input(W) 1785 1925
Max Cooling Input Current(A) 8.1 8.7
Rated Heating Power Input(W) 1025/1525 1050/1550
Rated Heating Input Current(A) 4.7/6.9 4.8/7.0
Max Heating Power
Input of Heat Pump (W) 1020/1520 1100/1600
Max Input Current of
Heat Pump (A) 4.6/6.9 5.0/7.2
Auxiliary Electric Heating
Rated Power Input(W) 1000 1000
Auxiliary Electric Heating
Rated Input Current (A) 4.54 4.54
Inhaling Maximum
Working Pressure（MP）0.8 0.8
Exhausting Maximum
Working Pressure（MP）2.8 2.6
Amount of Added Refrigerant (Kg) 1150g 1250g
Air Circulation of Outdoor Unit（M3/H）
570 550
Waterproof Grade 1PX4 1PX4
Outdoor unit 35 35
Net Weight (KG) Indoor unit 12 12
Outdoor unit 760*300*685 760*300*685
Dimensions(MM)
length*height*width
Indoor unit 845*285*336 845*285*336
Outdoor unit <50 <50
Noise Level (DB) Indoor unit <39 <39
Note:1. Parameters in the form are measured in the rated working state according to
GB/T7725-2004.
Changes may appear according to the real working state.
2 Parameters may change due to the product improvement.
Please refer to the products nameplate.
7
Notice
Application Notice
Safety Specification
△
△△
△
Warning:
Keep the switch of Atlantis Solar Air conditioner out of the reach of children in order to
prevent children from playing with the electricity.
Please switch off the power in the thunderstorm weather; otherwise the thunder
would cause damages to the machine.
Please switch off the power when the machine is not in use, or when you leave the
room for a long time. Otherwise the Atlantis Solar Air conditioner may cause
incidents.
Please switch off the power before cleaning or maintaining the machine. Otherwise
incidents may happen.
Never rinse the machine with liquid detergent, liquefied cleaning agent, and corrosive
cleaning agent. Never sprinkle water or other liquid to the machine. Liquid would
damage the plastic accessories. Even the electricity-shock may be caused.
△
△△
△
Danger:
Never put your hands or a stick into the air outlet of the indoor or outdoor machine,
otherwise the high-speed fan would bring about damages.
Never touch the board when the wind board is running, otherwise it will clamp your
fingers, or damage the transmission component of the wind board.
Never remove the ventilating hood of the machine, or the high-speed fan would cause
damage to people.
Never allow children to play with the Atlantis Solar Air conditioner. Such condition
may cause an accident.
Never moisten the indoor machine and the remote controller. Otherwise it may cause
short circuit, even a fire.
Never put or use combustible liquid or gas such as hair styling jelly, paint, and
gasoline near the machine. Otherwise it may cause a fire.
If some abnormal situation happens, such as abnormal noise, smell, smoke,
temperature increment, creepage, please cut off the power instantly. Call the local
distributors or Atlantis Solar Air conditioner after-sale service centers. Don’t maintain
and repair the machine by yourself.
8
Atlantis Solar Air Conditioner Application
Pre-checking
*Please check if the ground wire is rightly connected or disconnect.
*Please check if the air strainer is fixed.
*If the Atlantis Solar Air conditioner is idle for a long time, please rinse the strainer before
start-up. For more details, please consult the chapter Repair and Maintenance.
*The inlet opening and the outlet opening of the indoor and the outdoor units should be
unblocked.
Optimum operation
*Please set a proper comfortable temperature. Avoid exceedingly hot or cold, especially
where the elders, children and patients live.
* When cooling, please use curtain or shutter to avoid sunlight from shining in.
*Please shut the windows, otherwise the convection of indoor and outdoor air will
decrease the effect of cooling and heating
*If you need to set the pre-runtime, please use the remote controller.
*Never place barriers, which baffle the airflow, near the indoor and outdoor units. It will
decrease the effect of air conditioner system; even stop the running of the system.
*Please rinse the air strainer frequently. If the air strainer is blocked, it decreases effect of
cooling and heating.
Working temperature range
Mode
Temperature
Cooling Heating
Indoor Temperature above 18 oC below 31 oC
Outdoor Temperature 18 oC ~43 oC -7 oC ~24 oC
For ensuring normal working of Atlantis Solar Air conditioner, please use it in working
9
temperature range. Otherwise, the interior protection, water dripping, or low efficiency
may be induced.

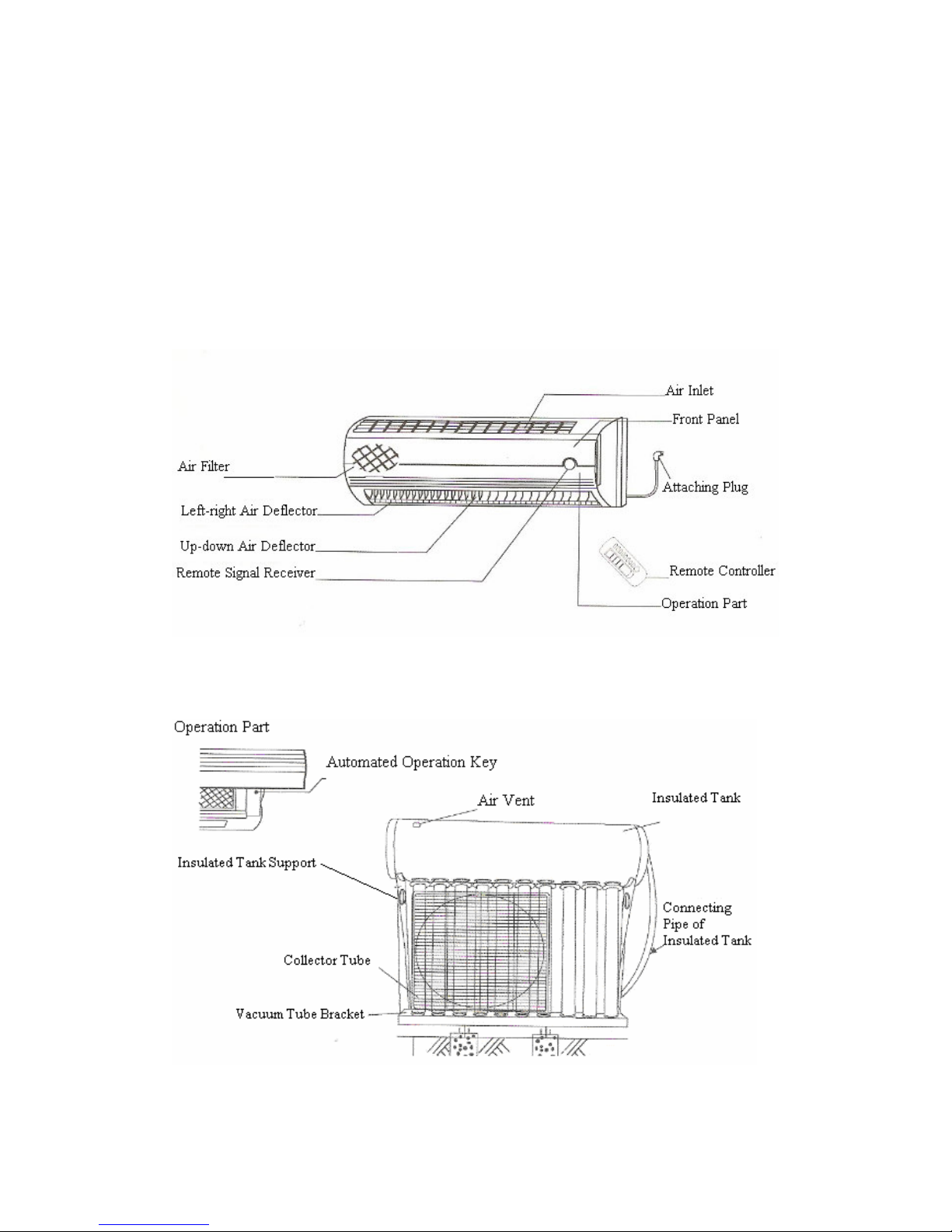

Air Conditioner Components’ Names
Air Conditioner Components’ Names
Notice: The graphic example is based on the standard type Atlantis Solar Air-conditioner.
Thus, it may be different in appearance of that of yours.
10
How to use the remote controller
Operation Manual
Operation Instruction
1. Remote controller function description
Emitter: When you press this button, ‘ ’will appear on the top right corner and a beep will
be heard.
Display screen: the information of the arranged operation status displays on the display
screen.
Temperature key: Each degree centigrade elevates via pressing the ‘+’ button once. Each
degree centigrade falls via pressing the ‘-’ button once.
Mode key: The statuses of cooling, dehumidifying, ventilating and heating can be orderly
selected via pressing the button repeatedly.
Wind speed key: Via this button, the high wind speed, medium wind speed, low wind
speed, and auto wind speed can be orderly selected via pressing the button repeatedly.
Wind direction key: If you press the button once, wind door will swing in a certain range; if
you press the button again, the wind door will locate at a certain position.
Timing key: In idle mode, the exact time of the start-up and shutdown can be set via this
button. For more details, please consult Timing Set.
Clock key: Via this button, the time and the timing can be adjusted.
Sleep key: Via this button, the sleep mode and timed shutdown can be set and adjusted
during the air conditioner is running.
Switch key: The key is applied in switching on and off the air-conditioner.
Notice: No heating function is provided in the single tube cooler.
