Atlona AT-HDVS-200-TX-PSK Bedienungsanleitung

Three-Input Switcher for HDMI and

VGA Sources with Automatic Display

Control and Ethernet-Enabled

HDBaseT Output

The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher with two HDMI inputs, a VGA input with audio,

and an HDBaseT output. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling,

plus embedded audio and control signals can be transmitted up to 330 feet (100 meters). The

two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT

transmission. The AT-HDVS-200-TX-PSK is identical to the AT-HDVS-200-TX, with the addition

of local powering capability and an external power supply. This makes it ideal for extending AV

and control directly to a projector with an HDBaseT input. The AT-HDVS-200-TX-PSK can serve

as the central component of a small, automated AV system by sending control commands to the

projector via RS-232 or Ethernet, and through automatic input selection. With automatic display

control, the AT-HDVS-200-TX-PSK powers the projector on or off whenever a source is connected

or disconnected from the unit.

• 1 x AT-HDVS-200-TX-PSK

• 1 x 48V power supply

• 1 x Captive screw connector (3 pin: RS-232)

• 1 x Pair of mounting brackets

• 1 x Installation Guide

Package Contents

AT-HDVS-200-TX-PSK Installation Guide

Please check http://www.atlona.com/product/AT-HDVS-200-

TX-PSK for the most recent firmware update or manual.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

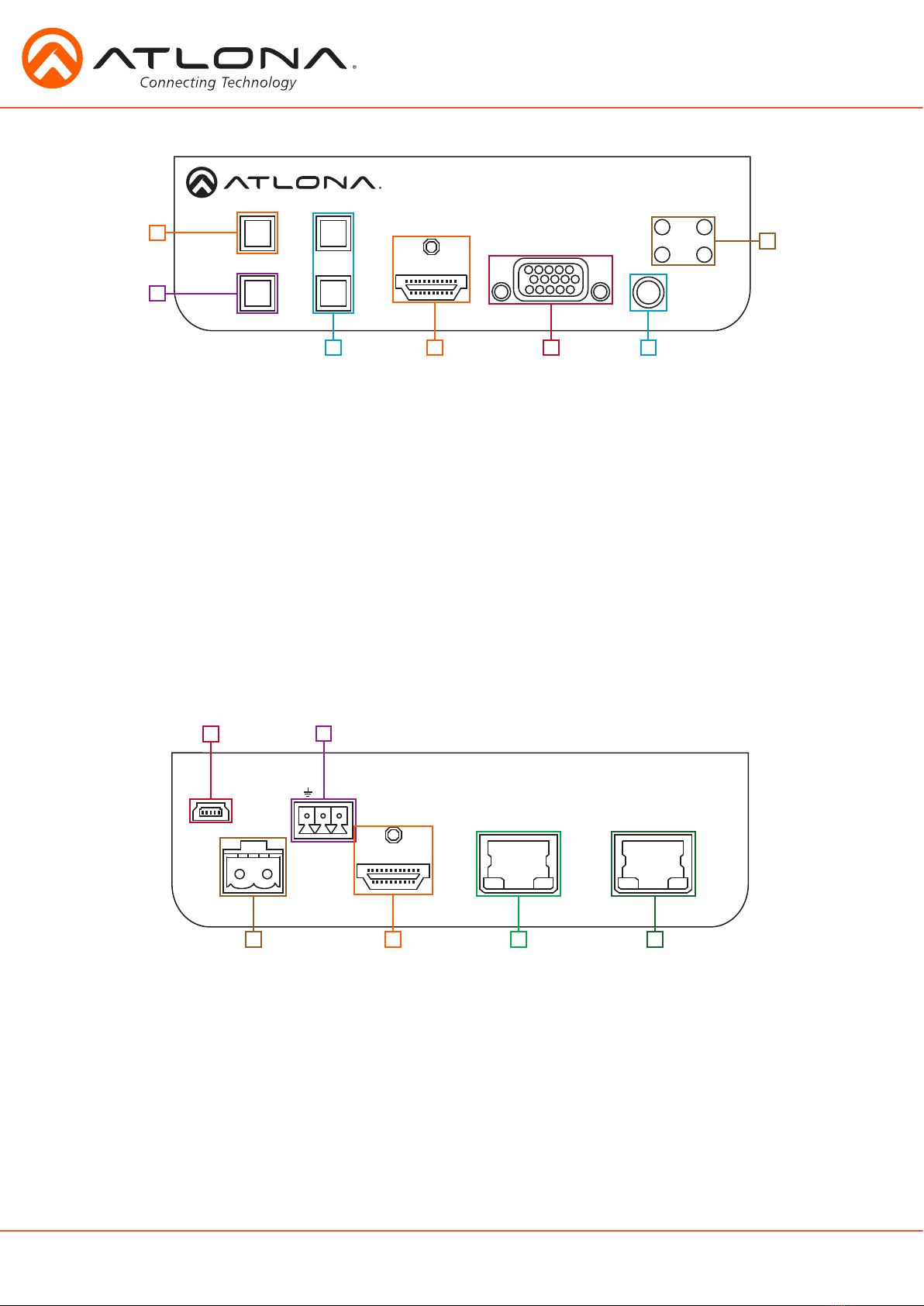

Panel Description

1. INPUT button:Use to switch between VGA and HDMI sources

2. DISPLAY button:Can be programmed to perform different functions

Default action will turn video output on/off for the switcher

Send on/off command to CEC, RS-232, or TCP/IP controllable displays or other connected

devices

Sends RS-232 or TCP/IP trigger command when used with a compatible switcher

(e.g. CLSO PoE series)

3. VOLUME buttons:Adjust output volume of the switcher or connected device when programmed

Note: To mute or unmute output audio, press both volume buttons together. LED will turn red when muted

4. HDMI 1 port:Connect first HDMI source here

5. VGA IN port:Connect VGA source here

6. AUDIO IN port:Connect analog audio here

7. PW LED:Will illuminate when receiving power

VGA LED:Illuminates when VGA input selected

HDMI 1 LED:Lights up when HDMI input 1 is selected

HDMI 2 LED:Turns on when the second HDMI input is selected

1. FW port:Firmware update port, connect a mini USB to USB A cable to a computer

Firmware is downloadable through http://www.atlona.com/products/AT-HDVS-200-TX/

2. RS-232 port:Connect control system here

3. DC 48V port: Connect included power supply here

4. HDMI 2 port:Connect second HDMI source here

5. LAN (black) port:Connect network switch or router to this port for Ethernet, TCP/IP, or

webGUI control

6. HDBaseT OUT (blue) port:Connect to an HDBaseT PoE receiver

e.g. AT-HDVS-200-RX or UHD-CLSO PoE series switcher/scalers

HDMI IN 1

DC 48V

HDMI

AUDIO IN

VGA IN

VGA

HDBaseT OUTLAN

DISPLAY ^

INPUT VOL

FW RS-232

AT-HDVS-200-TX

OPTIONAL

HDMI IN 1

DC 48V

HDMI

AUDIO IN

VGA IN

VGA

HDBaseT OUTLAN

DISPLAY ^

INPUT VOL

FW RS-232

AT-HDVS-200-TX

OPTIONAL

Note: To ensure compatibility, please be certain both transmitter and receiver have blue HDBaseT ports. This

ensures both products are PoE (48V) compliant. The HDVS-200-TX is not compatible with PoCC

(black RJ45, 24V) devices

Mounting bracket x 2

The HDVS-200-TX-PSK comes with mounting brackets that can be used to affix the unit to a table,

desk, etc.

To affix the mounting brackets to the unit, use the four included screws. The bracket can be

affixed with the oval holes pointing to the bottom (for against the wall - picture A) or the oval holes

facing the top (for under tables - picture B).

Larger oval

hole will be

attached to

the wall/table.

Mounting

Circular holes

will always be

attached to the

unit.

The captive screw connectors allow you to cut cables to a suitable length, reducing cable clutter

while providing a more reliable connection.

Captive Screw

Connecting

The captive screw connectors have

a contact bar that is adjusted to

compress the wire against the top

contact plate. Use the screws at the

top of the connector to compress

the wire against the contact plate.

When connecting the cables to the female captive screw connector it is important that the wires be

terminated correctly. The female captive screw connector has a contact plate at the top and must

have the wires touching it for signal to pass. When wired correctly (see picture A) the signal will pass,

incorrectly (see picture B) no signal will pass.

Clockwise Counter

Clockwise

Turn the screws clockwise to

raise the contact bar to the

upper contact plate and hold

the wires in place.

Turn the screws counter

clockwise to lower the

contact bar to release the

wires.

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

RS-232 captive screw connector is included. RS-232 pin out will be determined by the RS-232 cable

and will connect as Rx (receiver), Tx (transmitter), and (ground). (See picture 1)

RS-232

Typical pin out:

2 - TX - Transmitter

3 - RX - Receiver

5 - GND - Ground

Pin out color will differ

per RS-232 cable.

154 3 2

9876

RS-232

Ethernet

For convenience, the HDVS-200-TX-PSK comes with DHCP on. This enables the switcher to be

connected to a network without knowing available IP addresses. If your network is not compatible

with dynamic IP addresses or if you are using the switcher with a TCP/IP control system, DHCP may

be turned off and a static IP address set using RS-232 commands or the webGUI.

To disable DHCP, use the following command: IPDHCP off. Once disabled, set the IP address using

the IPStatic command (e.g. IPStatic 192.168.1.56).

webGUI

The HDVS-200-TX-PSK provides a built-in webGUI for easy setup and control.

To find the IP address of the switcher, connect the HDVS-200-TX-PSK to a terminal using an RS-

232 cable, and use the following settings: baud rate: 115200, data bits: 8, flow control: None,

stop bits: 1. Use the IPCFG command to display the IP address. Launch a web browser and enter

the IP address of the switcher.

A login screen will appear (this is the same log in for admin and general users). The login for the

webGUI will be username “root” and password “Atlona”.

Connection Diagram (with HDVS-200-RX)

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

HDMI IN 1

DC 48V

HDMI

AUDIO IN

VGA IN

VGA

HDBaseT OUTLAN

DISPLAY ^

INPUT VOL

FW RS-232

AT-HDVS-200-TX

OPTIONAL

Video

HDBaseT

Audio

Ethernet

Dry CC

Control

RELAY

AT-HDVS-200-RX

C1 C2COM

HDBaseT INLAN HDMI OUT

-+-

RX RXTX TX

AUDIO RS-232 MENU AUTO

LINK

DC 48V

ROUTER

2.4 5 1234

AT-HDVS-200-TX-PSK

Media Player

Laptop

AT-PA100-G2

Drop down projector screen

(contact closure controlled)

Document Camera

AT-HDVS-200-RX

Router

Projector

Dry CC

Audio

HDBaseT

Video

Control

Ethernet

Video

Audio

Video

Audio

Connection Diagram (with PoE UHD-CLSO series)

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515

HDMI IN 1

DC 48V

HDMI

AUDIO IN

VGA IN

VGA

HDBaseT OUTLAN

DISPLAY ^

INPUT VOL

FW RS-232

AT-HDVS-200-TX

OPTIONAL

Video

HDBaseT

Audio

Ethernet

LAN

12 1 2

34LRL R

2 3 4

INPUT

AT-UHD-CLSO-824

OUTPUT

5 6 7 8

RS-232 MIC/LINE IN

LINE

MIC

48V

AUDIO IN

TX RX TX RX TX RX TX +-+ +

PWRIR

- -

+ - + -

DC 48V

RS-232IRAUDIO OUT

MASTER

OUTIN

RX TX

+-+-

12 3 4

5ENTER

678

RX TX RX TX

RS-232

RX TX RX TX

910

RX TX RX TX

LINE

MIC

48V

+-+-

L R

+-+-

AUDIO OUT

FW LINK

POWER

AT-UHD-EX-100CE-RX

RS-232

RXTX

IR IN

IR OUT

HDBaseT IN

ETHERNET

HDMI OUT

ROUTER

2.4 5 1234

AT-HDVS-200-TX-PSK

Router

Media Player

AT-UHD-EX-100CE-RX

AT-UHD-CLSO-824

Display

Laptop

Document Camera

HDBaseT

Ethernet

HDBaseT

Video

Audio

Video

Troubleshooting

1. The Auto-Switch feature isn’t working. How do I enable it?

You can enable Auto-switching by using the AutoSW command, via TCP/IP or RS-232.

Auto-switching can also be enabled through the On-Screen Display (OSD) or the webGUI.

2. I want to pass only analog audio without video. How do I do this?

Place the unit in “standalone” mode. This mode can be enabled using the FreeRun on

command via TCP/IP or RS-232, or through the webGUI.

3. How do I update the firmware?

The firmware can be updated using the USB port or through the webGUI.

4. How do I find the IP address?

Run the IPCFG command using either RS-232 or TCP/IP. You can also get the IP address

through the webGUI and AMS.

5. How do I switch between DHCP and Static IP modes?

For the AT-HDVS-200-TX-PSK, DHCP can be turned on/off by pressing the INPUT button for

15 seconds. For the AT-HDVS-200-RX, DHCP can be turned on/off by pressing the AUTO

button for 15 seconds. You can also toggle between DHCP and Static IP modes using the

IPDHCP command via TCP/IP or RS-232, or by using the webGUI or AMS.

6. What is the default IP address?

The default static IP address is 192.168.1.254. Please note that the default static IP for both

the transmitter (HDVS-200-TX-PSK) and the receiver (HDVS-200-RX) are the same.

7. I can’t control my display. What’s wrong?

First, check that the desired control method is selected (TCP/IP, RS-232, or CEC). If you are

using RS-232, make sure that the baud rate for RXZone 1 (found under the webGUI)

matches your display settings. The baud rate can be set through the webGUI or by using the

RxRSparaZ1 command via TCP/IP or RS-232. When using the RxRSparaZ1 command, use the

following syntax: RxRSparaZ1[baudrate,data-bits,parity,stop-bits].

Example: RxRSparaZ1[115200,8,0,1]

atlona.com Toll free: 1-877-536-3976

Local: 1-408-962-0515
