Audi A5 -

Convenience Electronics and Driver Assist Systems

Self-Study Programme 393

Vorsprung durch Technik www.audi.de Service Training

The new Audi A5

The new Audi A5 features a number of impressive

innovations in the area of convenience electronics.

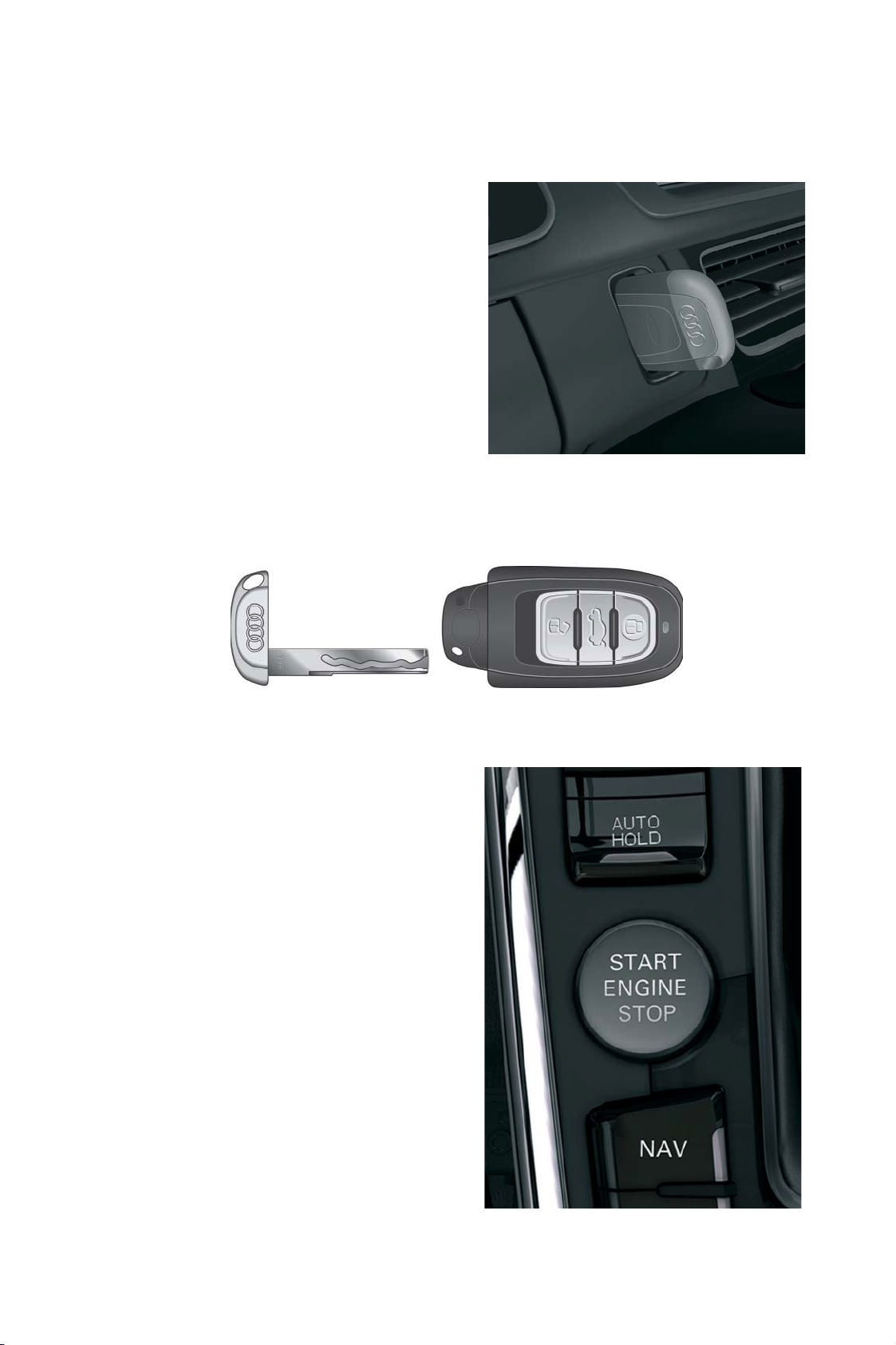

One of the most striking of these is the new ignition

key. This key is pushed into the electronic ignition

lock, and the engine is started with a push move-

ment of the key instead of a turning movement.This

new concept replaces the button-operated folding

key.

The ignition key houses an emergency key which

allows the vehicle to be opened mechanically in

case of failure of the vehicle electronics. The igni-

tion key can also be used to lock the vehicle

mechanically if the key removal lock prevents with-

drawal of the key from the ignition lock.

The new Audi A5 comes with an extensive range of

optional equipment. Many systems previously

exclusive to the larger models A6, Q7 and A8 are

now also available on the A5.

Systems include the "Advanced Key" and the front

and rear acoustic parking system, which is available

with an auxiliary visual display under the name

"Audi Parking System Plus". The acoustic parking

system can also be ordered in combination with a

rear-view camera under the name "Audi Parking Sys-

tem Advanced", this being the full-expanded version

of the acoustic parking system.

The wide range of optional equipment on the Audi

A5 also includes a lane change assistant system

which assists the driver when changing lane by

means of an indicator light in the exterior mirrors.

However, the absolute highlight on the new Audi A5

is the Audi Lane Assist system, which will be availa-

ble for order in 2007. In June 2007, there will be a

separate self-study programme about this system,

which explains why the system is not described in

this self-study programme.

393_034

393_042

393_046

NoteReference

The self-study programme teaches the design and function of new vehicle models,

new automotive parts or new technologies.

The self-study programme is not a repair manual!

All values given are intended as a guideline only and refer to the software version valid at the time of

preparation of the SSP.

For maintenance and repair work, always refer to the current technical literature.

Contents

Control unit with display in dash panel insert . . . . . . . 10

Door control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Seat control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Convenience system central control unit . . . . . . . . . . . 21

Networking / vehicles with infotainment CAN bus . . . . . . . . . . . . . . . . . . . . . . . . . 4

Networking / vehicles with MOST bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation locations of the control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Personalisation and adaption channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

The electronic ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

The ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

The electrical steering column lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Advanced Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

The "Audi Service Key". . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Immobiliser V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

The anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

The HomeLink garage door opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

The Panorama tilt sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Park assist control unit (acoustic parking system). . . . 48

Rear-view camera system control unit. . . . . . . . . . . . . . 51

Lane change assistant control unit . . . . . . . . . . . . . . . . 52

Networking / vehicles with infotainment CAN bus

Overview

Air quality sensor

G238

Refrigerant pres-

sure/temperature

sender G395

Garage door opera-

tion control unit

J530

Light switch

Wiper motor con-

trol unit

J400

Rain and light

detector sensor

G397

Electrical steering

column lock con-

trol unit

J764

Entry and start

authorisation

switch E415

Garage door operat-

ing unit

E284

Sliding sunroof con-

trol unit

J245

Anti-theft alarm

system sensor

G578

Humidity sender

G355

Onboard power supply

control unit

J519

Convenience system central

control unit

J393

Alarm horn

H12

Climatronic control unit

J255

Fresh air blower

control unit J126

Control motors for

flap control

Trailer detector

control unit

J345

Steering column

electronics con-

trol unit

J527

Rear-view camera

system

J772

Multi-function

steering wheel

control unit

J453

Seat and steering

column adjustment

control unit with

memory function

J136

Seat adjustment

control unit with

memory, front pas-

senger J521

Driver door con-

trol unit

J386

Front passenger

door control unit

J387

Power output

module for left

headlight

J667

Power output

module for right

headlight

J668

Diagnostic port

Control unit with

display in dash

panel insert J285

Yaw rate sender

G202

Park assist

control unit

J791

ABS control unit

J104

Steering angle

sender G85

Electric park

and handbrake

control unit

J540

Additional heater

control unit J364

Radio

Digital sound

package control

unit J525

Tele p h one t ra n s -

mitter and

receiver unit

R36

Data bus diagnostic interface J533

Battery monitor

control unit

J367

3-phase AC

alternator

Adaptive cruise

control unit

J428

Lane change

assistant control

unit

J769

Lane change

assistant control

unit -2-

J769

Airbag control

unit J234

Engine control

unit J623

Automatic gear-

box control unit

J217

ECD control unit

(electronically

controlled damp-

ing) J250

Headlight range

control, control unit

J431

393_050

Powertrain CAN bus

Convenience CAN bus

Dash panel insert/suspension CAN bus

CAN-Extended

Infotainment CAN bus

Diagnostics CAN bus

LIN bus

Subbus systems

Overview

Air quality sensor

G238

Refrigerant pres-

sure/temperature

sender

G395

Garage door opera-

tion control unit

J530

Light switch

Wiper motor con-

trol unit

J400

Rain and light

detector sensor

G397

Electrical steering

column lock

control unit

J764

Entry and start

authorisation

switch

E415

Garage door oper-

ating unit

E284

Sliding sunroof

control unit

J245

Anti-theft alarm

system sensor

G578

Humidity sender

G355

Onboard power supply

control unit

J519

Convenience system central

control unit

J393

Alarm horn

H12

Climatronic control unit

J255

Fresh air blower

control unit J126

Control motors for

flap control

Tra ile r det e ctor

control unit

J345

Steering column

electronics con-

trol unit

J527

Rear-view camera

system

J772

Multi-function

steering wheel

control unit

J453

Seat and steering

column adjustment

control unit with

memory function

J136

Seat adjustment

control unit with

memory, front

passenger J521

Driver door con-

trol unit

J386

Front passenger

door control unit

J387

Power output

module for left

headlight

J667

Power output

module for right

headlight

J668

Airbag control

unit J234

Engine control

unit J623

Automatic gear-

box control unit

J217

ECD control unit

(electronically

controlled damp-

ing) J250

Headlight range

control, control

unit

J431

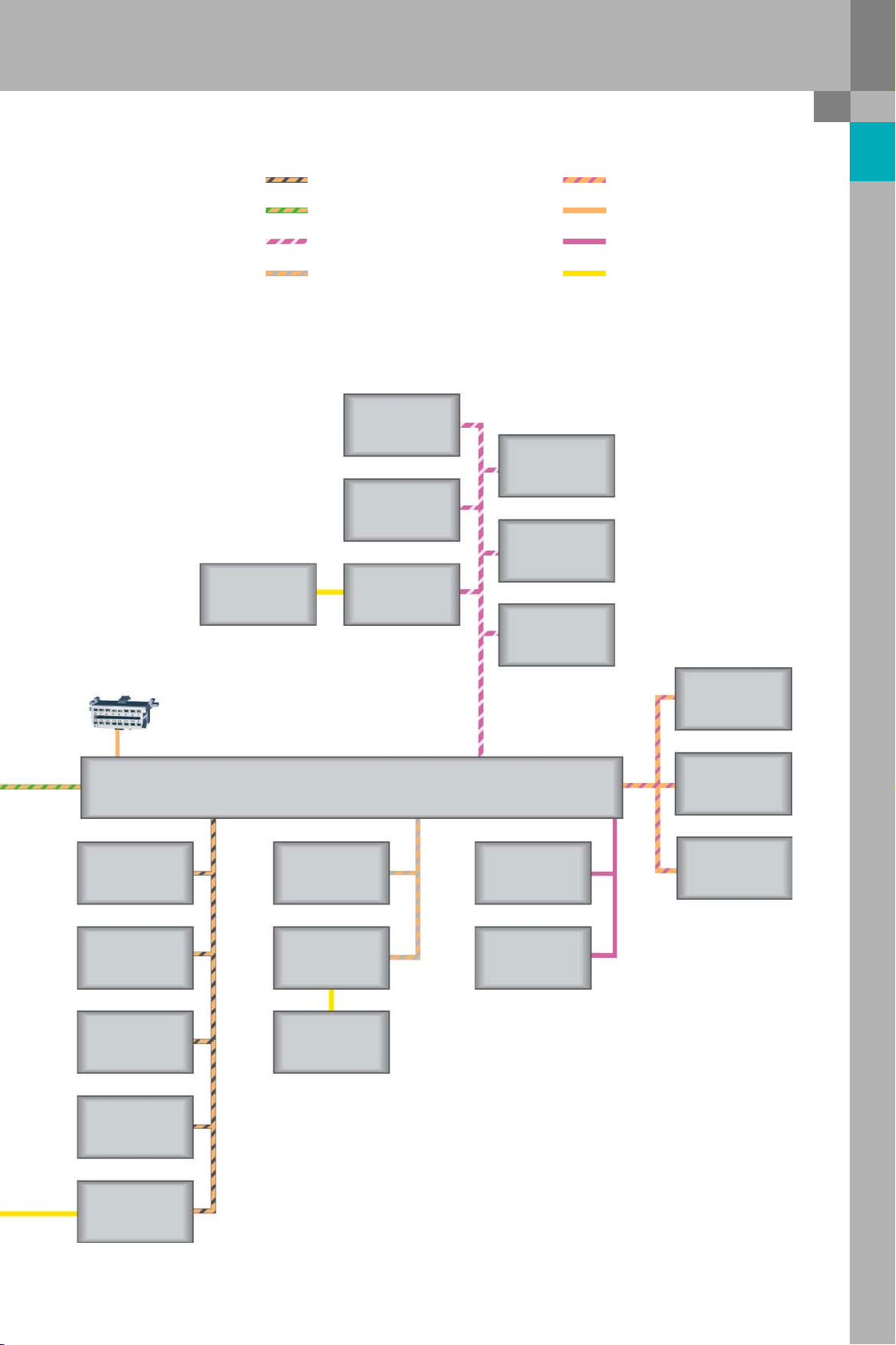

Networking / vehicles with MOST bus

Front information

control unit

J523

Telephone trans-

mitter and

receiver unit

R36

Operating electron-

ics control unit, nav-

igation

J401

TV tuner

R78

CD changer

R41

Connection

for external

audio sources

R199

Digital radio

R147

Digital sound

package control

unit

J525

Voice input con-

trol unit J507

Radio

Data bus diagnostic interface J533

Battery monitor

control unit

J367

3-phase AC

alternator

Adaptive cruise

control unit

J428

Lane change

assistant control

unit

J769

Lane change

assistant control

unit -2-

J769

Diagnostic port

Control unit with

display in dash

panel insert J285

Yaw ra te sende r

G202

Park assist control

unit J791

ABS control unit

J104

Steering angle

sender G85

Electric park and

handbrake control

unit

J540

Additional heater

control unit

J364

393_051

Powertrain CAN bus

Convenience CAN bus

Dash panel insert/suspension CAN bus

CAN Extended

Diagnostics CAN bus

LIN bus

Subbus systems

Most bus

Overview

Installation locations of the control units

Headlight range control,

control unit

Door control unit

Data bus

diagnostic interface

Climatronic

control unit

Dash panel insert

control unit

Onboard power supply control unit

Seat memory

control units

Door control unit

Steering column electronics

control unit

393_049

Dash panel insert/suspension CAN bus users

Convenience CAN bus users

Powertrain CAN bus users

CAN-Extended users

Lane change assist control

unit (slave)

Convenience system

central control unit

Acoustic parking system

control unit

Trailer detector

control unit

Rear-view camera

system control unit

Lane change assist

control unit (master)

Control unit with display in dash panel insert

393_001

New features

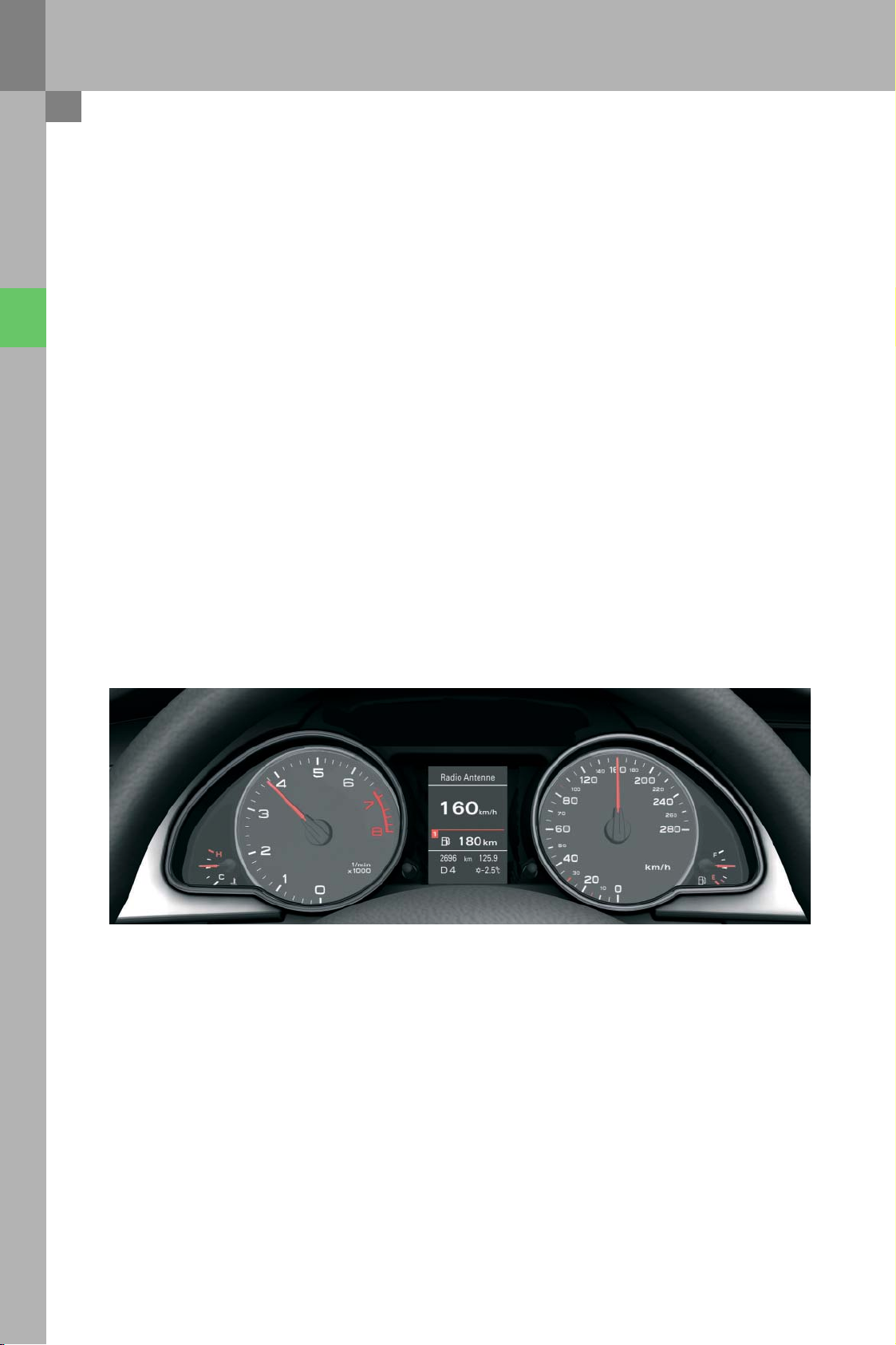

The dash panel insert of the new Audi A5 explores new directions with its styling and concept. It is very differ-

ent to the dash panel inserts in other Audi models in several respects. The most obvious changes are:

• The zero position of the rev counter and speedometer is the so-called "6 o'clock position". The top end of

the scale is the "3 o'clock position".

• After "ignition "on"", the dial makes a full scale sweep.

• Neither of the small displays in the rev counter and the speedometer is required. The trip mileage and total

mileage, as well as the date and time, are indicated on the centre display

• The upshift indicator in the centre display help the driver to maintain a fuel-efficient driving style

(detailed information is given in a separate chapter)

• The fuel tank sender and the radio digital clock module are the only vehicle components which are still

hard-wired to the control unit with display in dash panel insert J285

• The new master for display lighting terminal 58d is the onboard power supply control unit J519, and no

longer the dash panel insert

Control unit with display in dash panel insert

Andere Handbücher für A5 SPORTBACK

Inhaltsverzeichnis

Andere Audi Automobil Handbücher

Audi

Audi A3 Sportback Bedienungsanleitung

Audi

Audi Q7 Installationsanleitung

Audi

Audi AS Coupe 2017 Bedienungsanleitung

Audi

Audi AS Coupe 2014 Bedienungsanleitung

Audi

Audi Allroad Quattro Bedienungsanleitung

Audi

Audi Avant RS2 1994 Gebrauchsanweisung

Audi

Audi 100 1991 Gebrauchsanweisung

Audi

Audi TT Roadster Bedienungsanleitung

Audi

Audi A8 1994 Betriebsanleitung

Audi

Audi Q7 Bedienungsanleitung

Audi

Audi 2003 A8 Gebrauchsanweisung

Audi

Audi A4 Bedienungsanleitung

Audi

Audi 1.8T Bedienungsanleitung

Audi

Audi Q8 e-tron Sportback 2024 Bedienungsanleitung

Audi

Audi RS 4 CABRIOLET Bedienungsanleitung

Audi

Audi R8 - QUICK EFEENCE GUIDE Bedienungsanleitung

Audi

Audi AS Cabriolet 2015 Bedienungsanleitung

Audi

Audi Q7 2007 Betriebsanleitung

Audi

Audi A4 2024 Bedienungsanleitung

Audi

Audi A6 - GUIDE - 2001 Bedienungsanleitung

Audi

Audi 2011 A3 Sportback Bedienungsanleitung

Audi

Audi A3 Sedan 2015 Bedienungsanleitung

Audi

Audi TT Roadster 2016 Bedienungsanleitung

Audi

Audi Q8 2021 Bedienungsanleitung

Beliebte Automobil Handbücher anderer Marken

Toyota

Toyota 2000 Tundra Bedienungsanleitung

CITROËN

CITROËN DS4 DSign Bedienungsanleitung

Lexus

Lexus 2015 CT 200h Bedienungsanleitung

Cadillac

Cadillac CTS 2008 Bedienungsanleitung

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Bedienungsanleitung

Porsche

Porsche Boxster S Bedienungsanleitung

GMC

GMC 2010 Savana 1500 Cargo Bedienungsanleitung

KIAM

KIAM SPORTAGE 2014 Stücklistenhandbuch

GMC

GMC 2013 Terrain Montageanleitung

GMC

GMC T-Series 1999 Bedienungsanleitung

Mercury

Mercury 1998 Mystique Bedienungsanleitung

Mercury

Mercury 2007 Mariner Bedienungsanleitung

Mazda

Mazda 2007 Mazdaspeed 3 Leitfaden

Mazda

Mazda 2014 CX-5 Bedienungsanleitung

GMC

GMC Chevrolet Express 2022 Bedienungsanleitung

GMC

GMC 1997 Jimmy Bedienungsanleitung

Chevrolet

Chevrolet 2012 Malibu Bedienungsanleitung

Cadillac

Cadillac 2010 Escalade Bedienungsanleitung
