Mediant™ 500Li

Analog VoIP Gateway

Quick Setup Guide

Welcome

Thank you for choosing AudioCodes’ Mediant 500Li Analog VoIP Gateway.

This document is intended to provide basic instructions for initial setup of the Mediant 500Li (hereafter,

referred to as device) and connecting it to your network. For advanced configuration, please refer to the

device's Configuration Notes and Hardware Manual respectively, which can be downloaded from AudioCodes

Website at https://www.audiocodes.com/library/technical-documents.

Before you begin, please read the Safety Precautions and click here to view the Regulatory Information

document.

2 |Page

Safety Precautions

This device is an indoor unit and therefore, must not be installed outdoors.

Ethernet cabling must be routed only indoors and must not exit the building.

Do not open or dismantle the device.

Do not expose the device to water or moisture.

Make sure the device is installed in a well-ventilated location to avoid over heating of internal

components and subsequent damage.

Do not place any object on top of the device and make sure that sufficient clearance from the top and

sides are maintained to ensure proper airflow to avoid over heating of internal components.

Operate the device in an ambient temperature (Tma) that does not exceed 40°C (104°F).

Use only the supplied AC/DC power adapter for connection to the power source.

In case of a malfunction, do not attempt to fix the power adapter and do not use any other type of

power adapter.

Package Contents

Make sure that the following items (in addition to any separate-orderable items that you may have purchased)

are included with your shipped device:

4 x anti-slide bumpers for desktop mounting

1 x AC/DC power adapter

Regulatory Information document

This Quick Guide

3 |Page

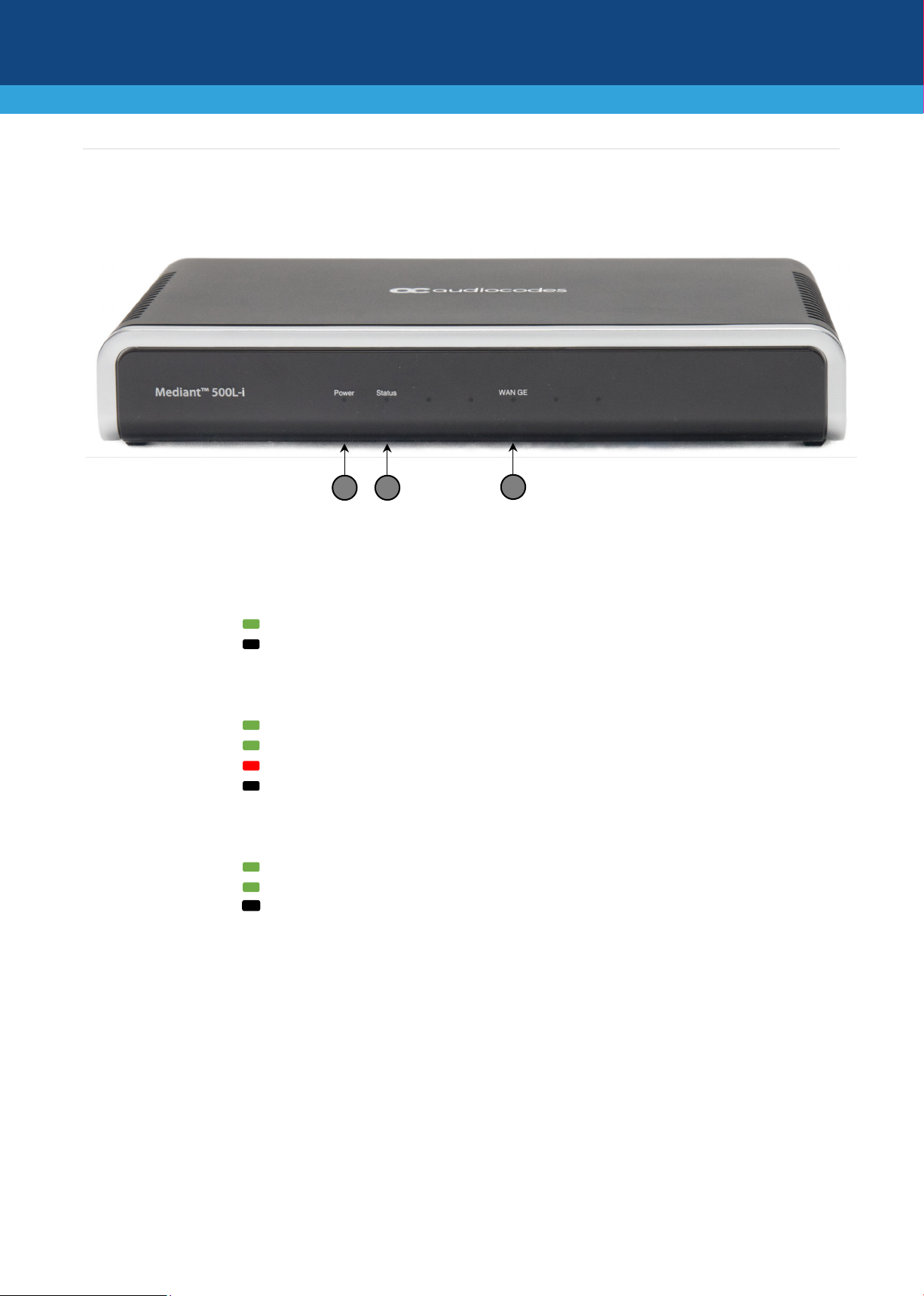

Physical Description of Front Panel

Power

LED indicating power status:

Green On

Power received by device.

Off

No power.

Status

LED indicating operating status:

Green On

Device is operational.

Green Flashing

Initial rebooting stage or software upgrade in process.

Red On

Boot failure.

Off

Advanced rebooting stage.

WAN GE

LED indicating Gigabit Ethernet WAN link status:

Green On

WAN GE link established.

Green Flashing

Data received or transmitted.

Off

No WAN GE link or power not received by the device.

4 |Page

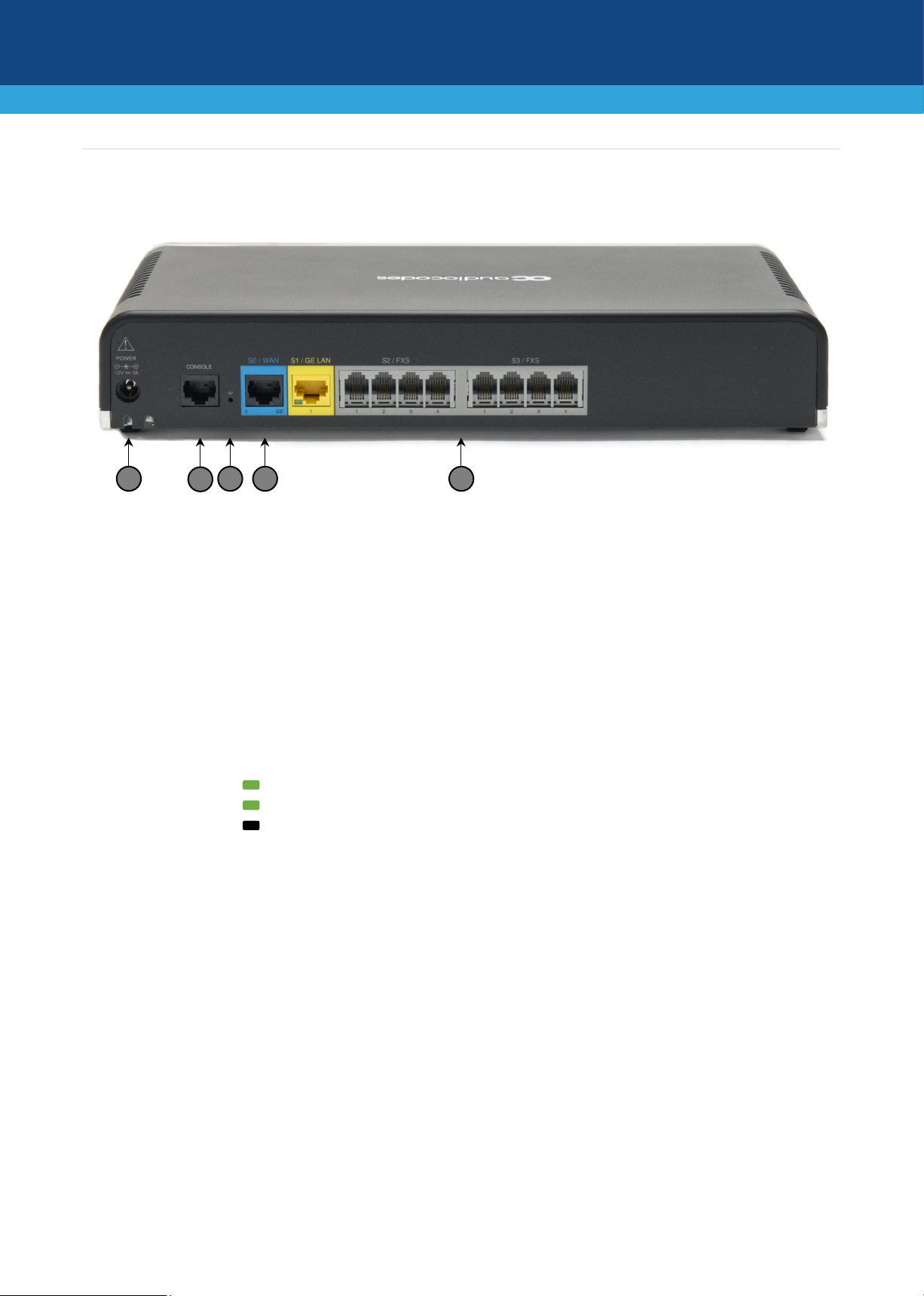

Physical Description of Rear Panel

POWER

DC power plug entry for external AC/DC power adapter.

CONSOLE

RJ-45 port for RS-232 serial communication with the device.

Reset pinhole button for resetting the device or restoring it to factory defaults. To

restore to factory defaults: with a paper clip or any other similar pointed object, press

and hold down the button for at least 12 seconds (but no more than 25 seconds).

Please note that the device will lose all its configuration!

S0 / WAN

WAN interface port Gigabit Ethernet (10/100/1000Base-T)

Green On

Ethernet link established.

Green Flashing

Data is received or transmitted.

Off

No Ethernet link.

S2 / FXS

S3 / FXS

Ports 1-4 of analog interface (FXS).

Ports 5-8 of analog interface (FXS).

5 |Page

Mounting the Device

You can mount the device in several ways:

Placing it on a desktop using the four anti-slide bumpers (supplied), which you need to stick on the

grooves located on the underside of the device. The bumpers avoid involuntary movement of the unit

on the desktop as well as enable better air flow for cooling the device.

Mounting it in a standard 19-inch rack by placing it on AudioCodes 1U 19-inch rack mount shelf

(separate orderable item). The procedure includes attaching the shelf to the rack's front posts, and

then placing the device on the shelf where it is securely held in position by the device's anti-slide

bumpers which fit into the shelf's four square-openings.

Mounting it on a wall, using the integral mounting keyholes located on its underside.

6 |Page

Initial Connectivity

This section describes how to initially access the device's management interface and change its default IP

address to correspond with your networking scheme. Device management can always be done through the

LAN interface, but you can also enable device management through the WAN (as explained in the configuration

guide).

Accessing Device through Web Interface

You can access the Web-based management interface using the device's default LAN IP address:

IP Address: 192.168.0.1

Prefix Length: 24 (255.255.255.0)

Default Gateway: 0.0.0.0

VLAN ID: 1

By default, the device's embedded DHCP server is enabled for the LAN, and with default IP pool addresses

relating to the default subnet LAN. The DHCP server allocates this pool of IP addresses to computers

connected to its LAN interface. You can disable the DHCP server or modify the IP address pool.

Accessing Device through Default LAN IP Address

1. Connect the LAN Port (S1 / GE LAN) to your computer's network interface, using a straight-through

Ethernet cable:

7 |Page

2. Make sure that your computer is configured to automatically obtain an IP address. The device has an

embedded DHCP server, which by default, allocates IP addresses to connected computers.

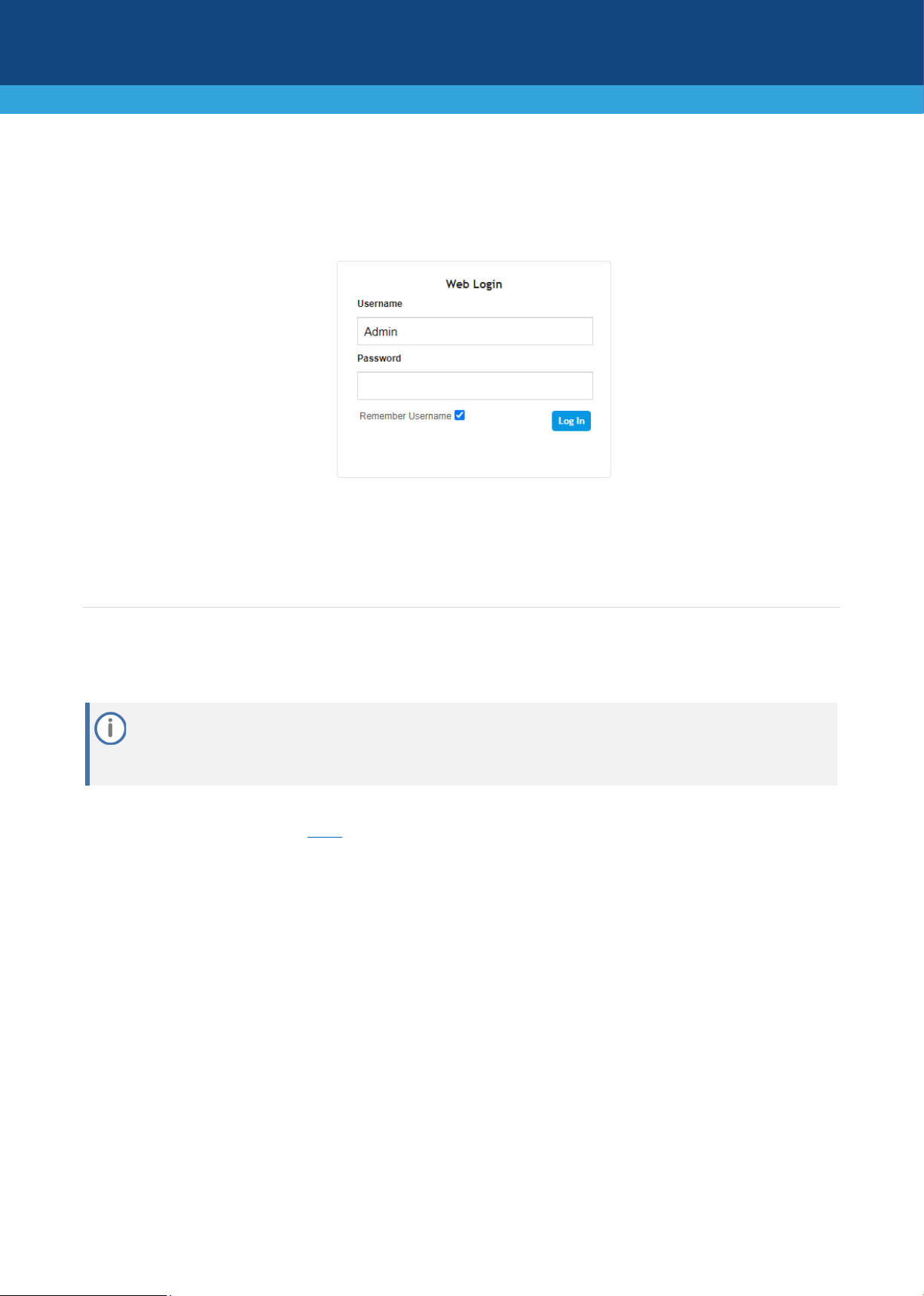

3. On your computer, start a Web browser and in the URL address field, enter the device's default IP

address; the Web interface's Web Login screen appears:

4. In the 'Username' and 'Password' fields, enter the case-sensitive, default login username (Admin) and

password (Admin).

5. Click Log In.

Configuring LAN and WAN

This section describes how to configure the device's LAN and WAN interfaces.

After accessing the device through the LAN interface, you can configure Web management access from one of

the following interfaces:

Any of the configured Voice Gateway LAN interfaces.

WAN port interface: In this setup, you need to enable remote access to the WAN port interface.

For basic configuration, click here to view the configuration note.

Modifying LAN Interface

The device's default LAN IP address is 192.168.0.1/24. You can change this to suit your networking scheme.

By default, the device's embedded DHCP server is enabled for the LAN, and with default IP pool addresses

relating to the default subnet LAN. You can disable the DHCP server or modify the IP address pool. The

DHCP server allocates this pool of IP addresses to the computers connected to its LAN interface.

1. Open the LAN Interface page (Setup menu > IP NETWORK tab > CORE ENTITIES folder > LAN Interface).

2. Configure the following:

LAN Interfaces

DHCP (enable / disable)

DNS

8 |Page

Configuring WAN Interface

This section describes how to configure the WAN interface, which uses Gigabit Ethernet.

Before configuring the WAN interface, make sure that you have all the required information from your Internet

service provider.

1. Connect the WAN port to the WAN network. For information on cabling the WAN port, refer to the

Hardware Installation Manual.

2. Open the WAN Interface page (Setup menu > IP NETWORK tab > CORE ENTITIES folder > WAN

Interface).

3. Configure the following:

WAN settings (Static or DHCP Client - default is DHCP Client)

DNS settings (Static or Auto - default is Auto)

9 |Page

Cabling the Device

Cabling depends on your ordered hardware interfaces, for example, the type of WAN interface.

1. Connect the device's WAN port interface to your router.

2. Connect any phone, fax or other PSTN equipment to any of the analog port interfaces (FXS).

3. Insert the DC plug that is located at the end of the power cord of the supplied power adapter into the

device's power socket located on the rear panel and labeled POWER. Plug the power adapter directly

into a standard electrical wall outlet; the Power LED turns on (green).

4. You should now be able to make and receive calls, based on your local plan with your service provider.

10 |Page

MediaPack, What’s Inside Matters, OSN, SmartTAP, User Management Pack, VMAS, VoIPerfect, VoIPerfectHD, Your

Gateway To VoIP, 3GX, VocaNom, AudioCodes One Voice, AudioCodes Meeting Insights, AudioCodes Room Experience

and CloudBond are trademarks or registered trademarks of AudioCodes Limited. All other products or trademarks are

property of their respective owners. Product specifications are subject to change without notice.

International Headquarters

1 Hayarden Street,

Airport City

Lod 7019900, Israel

Tel: +972-3-976-4000

Fax: +972-3-976-4040

AudioCodes Inc.

200 Cottontail Lane,

Suite A101E,

Somerset, NJ 08873

Tel: +1-732-469-0880

Fax: +1-732-469-2298

Website: https://www.audiocodes.com

Document #: LTRT-13948

Date Published: 16/02/2022
