TECHNICAL DETAILS

TECHNOLOGY

Central Control

Of Your Whole

House System

OPT2/4/6

The Audioplex OPT series of multi-

room speaker selectors incorporates

individual Optimatch volume

controls for each room. Now you can

select which speakers throughout

your home will play (and at what

volume) from the convenience of

your stereo's location. No longer will

you have to walk around your house

adjusting listening levels or turning

rooms on or off.

The OPT series is ideal for

restaurants, bars and homes not

equipped with local, in-wall volume

controls in each room (or those with

uncontrollable teenagers)!

No additional amplifier protection is

necessary; Optimatch volume

controls inside of the OPT series

provide protection that does not

waste power. All of your stereo's

power is delivered globally to your

multi-room speaker system and

listening levels will always remain

the same even as rooms are turned

on or off.

Unlike other manufacturer's switchers,

the OPT series does not have

"protection" buttons that children or

inexperienced users could accidentally

press. Accidental deactivation of

amplifier protection can devastate your

equipment requiring expensive service

calls and repairs. The Audioplex OPT

series provides automatic protection. No

one can damage your system

accidentally.

The OPT series of speaker selectors includes the OPT-2, the OPT-4 and OPT-6,

accommodating two, four and six pairs of speakers respectively. The controls

of the OPT series allow you to play any combination of speakers

Only Audioplex OPT series selectors

deliver all of your amplifier's power

globally. That means that when the entire

system is active, the power of your

amplifier is perfectly distributed to each

speaker. Of course, the system directs

The OPT series is designed and

engineered to have a ruler-flat frequency

response and ultra-low distortion.

Audioplex delivers 20 to 20,000 Hz plus

or minus 0.5dB.

If two stereo amplifiers are connected

to an OPT selector, you select which

source plays in each room via the

OPT's unique source selection. You

can simultaneously direct the news to

some areas, while your favorite

background music plays elsewhere.

Installed next to your stereo, the OPT series

of switchers protects your amplifier

and provides you with independent volume

and on/off control for each room or area.

No Service Call Buttons

Designed For Performance

Two Simultaneous Sources

Can Play In Your System

Global Power Distribution

SPECIFICATIONS

Power Handling: Suitable for use with amplifiers of up to 200 watts per channel.

Speaker/Amplifier Connectors: Screw-type connectors capable of connecting 14 gauge wire.

Dimensions: OPT-2 11.5"W x 2"H x 6"D / OPT-4/6 17"W x 1.75"H x 6.25"D.

TECHNOLOGY

404 GWH PO BOX 440 MELVIN VILLAGE, N.H. 03850 800-257-2077 FAX: 603-544-8901

www.audioplex.com

CUSTOM

ELECTRONIC

DESIGN &

INSTALLATION

ASSOCIATION

MADE IN

U.S.A

exactly the same amount of power to each

speaker pair regardless of how many

speakers are playing, so there are never

any variations of volume when rooms are

turned on and off.

Audioplex provides a lifetime warranty,

guaranteeing the performance and

function of our switchers for the life

of the original end user.

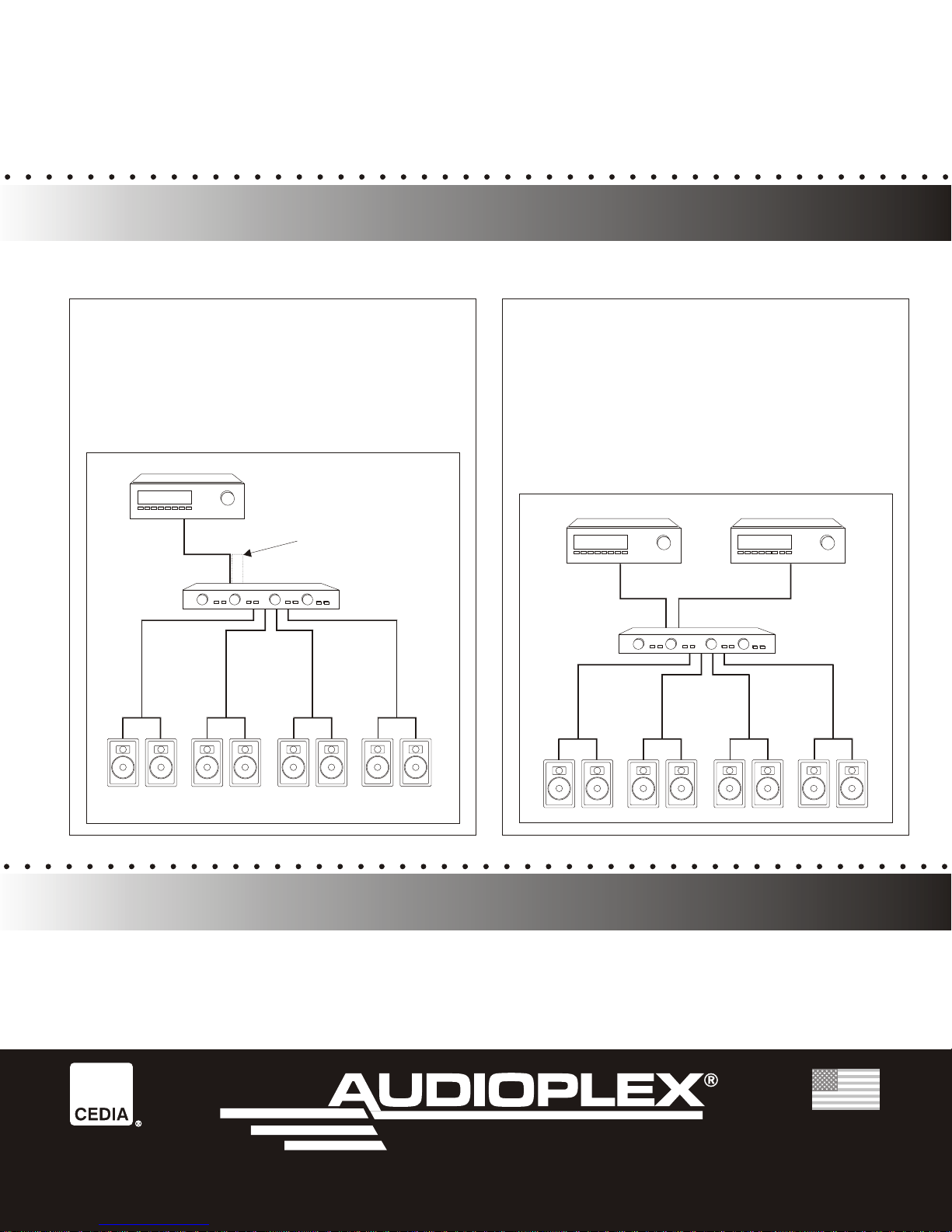

Wiring an OPT-2/4/6 System with

one source amplifier Wiring an OPT-2/4/6 System with

two source amplifiers

Lifetime Warranty

APPLICATION NOTES

Two connections need to be made:

1) Connect speaker wire from the main speaker

output of the amplifier/receiver to the

amplifier A inputs of the OPT selector.

2) Optional but recommended: connect a speaker wire

jumper from the amplifier A inputs to the amplifier

B inputs when not using two amps/receivers.

Three connections need to be made:

1) Connect speaker wire from the main speaker

output of amplifier/receiver A to the

amplifier A inputs of the OPT selector.

2) Connect speaker wire from the main speaker

output of amplifier/receiver B to the

amplifier B inputs of the OPT selector.

3) Connect speaker wire from each of the

room outputs to each of the pairs of speakers.

RECEIVER A

AUDIOPLEX OPT-4

RECEIVER A RECEIVER B (OPTIONAL)

AUDIOPLEX OPT-4

OPTIONAL JUMPER CONNECTION
