Audiovox AVXMTGHR1DA Technisches Datenblatt
AVXMTGHR1DA
7” LCD MONITOR
WITH BUILT-IN DVD PLAYER
FOR REAR SEAT ENTERTAINMENT
OPERATION AND INSTALLATION MANUAL
PUSH
Important Notice
Installation of headrest products require careful planning and preparation. Be extremely careful
with seats that have airbags built into them. Keep wiring away from any air bag wiring (usually
identified by yellow connectors and yellow wire jackets). Damage to air bag wiring can result in
personal injury to vehicle occupants. If you have any questions regarding wire routing or
installation in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.
When connecting power and ground in a mobile video installation, insure that the ACC wire is
fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in
damage to the vehicle if a short circuit develops between the vehicle connection point and the
mobile video product.
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if
the LCD panel or video monitor is used for vehicle information, system control, rear or side
observation or navigation. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel or video monitor must be installed so that these features will
only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that operates
when the vehicle is in gear or when the parking is not applied must be installed to the rear of the
driver’s seat where it will not be visible, directly or
indirectly, to be operator of the motor vehicle.
Licensed under one or more of the following patents:
Patent NOS. 7,245,274 , 6,899,365 and 6,678,892
FEATURES
• 7” Digital Thin Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) Monitor
• Built-in DVD Player
• Last position memory for DVD player
• Four Audio / Video Source inputs “DVD, AV, AUX and Media (USB/SD)”
• USB 2.0 port / SD Card Reader input
• On Screen Display (OSD) for control of picture quality and functions
• Full function remote control
• Plays DVD, CD and MP3 discs
• IR headphone (optional)
SPECIFICATIONS
Specifications subject to change without notice.
Resolution
Pixels
Operation Temperature
Storage Temperature
Backlit life
Video Display System
Headphone Audio Output
Video Output
Power Source
Dimension (L x W x H)
480x234
336,960
32 ~113º F (0 ~ 45º C)
-4 ~ 149º F (-20 ~ 65º C)
20,000 Hours
NTSC / PAL / AUTO
0.03W @ 32 ohms
1.0Vp-p @ 75 ohms
12VDC
147mm x 275mm x 200mm
Type TFT Active Matrix LCD
3
5.7in x 10.8in x 7.8in

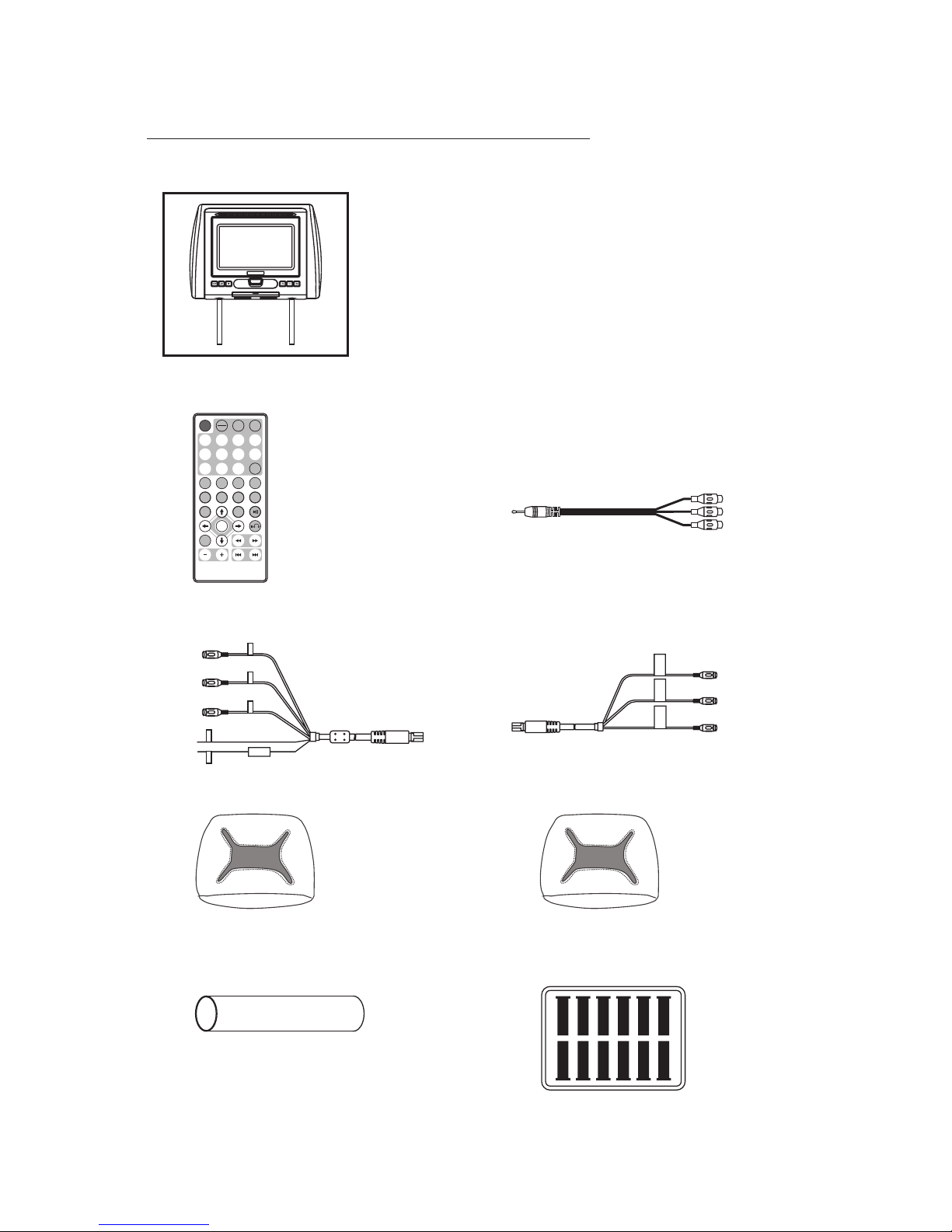

MATERIAL TO USE IN THIS PACKAGE:
NOTE: Headrest cables are included with the headrest DVD player and the headrest monitor.
1) AVXMTGHR1DA System Monitor with DVD Player (AVXMTGHR1DA) (1pc)
NOTE: The AVXMTGHR1DA monitor has been designed
with interchangeable covers. The headrest cover as
supplied is covered with shale colored vinyl. Black vinyl
and pewter vinyl can replace the shale colored vinyl.
1) Remote Control
(P/N 136-5433) - (1pc)
3) AV IN / Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309)-(1pc)
5) Black Vinyl Headrest Cover
(P/N 126-1377)-(1pc)
4) AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4310)-(1pc)
2) AV Adapter Cable
(P/N )-(1pc)112B3227
6) Pewter Vinyl Headrest Cover
(P/N 126-1378)-(1pc)
7) Shrink Tubing, Black
(P/N 138-1495 )-(2pcs)
8)
(P/N )-(1 Tray )
Support Tube Adaptor Box
170-0170
4
PUSH
POWER
1 2 3 4
5 6 7 8
9
10/0
10+
GOTO
MENU
PBC TITLE
MODE
PROGRAM
SLOW
SUBTITLE
DISPLAY
REPEAT
MUTE
AUDIO
ANGLE
ZOOM
SETUP
ENTER
CONSOLE
VOL

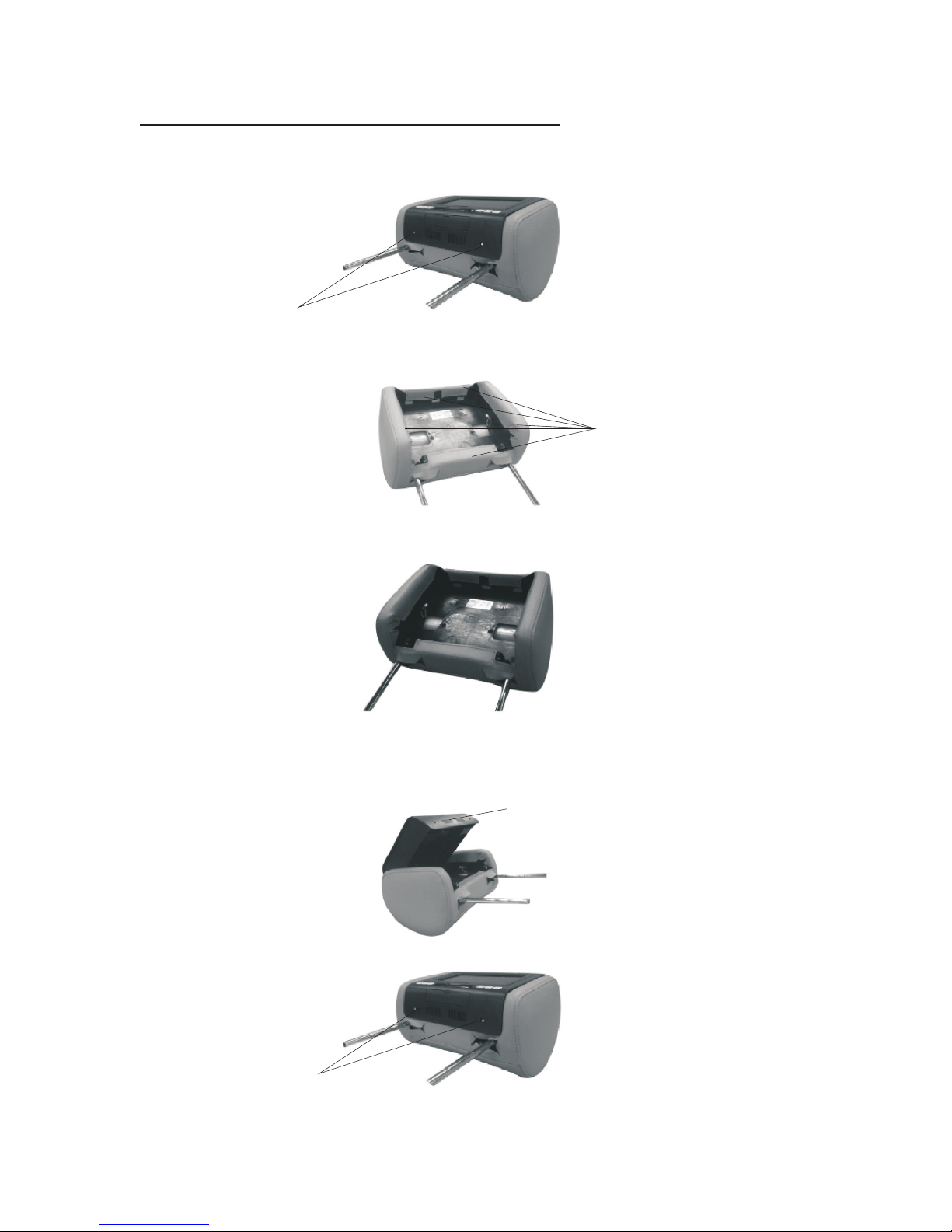

HEADREST COVER REPLACEMENT:
1. Using a Philips screwdriver, unscrew the two Philips screws and lift the bottom edge
of the monitor upward.
2. Remove the velcro tabs securing the headrest cover.
3. Replace the headrest cover with the desired color and secure the headrest cover by
re-attaching the velcro tabs.
4.Place the monitor cable into the space on the right side of the headrest and lower the
monitor into position to align the two Philips screws with the screw holes in the headrest.
Close the screen and press the PUSH button to secure the screen.
5.Tighten screws
5
NOTE: If desired, replace the headrest cover before installing the headrest in the vehicle.
Unscrew Philips Screws
Remove Velcro Tabs
Push
Tighten Philips Screws
VEHICLE PREPARATION
6
1) Decide on the system configuration and the options that will be installed.
2) Read the manual and get familiar with the electrical requirements and
connections.
3) Decide on the mounting locations and methods of mounting the products that
will be connected to the AVXMTGHR1DA.
4) Prepare the vehicle by removing any interior trim necessary to gain access to
the vehicle's wiring as well as all areas where interconnecting wire harnesses
will be located. This manual will only focus on the installation of the
AVXMTGHR1DA Monitors in the supplied configuration.
NOTE: The Master Monitor should be installed in the passenger position most
used.)
5) Locate an accessory power source +12VDC (ACC) present when the ignition
key is in the accessory and run positions. 0VDC should be present when the
ignition key is in the OFF position), and a good ground. Generally, these
wires can be found at the ignition switch or fusebox.
NOTE: Ensure that the accessory power is fused at the source. Failure to do so
may result in vehicle wiring damage.
6) Run the wiring harnesses throughout the vehicle as necessary. (Refer to the
Wiring Diagrams on page 8). Be sure, that all the wiring is protected from sharp
edges and is routed in such a manner that it will not be pinched when it is fully
installed. Be sure to leave enough slack in the wiring at each component to
allow sufficient working room. Be sure to leave enough slack in the monitor
cables to allow the headrest to move up or down, and seat movement.
7) Install the headrests:
a. Remove vehicle's original headrests.
b. Insert appropriate support tube adaptors in vehicle post guides (if needed).
c. Hold the headrest above the seat and insert the two cables into the vehicle
support guides. Make sure that the headrest is in the correct position (display
facing the rear).
d. Route the cables through the seat back and out the bottom of the seat while
pulling the cables to remove the slack. Be sure to leave enough slack in the
monitor cables to allow the headrest to move up or down.
8) Connect all the components together (electrically) and verify proper operation of
all the system functions.
9) If 2 AVXMTGHR1DA’s are installed in a vehicle, set one unit to IRTA and the
other unit to IRTB. See page 14 for instructions.
7
Wireless FM Modulator
The AVXMTGHR1DA is equipped with a built-in wireless FM Modulator, that
allows you to listen to the DVD audio signal by tuning your vehicle’s radio to the
selected frequency, (CH1 87.7MHz, CH2 88.1MHz, CH3 88.5MHz, CH4
88.9MHz, CH5 106.7.1MHz, CH6 107.1MHz, CH7 107.5MHz, CH8 107.9MHz).
This feature is accessed by using the FM transmitter buttons on the remote
(FMM ON/OFF, and CHANNEL SELECT).
Whenever the FM Modulator is on, broadcast reception on the vehicles radio will
be poor. Switching the FM Modulator off will allow normal radio reception.
NOTE: In certain areas where there are a large number of FM radio stations (e.g.
large cities, urban areas), the reception of the FM signal may not be satisfactory,
resulting in static, distorted sound or signal bleed thru from strong local radio
stations. This is not a defect in the product, but the result of a stronger local radio
station overpowering the wireless FM transmitter in your headrest monitor. Under
these conditions use of wired or wireless headphones is recommended.

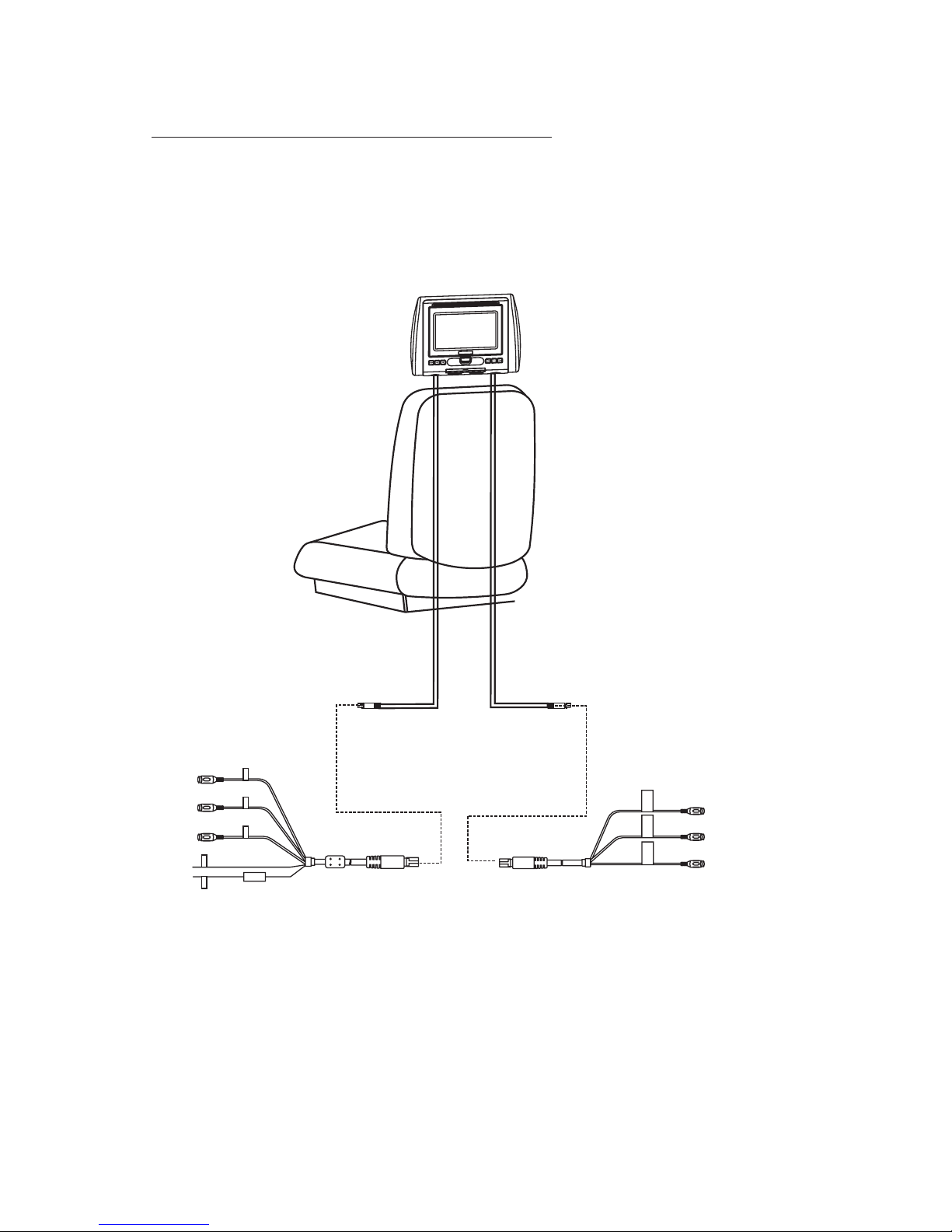

AVXMTGHR1DA WIRING DIAGRAM
Headrest Monitor
GREEN
RED
8
PUSH
AV OUT Cable, 8 Pin Din to 3 RCA (Green)
(P/N 112-4310)
AV IN / Power Cable, 8 Pin Din to 3 RCA (Red)
(P/N 112-4309)
Video In Yellow
Audio In Right Red
Audio In Left White
+12V (ACC)
Ground-
Video Out Yellow
Audio Out Right Red
Audio Out Left White
9
PUSH
AVXMTGHR1DA
( )

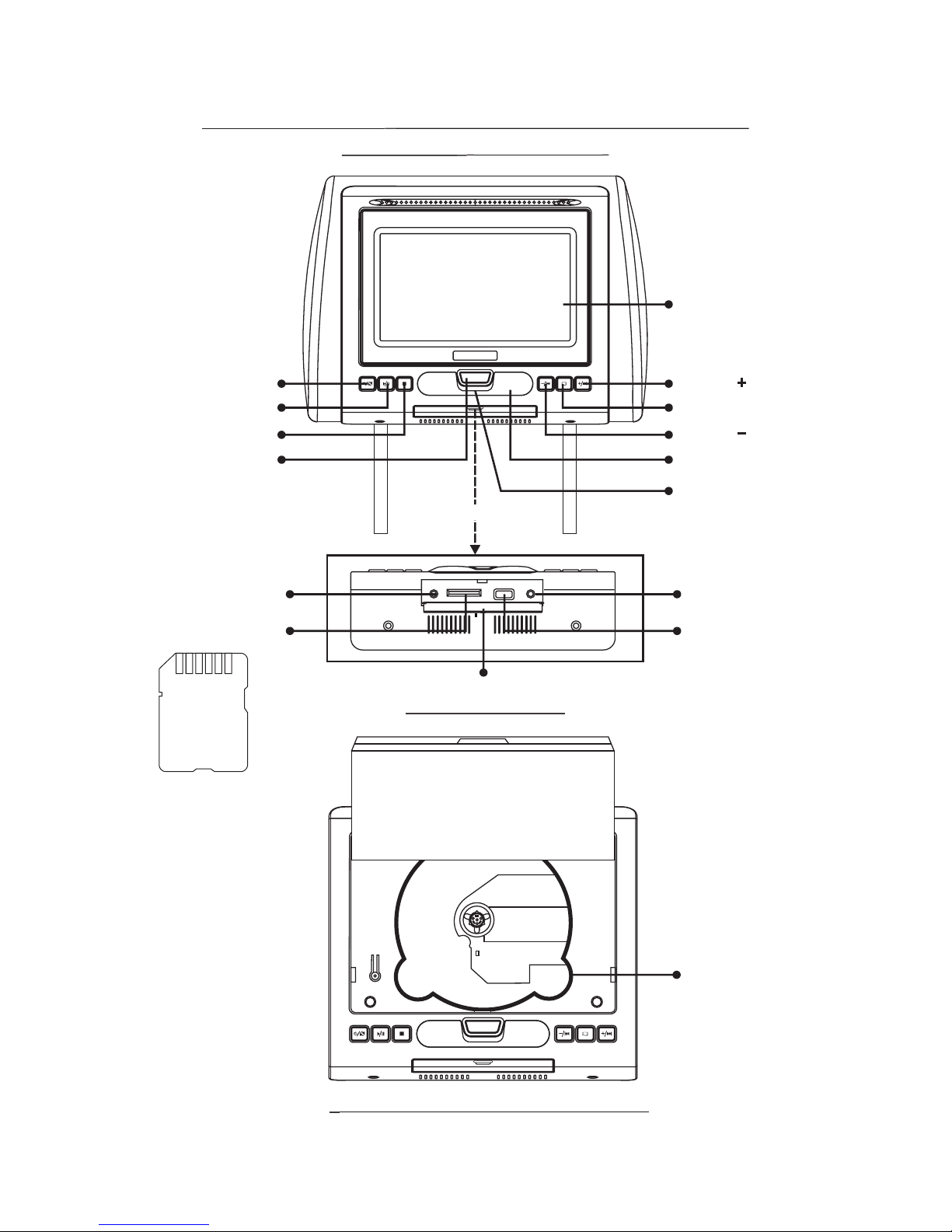

CONTROLS AND INDICATORS
DIAGRAM FRONT VIEW
POWER/SOURCE
SCREEN RELEASE
PULL DOWN
PLAY/PAUSE
STOP
VOLUME /NEXT
SYSTEM MENU
VOLUME /PREVIOUS
IR SENSOR
IR HEADPHONE
TRANSMITTER LENS
AUX IN SD USB PHONE
AUX IN JACK
USB PORT
SD CARD READER
COVER
LCD PANEL
PUSH
DVD DISC
(FRONT VIEW MONITOR OPEN)
(BOTTOM VIEW)
HEADPHONE JACK
NOTE:
Insert the SD Card with
the card contacts facing
up and toward the user.
SD Card
10
REMOTE CONTROL OPERATION
NOTE: The remote control has a battery installed with a pull tab to prevent battery
discharge. Remove the pull tab before attempting to use the remote.
Battery Replacement
1. Depress the tab (1) and slide the battery holder (2) out in the direction of the arrow.
2. Install one CR2025 battery. Make sure that the proper polarity (+ or -) is observed.
3. Slide the battery holder into the remote control until it locks.
Remote Control Function Description
POWER
1 2 3 4
5 6 7 8
9
10/0
10+
GOTO
MENU
PBC TITLE
MODE
PROGRAM
SLOW
SUBTITLE
DISPLAY
REPEAT
MUTE
AUDIO
ANGLE
ZOOM
SETUP
ENTER
CONSOLE
VOL
1
2
3
4
6
8
9
5
7
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
