Audiovox 1187001PL Bedienungsanleitung

INSTALLATION INSTRUCTIONS

FOR

55-0401x-121 SERIES 1187001PL

2001 DURANGO

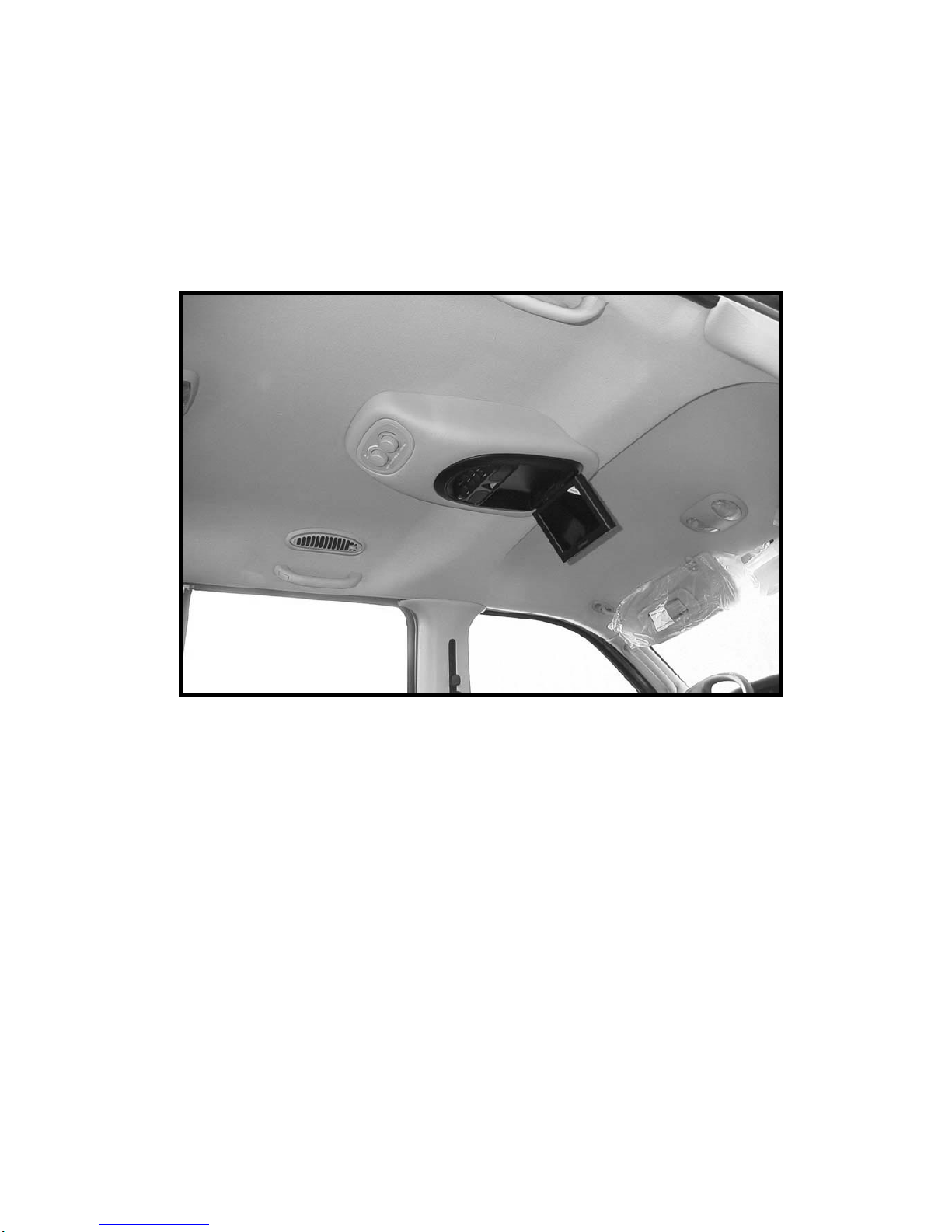

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM

These instructions are intended for use only by experienced professionals in the automotive

customizing business. Special tools and equipment, as well as specialized handling and care

of product during installation, may be required. Before beginning this installation, carefully read

through the following instructions. Use extreme care when cutting headliner material.

Check for wiring or other componentry above headliner material. Cut only where indicated.

Materials/ Tools required for this installation:

1. #2 Phillips screwdriver 2. Powered screwdriver or drill with adapter

3. Awl or similar tool 4. Digital Volt Meter

5. 18 GA wire 9' 6. Rubbing Alcohol

7. 5/16” Hex Socket Bit 8. Razor knife or similar

9. Pencil or equivalent 10. Measuring tape

11. Masking tape 12. Audiovox Video Module

NOT FOR VEHICLES EQUIPPED WITH SUN ROOF.

128-6067 Feb. 13,2001

Printed in the U.S.A

INSTALLATION INSTRUCTION # 44-0091A

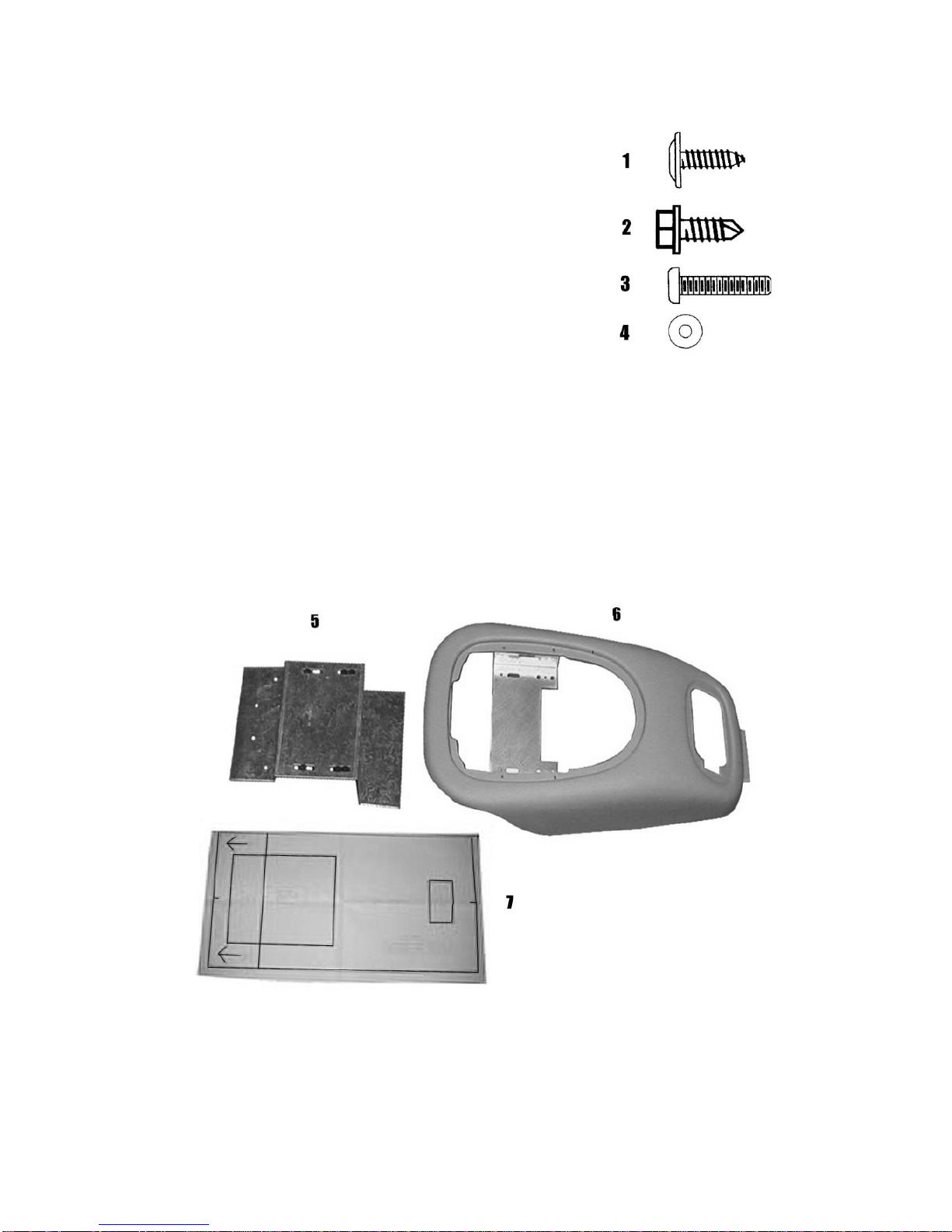

MATERIALS PROVIDED FOR INSTALLATION:

ITEM Description QTY

1SCREW, #8 X 9/16" PWH 2

2SCREW, # 10 X 1/2" HWH,TEK 2

3SCREW, 6-32 X 3/4" ,PPH 6

4WASHER, 3.5 mm 4

5MOUNTING BRACKET 1

6CONSOLE 1

7TEMPLATE 1

INSTALLATION INSTRUCTION # 44-0091A Feb. 13,2001

Printed in the U.S.A.

I. PREPARATION OF VEHICLE INTERIOR

1. Remove and retain rear A/C controls by pulling

downward. Disconnect wire harness. See Figure 1.

Set controls in a safe place for reuse later.

2. Cut template (item 7 pg 2) in area #1. Locate and

tape template to the headliner. Make sure

template is centered left to right in vehicle and

mark area to be cut. Remove template and trim

headliner. Cut template areas #2 & #3 and

reinstall the template to the headliner. Ensure area

#1 of the template hole locations are aligned with

the OEM bracket holes. Mark and trim headliner.

The rear cutout is critical, do not overcut or

the opening will be visible when the console is

installed. See Fig. 2. Caution: Before cutting

headliner material, check for wiring or other

componentry above headliner. Cut only where

indicated.

3. Remove and retain O.E. A/C switch bracket and

screws. See Figure 3.

FIGURE 1

FIGURE 2

FIGURE 3

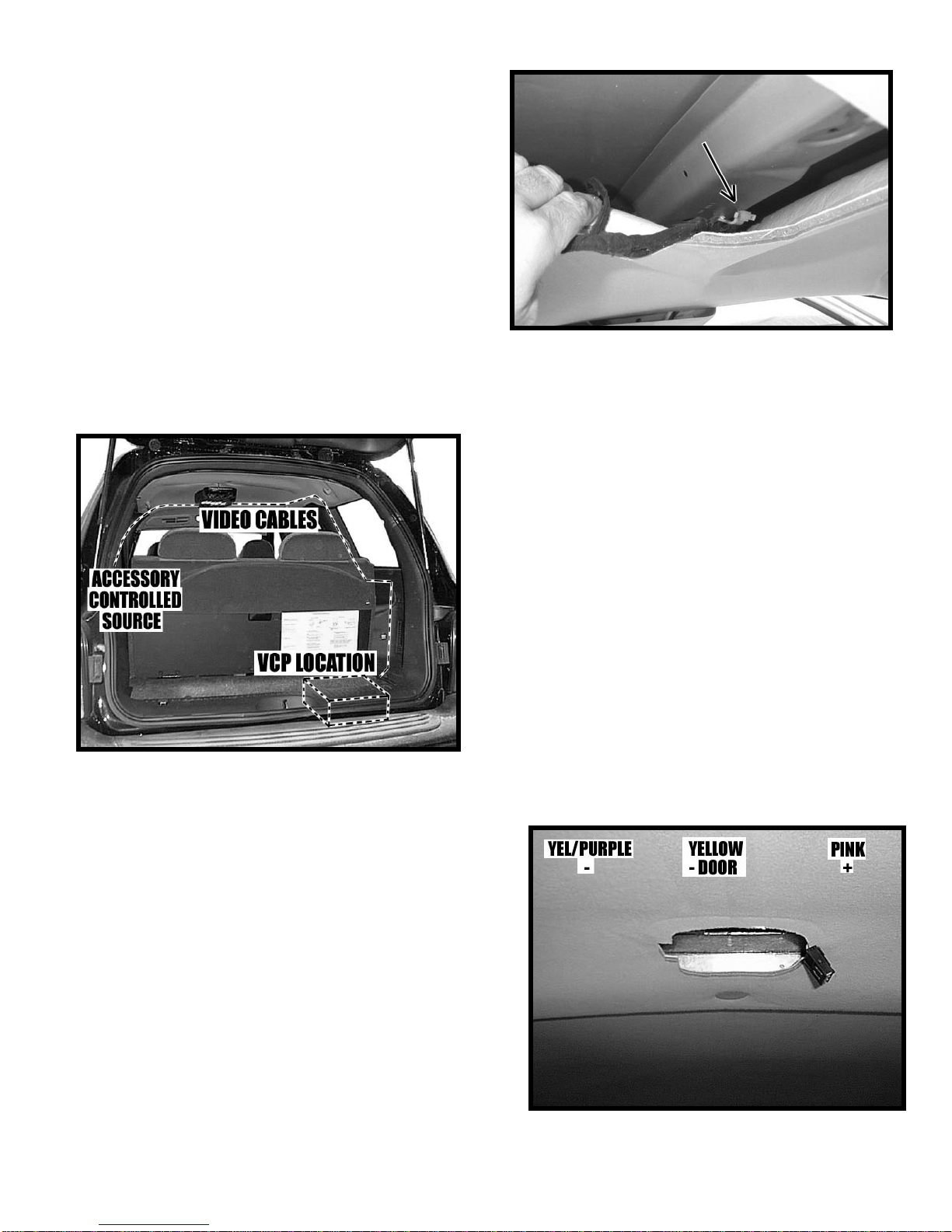

4. Carefully pull (3) A/C wire harness clips from roof

brace to extend length of wire harness. It may be

necessary to lower the driver’s side of headliner at

the “B” pillar to gain access to the 3rd clip. See Fig. 4

Use caution when pulling on wire harness and

pulling downward on headliner. The connector

should reach the rear cut-out in headliner when all

clips are released.

5. Install and route all video and audio cables, and any

other added component requirements to their

respective places in the vehicle. Refer to component

installation instructions for wiring diagrams. The

suggested routing of the video system cable is as

follows: Above the headliner from video system to

the C-pillar. Down the C-pillar to the floor. Route

the power lead to a fused accessory controlled

source. Connect the ground lead to the vehicle

chassis. Route the remaining wiring (RCA plugs,

Remote Sensor extension, etc.) to the VCP location.

See Figure 5. Connect per instructions included with

the video system. If video system if to be used as a

television, install an appropriate antenna per

instructions included with the antenna.

6. Using a digital volt meter, check function of lights.

7. Construct a 3' jumper harness that will connect the

vehicle’s dome light wires to the lights in video

system. Connect the red/black wire from video system

to the O.E. yellow/purple wire. Connect the purple

wire from video system to the O.E. yellow wire.

Connect the black wire from video system to the

O.E. pink wire. See Fig. 6.

FIGURE 5

FIGURE 4

FIGURE 6

8. Remove and retain mounting bracket and screws

(items 5&3 pg2) from console (item 6 pg2). Use

rubbing alcohol to clean sheet metal in the cut–out

area in headliner. Wipe surface dry with a clean

cloth. Remove protective tape from adhesive

strips on mounting bracket (item 5 pg2). Make

sure bracket is centered prior to pressing tape

against roof surface. Once the tape is applied

to the roof, DO NOT REMOVE AND

REPOSITION or the tape will not stick

properly. Install using (2) two O.E. screws in

original holes and (2) two # 10 x 1/2" TEK screws

(item 2 pg2). See Figure 7.

9. Install A/C switch into rear of console (item 6 pg2)

and O.E. bracket over A/C switch. Make sure control

snaps securely into bracket. See Figure 8.

10. Secure bracket to console brace using (2) two # 8 x

9/16" screws (item 1 pg 2). See Figure 8.

FIGURE 7

FIGURE 8

II. INSTALLATION OF CONSOLE

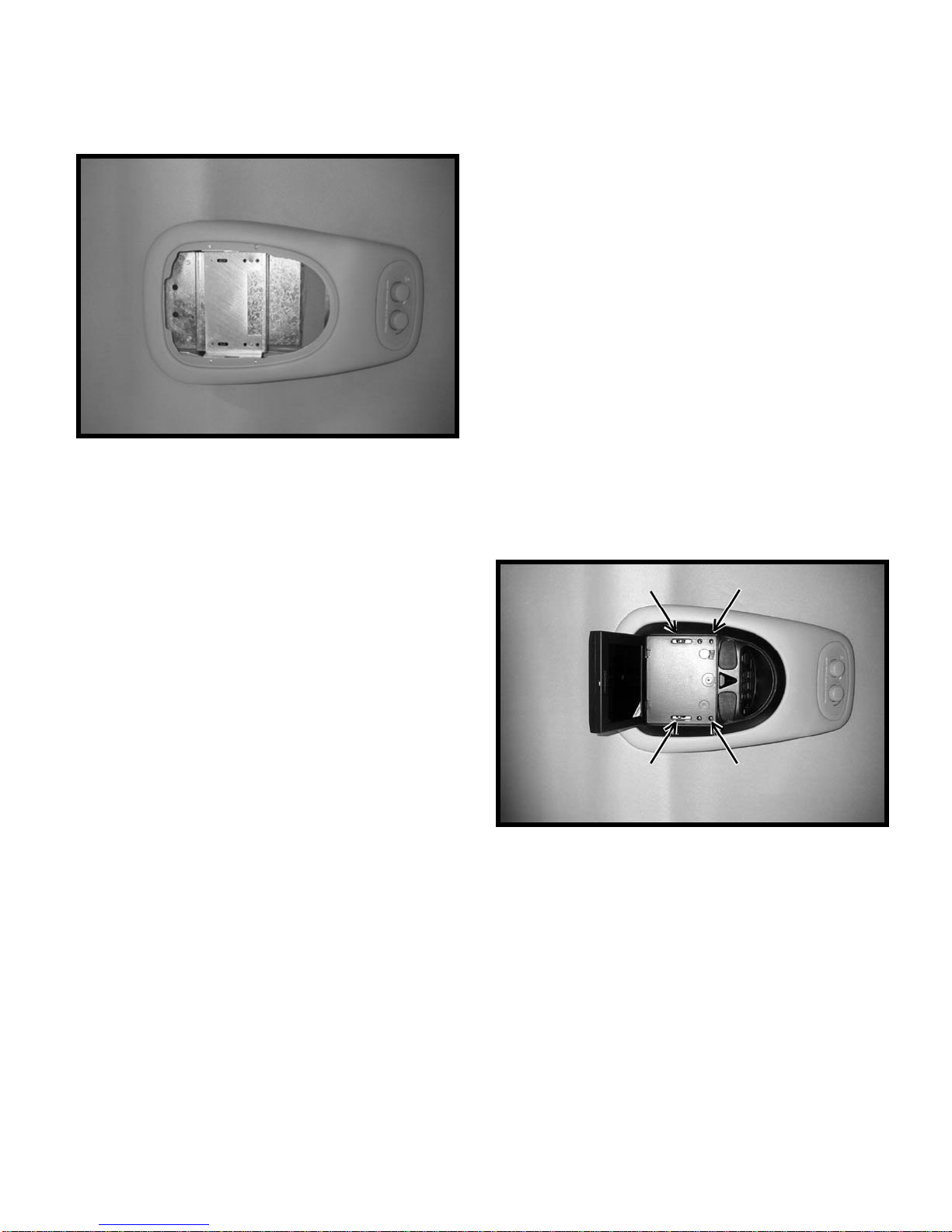

11. Raise console (item 6 pg 2) into approximate

position against headliner. Connect O.E. wiring

to A/C control.

12. Insert plastic flange on rear of console into

opening in headliner. Make sure console is

centered left to right. See Figure 9.

13. Secure console secure front of console using (2)

two 6-32 x 3/4" screws (item 3 pg 2).

14. Release video screen from locked position.

Lower video screen to viewing position for

access to mounting locations in top of video

system housing.

15. Raise video system into approximate position

and connect all wiring to components. Connect

wiring and cabling to video system per

instructions included with video system.

16. Check function of all components and lights. See

operating instructions for video system

operations check. For further assistance, refer to

the video system manual for the technical

support phone number listed for your area.

17. Insert video system into opening in console. Note: Make sure wires do not get pinched between video

system and console. Align holes in housing with holes in mounting bracket. Secure using (4) four 6-32 x

3/4"screws and (4) four 3.5 mm washers (items 3&4 pg2). See Figure 10.

Caution: Do not overtighten screws.

18. Raise video screen into locked position.

FIGURE 10

FIGURE 9
