Audiovox 128-5495E Kurzanleitung
VOD80
8" LCD MONITOR & DVD PLAYER
Owner/ Installation Manual
2
Note:
This Product incorporates copyright protection technology that is pro-
tected by method claims of certain patents and other intellectual prop-
erty rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
ing uses only unless authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Warnings
Do not use any solvents or cleaning materials when cleaning the video
monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the
lowest position.
Remember to leave the dome light switch in the off or auto positions
when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle’s battery.
Do not put pressure on the screen.
Licensedunderoneor moreof thefollowing patents,
PatentNOS. 5,775,762and5,927,784
3
An LCD panel and/or video monitor may be installed in a motor vehicle
and visible to the driver if the LCD panel or video monitor is used for
vehicle information, system control, rear or side observation or naviga-
tion. If the LCD panel or video monitor is used for television reception,
video or DVD play, the LCD panel or video monitor must be installed
so that these features will only function when the vehicle is in “park” or
when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or
DVD play that operates when the vehicle is in gear or when the parking
brake is not applied must be installed to the rear of the driver’s seat
where it will not be visible, directly or indirectly, to the operator of the
motor vehicle.
ImportantNotice
4
A. Introduction
Thank you for selecting the VOD80. The main features include a
8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD)
monitor and a built-in DVD player. The unit applies the latest state of
the art electronics. The unit is constructed to provide years of reli-
able, trouble-free service. Please read the entire instruction manual
supplied with this product prior to operation. The documentation will
assist you in installing the system properly to obtain the best equip-
ment performance. Please store this manual for later use.
B. Cautions and Warnings
1. Installation
Ensure that the VOD80 is installed in accordance with the instruc-
tions and illustrations provided in this manual.
2. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). To ensure proper ventilation and
properoperation,nevercoverorblocktheventilationslotsandopen-
ings
3.Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4. Cleaning Unit
Whencleaning,make surethesystem isunpluggedfrom thepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
5
5. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. Contents
1. 8” LCD Monitor & DVD Player Combo
2. A/VAdapter Cable
3. 8 Pin Connect to RCA AV Cable
4. Power/Dome light Harness
5. Hardware Package
4 pcs M4 x 8mm Machine Screws
4 pcd M2 x 8mm Screws
4 pcs Rubber Plugs
4 pcs Small Rubber Ring
6. Remote Control
7.Mounting Plate
8.Owner/Installation Manual
9. Game Controller
10.Trim Ring
11.Connecting axis
6
TOOLS REQUIRED:
#2 Philips Screwdriver
#1 Philips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
Electrical Tape
MaskingTape
Multimeter(to verify 12 volt DCand continuity: Do not usea test light
or logic probe)
Marker pen – to mark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source).
Requirements will vary from vehicle to vehicle.
D. Installation and Powering
7
GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed
(i.e.:what components, VCP,Tuner, RFModulator/external amp, re-
mote headphones, DVD, etc.).
2) Review all manuals to become familiar with electrical requirements
and hook ups.
3) Decide upon mounting locations of all components and method of
mounting.
4) Prep the vehicle by removing any interior trim necessary to gain ac-
cess to vehicle's wiring as well as all areas where interconnecting
wire harnesses will need to be located. If any access holes need to
be cut into the vehicle (headliner, other trim components etc.), this
should be done now as well.
5) Route the wiring harnesses throughout the vehicle as necessary.
(Refer to the Wiring Diagrams on page 10 of this manual as well as
the wiring instructions for the individual components and accessory
options being installed). Be sure that all wiring is protected from
sharpedges and isrouted insuch a mannerthat itwill not bepinched
when all components and interior trim are fully installed. Be sure to
leaveenough slackin thewiring ateach component to allow working
room.
6) Remove allA/V system components from their packaging and place
them loosely in the vehicle at their respective locations.
7) Connect all components together (electrically) and verify proper op-
eration of all system functions. Note: This is best done BEFORE
components have been permanently mounted.
8) Afterverifyingproperoperation of thesystem,proceedto mount each
of the components.
9) When all components are mounted, recheck function of entire sys-
tem again to ensure that no wiring was pinched or connected im-
properlyduring final installation.
8
Notes :The VOD80 video system is only intended for an overhead,
drop down installation. It is not intended for seat back or any other
type of mounting. The hinging mechanism is designed for horizon-
tal, drop down use only.
VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in the ACC.
and run positions, and 0v when key is off). Generally, this wire can
be found at the ignition switch or fuse-box.
2) The mounting method and location will vary from vehicle to vehicle,
so this manual will only focus on the installation of the video monitor
and related console accessories.
3) Generally,thebestlocationforthevideomonitoriswherethevehicle's
factory dome light is installed. The monitor should be located in
such a manner that it can be comfortably viewed by rear seat pas-
sengers. NEVERINSTALLTHEMONITORINAPLACEWITHINTHE
DRIVER'S VIEW. THIS IS NOT ONLY DANGEROUS, BUT IT IS
ALSOILLEGAL.
4) Once the mounting location of the monitor has been determined,
there may be additional preparation work necessary, depending on
the vehicle structure and installation method. Some of the steps
that may be required are:
A) Removal of the vehicle's dome light.
B) The headliner may need to be trimmed.
9
MOUNTING THE VOD80
Figure 2
NOTE: Two of the mounting holes are located under the domelight cov-
ers.
10
1. Place the VOD80 on a soft surface with the rubber gasket facing up.
Use care to avoid scratching the unit’s exterior surface.
2. Placethetrimringontheunitandnotethelocationofthefourmounting
screws.
3. Remove the four screws that are in the unit.
4. Remove the rubber gasket that is attached to the unit.
5. Attach the trim ring to the unit using the longer four (4) 2 X 8mm
screws supplied.

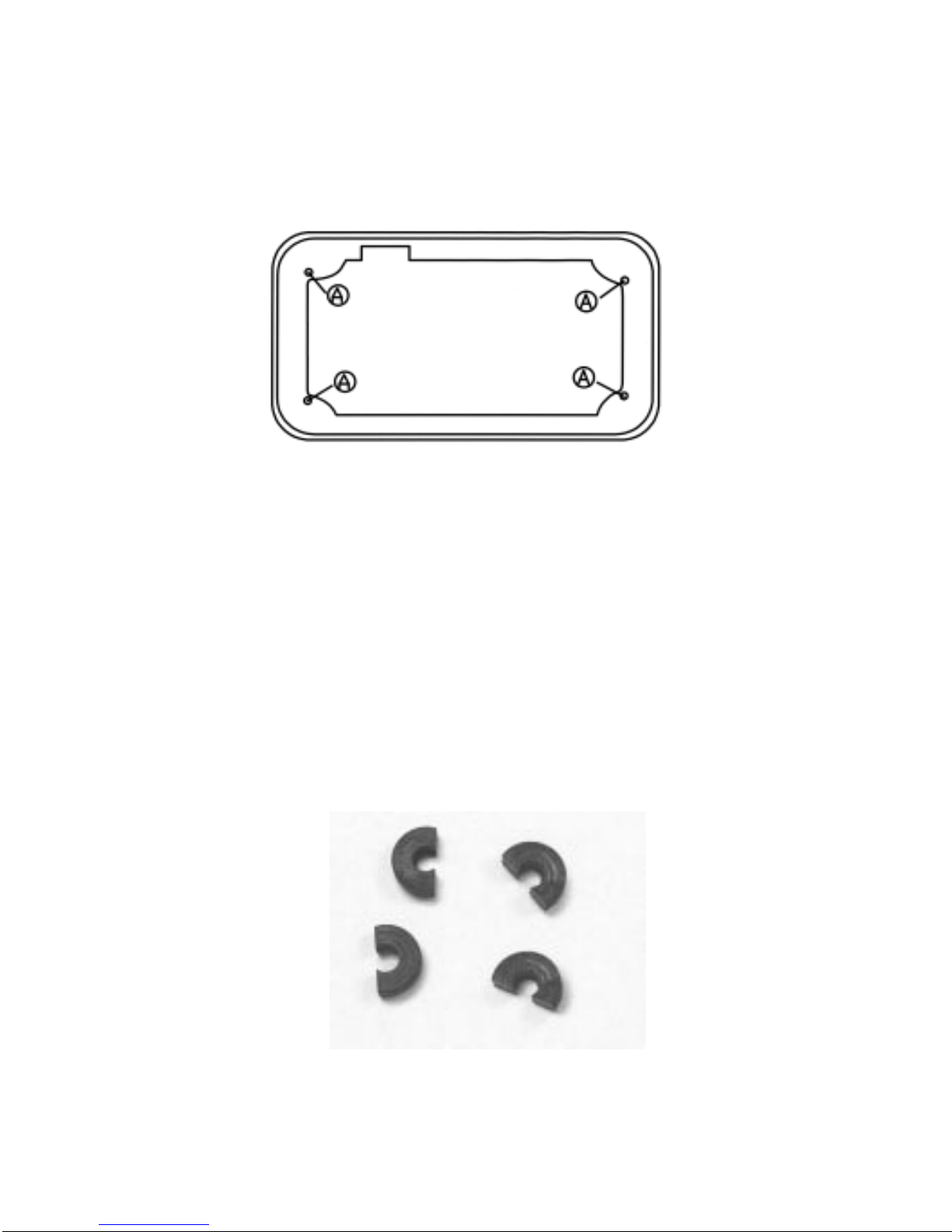

6. Remove the four (4) rubber spacers from the bracket.
Trim Ring Installation
The Trim Ring Installation is accomplished using the four (4) 2 X 8mm
screws supplied. Please refer to the illustration below.
