HR7011PKG

Two Custom Vehicle Headrests

with 7” LCD Monitors Touch Screen Control

and Built-in

DVD Player for Rear Entertainment

Installation Guide

128-8939

Installation of headrest products require careful planning and preparation. Be

extremely careful of seats that have airbags built into them. Keep wiring away from

any air bag wiring (usually identified by yellow connectors and yellow wire jackets).

Damage to air bag wiring can result in personal injury to vehicle occupants. If you

have any questions regarding wire routing or installation in a vehicle, please contact

Audiovox Technical Support at 1-800-225-6074.

When connecting power and ground in a mobile video installation, insure that the

ACC wire is fused at the point where it is connected to the vehicle ACC wiring.

Failure to do so can result in damage to the vehicle if a short circuit develops

between the vehicle connection point and the mobile video product.

IMPORTANT NOTICE

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to

the driver if the LCD panel or video monitor is used for vehicle information, system

control, rear or side observation or navigation. If the LCD panel or video monitor is

used for television reception, video or DVD play, the LCD panel or video monitor

must be installed so that these features will only function when the vehicle is in

“park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that

operates when the vehicle is in gear or when the parking is not applied must be

installed to the rear of the driver’s seat where it will not be visible, directly or

indirectly, to be operator of the motor vehicle.

Licensed under one or more of the following patents:

Patent NOS. 7,245,274, 6,899,365, and 6,678,892

MATERIAL TO USE IN THIS PACKAGE:

M1/M2

Note:

M1/M2 Monitor include master

monitor headrest cable

& hardware screws

Front view =

Remote Control

Back view =

Wireless Game Controller

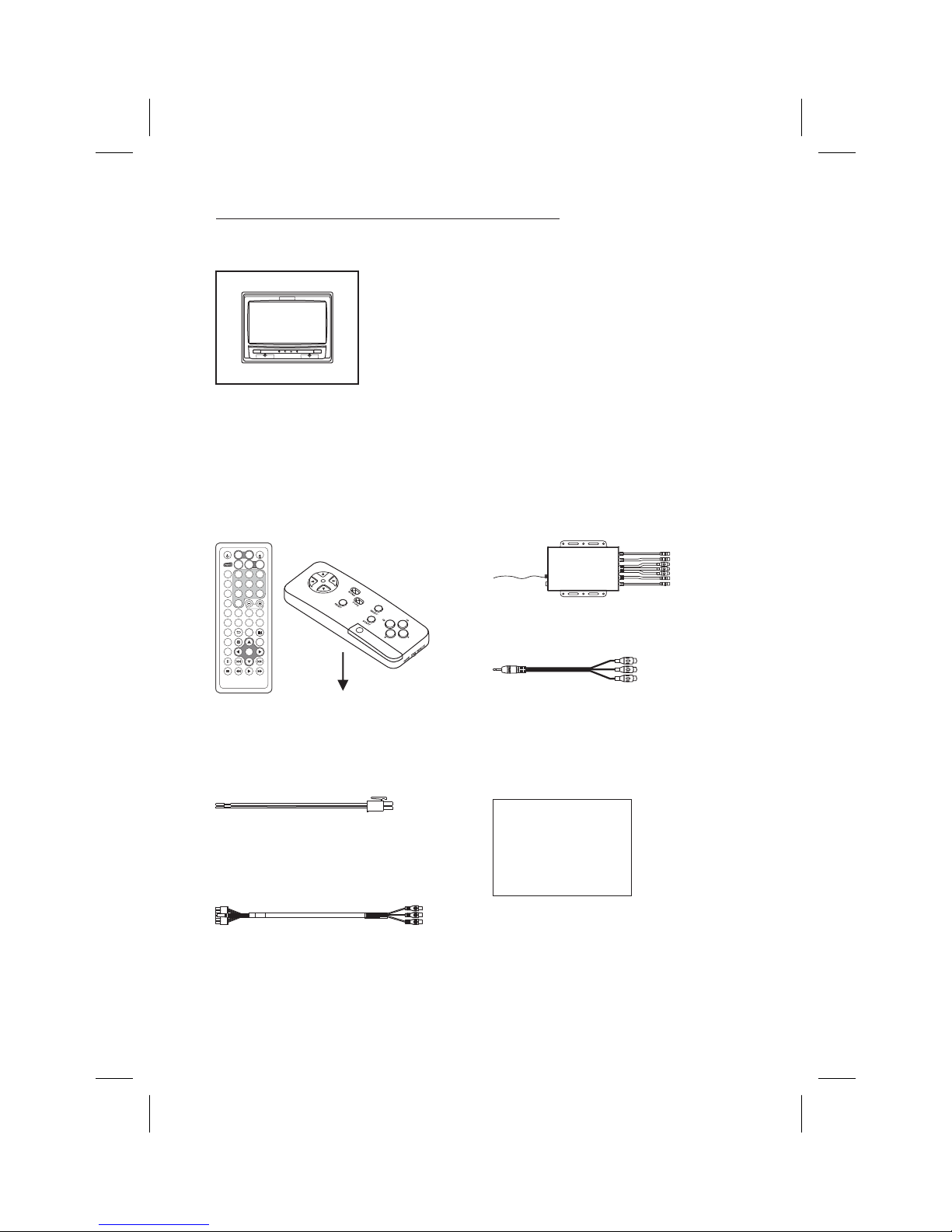

1) HR7011PKG System Monitor (P/N HR7011M) (2 pcs)

Monitor with touch screen control and DVD Player

a) Remote Control with

Wireless Game Controller

(P/N 136-5008) - (2pcs)

d) Wireless FMM Interface Box

(P/N 136-5009) - (1pc)

b) 2 Pin DC Power Cable

(P/N 112-3667) - (1pc)

e) AV Adapter Cable

(P/N 112B3227) - (1pc)

g) Eject Card

(P/N 126-1359) - (1pc)

c) 12 Pin AV Adapter Cable

(P/N 112-4094) - (1pc)

POWER

MUTE

RETURN

123

456

789

EJECT

VOLUME

DAY

NIGHT PIX

AUDIO

M1 M2

DISPLAY

MODE

ZOOM

MENU SETUP

SYSTEM

SOURCE

IRT

ON/OFF

FMM

ON/OFF

FMM

SELECT

SUBTITLE

A-BREPEAT

FLO

DVD

SOURCE

DVD

Note: The HR7011M touch screen monitor has been designed to be

interchangeable from one headrest to the other.

The wireless FMM Interface Box automatically determines which headrest

is M1 and which headrest is M2 and sets each headrest to its own function

(IR transmitter channel and IR receiver remote control codes).

The headrests will still have the Red/Green and Blue/Yellow DIN cables on

them and should be connected to their respective connectors. In the event

a touch screen monitor needs to be replaced, simply order P/N HR7011M.

2) HR7011PKG Accessories Package (P/N HR7011K) (1 pc)

The Accessories Package contains the following items:

Note: The Eject Card is packaged with the Owner’s

Manual (P/N 128-8938) - (1pc), Installation Guide

(P/N 128-8939) - (1pc), and Product Registration Card

(132-6751) - (1pc).

f) 3 Pack/Shrink Wrapped 1.5V AAA Batteries

(P/N 156-2268) - (2pcs)

HR7011PKG SYSTEM OVERVIEW

1) The HR7011PKG SYSTEM is a versatile audio / video system with built-in DVD player

HR7011PKG which includes two touch screen monitors, that can accept an Audio / Video

input and independent AUX input. A separate audio output is provided for connecting an

optional FM Modulator to the vehicle’s radio.

2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD

player that allows the user to select from the DVD, USB, M2, AUX, AV, MEDIA and, GAME

source. The M1 monitor has a built-in infrared audio transmitter (CH A) for use with the

optional two-channel wireless headphones (CH A).

3) The M2 monitor is comprised of a 7" Touch Screen TFT LCD monitor with built-in DVD

player that allows the user to select from the DVD, USB, M1, AUX, AV, and MEDIA source.

The M2 monitor has a built-in infrared audio transmitter (CH B) for use with the optional

two-channel wireless headphones (CH B).

4) The monitors will show all of the functions on screen with the Graphical User Interface

(GUI) and allow system control with the touch screen GUI.

5) The two-channel wireless headphone sets have an A-B switch that allow the users to

select the audio from either the M1 (CH A) or the M2 (CH B).

6) Using different IR codes, the M1 monitor will only respond to the remote control unit when

the Select M1 button on remote control is pressed. The M2 Monitor only responds to the

Remote Control unit when the Select M2 button on remote control is pressed.

7) The optional wired headphones allow the user to listen to audio from the system.

8) The M1 and M2 Monitor will accept an audio / video input through the 1/8” jack located on

the front of the unit. The audio / video device could be a video game system, video camera

or other input device.

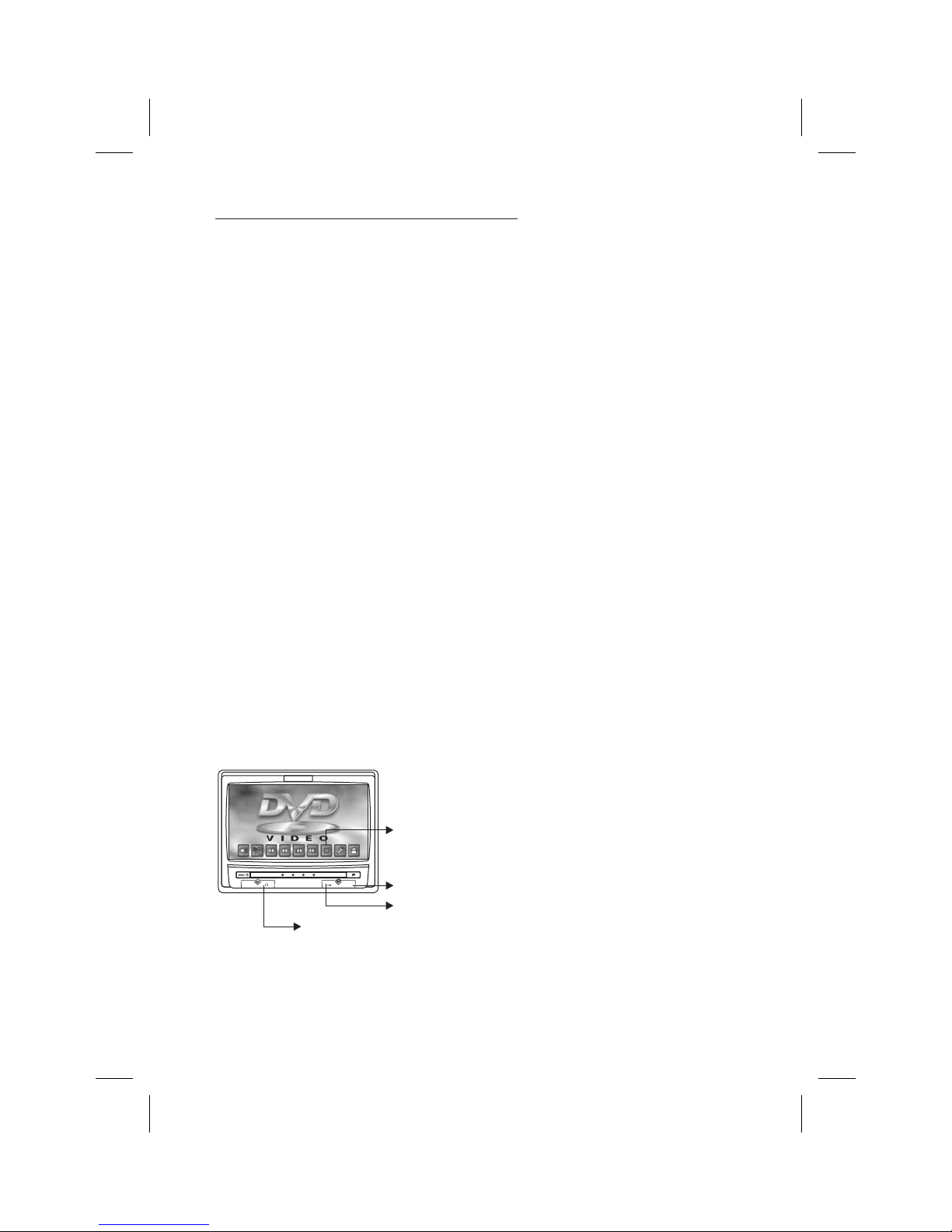

AUX

WIRED HEADPHONE

USB

AUX

TOUCH SCREEN GRAPHICAL USER INTERFACE (GUI)

PULL UP

AUX

USB JACK

WIRED HEADPHONE

PUSH UP

9) Pivot the screen until a comfortable viewing angle reached. The internal lock limits the

screen to a maximum adjustment of 19 degrees from closed position. The headrest itself

can be tilted forward to help achieve a comfortable viewing position.

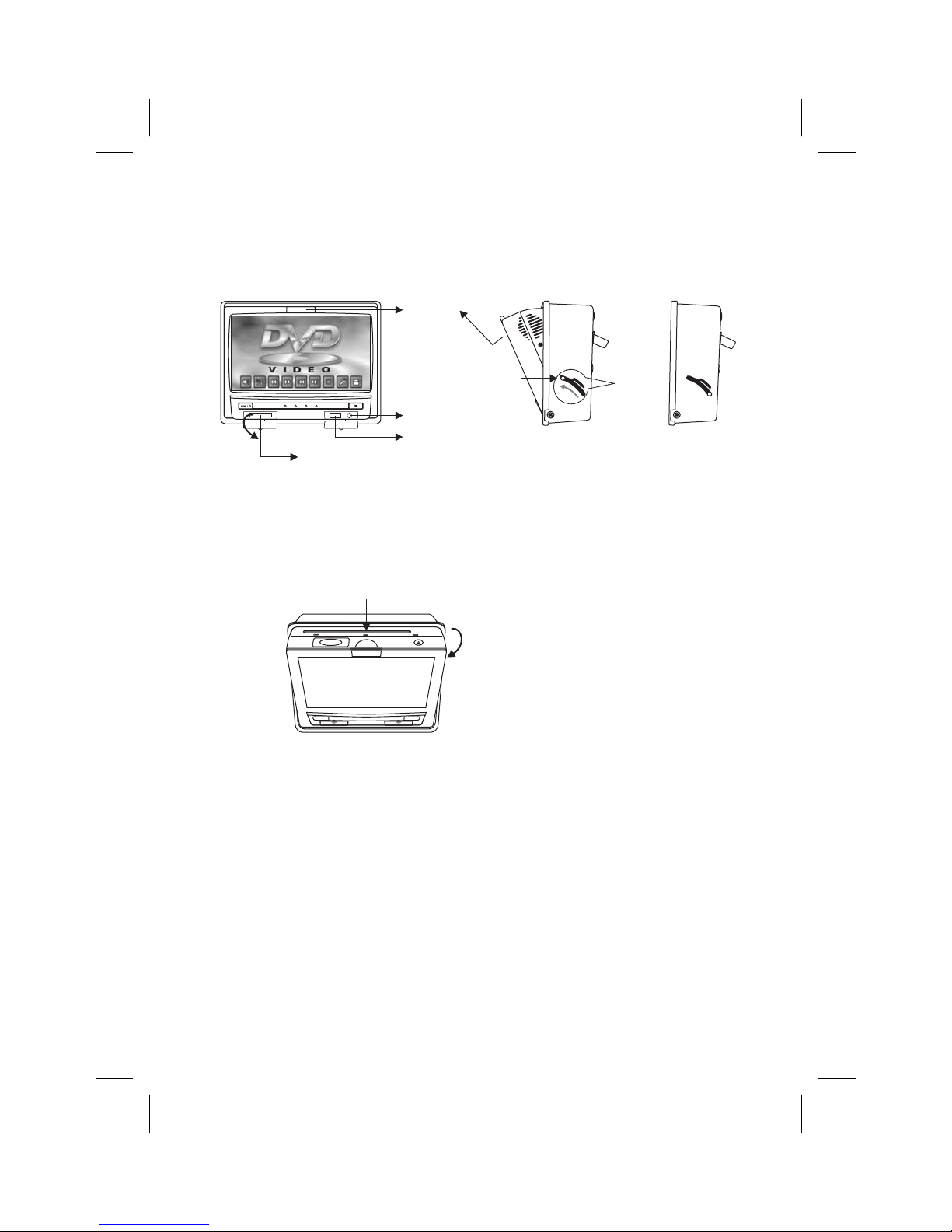

10) Insert/Eject disc.

Internal Lock

Open Position

Shaft Angle

Closed Position

Insert/Eject Disc

19 Degrees

VEHICLE PREPARATION

1) Read the manuals and get familiar with the electrical requirements and

connections.

2) Prepare the vehicle by removing any interior trim necessary to gain access to the

vehicle's wiring as well as all areas where interconnecting wire harnesses will be

located. The mounting method and the location will vary from vehicle to vehicle, so

this manual will only focus on the installation of the Master and Satellite Monitors in

the supplied configuration. The best location for the HR7011PKG System

components are:

a. Monitors: Vehicle-specific Headrest

The Master Monitor should be installed in the passenger position most

used.

b. Wireless FM Interface Box: Under either seat where monitors are located.

Note:

3) Locate an accessory power source (+12 VDC present when the

ignition key is in the accessory and run positions. 0 VDC should be present

when the ignition key is in the OFF position) and a good ground. Generally,

these wires can be located at the ignition switch or fusebox.

Ensure that the switched power is fused at the source. Failure to do so

may result in vehicle wiring damage.

4) Run the wiring harnesses throughout the vehicle as necessary. (Refer to the

Wiring Diagrams on page 10, as well as the wiring instructions for the individual

components and accessory options being installed). Be sure that all the wiring

is protected from sharp edges and is routed in such a manner that it will not be

pinched when it is fully installed. Be sure to leave enough slack in the wiring at

each component to allow sufficient working room. Be sure to leave enough

slack in the monitor cables to allow the headrest to move up or down, and the

seat to move backward and forward.

5) Remove all the components from their packaging and then place them in the

vehicle at their respective locations.

6) Install the Headrests:

a. Remove the vehicle's original Headrests.

b. Hold the Headrest above the seat and insert the two cables into the headrest

support tube holes. Make sure that the headrest is in the correct position

(Display facing the rear).

c. Route the cables through the seat back and out the bottom of the seat.

d. Place the Headrest support tubes into the support tube holes while pulling

the cables to remove the slack. Be sure to leave enough slack in the monitor

cables to allow the headrest to move up or down.

should be

Note:

7) Connect all the components together (electrically) and verify proper operation of

all the system functions.

a. The headrest DIN cables and the FMM Interface Box DIN cables are color

coded. Connect each headrest cable to the correct color cable on the FMM

Interface Box.

b. Extend the wireless FM antenna to its full length and orientate for best

reception. Do not place it on the FMM Interface Box or near metal.

c. Connect the DC power jack.

8) After verifying the proper operation of the system, mount each component.

9) When all the components are mounted, recheck the entire system to be sure it is

functioning correctly. Make sure that no wiring was pinched or connected

improperly during the final installation.

Wireless FM Modulator

The HR7011PKG is equipped with a built-in wireless FM Modulator*, that allows

you to listen to the DVD audio signal by tuning your vehicle’s radio to the selected

frequency, ( 88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz,

88.9MHz, 89.1MHz, 89.3MHz, 89.5MHz, 89.7MHz,

89.9MHZ, 90.1MHz, 90.3MHz, 90.5MHz, 90.7MHz,

90.9MHz, 91.1MHz). This feature is accessed by using the FM

transmitter buttons on the remote (FMM ON/OFF, Channel Select).

Whenever the FM Modulator is on, broadcast reception on the vehicle’s radio will

be poor. Switching off the FM Modulator will allow normal radio reception.

CH1 CH2 CH3 CH4

CH5 Ch6 Ch7 Ch8 Ch9 CH10

Ch11 CH12 Ch13 CH14

CH15 CH16

*Note:

Audiovox P/N

SIRSWB

In certain areas where there are a large number of FM radio stations (e.g. large

cities, urban areas), the reception of the FM signal may not be satisfactory, resulting in

static, distorted sound or signal bleed thru from strong local radio stations. This is not a

defect in the product, but the result of a stronger local radio station overpowering the

wireless FM transmitter in your overhead pod.

If wireless reception is unsatisfactory, an optional wired relay box (

) can be installed which will improve audio quality. Please contact the installer

if this is the case with your product.

ELECTRONICS INSTALLATION GUIDE

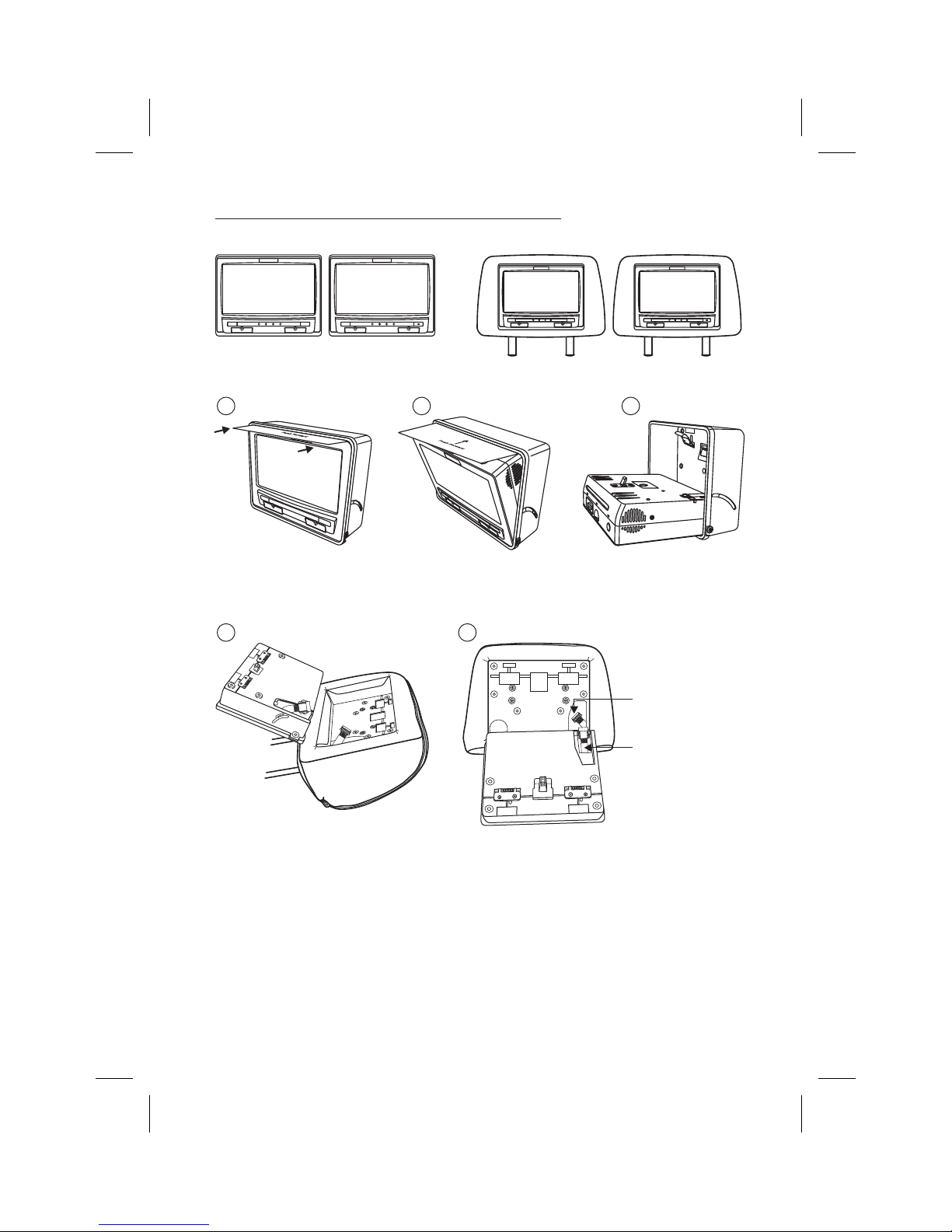

Monitor Unit Install Monitor Unit to Headrest

(Master Monitor)

(Satellite Monitor)

(Master Monitor / M1) (Satellite Monitor / M2)

Monitor must be in closed

position. Insert Eject Card

at top slot to the end.

Hold the Eject Card then

press monitor and pull it

out.

1 2 3

Cable 1 :

Monitor Pigtail Cable

Cable 2 :

Headrest Cable

Match M1 monitor pigtail cable to M1 headrest cable

Match M2 monitor pigtail cable to M2 headrest cable

Press the release tab to release

the monitor completely.

Note: The HR7011M touch screen monitor has been designed to be interchangeable from one

headrest to the other.

The wireless FMM Interface Box automatically determines which headrest is M1 and which headrest

is M2 and sets each headrest to its own function (IR transmitter channel and IR receiver remote

control codes).

The headrests will still have the Red/Green and Blue/Yellow DIN cables on them and should be

connected to their respective connectors. In the event a touch screen monitor needs to be replaced,

simply order P/N HR7011M.

6 7 8

With Screw (x4)

10 Move the locking tab to right position

to fully insert the monitor into the

headrest

M1 Monitor

Master Monitor

M2 Monitor

Satellite Monitor

OPTIONAL

FM ANTENNA

INTERFACE BOX

Relay Box for wireless FM MOD

See antenna note below

SIRSWB

2 PIN DC POWER CABLE

AV Input AV Output

BLUE YELLOW

GREEN RED

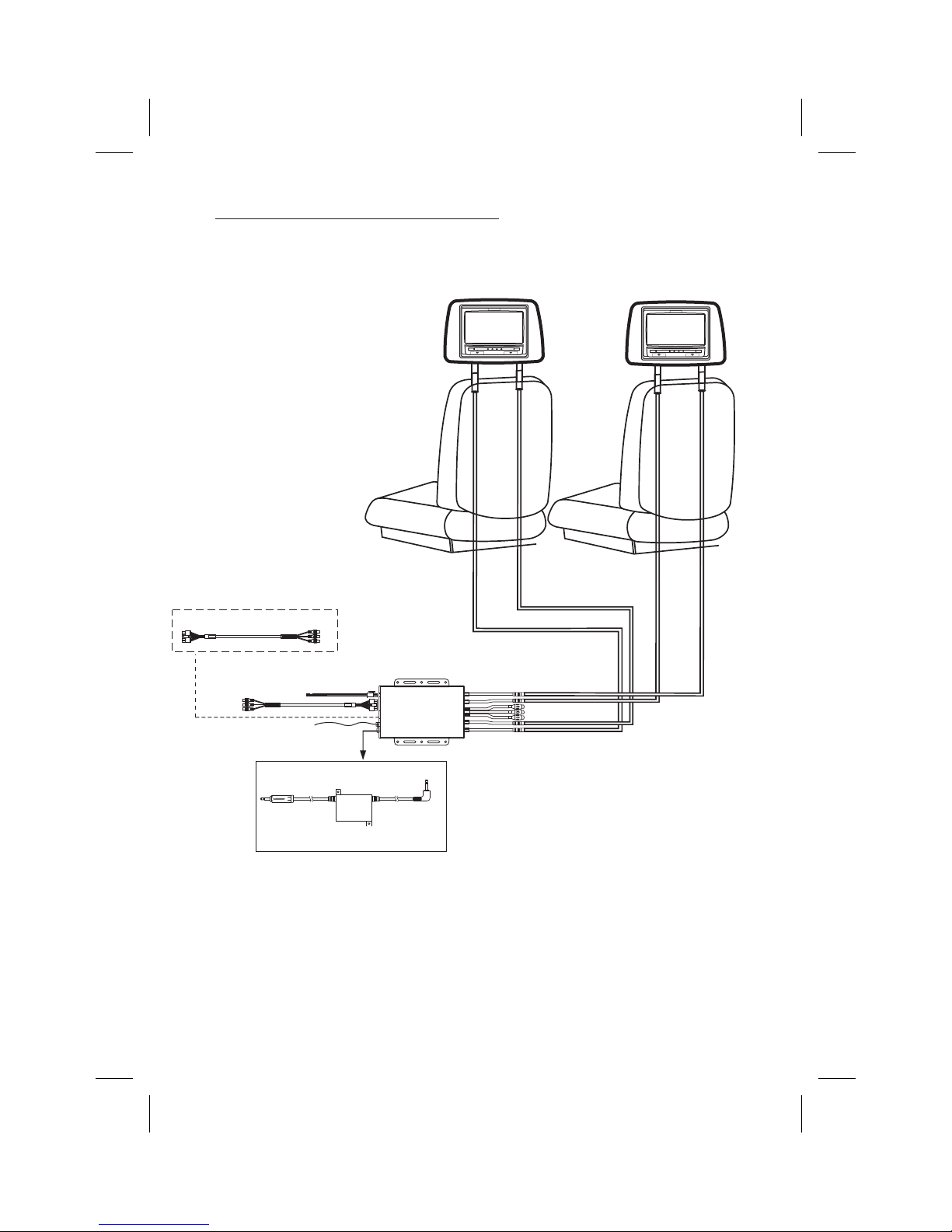

HR7011PKG WIRING DIAGRAM

Relay Box

See the instructions supplied with the SIRSWB for installation.

12 Pin AV Adapter Cable

Andere Handbücher für HR7011PKG

Inhaltsverzeichnis

Andere Audiovox Auto-Videosystem Handbücher

Audiovox

Audiovox VME 9315BTA BTM 10 Bedienungsanleitung

Audiovox

Audiovox VE640 - VE - 640 Bedienungsanleitung

Audiovox

Audiovox 50-0300A-002 SERIES Bedienungsanleitung

Audiovox

Audiovox VOD85 - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox VME 9325 BTA Bedienungsanleitung

Audiovox

Audiovox VOD1023 - 10.2 Inch Dropdown Mobile Video... Bedienungsanleitung

Audiovox

Audiovox VOD102 - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox AVXMTG13UHD Bedienungsanleitung

Audiovox

Audiovox LCM1502TV Bedienungsanleitung

Audiovox

Audiovox VOD705DL - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox VME 9314 TS Bedienungsanleitung

Audiovox

Audiovox MMD7HRPKG - Movies2Go - DVD Player Bedienungsanleitung

Audiovox

Audiovox Mobile Video HR7010PKG Bedienungsanleitung

Audiovox

Audiovox HR7008APKG Bedienungsanleitung

Audiovox

Audiovox VOH683 Bedienungsanleitung

Audiovox

Audiovox VOH703 Bedienungsanleitung

Audiovox

Audiovox VOH1042 DL Bedienungsanleitung

Audiovox

Audiovox Movies2Go MMD100 Kurzanleitung

Audiovox

Audiovox FP1210 Bedienungsanleitung

Audiovox

Audiovox 1020650 Bedienungsanleitung

Audiovox

Audiovox VOD80 Kurzanleitung

Audiovox

Audiovox Movies2Go MMD154 Bedienungsanleitung

Audiovox

Audiovox VOD 808 Bedienungsanleitung

Audiovox

Audiovox Mobile Video 128-8607 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
