Audiovox HR7011PKG Bedienungsanleitung

OPERATION

MANUAL

128-8938

HR7011PKG

Two Custom Vehicle Headrests

with 7” LCD Monitors Touch Screen Control

and Built-in

DVD Player for Rear Entertainment

AUX AUX

IMPORTANT

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used

for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television

reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is

in “park” or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the

parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the

motor vehicle.

Licensed under one or more of the following patents:

Patent NOS. 7,245,274, 6,899,365, and 6,678,892.

HR7011PKG

Quick Start Guide

The HR7011PKG contains two vehicle specific headrests. Each has a 7” Monitor with touch screen controls and a built-in DVD Player. This

system allows the users to either watch individual DVDs or watch the same DVD on both monitors. Both users can also share each other’s

program. The full function remote control can operate either unit by selecting M1 or M2 on the remote.

1. Turn on the M1 Monitor To gain access to the DVD slot press the top center of the screen frame. The screen will tilt forward.

2. Insert a DVD, CD or MP3 disc into the slot, disc label toward driver. Push down gently on the disc until the player pulls the disc in.

3. Use the touch screen to access the DVD mode.

4. Tilt the monitor to a comfortable viewing position. The headrest itself can be tilted forward to help achieve a comfortable viewing

position.

5. Each wireless headphone has a CH A/CH B switch. Turn the volume down to its lowest setting before putting them on your head.

When sitting in front of the M1 screen, use the CH A switch setting. When sitting in front of the M2 screen, use the CH B switch setting.

Set the headphone to the proper channel and press the Power On/Off switch. The power indicator will light up red.

6. When the DVD menu appears, select the menu item using the cursor keys and touch the OK or play button.

7. If audio playback through the vehicle radio is preferred, use the FM transmitter On/Off button on the remote control. Set the vehicle

radio to the channel selected on the M1 monitor. If interference with a local radio station occurs, set the FM modulator to one of the

other 15 radio frequencies using the CHANNEL SELECT button on the remote control.

8. Turn on the M2 Monitor using the power button on the front of the screen or remote control.

9. Tilt the screen to a comfortable viewing position (the headrest itself can be tilted forward to help achieve a comfortable viewing

position).

10. Touch the screen and touch on M1 or press the SOURCE button on the remote control to view program from M1, or select from the

other available sources: DVD, USB, AV, AUX, and MEDIA for M2 Monitor.

To operate the M1 screen, press M1 on the remote control.

To operate the M2 screen, press M2 on the remote control.

NOTE:

HR7011PKG SYSTEM OVERVIEW

1) The HR7011PKG SYSTEM is a versatile headrest system. The headrests are referred to as M1 and M2 in this manual.

2) The M1 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with a built-in DVD player that allows the user to select from several sources

(DVD, USB, M2, AV, AUX, MEDIA, and GAME Source). The M1 monitor has a built-in infrared audio transmitter channel (CH A) for use with the two-

channel wireless headphones (CH A).

When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 6 operation.

3) The M2 Monitor is comprised of a 7" Touch Screen TFT LCD monitor with a built-in DVD player that allows the user to select from several sources

(DVD, USB, M1, AV, AUX, and MEDIA Source). The M2 monitor has a built-in infrared audio transmitter channel (CH B) for use with the two-channel

wireless headphones (CH B).

When the DVD menu appears on the screen, touch the desired DVD menu selection to start the DVD playing. Refer to page for 6 operation.

4) The monitors will display all of the functions with the comprehensive Graphical User Interface (GUI) and can be accessed using the touch screen.

5) The two-channel wireless headphone sets have an A-B switch that allow the users to select the audio from either M1 (CH A) or M2 (CH B).

6) When using the IR remote control, the M1 Monitor will only respond to the remote control unit when the Monitor Select M1 button on remote control is

pressed. The M2 Monitor only responds to the Remote Control unit when the Monitor Select M2 button on remote control is pressed.

7) Optional wired headphones allow the user to listen to audio from the system.

8) The M1 and M2 Monitor will accept an audio / video input through the 1/8” jack located on the front of the unit. The audio / video device can be a video

game system, video camera or other input device.

NOTE:

()

AUX

WIRED HEADPHONE

USB

AUX

TOUCH SCREEN GRAPHICAL USER INTERFACE (GUI)

9) Press and release the screen at the top of the screen to release the screen for disc insertion. The headrest itself can be tilted forward to help achievea

comfortable viewing position. Pressing it again will lock the screen back in the closed position.

PULL UP

AUX

USB JACK

WIRED HEADPHONE

PUSH IN

Inner Ring

Hook

Shaft Angle

Closed Position

10) Insert/Eject disc.

Insert/Eject Disc

19 Degrees

19 degrees

HR7011PKG Touch Screen

The touch screen allows the user to start DVD play by touching PLAY MOVIE or any of the DVD menu features on the LCD screen.

Some DVDs will not allow this function. One method is to use the remote control instead of the touch screen. The other method is to touch any of

four corners of the screen to access the DVD menu navigation screen (see below).

Use the up/down/left/right icons to select an item from the DVD menu. Use the Enter / to start DVD play.

AUX

4567

M1/M2 Panel Control

1. DVD disc insertion slot

2. EJECT ( ) Button - Press this button to eject the disc

3. MENU/POWER ( ) Button with Power Indicator LED

4. Wired Headphone Jack

5. IR Transmitter LEDs

6. USB Port

7. AUX Jack

8. IR Sensor

9. Graphical User Interface (GUI) Touch Screen

CONTROLS AND INDICATORS DIAGRAM

Control Function Description for M1 and M2 Monitor

Touch Screen For HR7011PKG

Main Page

M1 Unit

M2 Unit

Turn on the unit by pressing

the power button located on

the lower left of the unit.

1) Touch the panel then

touch the Home icon to

display the Main Menu. The

Main Menu can also be

accessed by pressing the

MENU button on the unit’s

front panel.

2) The Main Menu screens

for M1 and M2 contain

the following icons:

DVD, USB, M2, AV,

AUX, MEDIA, GAME,

PIX, SCREEN OFF,

MUTE, FMM.

DVD, USB, M1, AV,

AUX, MEDIA, PIX,

SCREEN OFF, MUTE.

Main Menu

SCREEN

OFF MUTE

MEDIA

FMM

GAMEAUX

USB M2

DVD

Main Menu

PIX

SCREEN

OFF MUTE

MEDIA

FMM

GAMEAUX

USB M1

DVD

Main Menu

PIX

DVD

USB

AUX

MEDIA

GAME

Touch the Main Menu DVD icon to set the source to DVD.

Insert the DVD into the slot, disc label toward driver. Gently push

down on the disc and the disc will load automatically.

Insert the USB device into the USB Slot. Touch the Main Menu

USB icon to set the unit’s source to USB.

Touch the Main Menu M2 icon on the M1 unit to link the M1 unit

to the M2 unit. The M1 unit will now receive its AV from M2.

Touch the Main Menu M1 icon on the M2 unit to link the M2 unit

to the M1 unit. The M2 unit will now receive its AV from M1.

Touch the Main Menu AV icon to view the A/V source. The AV

input may be connected to a external video source, video game

system or other audio/video device. Contact your dealer for

more information.

Touch the Main Menu AUX icon to route external audio and

video supplied to the unit via the cable adapter.

Touch the Main Menu MEDIA icon to select the MEDIA display.

Main Menu to select a gameTouch the GAME icon (for M1

only). The GAME selection is controlled by wireless game

controller.

PIX

Touch the Main Menu PIX icon to gain access to the display’s

picture controls. The controls available are BRIGHTNESS,

CONTRAST, COLOR, TINT, and RESET.

Adjustment of each control is made by touching + (increase)

or - (decrease) then

The on-screen DVD menu of most DVDs can be used to select a

DVD menu feature such as “Play Movie”, “Scene Select”, etc. by

touching the menu item on the touch screen. For example,

touching “Play Movie” in the below screen will start movie play.

A small number of DVD discs will not function like this. In

this event use the remote control to start the movie or select the

different DVD options.

, touching (enter) to exit.

NOTE:

MUTE

SCREEN OFF

Touch the Main Menu MUTE icon to toggle the unit’s audio

between on and off.

Touch the Main Menu SCREEN OFF icon and the screen will

shut off. Touch the screen again to turn it back on. The screen will

turn back on after cycling power.

Touch the Main Menu FMM icon (For M1 only) to gain access to

the FM Modulator controls.

To turn on the FM Modulator, touch + or - icon, then select the FM

modulator transmission frequency by touching - (decrease) or

+ (increase) [88.1MHz ~ 91.1MHz]. Touch (enter) to exit.

Set the vehicle radio to the selected frequency to listen to the

movie over the vehicle sound system.

To turn off the FM Modulator function, touch the OFF icon. Then

touch (enter) to exit.

FMM

OFF

FMM 88.1 MHZ

PIX

COLOR 16

Scene Select

•

Extras

•

ETC

•

Audio

•

Play Movie

•

Back View

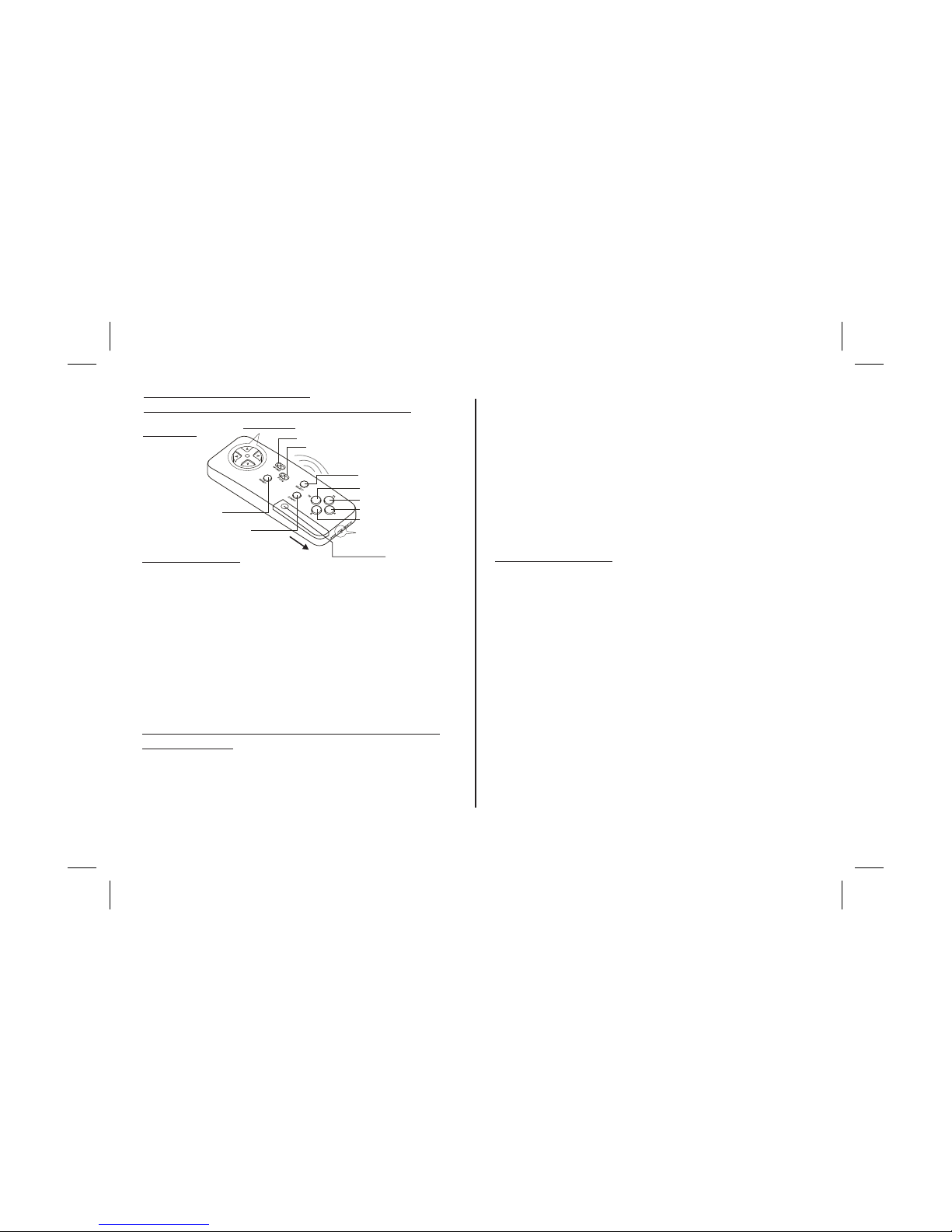

REMOTE CONTROL WITH

WIRELESS GAME CONTROL OPERATION

DIRECTION KEYS

M1/M2

P1/P2

SELECT

GAME/REMOTE

SELECTOR SWITCH

BATTERY COVER

START

RESET

Battery Installation

Before attempting to operate your remote control, install the

batteries as described below:

1) Turn the remote control face down. Using a finger, slide

battery cover off in the direction of the arrow.

2) Install three “AAA” batteries. Make sure that proper polarity

(+ or -) is observed.

3) Align the cover tabs with the remote control and slide the

cover until it locks.

The remote control will only operate the M1/M2 Monitors. It is not

a universal remote control and will not control equipment from

other manufacturers.

WIRELESS GAME CONTROLLER FUNCTIONAL

DESCRIPTION

1. Position the GAME/REMOTE selector switch to the GAME

position.

2. Use the SELECT button (page up & page down) to display

the games (1-32). Then use the direction buttons to move the

arrow to the desired game. Press START to select the game.

3. A Key : “A Function Key” activates the jump and optional

weapons.

4. B Key : “ B Function Key” activates Bullet fire and attack.

5. TA Key : TURBO “A” Function Key.

6. TB Key : TURBO “B” Function Key.

7. Press START to begin the game. Press START again at any

time to pause the game.

8. Return the GAME/REMOTE selector switch to the REMOTE

position after use.

Two-Player Games

The game source can only be selected from the M1 Monitor.

When playing two-player games, select the GAME source on the

M1 Monitor and select the M1 source on the M2 Monitor.

When playing two-player games, use two remote controls and set

the remote controls as follows:

Player 1 (M1 Monitor) sets their remote to Game/M1/P1

Player 2 (M2 Monitor) sets their remote to Game/M1/P2.

Single player games can be played on the M2 Monitor but the M1

Monitor must be turned on and set to the GAME source. You

cannot watch a DVD on the M1 Monitor and play a game on the

M2 Monitor. When playing a single player game on the M2

Monitor, set the remote control to GAME/M1/P1 and point the

remote control to the M2 Monitor.

Andere Handbücher für HR7011PKG

Inhaltsverzeichnis

Andere Audiovox Auto-Videosystem Handbücher

Audiovox

Audiovox MM850 Bedienungsanleitung

Audiovox

Audiovox FlexVision LCM641TV Bedienungsanleitung

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Bedienungsanleitung

Audiovox

Audiovox AVXMTGHR9HD Bedienungsanleitung

Audiovox

Audiovox AVXMTG10UA Bedienungsanleitung

Audiovox

Audiovox AVXMTG10U Bedienungsanleitung

Audiovox

Audiovox LCM56 Bedienungsanleitung

Audiovox

Audiovox RVM35 Bedienungsanleitung

Audiovox

Audiovox PAV2000DTV Kurzanleitung

Audiovox

Audiovox Mobile Video 128-8565A Bedienungsanleitung

Audiovox

Audiovox Mobile Video HR7010PKG Bedienungsanleitung

Audiovox

Audiovox VM9511TS Bedienungsanleitung

Audiovox

Audiovox VOD10 - Car - Overhead LCD Monitor Bedienungsanleitung

Audiovox

Audiovox Mobile Video VOD128A Bedienungsanleitung

Audiovox

Audiovox VE-500 Bedienungsanleitung

Audiovox

Audiovox MMD7HRPKG - Movies2Go - DVD Player Bedienungsanleitung

Audiovox

Audiovox ADV200 Bedienungsanleitung

Audiovox

Audiovox 1187001PL Bedienungsanleitung

Audiovox

Audiovox VOD705DL - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox VME 9309TS Bedienungsanleitung

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Bedienungsanleitung

Audiovox

Audiovox HRDV700 Bedienungsanleitung

Audiovox

Audiovox AVXMTG13UA Bedienungsanleitung

Audiovox

Audiovox VOD10 - Car - Overhead LCD Monitor Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
