8.5” LCD OVERHEAD MONITOR
OPERATION MANUAL
POWER
MENU/
ENTER
ON OFF AUTO
UP
DOWN
PP
1287264.P65 11/2/2004, 9:48 AM1
2MM850
Important Notice
An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the
driver if the LCD panel or video monitor is used for vehicle information, system control,
rear or side observation or navigation. If the LCD panel or video monitor is used for
television reception, video or DVD play, the LCD panel or video monitor must be installed
so that these features will only function when the vehicle is in “park” or when the vehicle’s
parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play that
operates when the vehicle is in gear or when the parking brake is not applied must be
installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to
the operator of the motor vehicle.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners,
Safety Precaution
For safety reasons, when changing video media it is recommended that the vehicle is
not in motion, and that you do not allow children to unfasten seatbelts to change tapes
or discs or make any adjustments to the system. System adjustments can be
accomplished using the remote control unit, while seatbelts remain fastened. Enjoy
your Movies 2 Go entertainment system but remember-safety of all passengers remains
the number one priority.
1287264.P65 11/2/2004, 9:48 AM2
MM850 3
Congratulations on your purchase of the Movies 2 Go MM850 drop-down Video
Monitor. The MM850 has been designed to give you and your family many
years of video entertainment in the mobile environment. Please read the
directions that follow to familiarize yourself with the product and to ensure
that you obtain the best results from your equipment.
NOTE: Installation options vary, see the individual owner’s manuals for
each component in your system to obtain a full understanding of each
component’s operation.
FEATURES
!8.5” TFT (Thin Film Transistor) Active Matrix LCD (Liquid
Crystal Display) Monitor
!OSD (On Screen Display) for Control of Picture Quality and
Functions
!Infrared Transmitter for Optional IR Wireless Headphones
!Two Audio / Video Source Inputs
!Dome Lights with Built-in Three Way Switch
!Video Display ON/OFF Switch (when LCD Panel is
Opened and Closed)
!Full Function Remote Control
1287264.P65 11/2/2004, 9:48 AM3
4MM850
POWER
MENU/
ENTER
ON OFF AUTO
AUX
12
33
4
5
67
8
10
9
11
UP
DOWN
12
FRONTPANELFEATURES
1287264.P65 11/2/2004, 9:48 AM4
5MM850

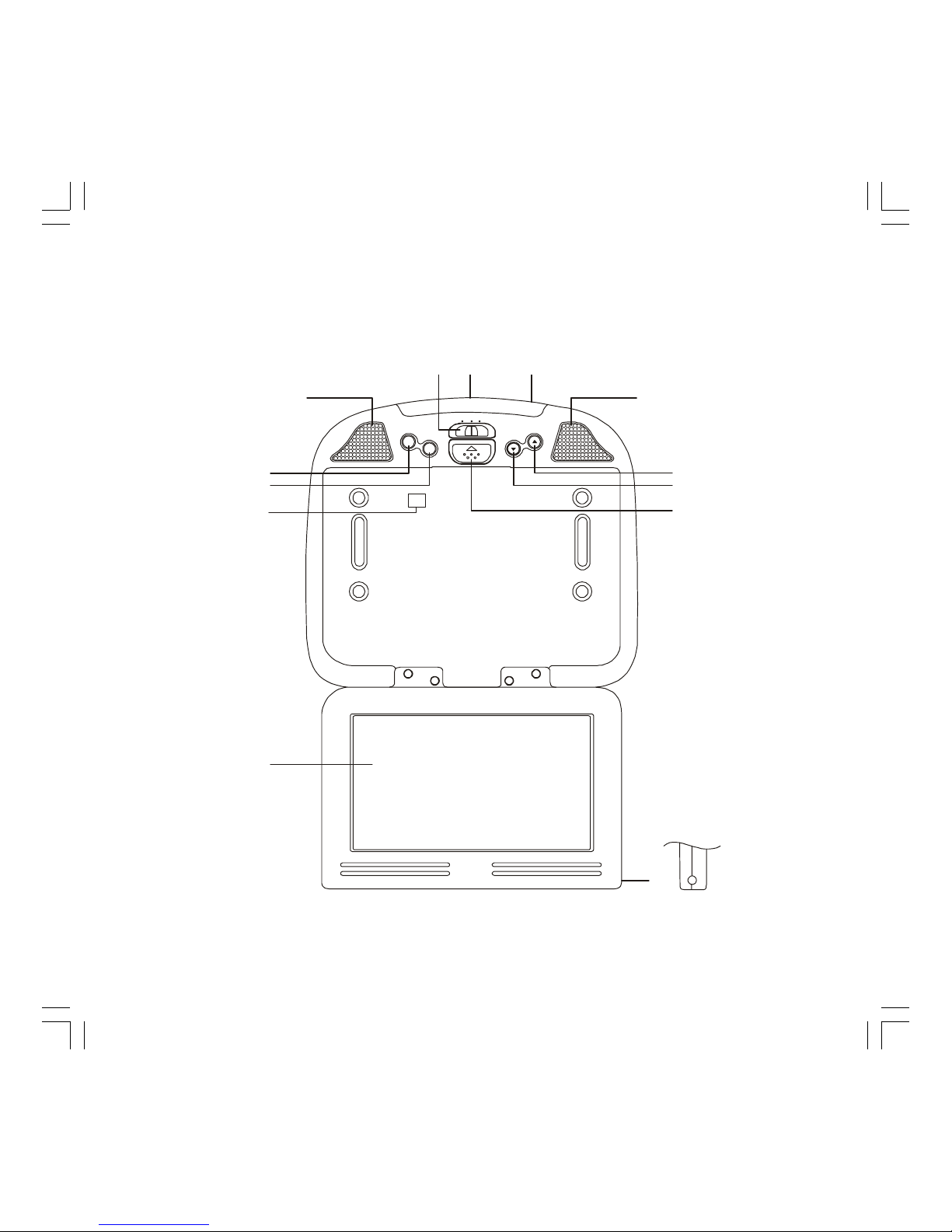

1. Infrared Transmitter – Used to transmit audio to the optional wireless
headphones.
2. Remote Sensor – To allow Remote Control operation of the MM850.
3. Dome Lights – Provide additional interior illumination.
4. Three Position Dome Light Switch
• Auto – Automatically switches on the dome lights in conjunction with the
vehicle’s interior illumination.
• Off – The Dome lights will not turn on in this position.
• On – Turns on the Dome lights.
5. Power ON/OFF – Turn the MM850 on and off.
6. Menu/Enter Button – Pressing this button will display the OSD menu for
picture quality adjustments (Brightness, Contrast, Color, Tint & Reset) and
source selection. After accessing the menu, it is used as the Enter function.
7. Select Up Button – For selection of menu items, source selection and
adjustment of picture quality.
8. Select Down Button – For selection of menu items, source selection and
adjustment of picture quality.
9. Screen Release – Slides in the direction of the arrow to release the drop
down screen.
10. LCD Panel – Display the video source and the On Screen Display (OSD).
11. AUX – Auxiliary input jack allows easy connection of an external A/V source.
12. LCD Cut Off Switch – Turns off the LCD backlighting when the screen is in
the closed position.
FRONT PANEL
1287264.P65 11/2/2004, 9:48 AM5
6MM850
TURNING THE MM850 ON OR OFF
1. Sliding the screen release lock forward will unlock the LCD screen and allow it
drop down slightly. Move the screen downward until a comfortable viewing
angle is reached. The internal hinge friction will hold the screen in position while
the system is in use.
2. Press the power button to turn the MM850 on.
3. After the unit is turned ON and begins to display a picture, adjust the viewing
angle by pivoting the screen to optimize the picture quality. (NOTE: The video
source (DVD/VCP/Game will need to be turned on also).
4. Remember to turn the unit OFF and pivot the LCD to the locked position when
not in use.

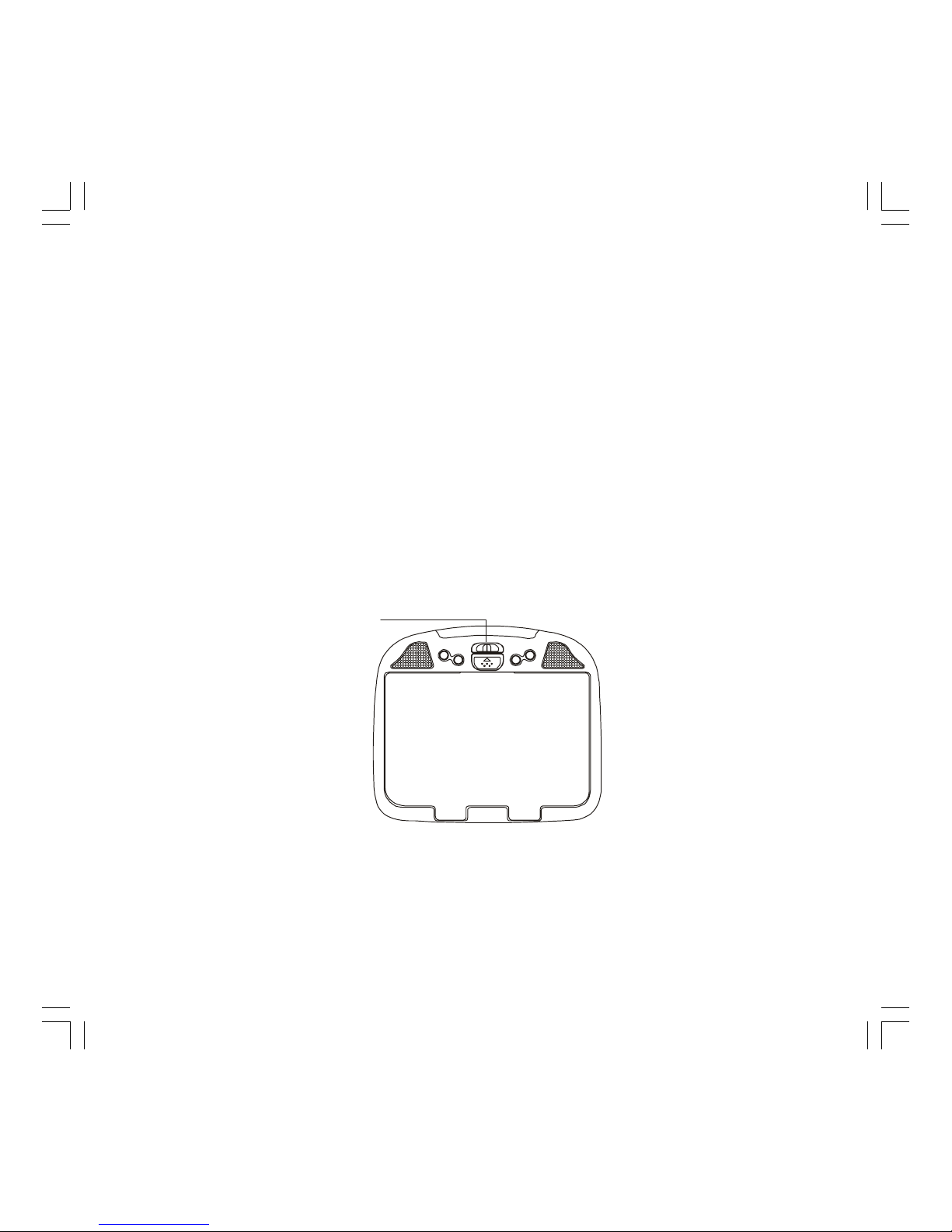

Power
ON/OFF
Switch
1287264.P65 11/2/2004, 9:48 AM6
7MM850
OPERATION
OVERHEAD DOME LIGHTS
The Dome Lights integrated into the MM850 are controlled by a three position slide
switch. Sliding the switch to the ON position will turn the lights ON. The OFF
position will prevent the lights from turning ON with the vehicle’s interior lighting,
and the auto position will allow the lights to turn ON and OFF with the vehicle’s
interior lighting. Do not leave the vehicle unattended with the dome light switch in
the ON position as this could result in a discharged battery.
Consult the Installation Manual for dome light wiring information.

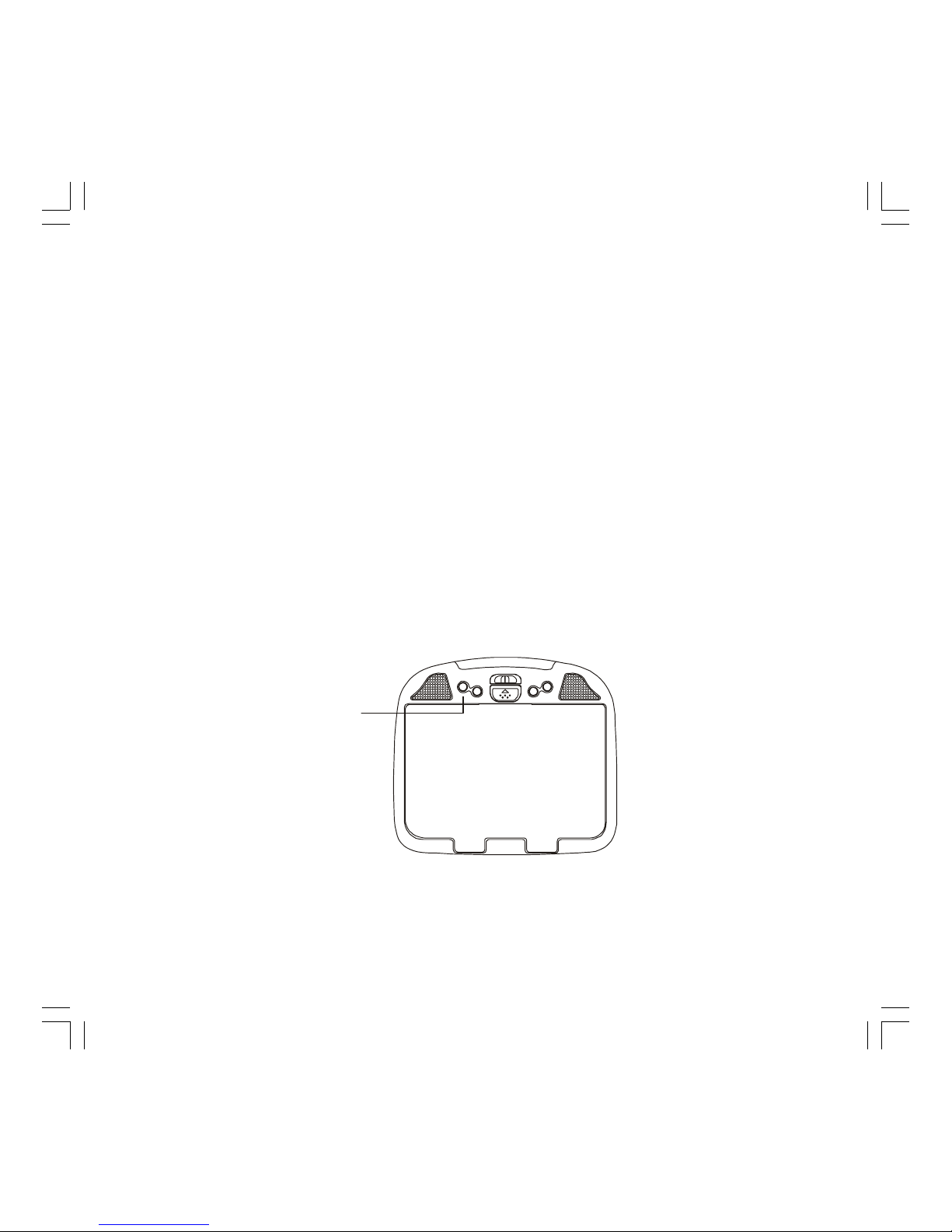

Dome
Light
Switch
1287264.P65 11/2/2004, 9:48 AM7
8MM850
REMOTE CONTROL SENSOR
The MM850 incorporates an infrared sensor that will relay signals from the remote
control to allow a source connected to the AV1 input to be controlled simply by
pointing its remote control at the remote sensor eye. This provides control of
source equipment such as a Video Cassette Player or DVD Player. The infrared
sensor can relay signals from most manufacturer’s remote controls to the
component connected to the AV1 input, such as a DVD player. In this case you
must use the remote control supplied with the DVD player.

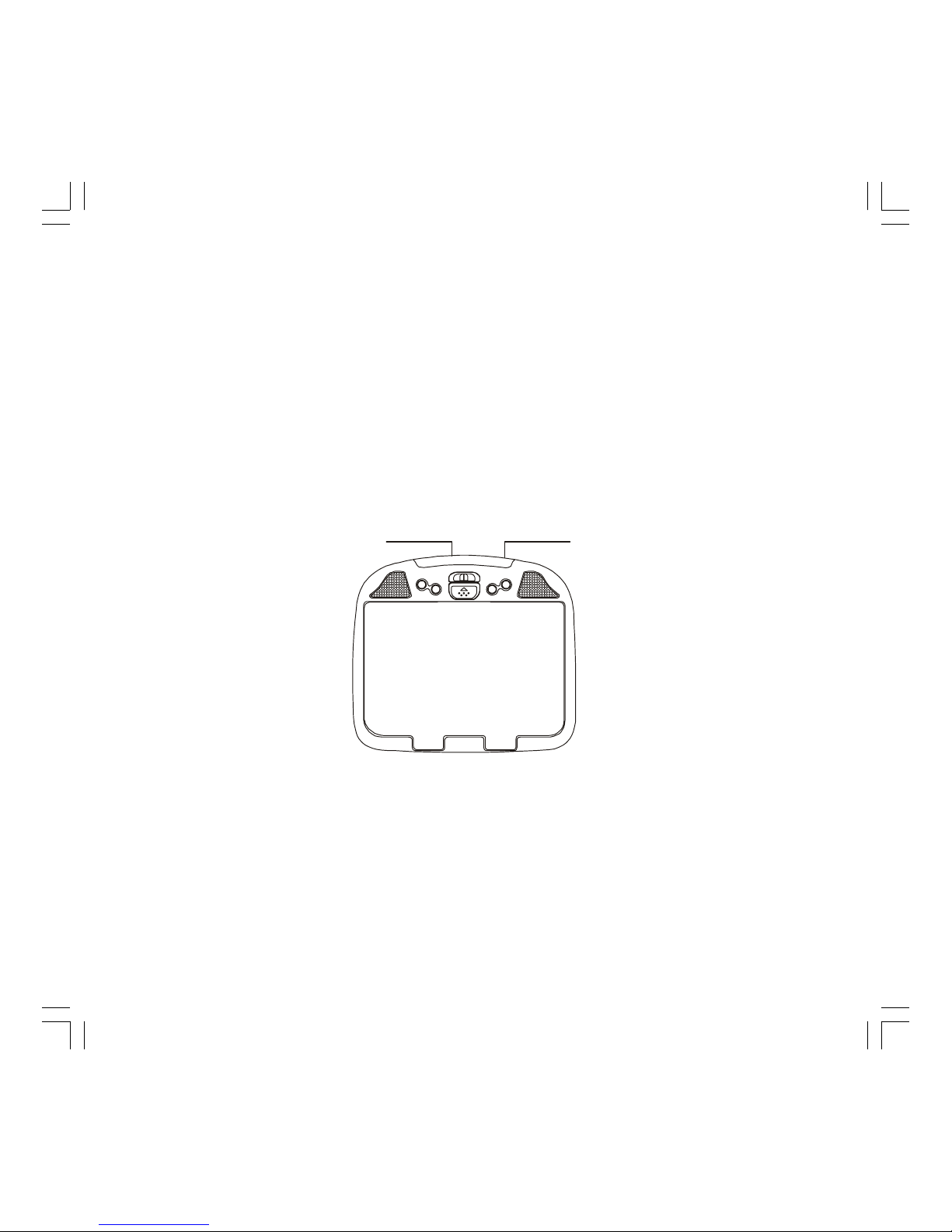

Infrared Transmitter Remote Sensor Eye
1287264.P65 11/2/2004, 9:48 AM8
9MM850
LCD SOURCE
MENU /
ENTER
V
CP
STOP
PLAY
REW FWD
1
4
5
7
10
2
3
6
8
9

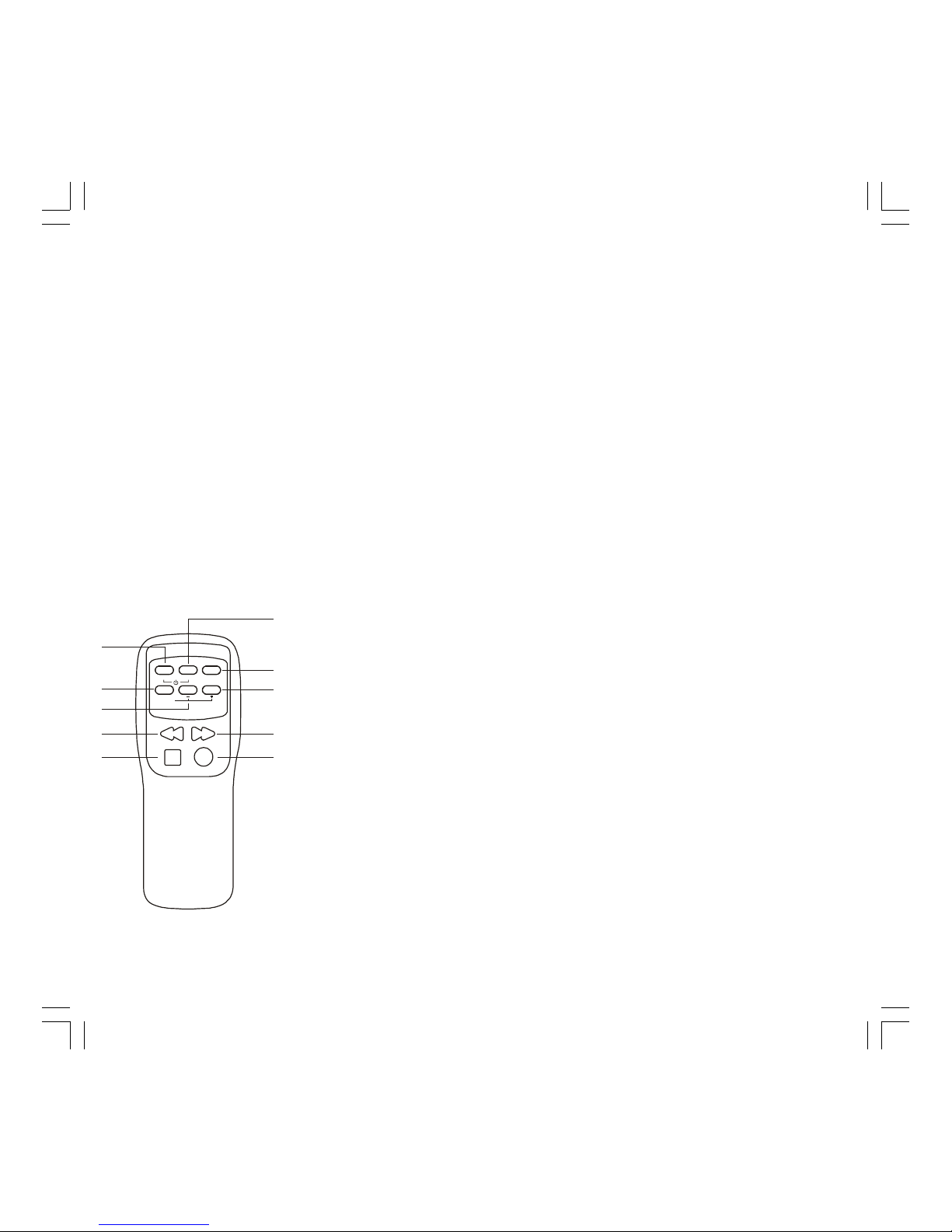

1 LCD : Power On / Off Button for the MM850 monitor
2 VCP : Power On / Off Button for an Optional Audiovox VCP
3 SOURCE : Button for selection of AV1 and AUX
4 MENU/ENTER Button
5 – : Select Down Button
6 + : Select Up Button
7 REW : ........Rewinds Tape
8 FWD : ........ Fast Forwards Tape
9 STOP : ........Stops Tape
10 PLAY : ........ Plays Tape
REMOTE CONTROL UNIT BUTTONS CONTROLS
1287264.P65 11/2/2004, 9:48 AM9
10 MM850
PICTURE ADJUSTMENT
When watching the program, the quality of the picture can be adjusted to your
preference.
Press the MENU button, the main menu
will appear. Then press the UP or DOWN
button to select from picture, source or
display off. Press the MENU button again
to select the item. For example: Press the
MENU button, highlight PICTURE using the UP or DOWN buttons. Press the MENU
button to enter the picture adjustment menu. The PICTURE menu will appear,
highlight the item you want to adjust using the UP or DOWN buttons and press the
MENU button to enter. Then press the UP or DOWN button to adjust the selected
item.
Description of Adjustment Items:-
Item Press DOWN button Press UP button
To darken the picture
Decrease the contrast
for soft color
To decrease the color
intensity
Increase the greenish
skin tones
To brighten the picture
Increases the picture
contrast for vivid color
To increase the color
intensity
Inceases the redish skin
tones
To restore the factory settings, select RESET and press the UP or DOWN
button. All of the picture adjustments (BRIGHTNESS, CONTRAST, COLOR and
TINT) will return to the factory settings.
CONTRAST
COLOR
TI NT
RESET
BRIGHTNESS
32
32
32
00
CONTRAST
COLOR
TI NT
RESET
BRIGHTNESS
32
32
00
32
32 BRIGHTNESS
32 BRIGHTNESS
MENU
SOURCE
DISPLAY OFF
PI CT URE
MENU
SOURCE
DISPLAY OFF
PI CT URE
BRIGHTNESS
CONTRAST
COLOR
TINT
1287264.P65 11/2/2004, 9:48 AM10
