Audiovox VOD 808 Bedienungsanleitung

VOD705

ELECTRONICS CORP.

128-6702

POWER EJECT REV PLAY FWD STOP

CHANNEL

AUTO

PROGRAM SOURCE

SELECT PICTURE

SELECT VOLUME

ON OFF AUTO

INPUTAUDIO

VIDEO

HEADPHONES

VOD808

8” LCD OVERHEAD

TV/MONITOR WITH

DVD PLAYER

128-6702

2 of 32

-2-

Warnings

!Do not use any solvents or cleaning materials when cleaning the video monitor.

!Donotuseanyabrasivecleaners,theymayscratchthescreen. Useonlyalightlydampenedlintfreeclothtowipe

the screen if it is dirty.

!Lock the LCD screen in the fully closed position when not in use.

!Before putting on headphones always adjust the volume setting to the lowest position.

!Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome

lights, if left on, can drain the vehicle’s battery.

!Do not put pressure on the screen.

!Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Television Reception

This entertainment system is designed primarily for viewing prerecorded movies or playing video games. Television

reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal

strength.Televisionviewinginastationaryvehiclewillresultinanimprovement,butmaystillbemarginalduetosignal

strength. The quality of the picture will not be consistent with home TV reception. Reception may be affected by

weather and distance from TV station. A weak signal may cause the picture to roll, be snowy, or cause some color

loss.

IMPORTANT

AnLCDpaneland/orvideomonitormaybeinstalledinamotorvehicleand visible to the driver if the LCD panel or videomonitor

is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used

fortelevisionreception,videoorDVDplay, the LCD panelor video monitor must be installed so that these features will only

functionthenthe vehicleis in‘park’orwhenthe vehicle’sparking brakeisapplied.

AnLCD panel or video monitor usedfortelevision reception, video or DVD playthatoperateswhen the vehicle is in gearor

whentheparkingbrake is notapplied, must be installedtothe rear of the driver’sseat where it will not be visible,directlyor

indirectly,to the operatorof the motorvehicle.

128-6702

3 of 32

-3-

Congratulations on your purchase of the Audiovox

VOD808DVDPlayerwithDrop-DownVideoMonitor.

TheVOD808 has been designedtogive you and your

familymany yearsof videoentertainment in themobile

environment. Please read the directions that follow

to familiarize yourself with the product and to ensure

that you obtain the best results from your equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

· 8 Inch (4:3) TFT (Thin Film Transistor) Active

Matrix LCD (Liquid Crystal Display) Monitor

· Built-in DVD Player

· Built-in TV Tuner

· AVI Input

· AUX (Game/Camcorder) Input

· OSD (On Screen Display) for Control of Picture

Quality and Functions

· Five-Frequency FM Modulator (remote control)

with OSD for Frequency Display

· Dual Channel Infrared Transmitter for IR

Wireless Headphones

· Headphone / Speaker Amplifier

· Headphone Jacks

· Forward and Side Remote Sensor

· Dome Lights with Switch

· Backlit Controls for Low Light Operation

· Full Function Remote Control

128-6702

4 of 32

-4-

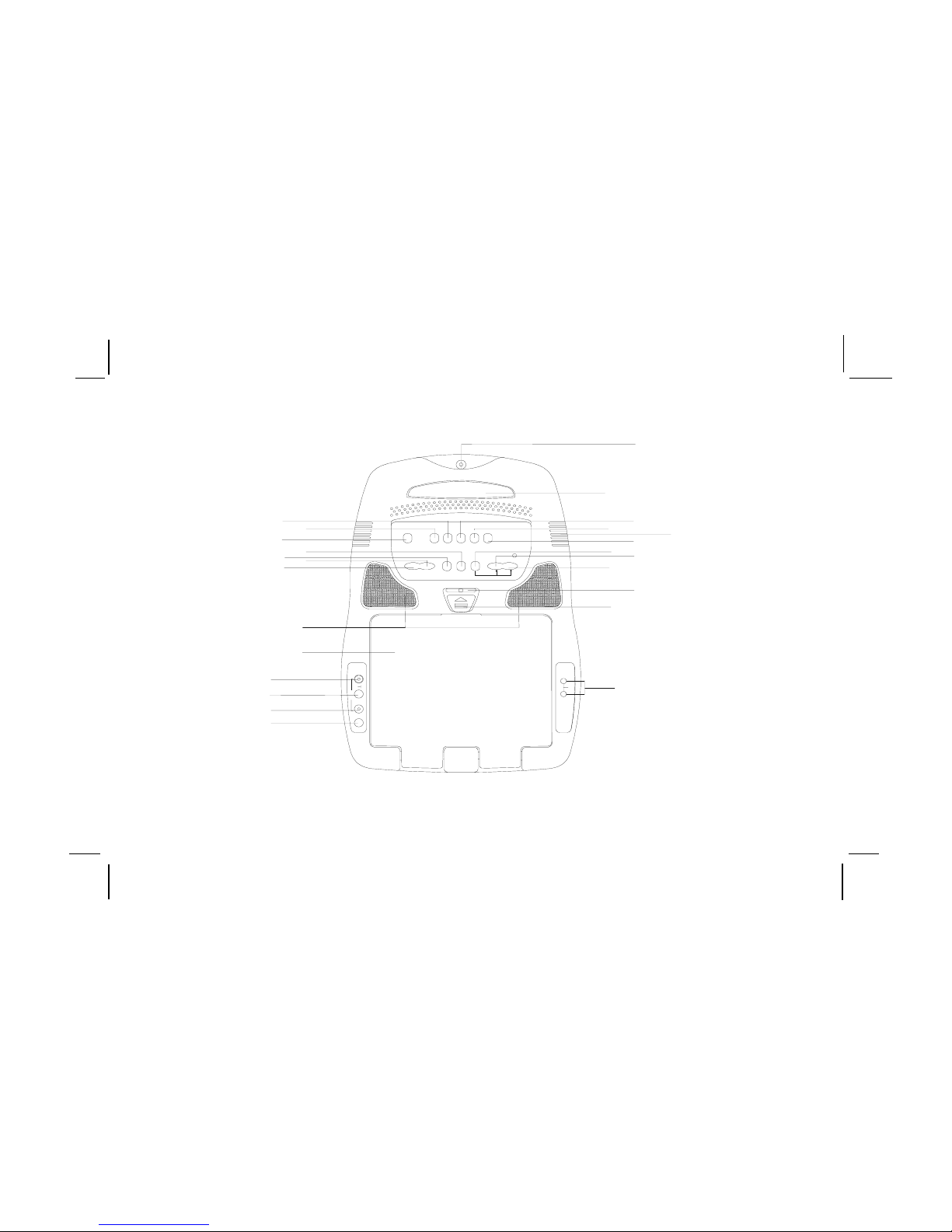

Controls and Indicators Diagram

Note : Audiovox

recommendsthe use of

the Audiovox HP275

Headphoneswhenusing

wiredheadphones.

POWER EJECT REW PLAY F.F STOP

CHANNEL

AUTO

PROGRAM SOURCE

SELECT PICTURE

SELECT VOLUME

ON OFF AUTO

INPUT

AUDIO

HEADPHONES

VIDEO

425

17 16

15 14

13 12

Figure 1

VDW

128-6702

5 of 32

-5-

Main Function Descriptions

1. DVD disc insertion slot.

2. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote control to

operate the VOD808 and to control other accessories in the system.

3. PLAY ( ) Button – This button is used to enter the play mode.

4. FWD ( ) Button – Allows the user to search in a forward direction at 2, 4, 6 and 8 times the normal speed.

5. STOP ( ) Button - Pressing this button once will stop playback at the current position; pressing this button

twice will return to the beginning of the disc.

6. PICTURE SELECT Button –Eachtimethisbuttonispressed,theonscreenpictureadjustmentdisplaycyclesthrough“adjustment

bars” for BRIGHTNESS, CONTRAST, COLOR, and TINT. Once the desired adjustment bar is displayed, use the VOLUME UP/

DOWNbuttonstoadjustthesetting.Thedisplaywillautomaticallyturnoffifnoadjustmentsaremadewithin6seconds,orifanyother

buttonisdepressed.

7. VOLUME DOWN (-) Button – Use this button to decrease the volume level of the headphone jacks. It is also to

make picture adjustments in picture select mode.

8. VOLUME UP (+) Button – Usethisbuttontoraisethevolumeleveloftheheadphonejacks.Itisalsousedtomakepicture

adjustmentsinpictureselectmode.

Note:Thesebuttons will notaffectthevolume ofwirelessheadphonesorthe wired

RFmodulator.Whenusingthesedevicesthevolumemustbeadjustedwiththewirelessheadphonevolumecontrolorwith

yourradio’svolumecontrol(seepage16,WirelessHeadphones, orpage17, WiredFMModulator).

9. Three position Dome Light Switch

•Auto – Automatically switches on the dome lights in conjunction with the vehicle’s interior illumination.

•Off – The dome lights will not turn on in this position.

•On – Turns on the dome lights.

128-6702

6 of 32

-6-

10.Screen Release – Moves in direction of the arrow to release the drop down screen.

11.REV ( ) – Allows the user to search in a backwards direction.

12.Eject ( ) Button – Ejects Disc.

13.Power Button – Bright red when system is on dim when off.

14.Source Select (TV,AV1, AUX, DVD).

15.TV Auto-program – Allows the user to scan and program active TV stations into memory.

16.Channel Up ( ) Button – Use this button to increase the channel number to the desired number.

17.Channel Down ( ) Button – Use this button to decrease the channel number to the desired number.

18.Dome Lights – provide additional interior illumination.

19.Drop Down LCD Panel.

20.Auxiliary Audio Right Input.

21.AuxiliaryAudio Left Input.

22.Auxiliary Video Input.

23.Side Remote Sensor Eye –

Allows the remote control to operate the VOD808 OSD (On Screen Display), control

volume to wired headphone jacks and control the other accessories.

Note: Audiovox recommends the use of the Audiovox HP275 Headphones when using wired headphones.

24.Headphone Jack - Allows the use of wired headphones with a 1/8” plug for listening to video program audio.

25.VOD808 Ventilation Opening

128-6702

7 of 32

-7-

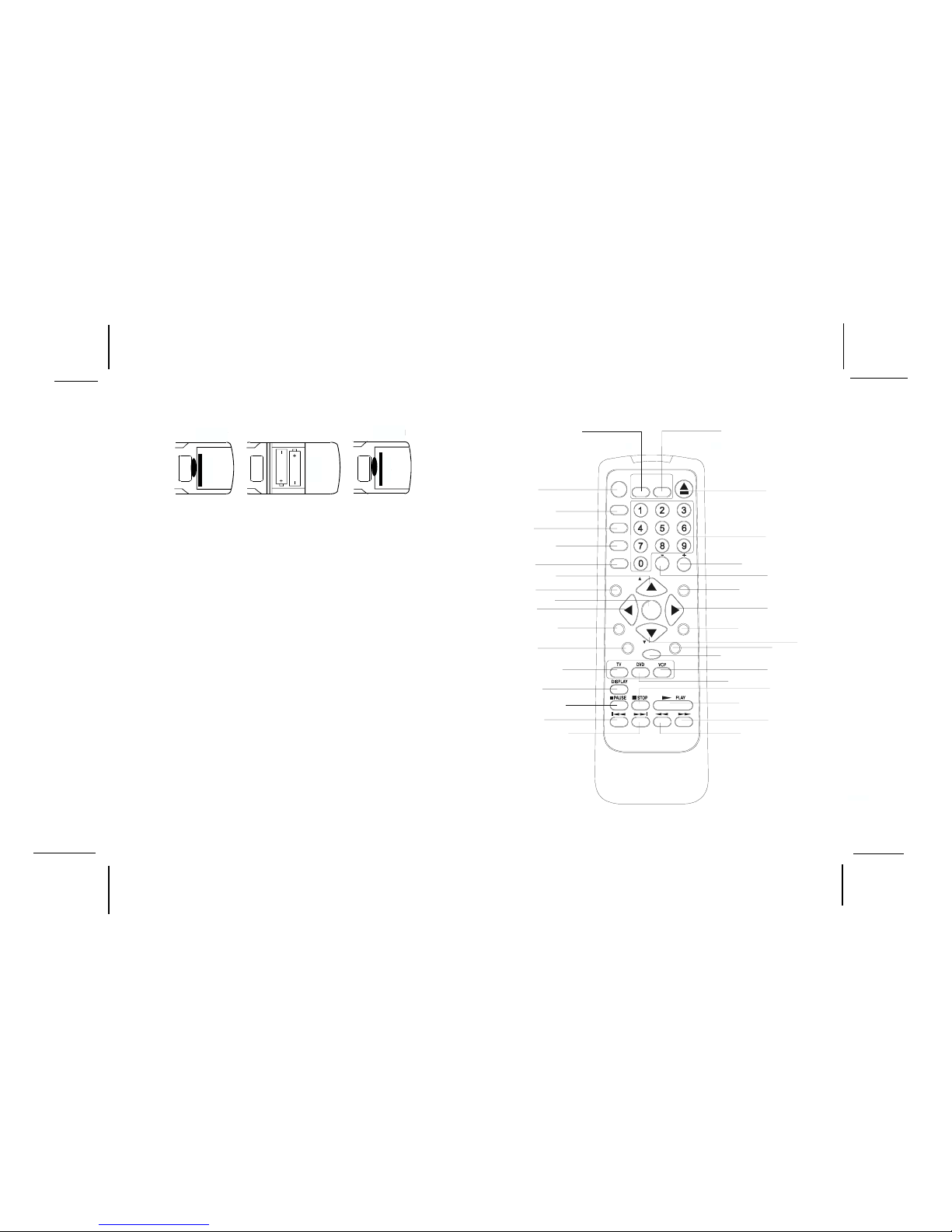

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the VOD808 and

Audiovox VCP’s. It is not a universal remote control

and will not control equipment from other

manufacturers.

POWER

ON/OFF

SELECT

EJECT

SOURCE

AUTO

ERASE/

RETURN

A-B REPEAT

SETUP

PIX

ENTER

FMTRANSMITTER

MEMORY

SKIP/

WRITE VOL

MUTE CH

30 29

26 25

23 22

21 20

128-6702

8 of 32

-8-

DVD Function Descriptions

*Function control is available on the unit and the remote control.

1. POWER Button*

Press this button to turn the VOD808 on. Press the button again toturn the VOD808 off.

2. SOURCE Button*

Video signals from video equipment connected to the audio / video inputs can be displayed on the monitor by

pressing this button. Each time the button is pressed, the audio / video source will change the sources: DVD,

TV,AV1 andAUX.

3. AUTO MEMORY Button*

When the AUTO MEMORY button is pressed, all channels are searched and channels that are detected with

signalsofsufficientlevelsareautomaticallystored. Please refer to page 2 for more information on TV reception.

4. SKIP/SEARCH Button

This button selects between SKIP and SEARCH mode. In “SKIP mode” the TV tuner will tune and stop on

channels that are programmed into memory when CHANNEL UP/DOWN buttons are used. When the SKIP

mode is disable, the TV will stop on all active channels.

5. ERASE/WRITE Button

While tuned to a channel, pressing this button will store or erase the channel from memory. The stored channel

numbers are displayed in “GREEN” on the LCD display screen, and the erased channel numbers are displayed

in “RED”.

128-6702

9 of 32

-9-

6. Channel Up ( ) Button

Use this button to increase the channel number to the desired channel and to scroll upward in menu options.

7. MUTE Button

Press this button to mute the audio.

Pressing the button again restores sound to the previously set level.

8. ENTER Button

Used to implement setting selected.

9. LEFT ( ) Button

Allows the user to shift left in the menu options.

10. MENU Button

Allows the user to access the main menu.

11. RETURN Button

Allows the user to return to the menu while PBC on.

Note:ThisfunctiononlypresentonVCD2.0.

12. TV Mode Select Button

Switches certain function keys on the remote control for TV functions.

128-6702

10 of 32

-10-

13. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER

Twice Display current SUBTITLE

3 times DisplaycurrentAUDIOlanguage &channel

4 times Display SURROUND current status

5 times DisplaycurrentANGLE

6 times Display A-B current status

7 times Display REPEAT current status

8 times Display is turn off

ForTitle&Chapter,use cursor buttons to do title/chapter selection, then press Enter buttontoimplementtheselection.

For Subtitle, Audio, Surround, Angle, A to B & Repeat, press Enter key repeatedly to change the options. These options

mayvaryfromdiscto disc.

14. PAUSE ( ) Button

Allows the user to pause the playback.

15. PREVIOUS ( |

) Button

Allows the user to return to the previous chapter or track.

16. NEXT ( | ) Button

Allows the user to skip to the next chapter or track.

Andere Handbücher für VOD 808

Inhaltsverzeichnis

Andere Audiovox Auto-Videosystem Handbücher

Audiovox

Audiovox MMDV70CB Bedienungsanleitung

Audiovox

Audiovox VODEXL10 A Bedienungsanleitung

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Bedienungsanleitung

Audiovox

Audiovox VOD8512 S Bedienungsanleitung

Audiovox

Audiovox VOD85 - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox MMD7HRPKG - Movies2Go - DVD Player Bedienungsanleitung

Audiovox

Audiovox VE640 - VE - 640 Bedienungsanleitung

Audiovox

Audiovox VOD86 - LCD Overhead Monitor Bedienungsanleitung

Audiovox

Audiovox VOD705DL - DVD Player With LCD Monitor Bedienungsanleitung

Audiovox

Audiovox Movies2Go AVXMTGHR1D Bedienungsanleitung

Audiovox

Audiovox VOD285S - Dual LCD Monitors Bedienungsanleitung

Audiovox

Audiovox 50-0311x-015 Series Bedienungsanleitung

Audiovox

Audiovox MMD85 - 8.5 Inch Dropdown Video Monitor Bedienungsanleitung

Audiovox

Audiovox LCM1042TV Bedienungsanleitung

Audiovox

Audiovox AVXMTG13UA Bedienungsanleitung

Audiovox

Audiovox VOH8512 Bedienungsanleitung

Audiovox

Audiovox PAV1510DTV Handbuch

Audiovox

Audiovox MVP200 Kurzanleitung

Audiovox

Audiovox VOD1021 Bedienungsanleitung

Audiovox

Audiovox VOD850 - Car - Overhead LCD Monitor Bedienungsanleitung

Audiovox

Audiovox VOH641A Bedienungsanleitung

Audiovox

Audiovox VBP4000 - VBP 4000 DVD Player Bedienungsanleitung

Audiovox

Audiovox MM850 Bedienungsanleitung

Audiovox

Audiovox MM850 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
