Audiovox D1210 Bedienungsanleitung
12” LCD TV/Monitor and DVD Player
D1210
Owner’s Manual
A. Introduction
Congratulation for selecting this multi-media system, which
features a 12” LCD TV/Monitor and DVD/MP3/CD Player. It
utilizes the latest state of the art electronics and is designed for
use in home, offices, hotels and vehicles. The unit is compact
so that you can take it with you anywhere and is designed for
easy installation. Please read all the instructions in this manual
to assure proper installation and best equipment performance.
B. Cautions and Warnings
1. Read Instructions — All the safety and operating instruc-
tions should be read before the product is operated.
2. Retain Instructions – The safety and operating instructions
should be retained for future reference.
3. Heed Warnings – All Warnings on the product and in the
operation instructions should be adhered to.
4. Follow Instructions – All Operating and user instructions
should be followed.
5. Cleaning – Unplug this product from the wall outlet before
cleaning. DO NOT use liquid cleaners or aerosol cleaners.
Use damp cloth for cleaning.
6. Attachments – DO NOT use attachments not recommended
by the product manufacturer they may cause hazards.
7. Mounting – DO NOT place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to the
product. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer or sold with the product.
Any mounting of this product should follow the manufacture’s
instructions, and should use a mounting accessory recom-
mended by the manufacturer.
8. Heat – The Product should be situated away from any
source, such as radiators, heat registers, stoves or other
products (including amplifiers) that produce heat.
2
9. Water – DO NOT use this product near water. For example,
avoid placing it near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool,
etc…
10. Cabinet Slots – NEVER push objects or any kind into the
unit through the cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a fire or
electric shock. NEVER spill liquid of any kind on the prod-
uct.
11. Ventilation – DO NOT block any ventilation openings.
Install in accordance with manufacturer’s instructions. Slots
and openings in the cabinet and the back and bottom are
provided for ventilation, and to ensure reliable operation of
the product and to protect it from overheating. These open-
ings must NOT be blocked or covered. There should be at
least 10cm of space from these openings. The openings
should never be blocked by placing the unit on a bed, rug or
other similar surface. This product should NOT be placed in
a built-in installation such as a bookcase unless proper
ventilation is provided.
12. Grounding or Polarization – This product may be
equipped with a polarized alternating current line plug (a
plug having one blade wider then the other). This plug will fit
the power outlet only one way. This is a safety feature. If
you are unable to insert the plug fully into the outlet, try re-
versing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. DO NOT defeat
the safety purpose of the polarized plug.
13. Power – Cord Protection – Power supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them. Pay particu-
lar attention to cords at plugs, convenience receptacles, and
the point where they exit from the product.
3

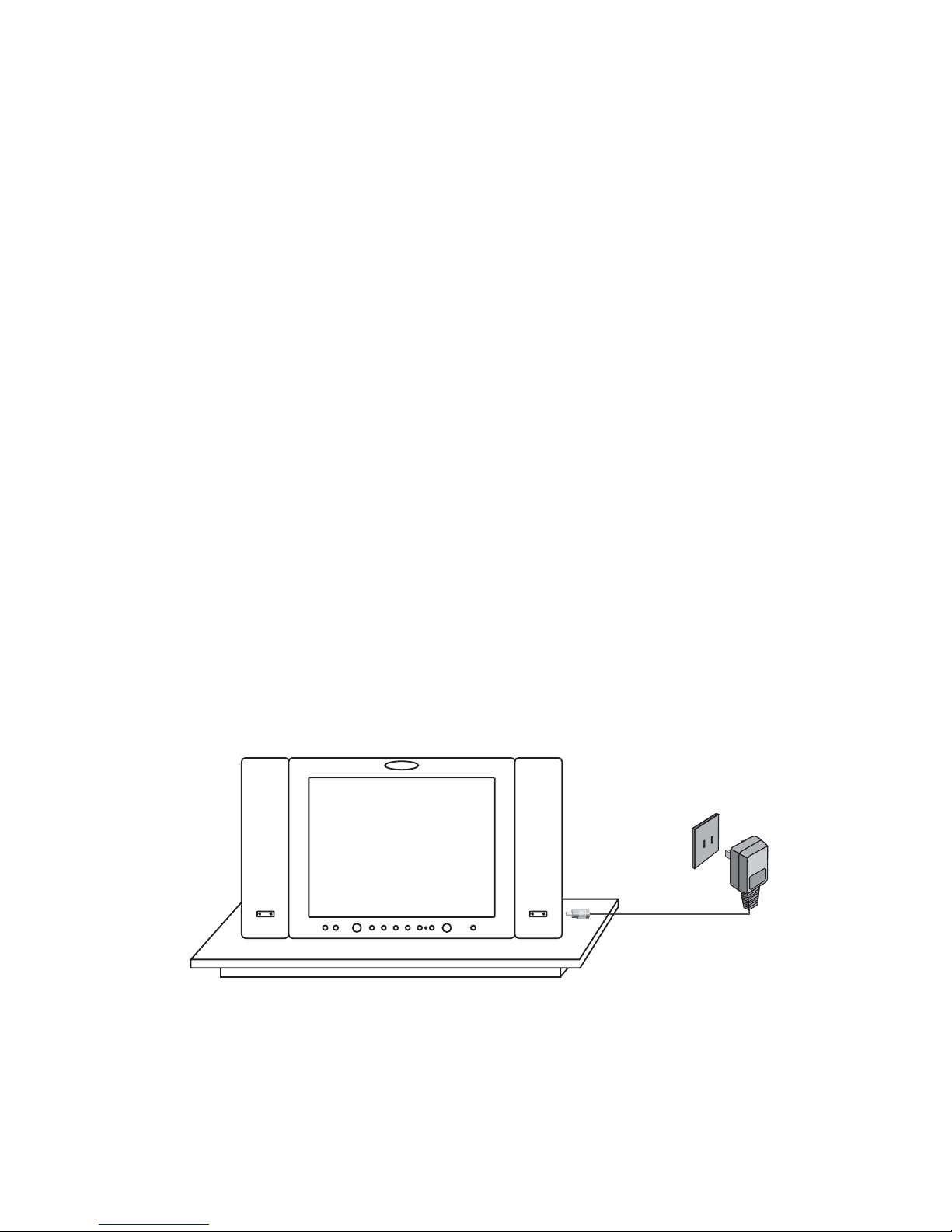

14. Power Sources – This product should be operated only
from the type of power source indicated on the rear panel. If
you are not sure of the type of power supply to your home
consult your product dealer or local power company.
15. Lightning – For added protection for this product during a
lightning storm, or when it is left unattended and unused for
a long period of time, unplug it from the outlet and discon-
nect the antenna or cable system. This will prevent damage
to the product due to lightning and power-line surges.
16. Power Lines – An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touch-
ing such power lines or circuits as contact with them might
be fatal.
17. Overload – DO NOT overload wall outlets, extension cords
or integral convenience receptacles as this can result in a
risk of fire or electric shock.
18. Damages Requiring Service – Unplug this product from
the wall outlet and refer servicing to qualified service per-
sonnel under the following conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally after following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation.
e. If the product has been dropped or damaged in any way.
f. When the product exhibits a distinct change in perfor-
mance – this indicates a need for service.
4
19. Replacement parts – When replacement parts are
required, be sure the service technician has used replace-
ment parts specified by the manufacturer or have the same
characteristics as the original part. UNAUTHORIZED
substitution may result in fire, electric shock or other haz-
ards.
20. Safety Check – Upon completion of any service or repair
to this product, ask the service technician to perform safety
checks to determine that the product is in proper operating
condition.
21. CAUTION – There is a danger of explosion if the battery is
incorrectly replaced. Replace only with the same or equiva-
lent type.
22. Important Information Regarding Use of Video Games,
Computer, Captions or other Fixed Image Displays.
The extended use of a fixed image program material can
cause permanent “Shadow Image” on the LCD Panel. The
Background image is viewable on normal programs in the
form of a stationary fixed image. This type of irreversible
LCD panel deterioration can be limited by observing the
following steps:
a. Reduce the brightness/contrast setting to a minimum
viewing level.
b. DO NOT display the fixed image for extended periods of
time.
c. Turn the power off when not in actual use.
23. Recycling – This product utilizes tin-lead solder, and
has a fluorescent lamp containing a small amount of mer-
cury. Disposal of these materials may be regulated in your
community due to environmental considerations. For dis-
posal or recycling information please contact your local
authorities, or the Electronics Industries Alliance: http://
www.eiae.org/
5
24. Safety Caution
The Lightning flash with the arrowhead symbol within an
equilateral triangle is intended to alert the user to the pres-
ence of uninsulated “DANGEROUS VOLTAGE” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk or electric shock to persons.
The Exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing instructions in the
literature accompanying the product).
25. Federal Communication Commission Information
(FCC)
This Equipment has been tested and found to comply with
the limits for a TV Broadcast Receiver, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. If this equipment
does cause or receive interference, which can be deter
mined by turning equipment off and on, the user is encour-
aged to try to correct the interference by one of the following
measures:
6
1. Reorient or relocate the TV antenna
2. Increase the separation between TV and other
equipment.
3. Connect TV into separate outlet from equipment.
4. Consult the dealer or an experienced radio/TV
technician for help
FCC Caution: Any changes or modifications not expressly ap-
proved by the party responsible for compliance could void the
user’s authority to operate this equipment
26. INSTALLATION
a. Receiver Location – Locate for comfortable viewing.
Avoid placing where sunlight or other bright light will fall
on the screen. Use of some types of florescent lighting
can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal com-
ponent failure. Keep away from areas of excessive heat.
To ensure optimum picture quality do not position mag-
netic equipment nearby.
b. Cable Equipment – The Video/Audio connection be-
tween components can be made with shielded video and
audio cable. For best performance, antenna cables
should utilize 75 Ohm coaxial shielded wire. Cables are
available from your dealer or electronic supply store.
Before you purchase any cables, be sure you know what
type of output and input connectors your various compo-
nents require. Also determine the length of cable you’ll
need.
c. Optimum Quality picture – Turn off florescent lamps
near the LCD and place in a location not exposed to
outdoor light.
7
27. DVD CAUTION: This unit employs a laser system. To
ensure the proper use of the unit, read this manual carefully
and keep it for future reference. To prevent direct exposure
to the laser radiation, do not open the cabinet. Invisible
laser radiation could be present when the cabinet is opened
or the interlocks are defeated. DO NOT stare into the laser
beams. Use of any controls, adjustments, or procedures
other than those specified herein may result in hazardous
radiation exposure!
a. Region Management Information – This Player is
designed to respond to the Region Management Informa-
tion recorded on DVDs, The region number of this player
is “1”. If the region number described on the DVD does
not correspond to the region number of this player, this
player cannot play this disc.
b. Dolby
Manufactured under license from Dolby Laboratories.
“Dolby” , “Pro Logic” and the double-D symbol are trade-
marks of Dolby Laboratories. Confidential Unpublished
Works © 1992-1997 Dolby Laboratories, Inc. All rights
reserved.
8
c. Macrovision
This product incorporates copyright protection technology
that is protected by method claims of certain U.S patents
and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized
by Macrovision Corporation. It is intended for home and
other limited viewing use only unless otherwise autho-
rized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
d. Note – Some DTS decoders which do not support DVD-
DTS interface may not work properly with the DVD/CD
Player.
e. Reference
1) Dolby Digital is a digital sound compression technique
developed by Dolby Laboratories, Inc. Supporting 5.1-
channel surround sound, as well as stereo (2 Channel)
sound, this technique enables a large quantity of sound
data to be efficiently recorded on a disc.
2) The Digital Theater System (DTS) is a 5.1-channel
surround sound system, which is widely used in movie
theaters around the world, It allows the bit rate to be
increased in order to provide good sound quality with-
out excessively compressing the data.
3) Linear PCM (LPCM) is a signal recording format used
in a CD. While a CD is recorded in 44.1 kHz/16 bit, a
DVD is recorded at 48 kHz/16 bit up to 96kHz/24 bit.
4) If you have a Dolby Pro Logic Surround decoder, you
will obtain the full benefit of Pro Logic from the same
DVD movies that provide fill 5.1-channel Dolby Digital
soundtracks, as well as from titles with the Dolby Digi-
tal mark
9
5) The digital audio output connector (optical) converts
electrical signals into optical signals (light) and trans-
fers them to an amplifier. These optical signals are
immune from electrical interference, and they also have
minimal effect on other equipment.
C. Contents
1. TV /DVD Combination Unit o w/Speakers
2. Coaxial Connector
3. Remote Control
4. AC to DC Adapter
5. Cig. Lighter Adapter
6. Wireless IR Headphones(2 pcs)
7. 3.5mm-RCA AV Cable
8. Storage Bag and Mounting Bag w/Mounting Straps
9. Owner’s Manual
D. Indoor Installation (Refer to Figure 1)
Swing up the rear metal stand and place the unit on a table or
other level surface. Plug one end of the AC to DC adapter into
the DC 12V input on the right side of the main unit, then plug the
other end into the 110V AC power receptacle.
Figure 1
Note: Detach the two speakers from the main unit, and only use
headphones or connect your Car Audio in the car.
10
Andere Handbücher für D1210
5
Inhaltsverzeichnis
Andere Audiovox LCD-Fernseher Handbücher
Audiovox
Audiovox FPE4707HR - 47" LCD TV Bedienungsanleitung
Audiovox
Audiovox FPE2706 Bedienungsanleitung
Audiovox
Audiovox FPE2000 Bedienungsanleitung
Audiovox
Audiovox FPE2006 Bedienungsanleitung
Audiovox
Audiovox FPE2006 Bedienungsanleitung
Audiovox
Audiovox FP2000 Bedienungsanleitung
Audiovox
Audiovox FP1500 - annexe 1 Bedienungsanleitung
Audiovox
Audiovox FPE3205 - 32" LCD TV Bedienungsanleitung
Audiovox
Audiovox FPE1505 Bedienungsanleitung
Audiovox
Audiovox PLV16081 Bedienungsanleitung
Audiovox
Audiovox FPE2607 - 26" LCD TV Bedienungsanleitung
Audiovox
Audiovox LCM0681TV Bedienungsanleitung
Audiovox
Audiovox FPE2006DV - 20" LCD TV Bedienungsanleitung
Audiovox
Audiovox D1210 Bedienungsanleitung
Audiovox
Audiovox FPE1705 Bedienungsanleitung
Audiovox
Audiovox D1210 Bedienungsanleitung
Audiovox
Audiovox FP1520 Bedienungsanleitung
Audiovox
Audiovox CTV-5040 Bedienungsanleitung
Audiovox
Audiovox FPE1909DVDC Bedienungsanleitung
Audiovox
Audiovox FPE1708DV - 17" LCD TV Bedienungsanleitung
